ZSE/ISE Series Digital Pressure Switch

Home / Products / Pneumatic Pressure Control Components / Digital Pressure Switch / ZSE/ISE Series Digital Pressure Switch

ZSE/ISE Series Digital Pressure Switch ZSE/ISE Series Digital Pressure Switch
  • ZSE/ISE Series Digital Pressure Switch
  • ZSE/ISE Series Digital Pressure Switch
Digital Pressure Switch

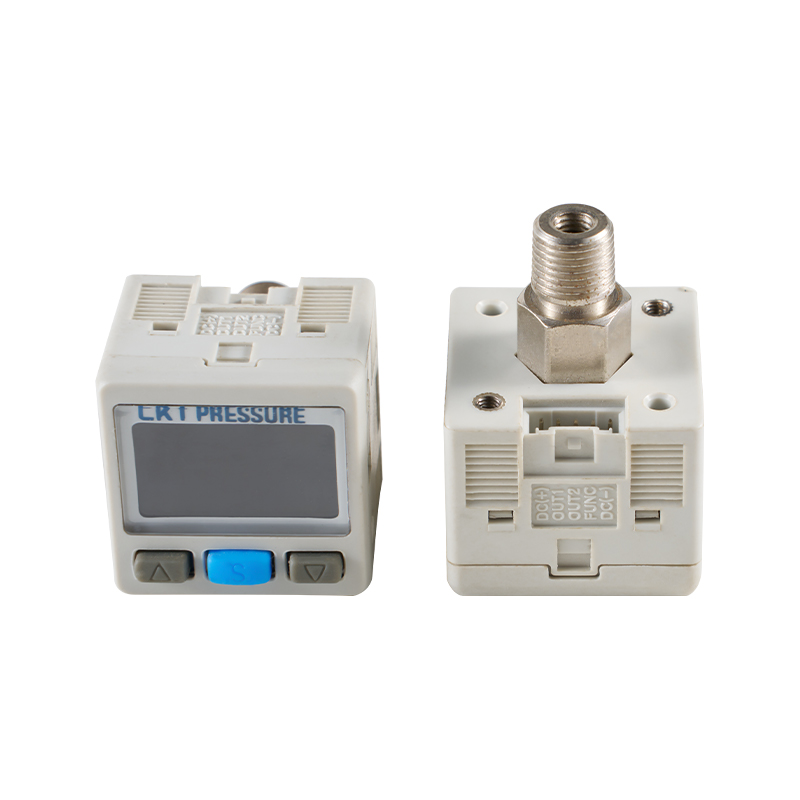

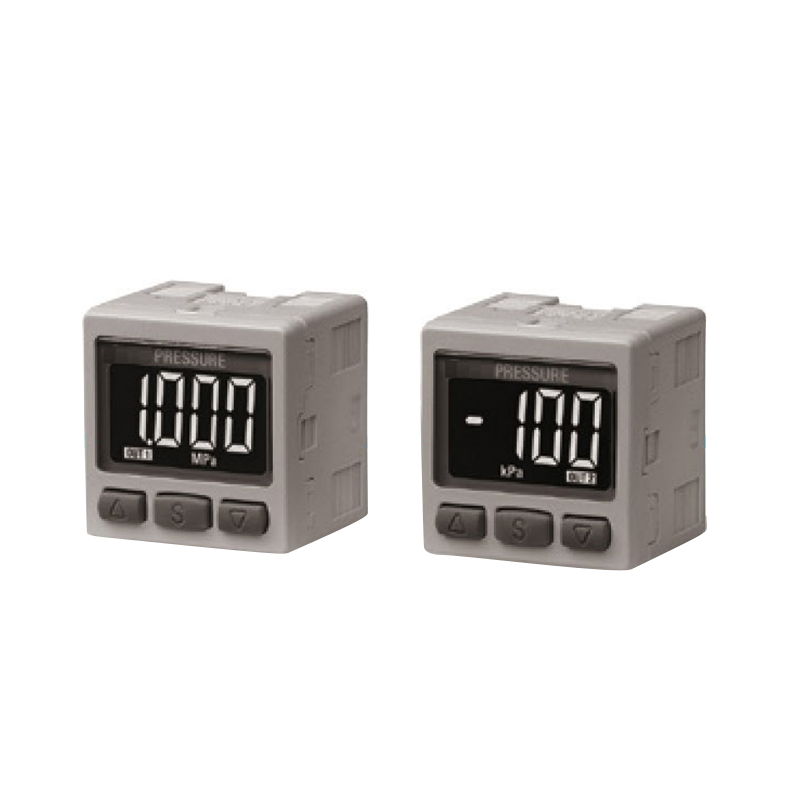

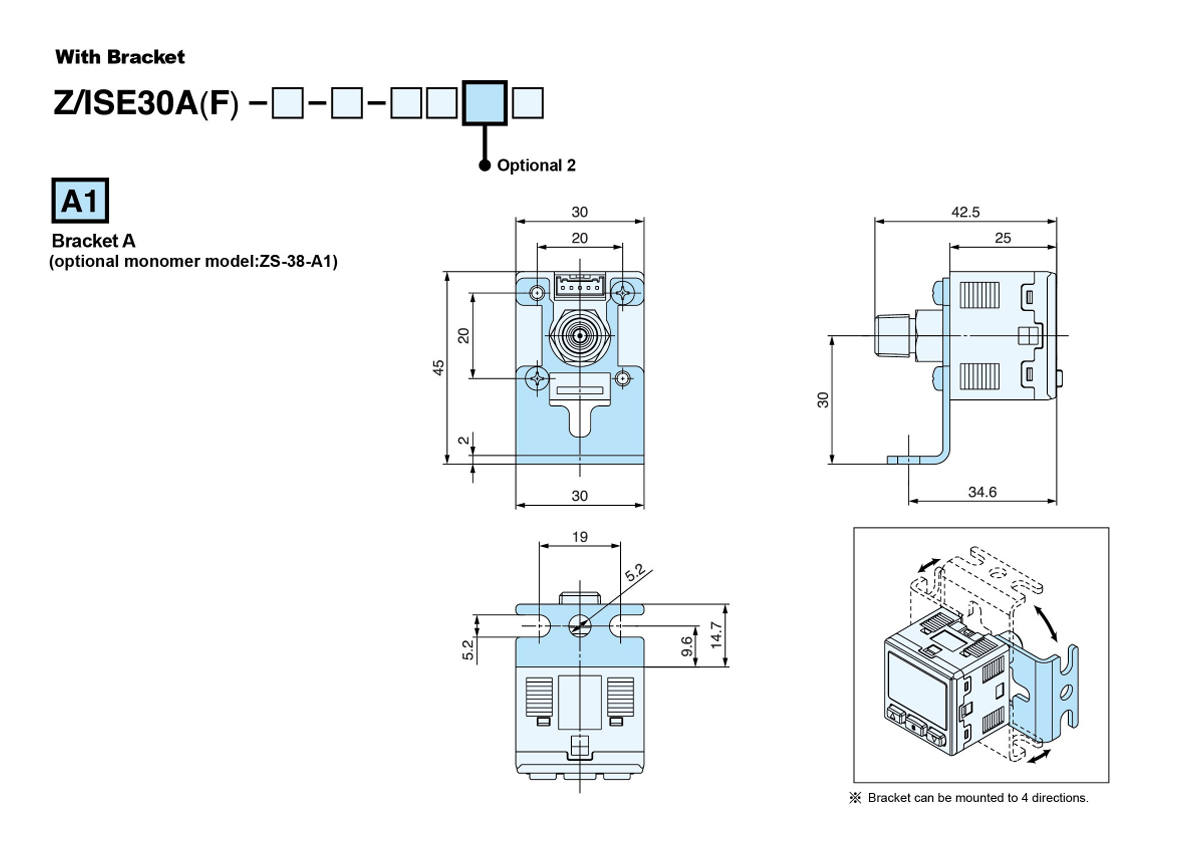

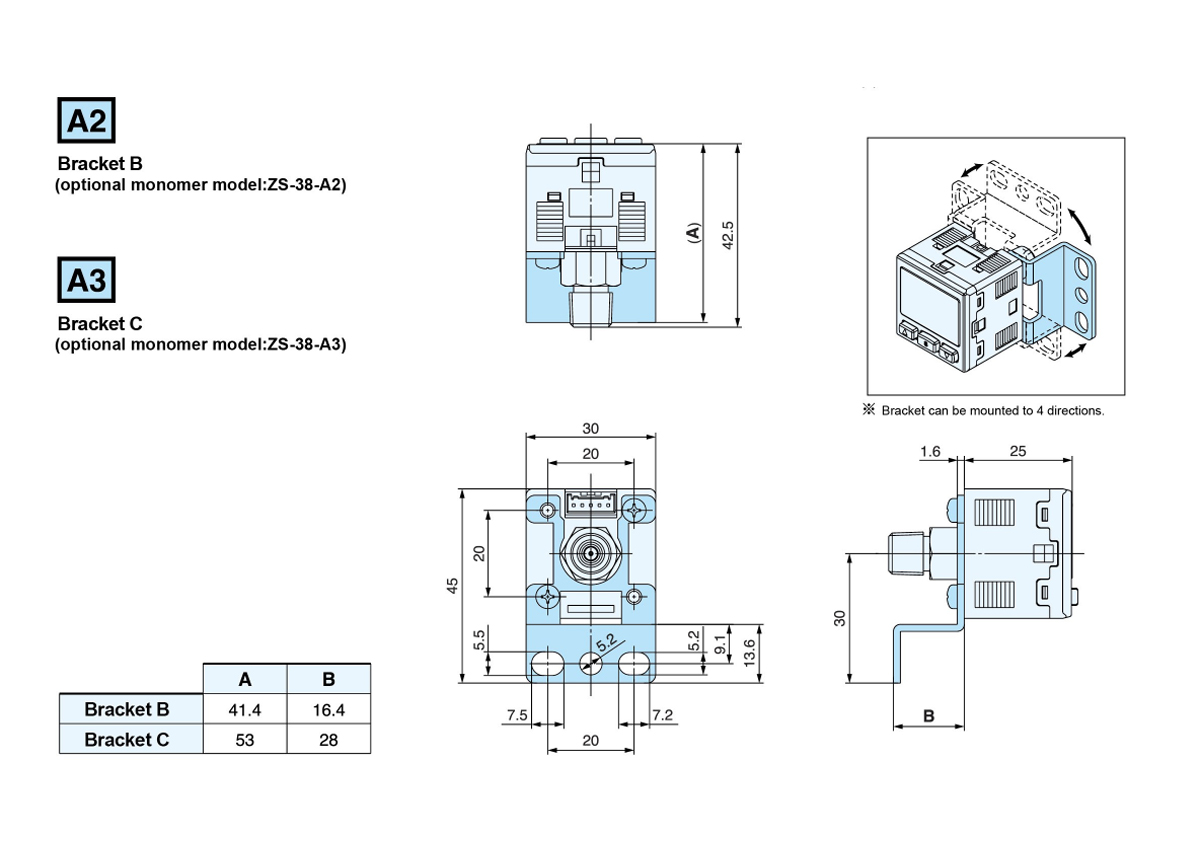

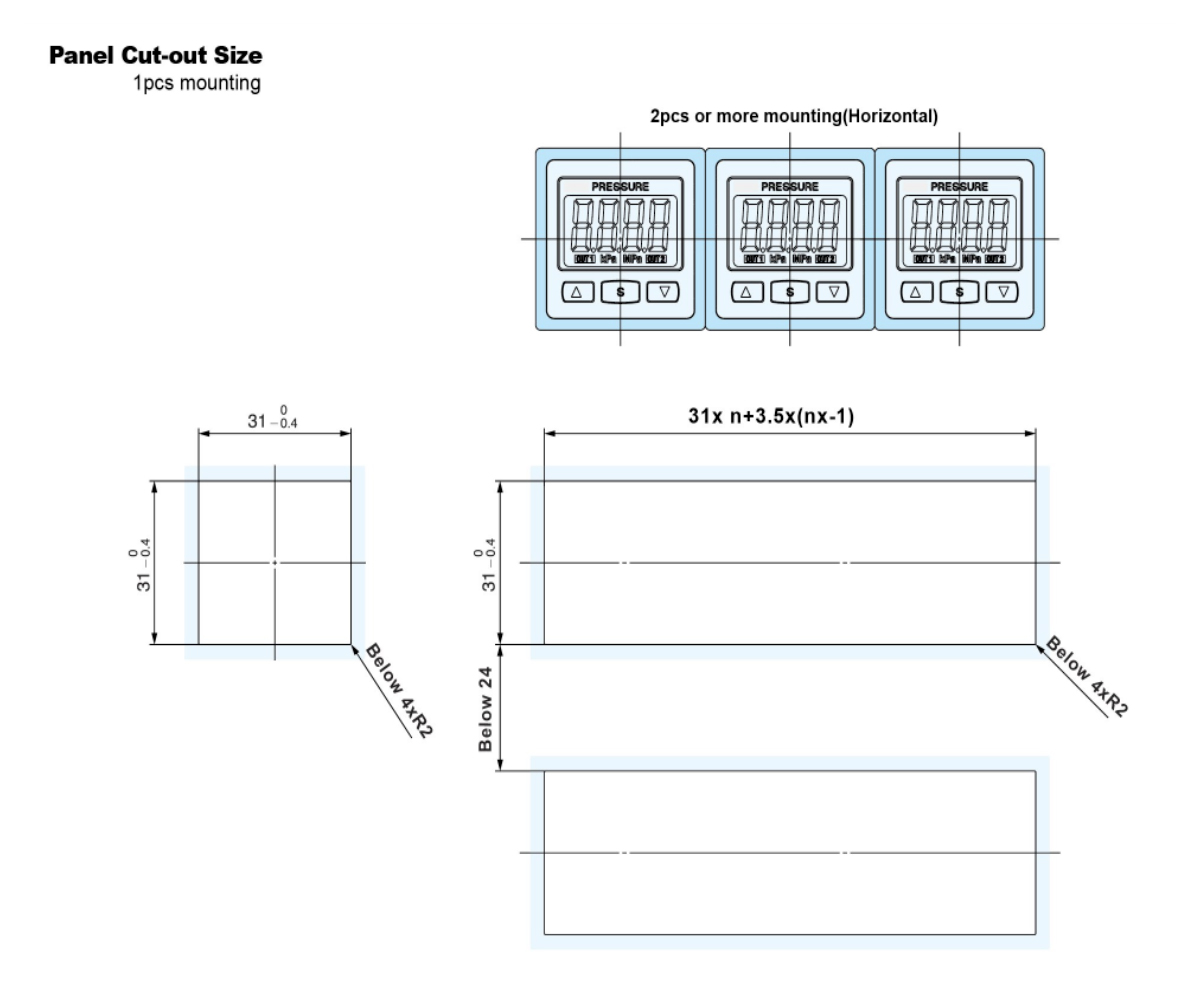

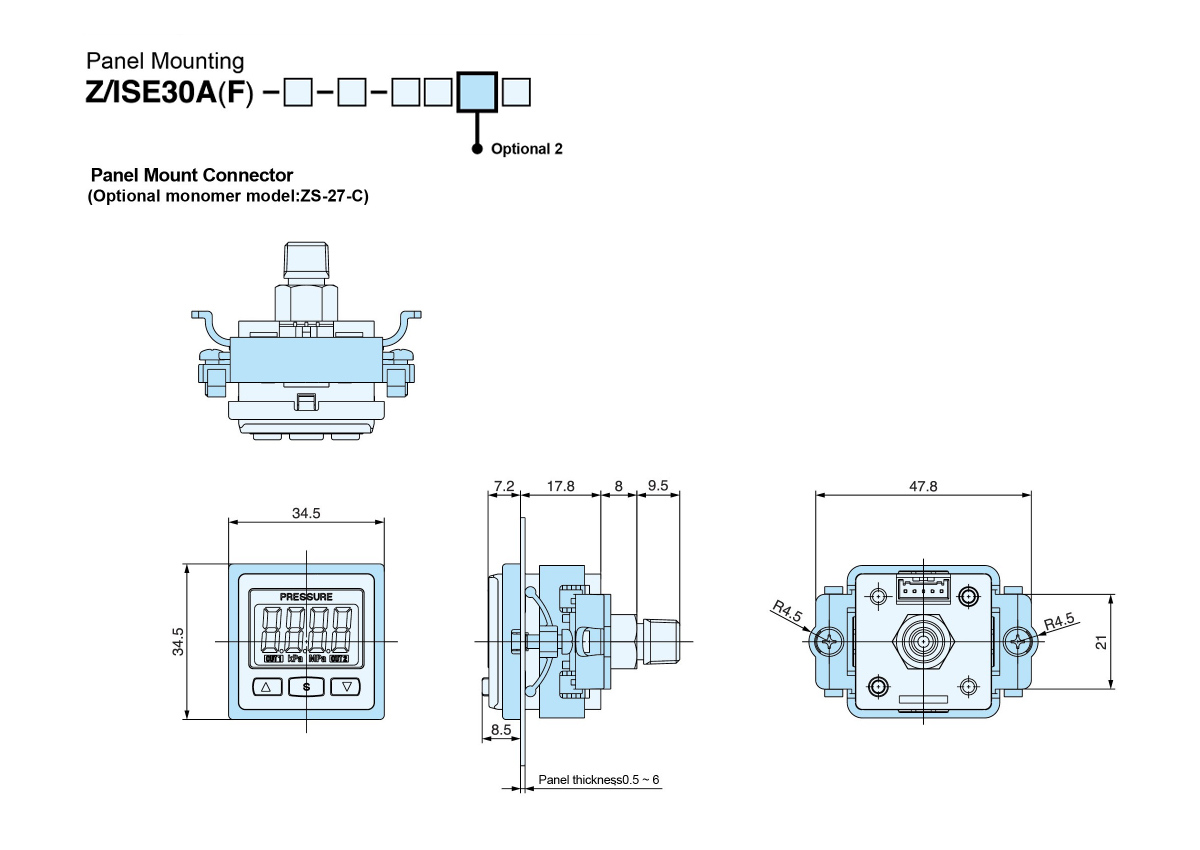

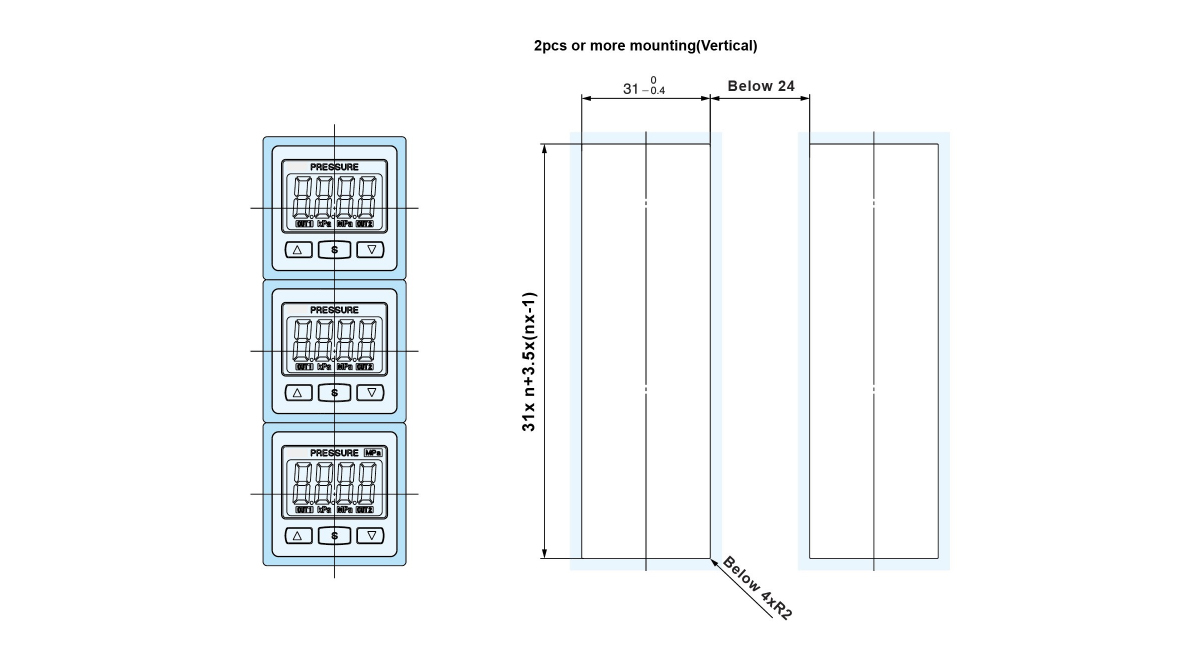

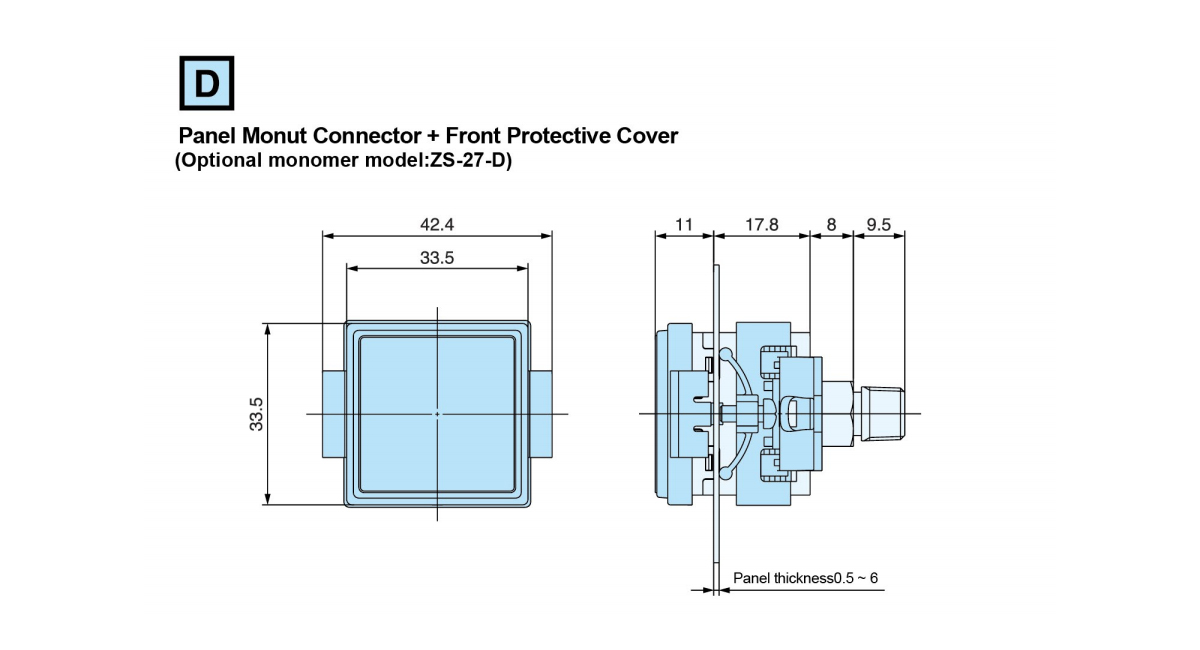

ZSE/ISE Series Digital Pressure Switch

ZSE/ISE Series Digital Pressure Switch provides digital pressure monitoring and control solutions. The core lies in its compact structure, wide positive/negative pressure coverage (ZSE focuses on vacuum, ISE focuses on positive pressure) and intuitive digital display (with status prompts). Supports fast setting, multiple output signals (switch/analog) and device interconnection (such as IO-Link), meeting the needs of industrial automation for accuracy, response speed and reliability.

•Digital display and control: intuitive digital screen, status visualization.
•Compact structure: extremely small thickness, saving installation space.
•Wide pressure coverage: ZSE (vacuum), ISE (positive pressure), covering common ranges in the series.
•Convenient setting: simple and efficient parameter adjustment.
•Multi-function output: NPN/PNP switch quantity, analog quantity (1-5V/4-20mA).
•Interconnection capability: supports communication protocols such as IO-Link.
•Industrial reliability: adapt to harsh environments.

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：No next article

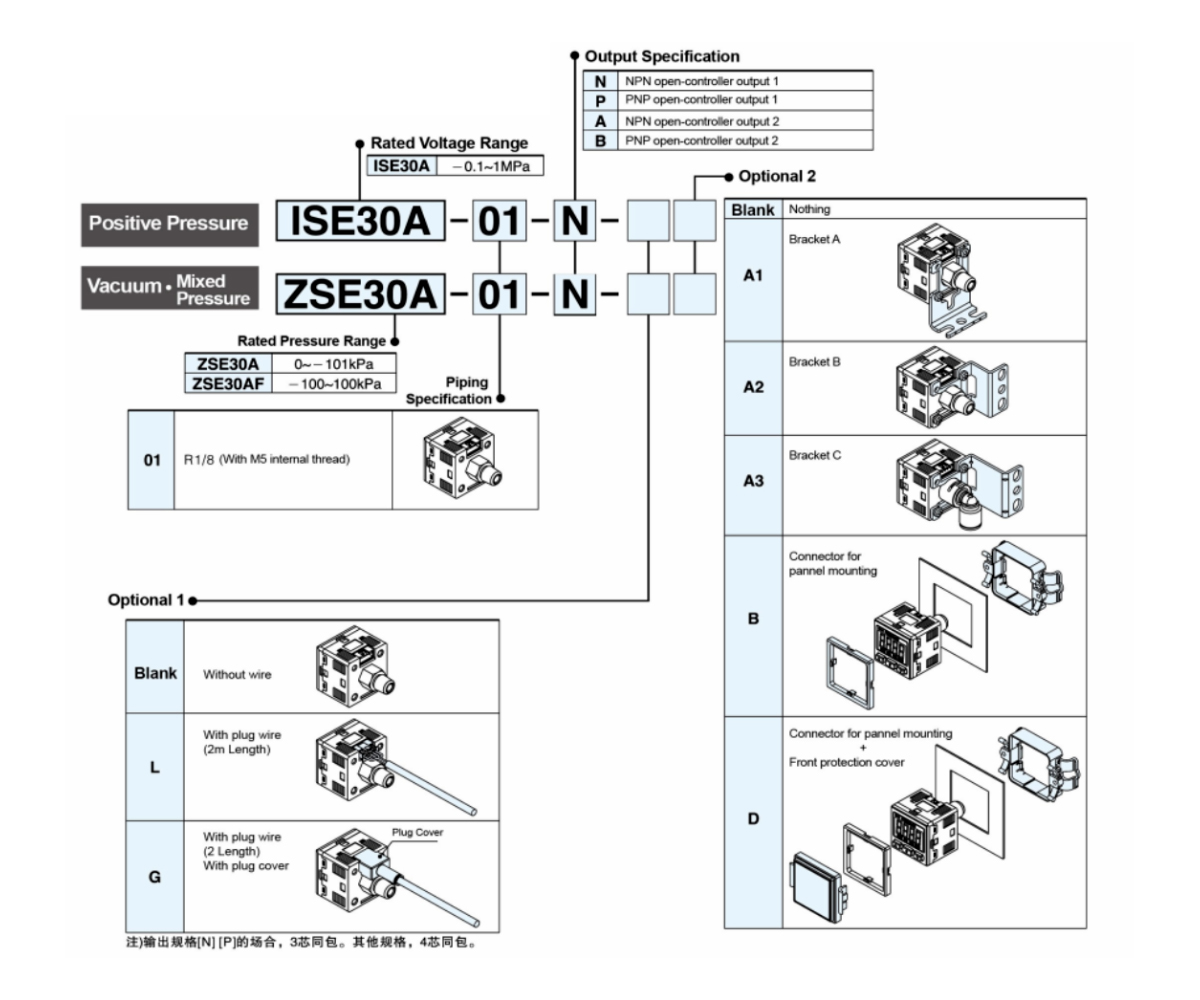

  • Model    ZSE30AF
    (Mixed Pressure)    		     ZSE30A           (Vacuum pressure)     ISE30A
    (Positive pressure)
    Rated Pressure Range -100.0~100.0kPa  0~-101kPa 0.0~1.000MPa
    Set Pressure Range -101.0~101.0kPa -101.3~10.0kPa  -0.100~1.000MPa
    Pressure Resistant 300kPa 1.5MPa
    Fluid Air,Non-corrosive,Non-flammability
    Pressure Unit Set Minimum Scale kPa 0.1 -
    MPa - 0.001
    kgf/cm² 0.001 0.01
    bar 0.001 0.01
    psi 0.01 0.1
    inHg 0.1 -
    mmHg 1 -
    Voltage 12 to 24V DC ±10%, ripple peak below 10%
    Consumption Current ≤40mA Below(No Load)

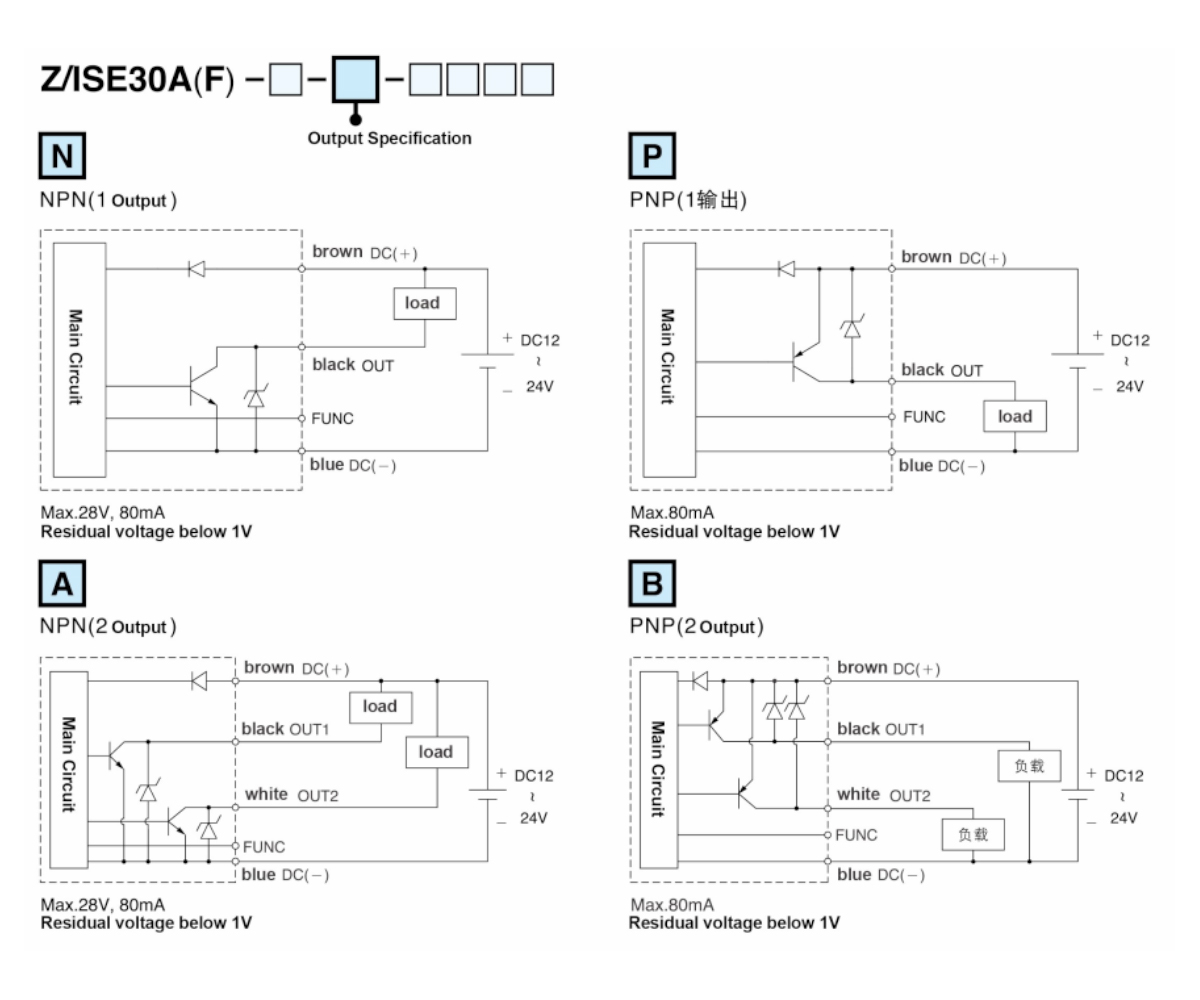

    Switch Output 2 NPN open-controller output         2 PNP open-controller output
    Max.Load current:125mA                Max.Load current:125mA
    Max.Supply voltage:30VDC              Max.Supply voltage:24VDC
    Internal pressure drop:1.5V below    Internal pressure drop:1.5V below
    Repeat Accuracy
         		 ±0.2%F.S. ±1digit Below
    Differential    Single Point  Setting Model Adjustable(*1)
     Differential Mode Window
     Window comparison mode
    Reaction Time ≤2.5ms(Function to prevent misoperation:25ms,100ms,250ms,
            500ms,1000ms,1500ms optional)
    Output Short Circuit Protection Yes

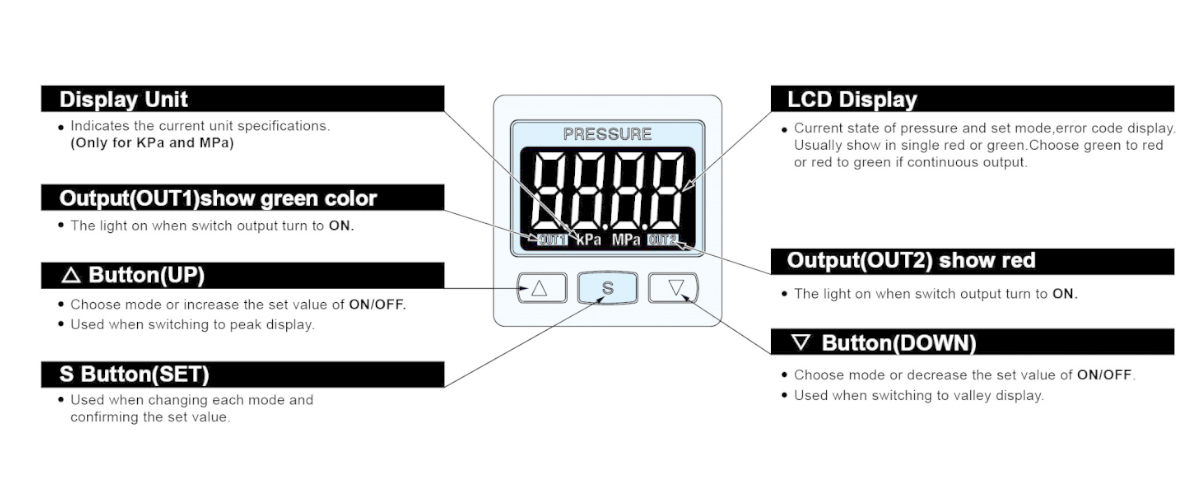

    Display 3 Colors(red/green/orange)display(Sampling rate:5times/second)
    Display Accuracy ≤±2%F.S. ±1digit(Ambient temperature:25±3℃)
    Action Indicator Light Orange color(1&2 indicator light)OUT1 OUT2
    Linear Analog Output
    [Voltage output(*2)]    		 Output voltage:1~5V≤±2.5%F.S. (Rated pressure range)
    Linearity:≤±1%F.S.
    Output impedance about 1kΩ
    Linear analog output
    [Voltage output(*3)]    		 Output current:4~20mA≤±2.5%F.S. (Rated pressure range)
    Linearity:≤±1%F.S.
    Maximum load impedance:300Ω(Voltage is 12V)
                         600Ω(Voltage is 24V)
    Minimum load impedance:50Ω
    Environmental
    Resistant    		 Protection level IP40
    Ambient temperature Action:0~50℃,Save:-10~60℃(No dew or Unfrozen)
    Ambient humidity Action and Save:35~85%RH(No dew)
    Pressure resistant 1000V AC 1minute(Between leads and plastic shell)

    Insulation resistance    		 500MΩ Above(500V DC)(Between leads and plastic shell)
    Vibration resistant Complex amplitude 1.5mm,Every minute 10Hz~55Hz~10Hz,2 hours in every direction(X,Y,Z)
    Shock proof 100m/s²(10G)3 Hours in every direction(X,Y,Z)
    Temperature characteristics     ≤±2.5%F.S.Compare reference temperature25℃(between0-50℃)

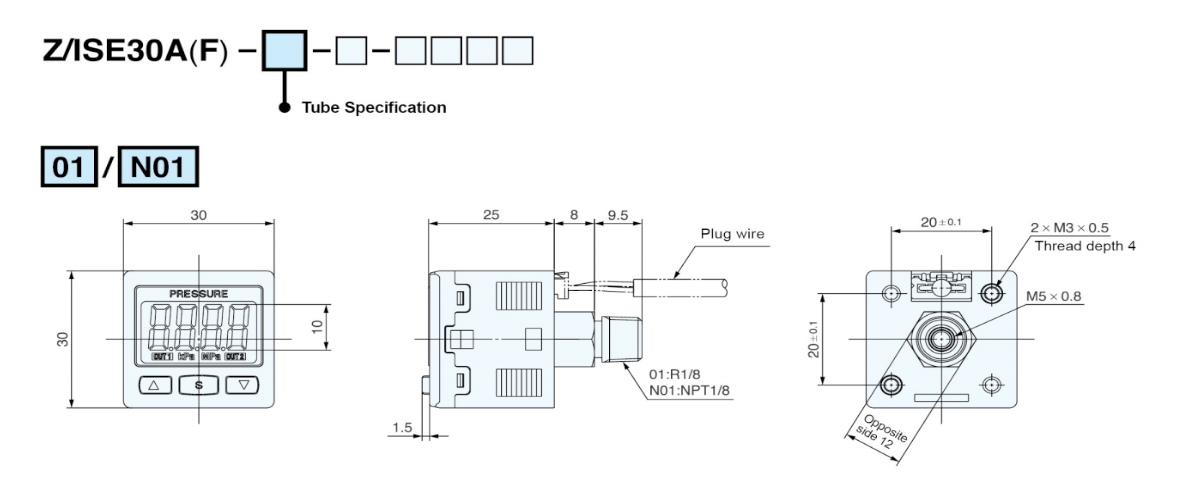

    Connection diameter     R1M:R1/8",M5;T1M:1/8”NPT,10-32UNF;G1M:G1/8",M5
    Wire specifications    Oil resistant PVC wire(0.15mm²)
    Weight About 80g(include 2meters wire)
    Note: 1. The single-point setting mode and window comparison mode can adjust the deviation of 1-8 digits.
     2. When selecting voltage output, there is no current output. Only one of the two output types can be selected.
     3. When selecting current output, there is no voltage output. Only one of the two output types can be selected.
