MHL2 Series (Parallel Opening and Closing Type) Wide Type Pneumatic Gripper

Home / Products / Air Cylinder / Pneumatic Grippers / MHL2 Series (Parallel Opening and Closing Type) Wide Type Pneumatic Gripper

MHL2 Series (Parallel Opening and Closing Type) Wide Type Pneumatic Gripper MHL2 Series (Parallel Opening and Closing Type) Wide Type Pneumatic Gripper
  • MHL2 Series (Parallel Opening and Closing Type) Wide Type Pneumatic Gripper
  • MHL2 Series (Parallel Opening and Closing Type) Wide Type Pneumatic Gripper
Pneumatic Grippers

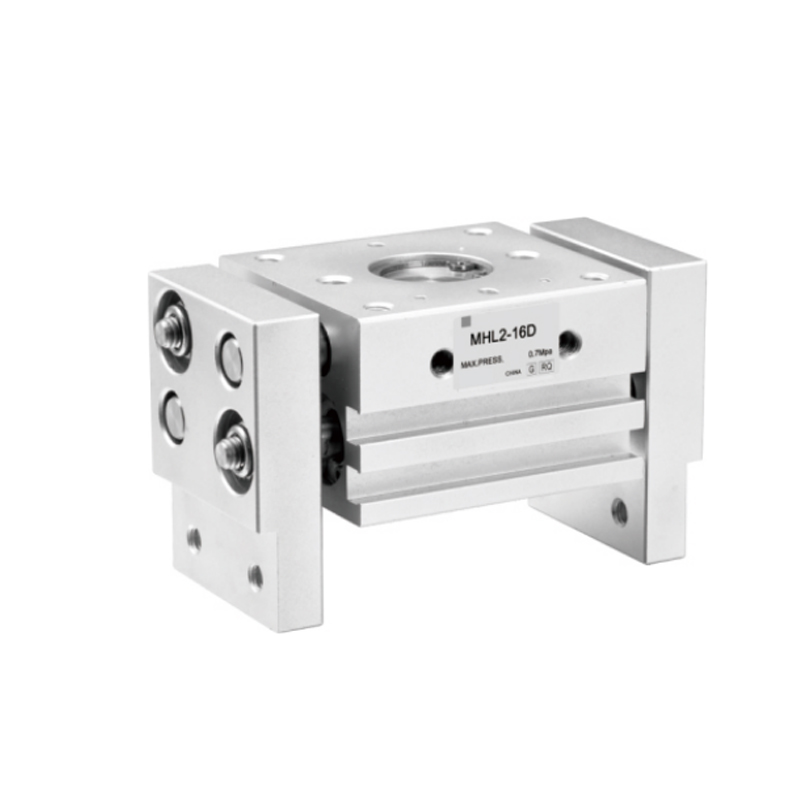

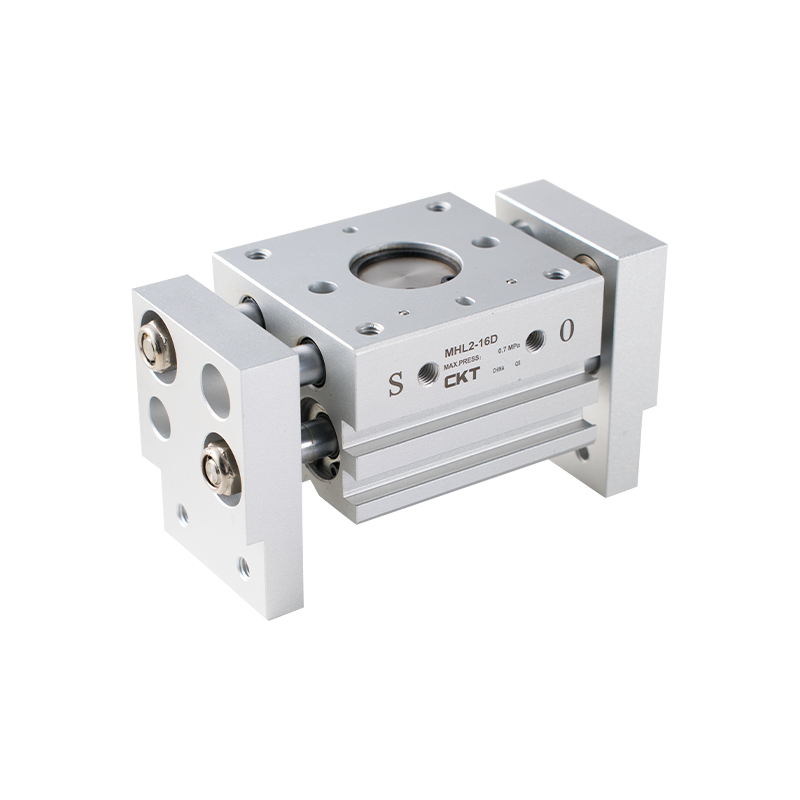

MHL2 Series (Parallel Opening and Closing Type) Wide Type Pneumatic Gripper

·Long finger stroke, suitable for clamping large objects
·Dual piston design can increase holding force
·Rack and pinion operation allows fingers to open and close synchronously
·Dust-proof design due to the use of special seals

E-mail: manager@cktworld.com
Download
PREV：MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatic Gripper
NEXT：MHC2 Series (Fulcrum Opening and Closing Type) Pneumatic Gripper
  • Cylinder diameter (mm) 10  16  20  25  32  40
    Fluid used Air
    Actuation type Double-acting
    Maximum operating pressure MPa 0.6
    Minimum operating pressure MPa 0.15  0.1
    Ambient and fluid temperature -10～60℃
    Repeatability ±0.1mm
    Note 1) Holding force N 14  45  74  131  228  396
    Pipe connection diameter M5×0.8 Rc1/8
    Note 1: At a pressure of 0.5 MPa and a clamping point distance of 40 mm (Ø10~Ø25) or 80 mm (Ø32/Ø40)

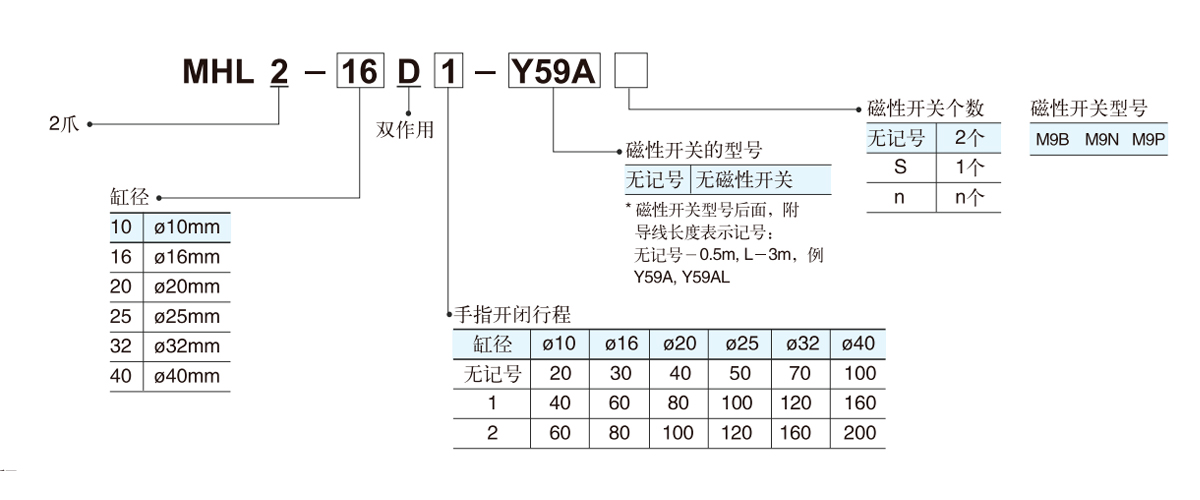

  • Model Cylinder diameter
    (mm)    		 Maximum operating
    frequency
    c.p.m    		 Open/closed stroke
    mm
    (L2-L1)    		 Closed width
    mm
    (L1)    		 Opening width
    mm
    (L2)

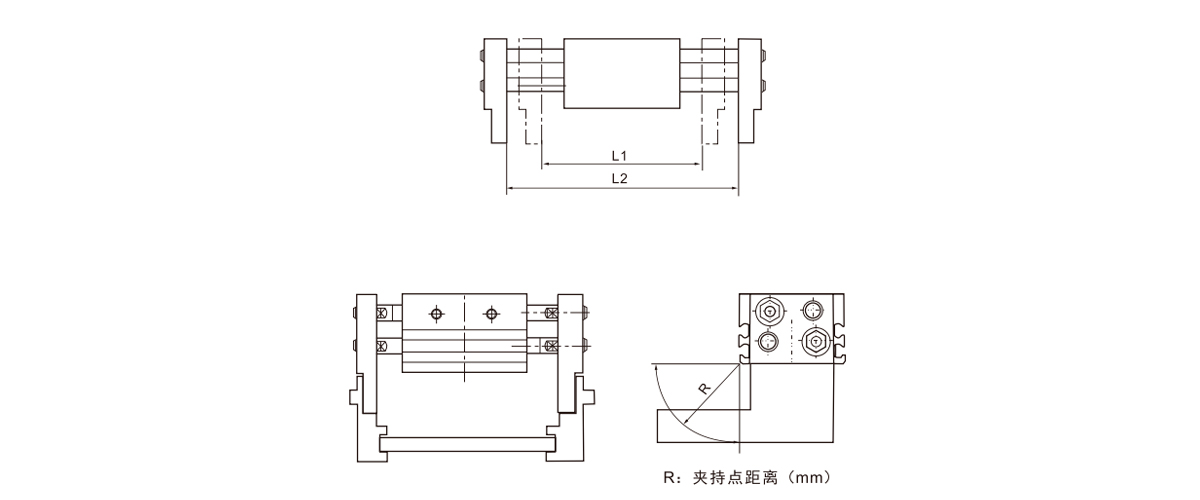

    MHL2-10D 10  60  20  56  76
    MHL2-10D1 40  40  78  118
    MHL2-10D2 60  96  156
    MHLL2-16D 16  60  30  68  98
    MHL2-16D1 40  60  110  170
    MHL2-16D2 80  130  210
    MHL2-20D 20  60  40  82  122
    MHL2-20D1 40  80  142  222
    MHL2-20D2 100  162  262
    MHL2-25D 25  60  50  100  150
    MHL2-25D1 40  100  182  282
    MHL2-25D2 120  200  320
    MHL2-32D 32  30  70  150  220
    MHL2-32D1 20  120  198  318
    MHL2-32D2 160  242  402
    MHL2-40D 40  30  100  188  288
    MHL2-40D1 20  160  246  406
    MHL2-40D2 200  286  486

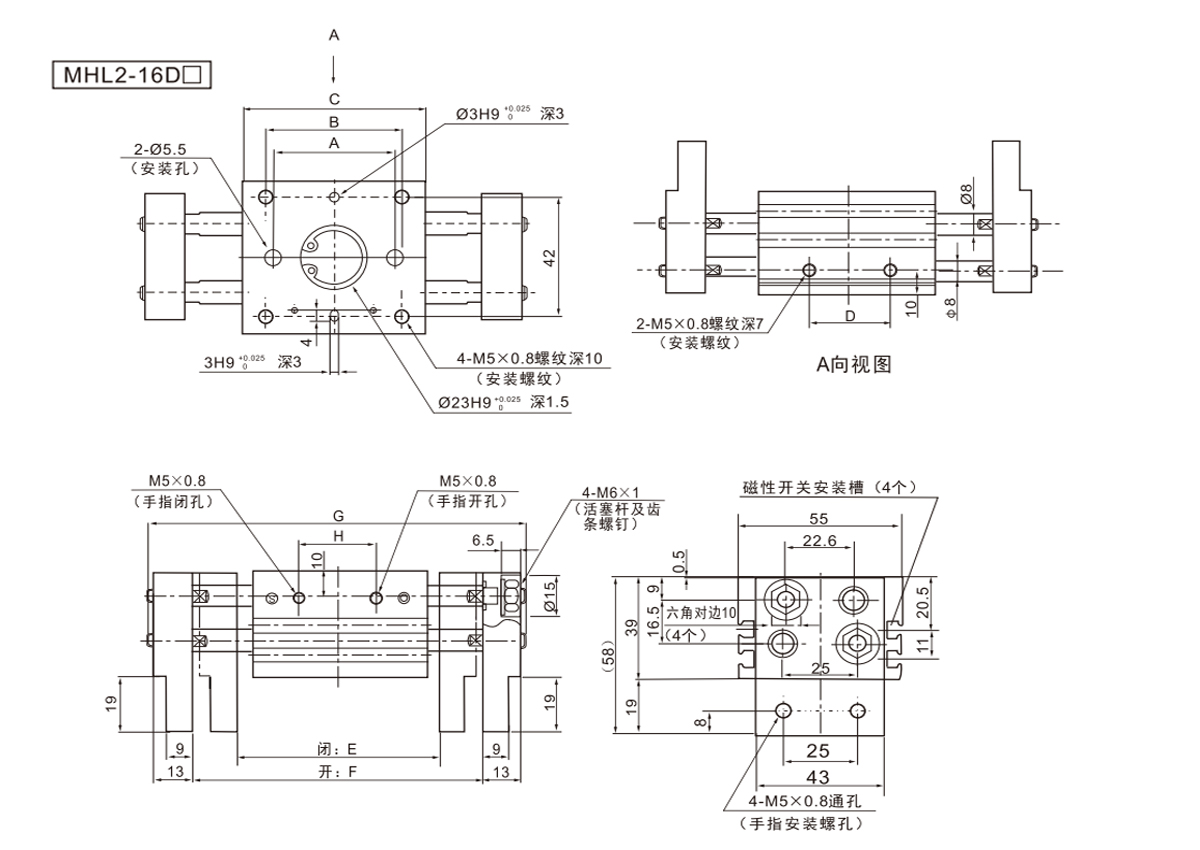

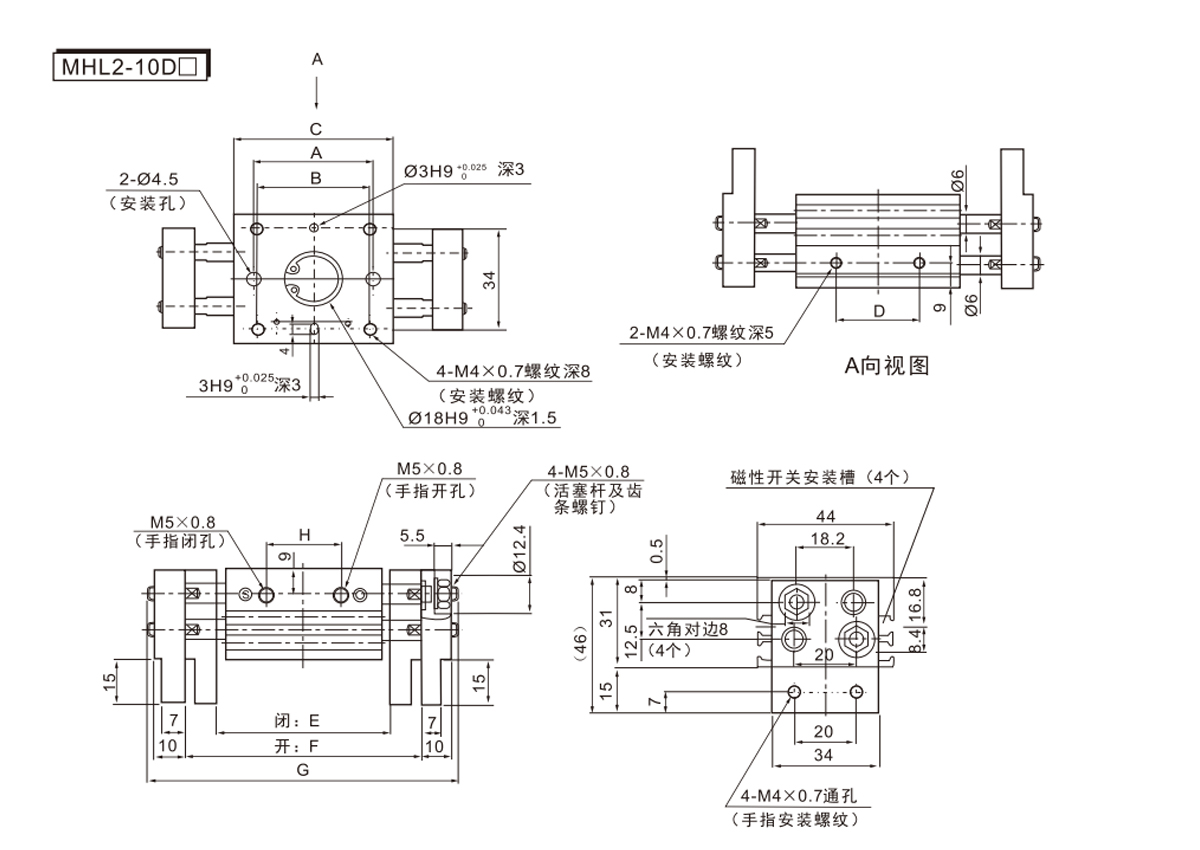

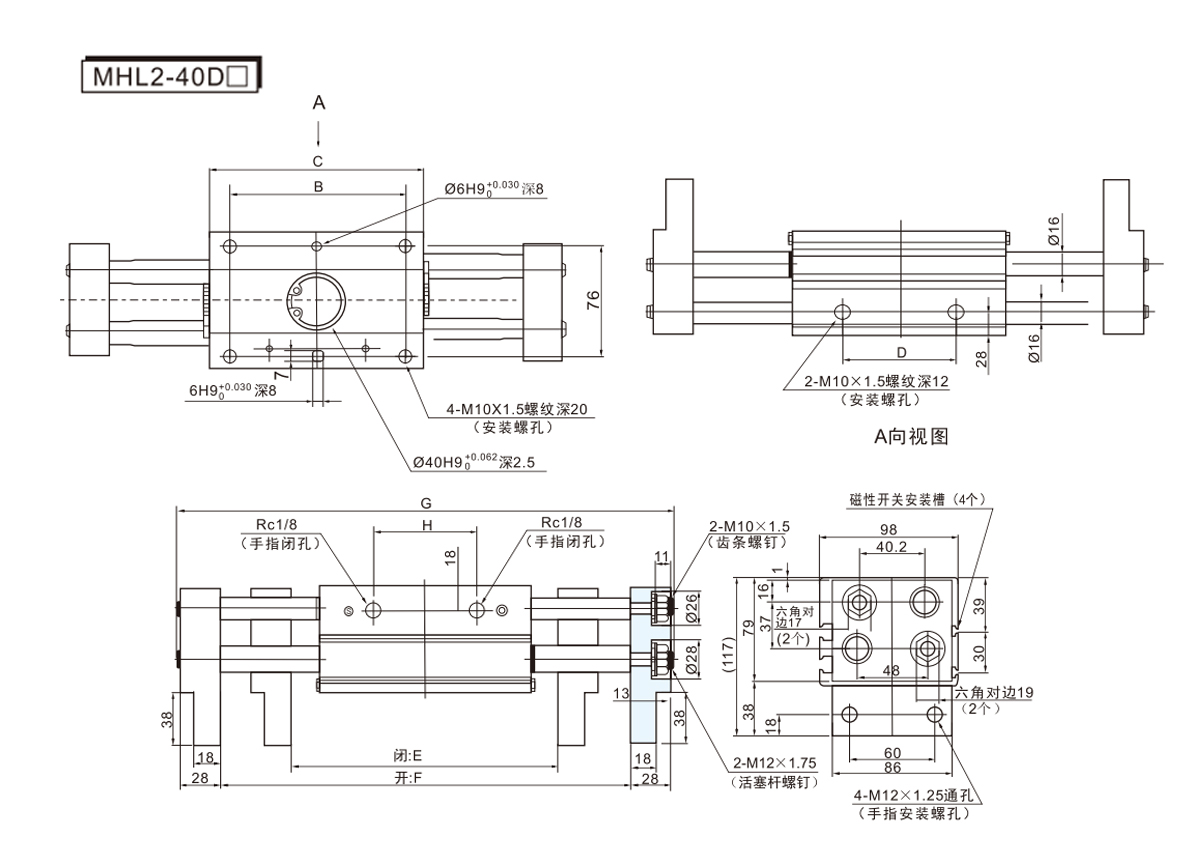

    Model A B C D E F G H
    MHL2-10D 38  36  51  26  56  76  100  24
    MHL2-10D1 54  52  67  42  78  118  142  39
    MHL2-10D2 72  70  85  60  96  156  180  57

    Model A B C D  E F G H
    MHL2-16D 40  45  60  28  68  98  128  26
    MHL2-16D1 70  75  90  58  110  170  200  50
    MHL2-16D2 90  95  110  78  130  210  240  70

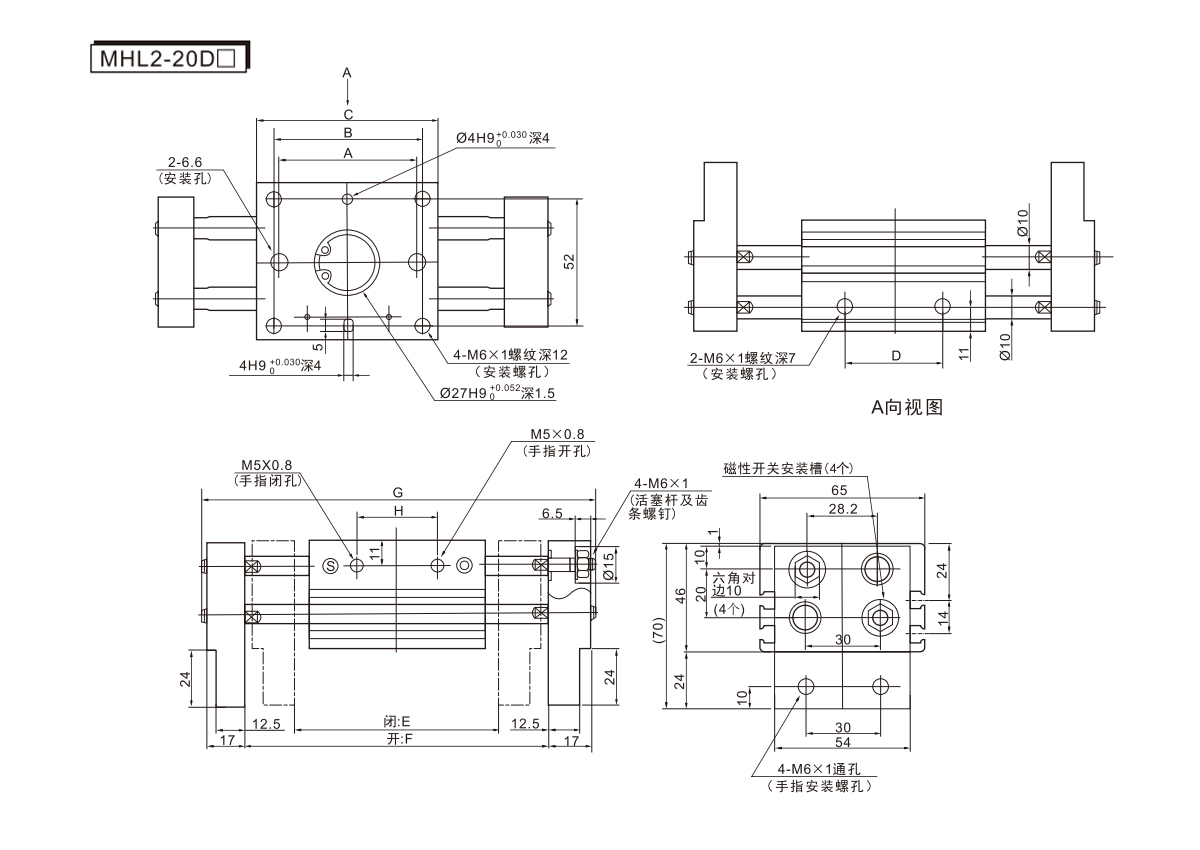

    Model A B C D E F G H
    MHL2-20D 54  58  71  38  82  122  160  32
    MHL2-20D1 96  100  113  80  142  222  260  68
    MHL2-20D2 116  120  133  100  162  262  300  88

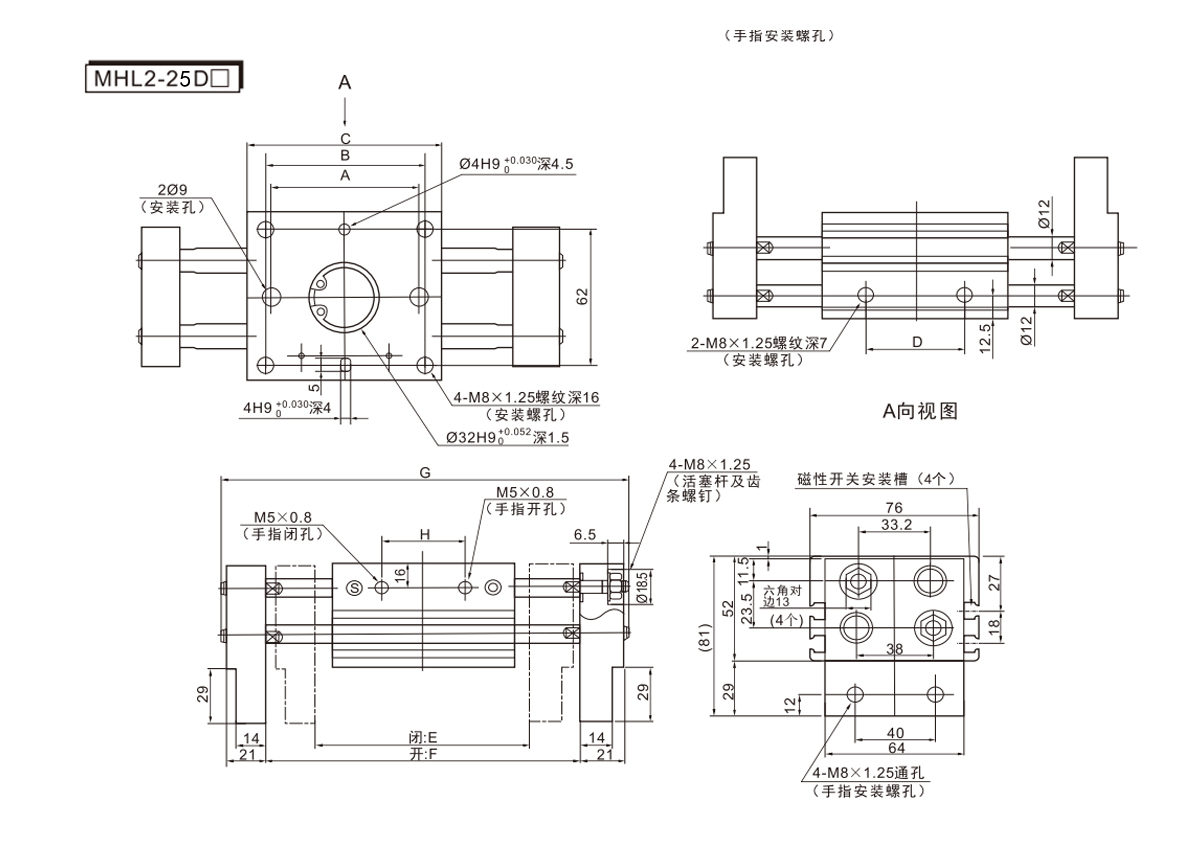

    Model A B C  D E  F G H
    MHL2-25D 66  70  88  48  100  150  196  38
    MHL2-25D1 120  124  142  102  182  282  328  86
    MHL2-25D2 138  142  160  120  200  320  366  104

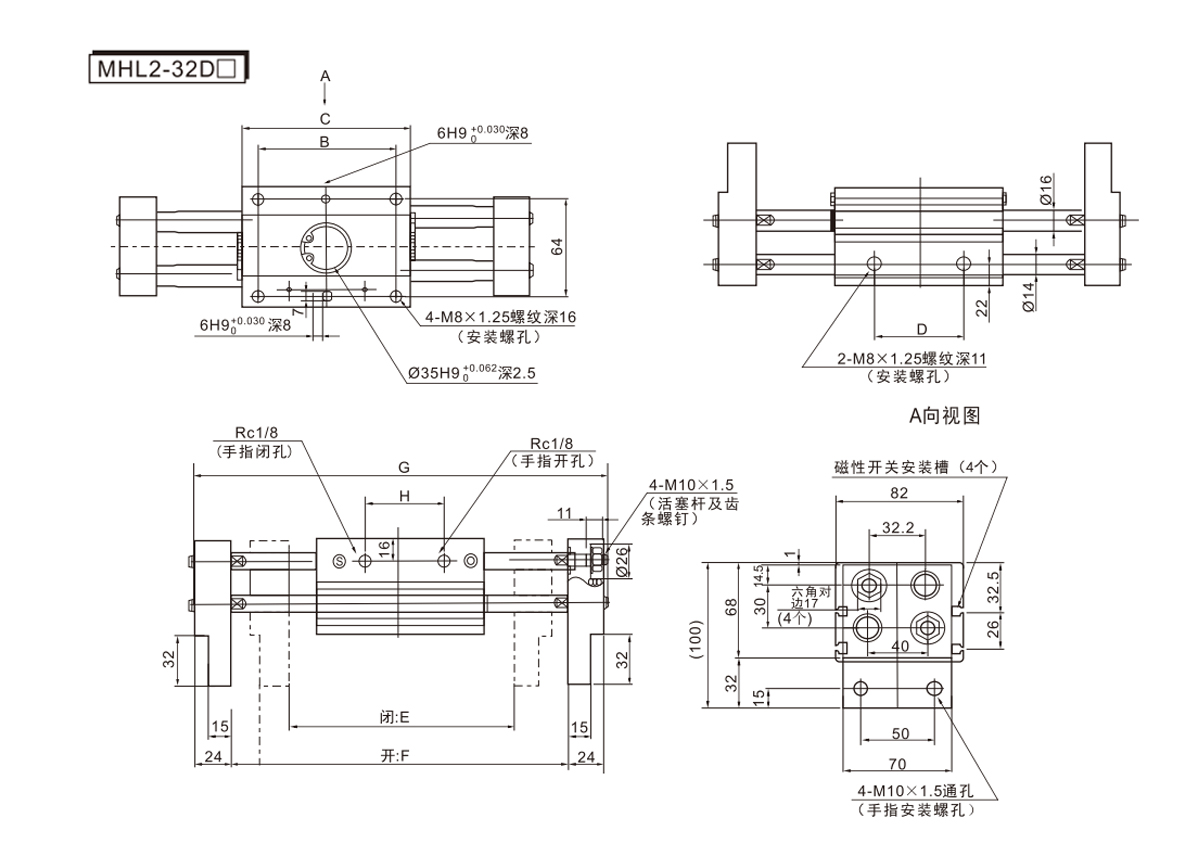

    Model B C D E F G H
    MHL2-32D 86  110  60  150  220  272  56
    MHL2-32D1 134  158  108  198  318  370  104
    MHL2-32D2 178  202  152  242  402  454  148

    Model B C D E F G H
    MHL2-40D 116  148  80  188  288  348  72
    MHL2-40D1 174  206  138  246  406  466  130
    MHL2-40D2 214  246  178  286  486  546  170
