IR Series Precision Pressure Reducing Valve

Home / Products / Pneumatic Pressure Control Components / Precision Regulator / IR Series Precision Pressure Reducing Valve

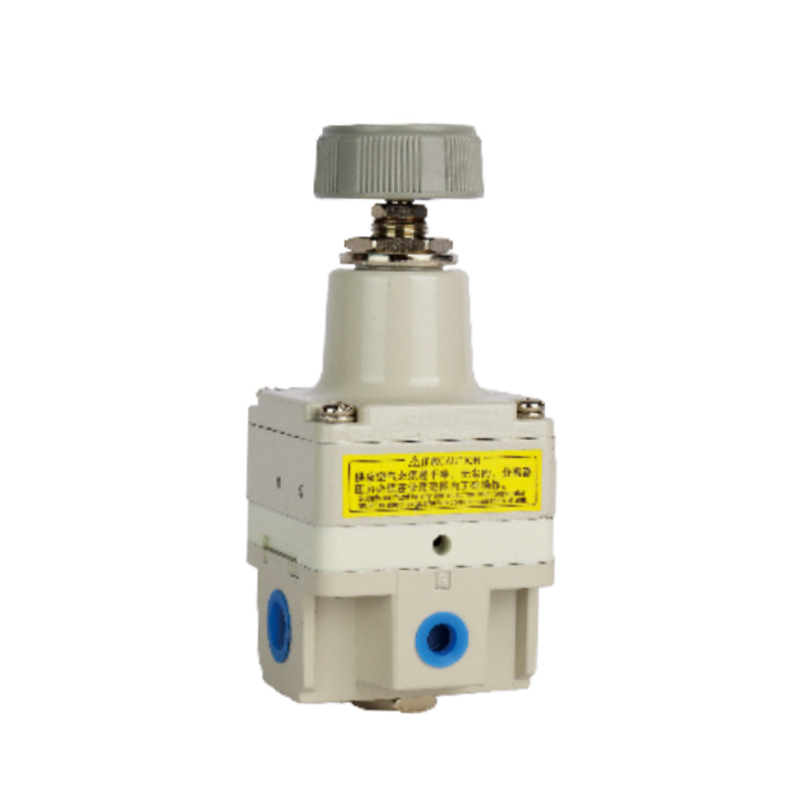

IR Series Precision Pressure Reducing Valve
  • IR Series Precision Pressure Reducing Valve
Precision Regulator

IR Series Precision Pressure Reducing Valve

IR Series Precision Pressure Reducing Valve is designed for high-precision pressure control requirements of industrial fluid systems. It achieves stable pressure output through optimized structure and is the core control element of precision pneumatic and hydraulic circuits.

1. Excellent pressure stabilization performance

The valve core dynamic design and throttling structure work together to ensure that the output pressure has a very small deviation from the set value; the dynamic response to downstream pressure fluctuations is fast, significantly optimizing the system control accuracy.

2. Excellent adaptability to working conditions

Under the conditions of inlet pressure fluctuations or flow step changes, its pressure-flow compensation mechanism can effectively maintain the consistency of output pressure and ensure the continuous and stable operation of the system.

3. Wide-range flow capacity

The flow channel configuration is optimized by fluid dynamics to maintain linear pressure characteristics within the rated flow range, reduce the interference of load fluctuations on pressure stabilization performance, and adapt to dynamic working conditions.

4. Modular integrated design

It provides multi-axial mounting interfaces and embedded bracket structures, supports valve island integration or independent deployment, significantly simplifies the complexity of gas path construction and improves space utilization.

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：No next article

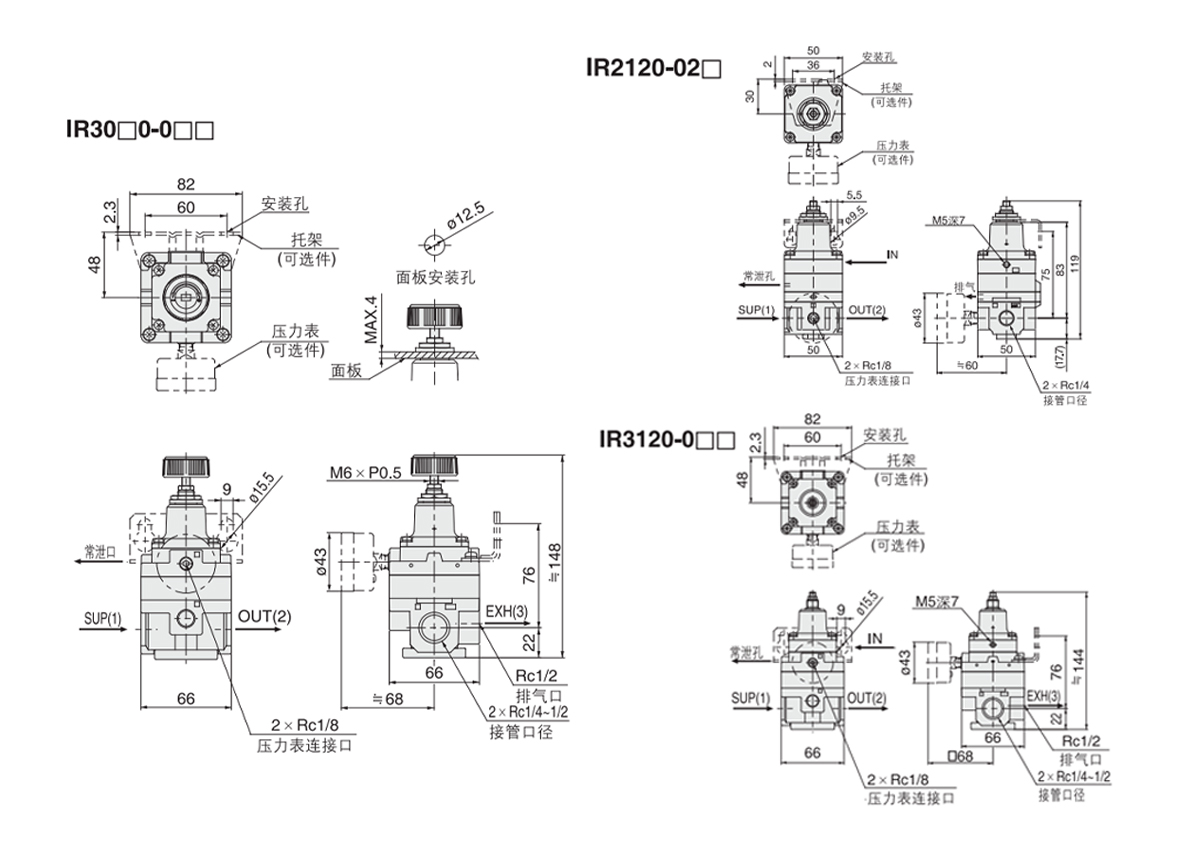

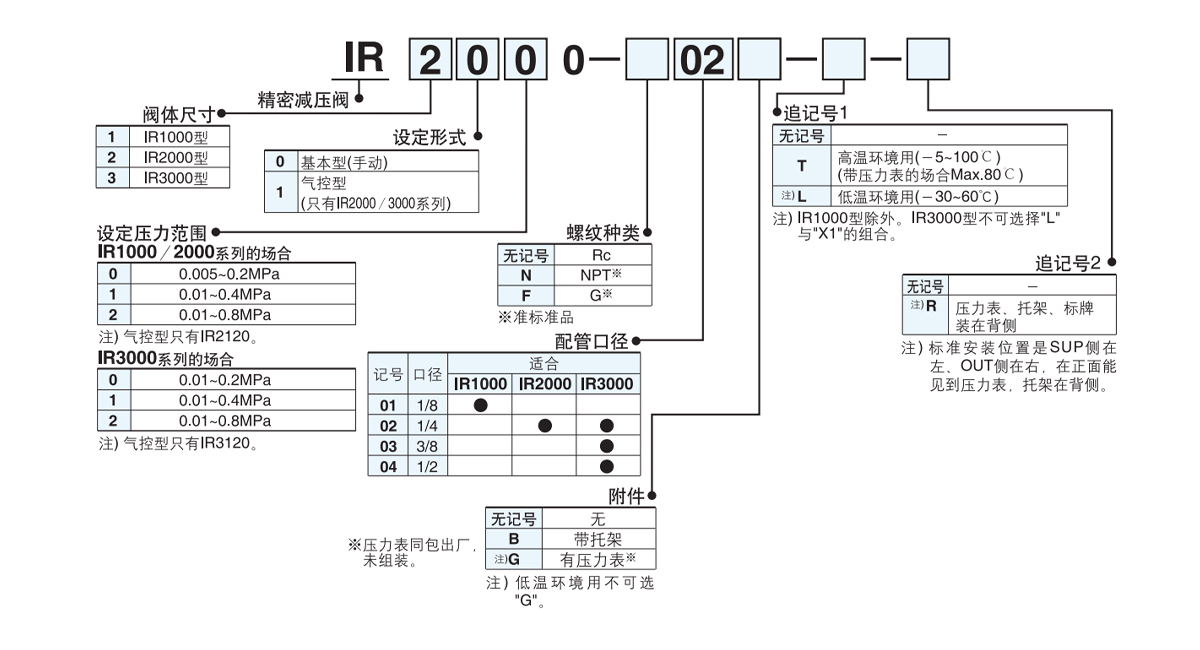

  • Model Basic type Air-controlled type
    IR10□0 IR20□0 IR30□0 IR2120 IR3120
    Maximum supply pressure MAX.1.0MPa
    Minimum supply pressure Note 1) Set pressure +0.05MPa Set pressure +0.1MPa Set pressure +0.05MPa Set pressure +0.1MPa
    Set pressure range
    IR1000:
    0.005~0.2MPa
    IR1010:
     0.01~0.4MPa
     IR1020:
     0.01~0.8MPa
    IR2000:
    0.005~0.2MPa
    IR2010:
    0.01~0.4MPa
    IR2020:
    0.01~0.8MPa
    IR3000:
    0.01~0.2MPa
    IR3010:
    0.01~0.4MPa
    IR3020:
    0.01~0.8MPa    		 0.01~0.8MPa 0.01~0.8MPa
    Input signal pressure Note 2) —— 0.01~0.8MPa 0.01~0.8MPa
    Sensitivity Note 3)) Within 0.2% of the full value
    Repeatability Note 3) Within ±0.5% of full scale
    Linearity Note 4) —— Within ±1% of full scale
    Air consumption Note 5)
    (at supply pressure of 1.0 MPa)    		 Within 4.4 L/min (ANR)  Within 4.4 L/min (ANR) Within 11.5 L/min (ANR) Within 4.4 L/min (ANR) Within 11.5 L/min (ANR)
    Connection diameter Rc1/8 Rc1/4 Rc1/4,3/8,1/2 Rc1/4 Rc1/4,3/8,1/2
    Pressure gauge connection diameter Rc1/8 (2 locations)
    Ambient temperature and fluid temperature -5 to 60°C (no freezing)
    Weight (kg) 0.14  0.30  0.64  0.35  0.71
    Note 1) The condition is that there is no flow on the output side. The minimum pressure difference from the set pressure must be 0.05 MPa for IR1000 and IR2000 Models, and 0.1 MPa for IR3000 Models.
    Note 2) Applicable only to pneumatic-controlled types IR2120 and IR3120; basic types are excluded.
    Note 3) Characteristic values do not include long-term changes or temperature changes.
    Note 4) Indicates the linearity of the output pressure relative to the input signal pressure.
    Note 5) The amount of air frequently discharged into the atmosphere through the vent hole or exhaust port.
