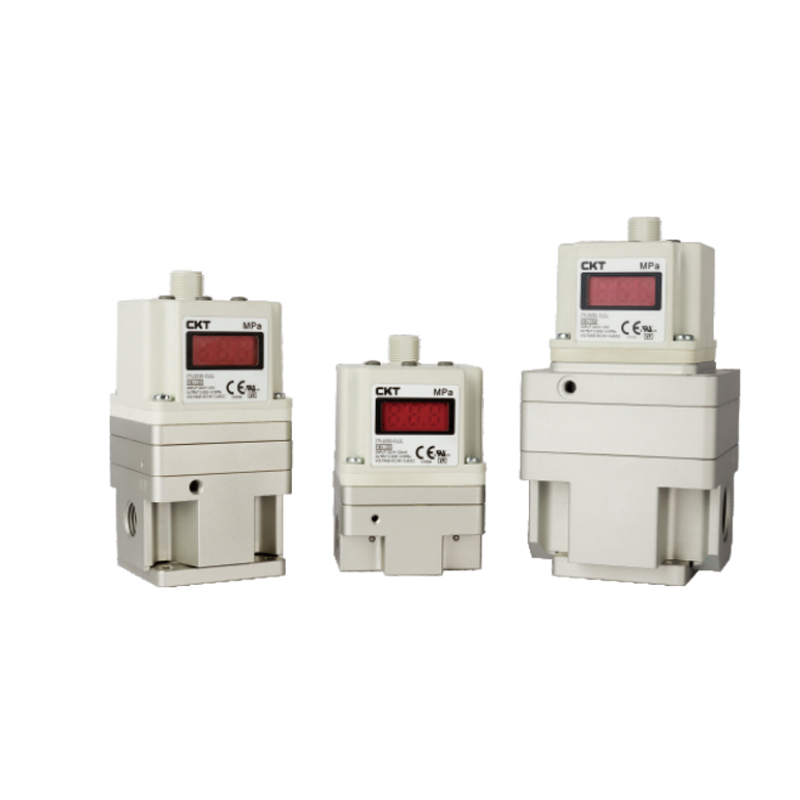

ITV Series Electro-Pneumatic Regulator

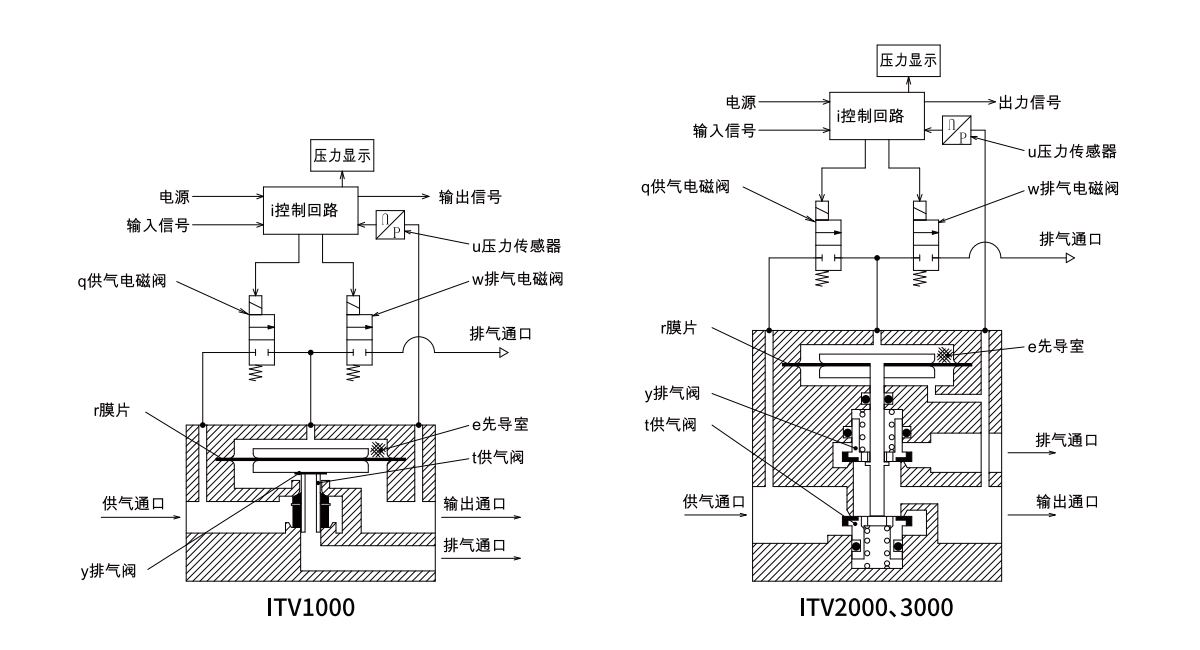

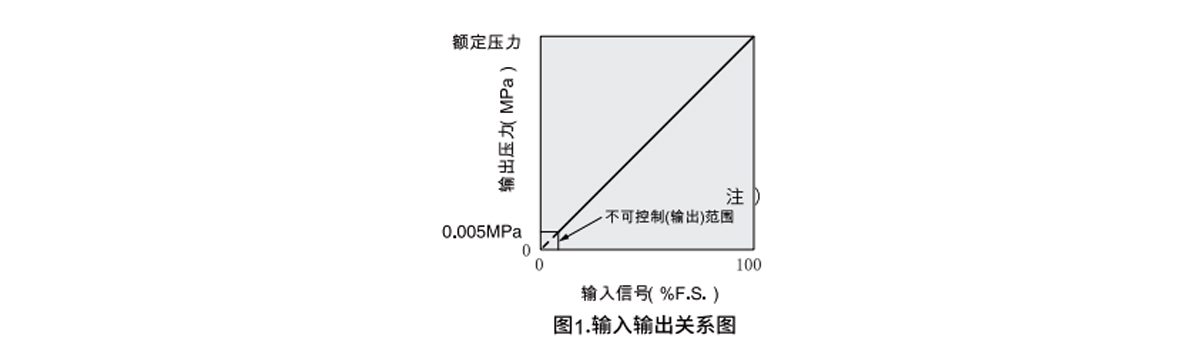

ITV Series Electro-Pneumatic Regulator uses electrical signals to steplessly adjust gas pressure to achieve high-precision, continuous closed-loop control of gas pressure. Its core uses real-time feedback from pressure sensors, combined with dynamic adjustment of pilot valves, to maintain a linear relationship between output pressure and input signal. It has the characteristics of fast response (≤0.2s), high precision (±1%F.S.) and multiple pressure range coverage (-101kPa~0.9MPa), which is suitable for the precision pressure control needs in industrial automation.

·Adaptive regulation
Automatically compensate for gas source fluctuations and load changes to maintain pressure stability;
Short-term pressure maintenance during power failure, supporting safe switching in emergency conditions.

·Compact integrated design

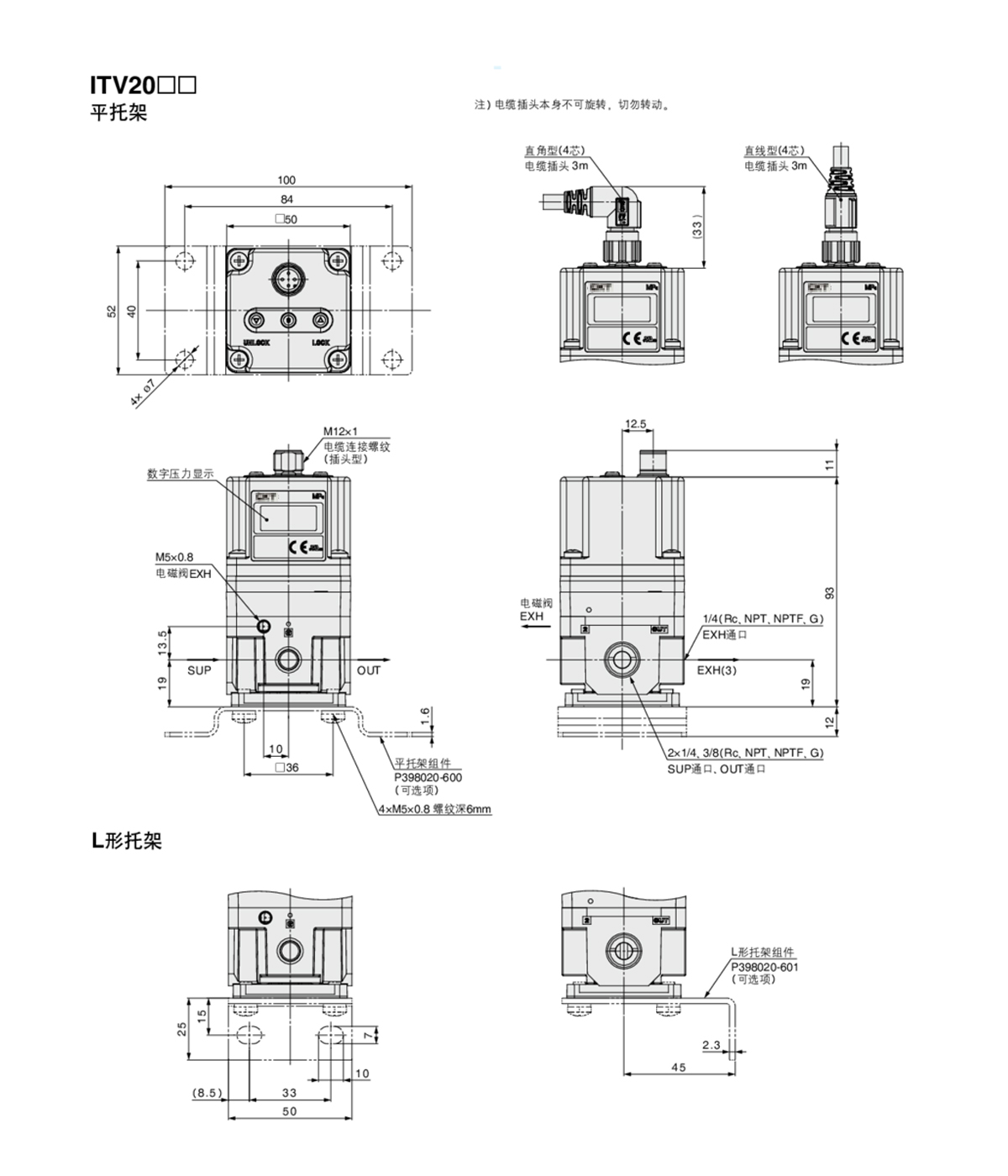

Ultra-thin (15mm) structure supports high-density installation;
IP65 protection level, resistant to oil mist and dust interference.

·Zero gas consumption technology
Stop gas consumption in a balanced state to reduce system energy consumption;
Support real-time zero/full scale calibration to reduce maintenance frequency.

·Multi-scenario compatibility
Adapt to scenarios such as precision assembly, medical equipment, spray control, etc.;
Provide preset pressure mode to simplify programmed control logic.
