MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatic Gripper

Home / Products / Air Cylinder / Pneumatic Grippers / MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatic Gripper

MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatic Gripper MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatic Gripper
  • MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatic Gripper
  • MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatic Gripper
Pneumatic Grippers

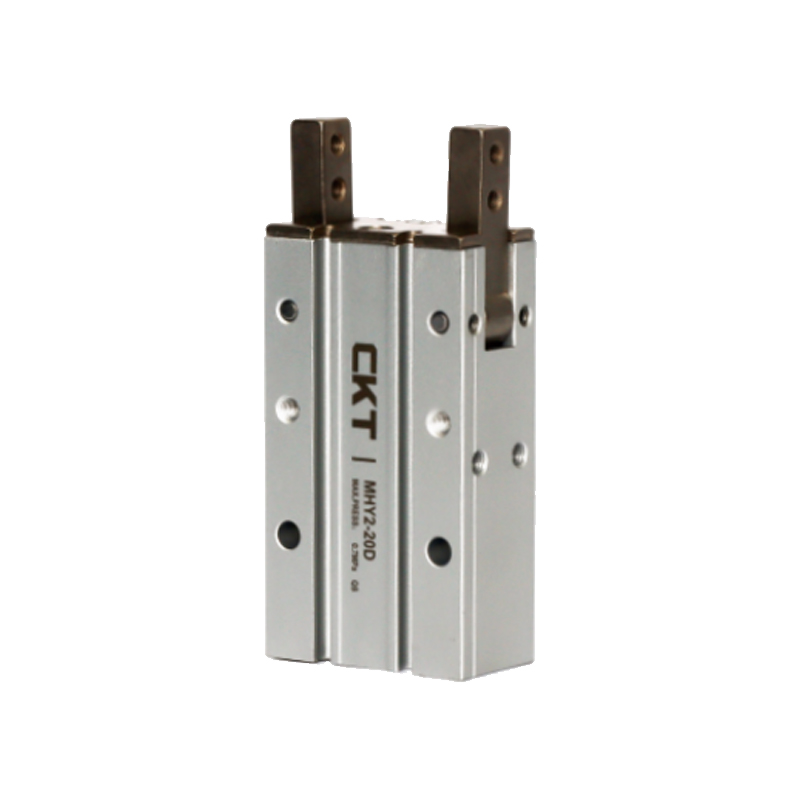

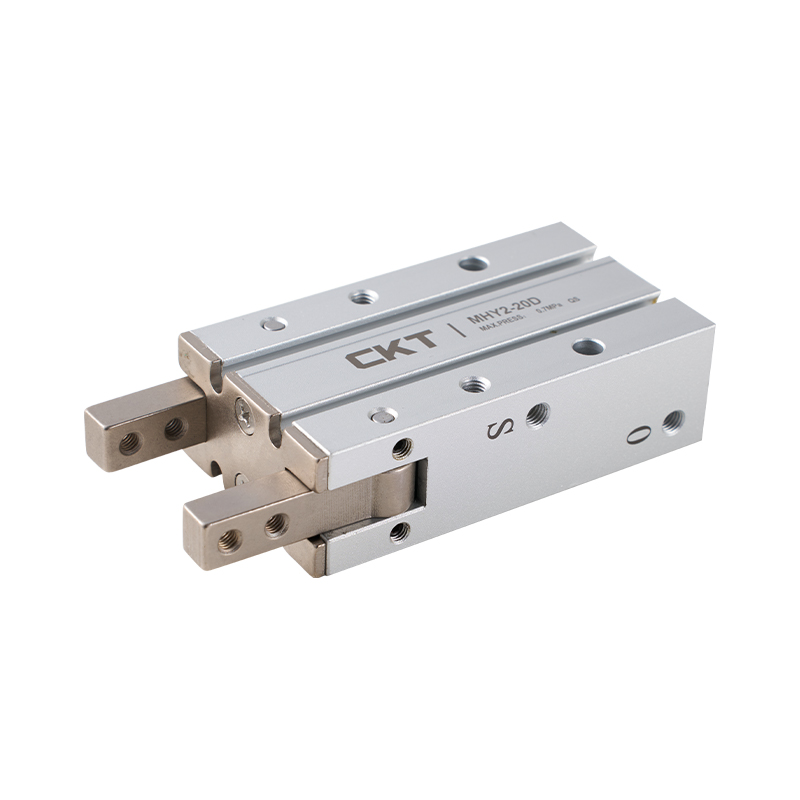

MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatic Gripper

*Built-in magnetic ring type, magnetic switch can be installed.

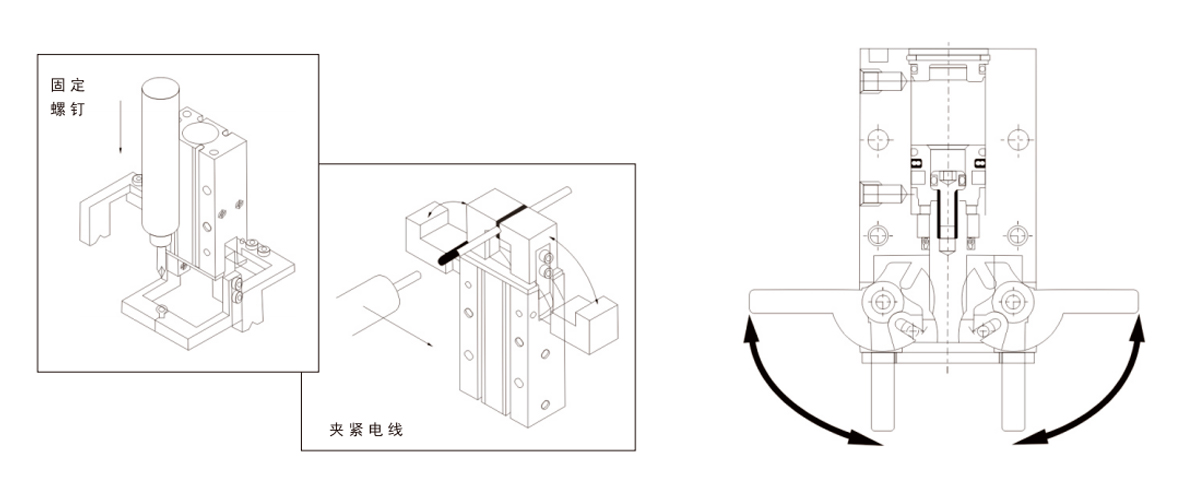

*180° opening and closing type, simplifying the pick-and-place action.
*Suitable for use in special environments, the finger opening and closing part is specially designed to prevent small objects from entering.
*Easy to install, with positioning holes.

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：MHL2 Series (Parallel Opening and Closing Type) Wide Type Pneumatic Gripper

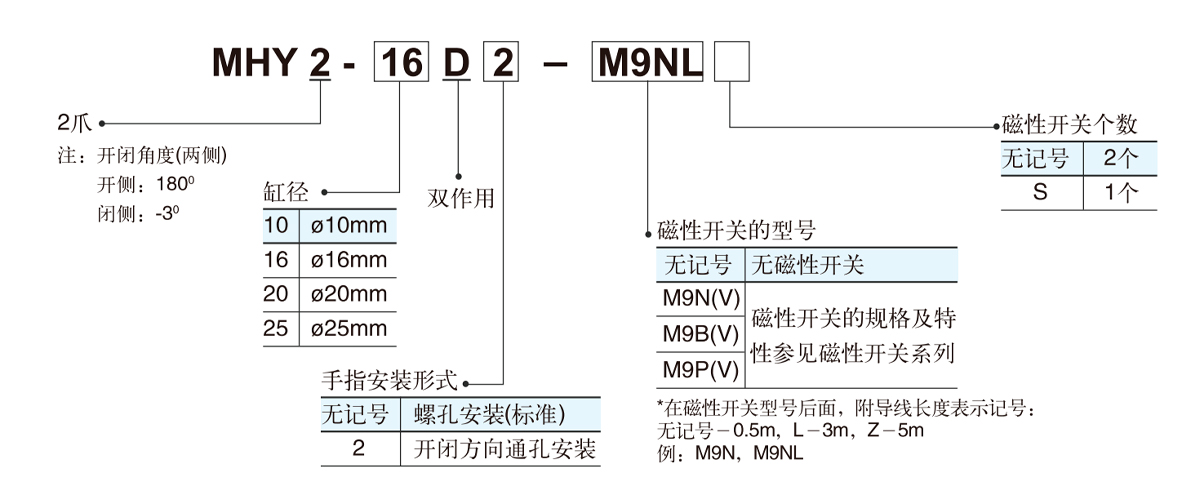

  • Model MHY2-10D MHY2-16D MHY2-20D MHY2-25D
    Fluid used Air
    Action type Double-acting
    Maximum operating pressure MPa 0.6
    Minimum operating pressure MPa 0.1
    Ambient and fluid temperature -10~+60℃
    Maximum operating frequency 60c.p.m
    Repeatability ±0.2mm
    Note 1) Clamping torque N ·m 0.16  0.54  1.10  2.28
    Note 2) Lubrication Not required
    Pipe diameter M5×0.8
    Note 1) At a pressure of 0.5 MPa.
    Note 2) If lubrication is required, use Turbine Oil No. 1 ISOVG32.
