ZP2 Series Non-Marking Suction Cup Attachment PEEK

Home / Products / Vacuum Components / Vacuum Suction Cup / Non-Marking Suction Cup Attachment PEEK / ZP2 Series Non-Marking Suction Cup Attachment PEEK

ZP2 Series Non-Marking Suction Cup Attachment PEEK
  • ZP2 Series Non-Marking Suction Cup Attachment PEEK
Non-Marking Suction Cup Attachment PEEK

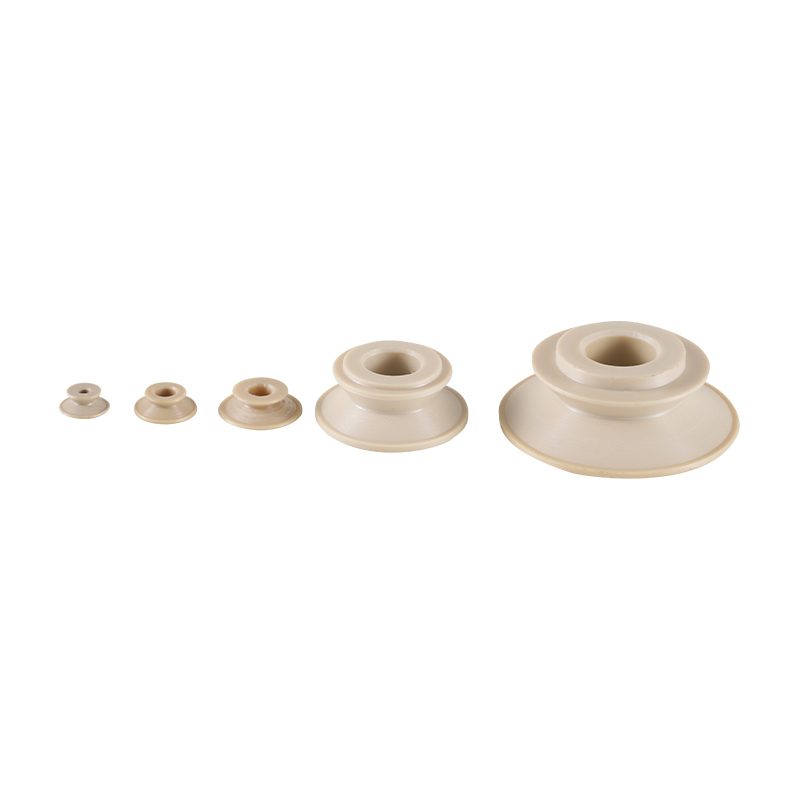

ZP2 Series Non-Marking Suction Cup Attachment PEEK

·No suction marks (rubber component) will remain on the workpiece.

·Because the bellows-type rubber suction cup is equipped with a PEEK material attachment,it can avoid contact between the workpiece and the rubber material and prevent the rubber component from overflowing.

·The suction cup rubber component is attached to the workpiece.

·It is most suitable for the bellows-type (06~032) of the IZP series.

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：No next article

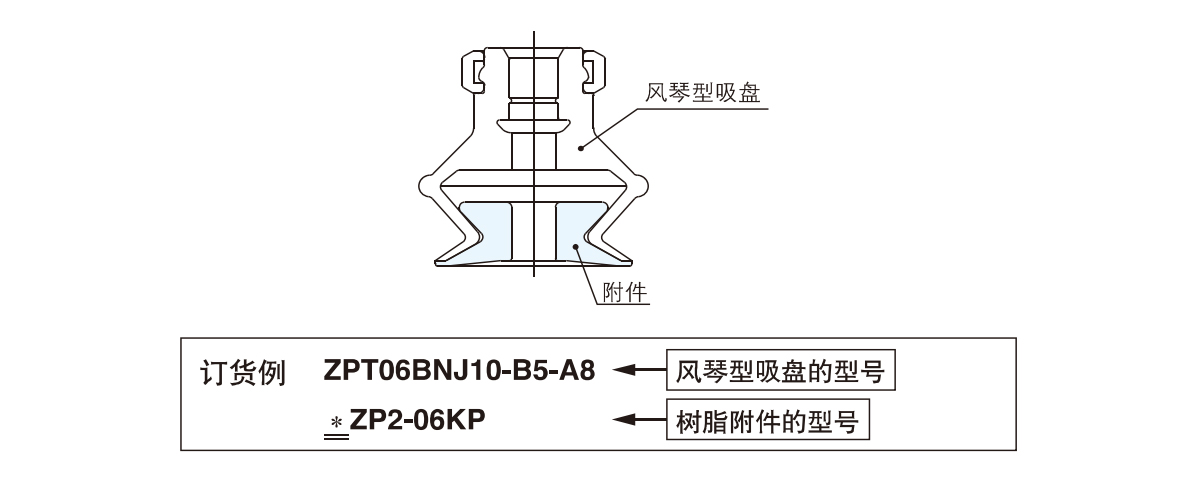

  • ·When ordering suction cups at the same time, mark * under the suction cup Model number according to the following points. Also, please note that they are shipped unassembled.
    ·Please note that accessories can only be installed on our standard accordion-type suction cups.
    ·If the accessory is made of conductive PEEK, the suction cup must also be made of a conductive material.

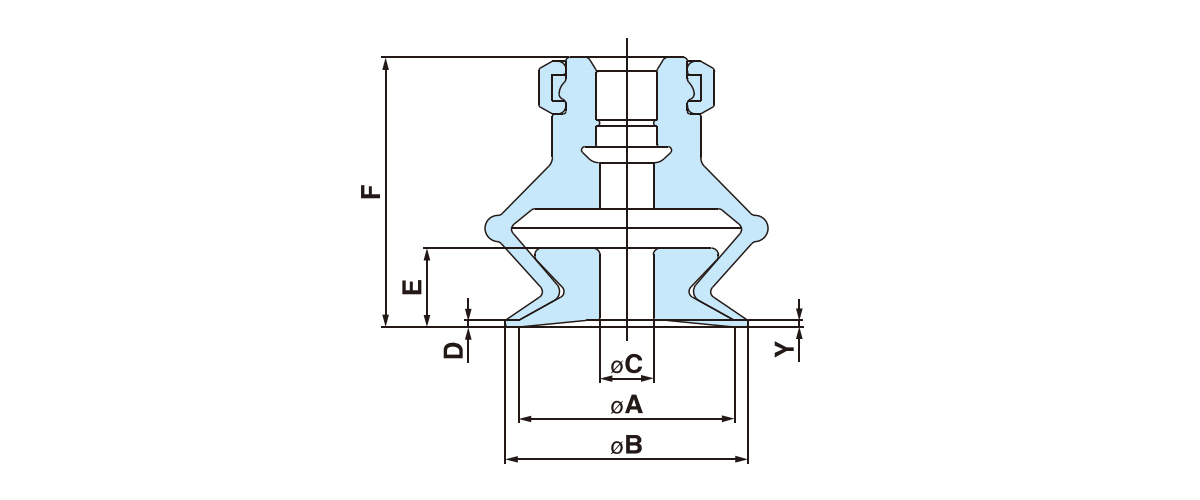

  • Size Chart
    Model Suitable for suction cups A B C D E F Y
    ZP2-06K■ ZP06B口 6  7  1.6  0.5  3  13.5  0.5
    ZP2-08K■ ZP08B□ 8  9  3
    ZP2-10K■ ZP10B□ 10  12  3.5  3.5  16.5
    ZP2-13K■ ZP13B口 13  15  5.5  19
    ZP2-16K■ ZP16B□ 16  18  4  6  20.5
    ZP2-20K■ ZP20B□ 20  22  8  1  8.5  24.5  1
    ZP2-25K■ ZP25B□ 25  27  10  25
    ZP2-32K■ ZP32B□ 32  34  11.5  30

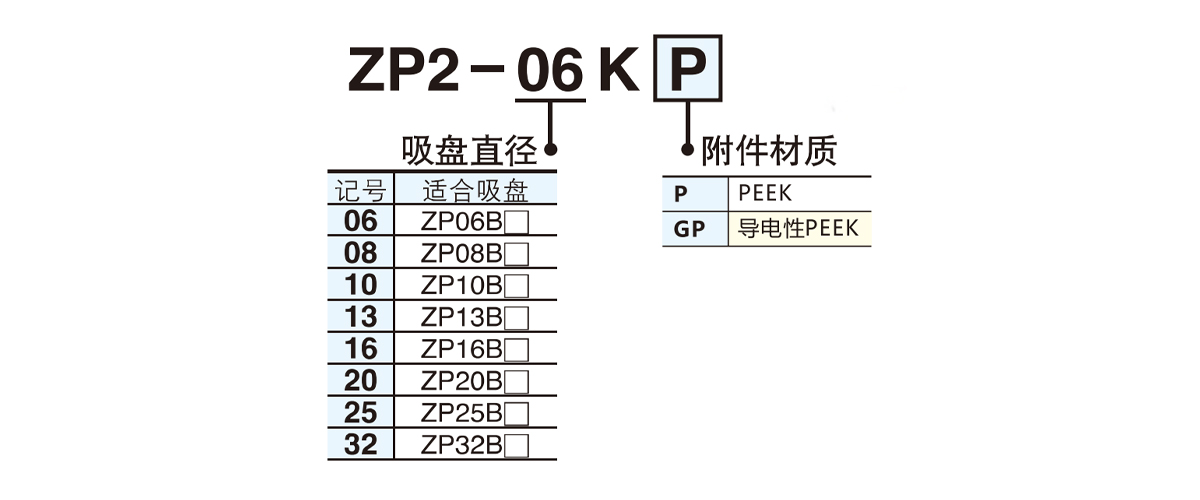

    Note 1) ■ in the table indicates the material of the attachment.
    Note 2) □ in the table indicates the material of the suction cup.
    Precautions
    The attachment must be cleaned before use.
    This product has not been cleaned after processing. Therefore, if used in its factory condition, it may leave residue on the workpiece.
    Please clean it appropriately before use.
    If you have any questions, please contact our company.
    · Do not use in situations where contact with hard materials may cause problems.
