CV Series Vacuum Generator
  • CV Series Vacuum Generator
Basic Vacuum Ejector

CV Series Vacuum Generator

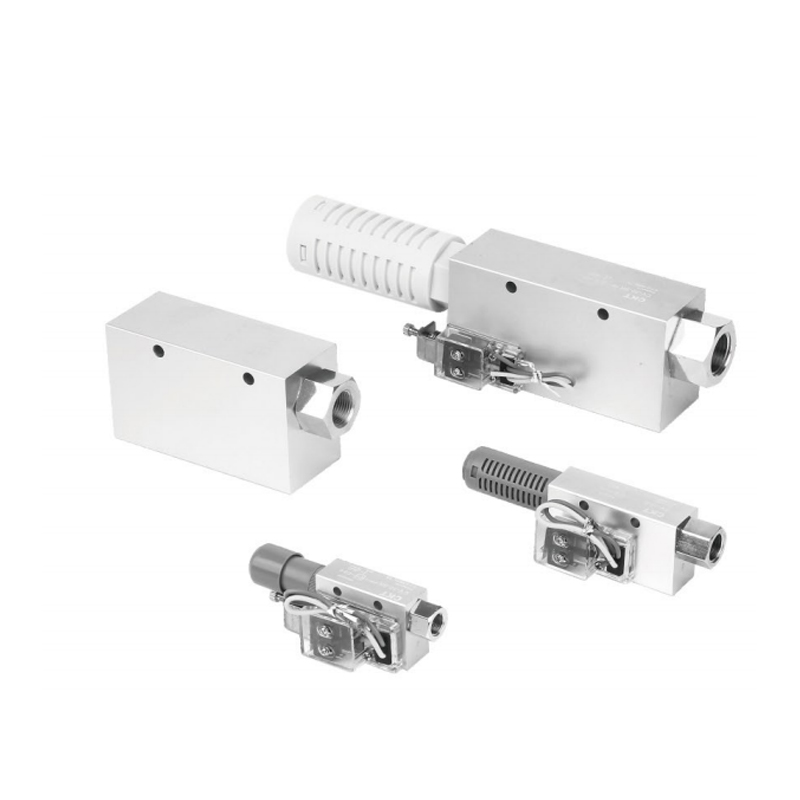

CV Series Vacuum Generator is an efficient and reliable pneumatic device designed for industrial automation applications. With its excellent performance and flexible configuration, this series of products is widely used in various scenarios requiring vacuum adsorption, handling and fixing.

Product Features
1. Long life and simple structure: The CV series vacuum generator adopts a simple design structure, which reduces the number of moving parts, thereby significantly improving the service life of the product and reducing maintenance costs.

2. Multiple nozzle diameter options: A variety of nozzle diameters (φ0.5 to φ3.0) are available to meet different flow requirements. Whether it is a small flow or a large flow application, you can find a suitable configuration.

3. High vacuum and fast response: This series of vacuum generators can produce high vacuum, ensure fast and effective adsorption effect, and improve production efficiency.

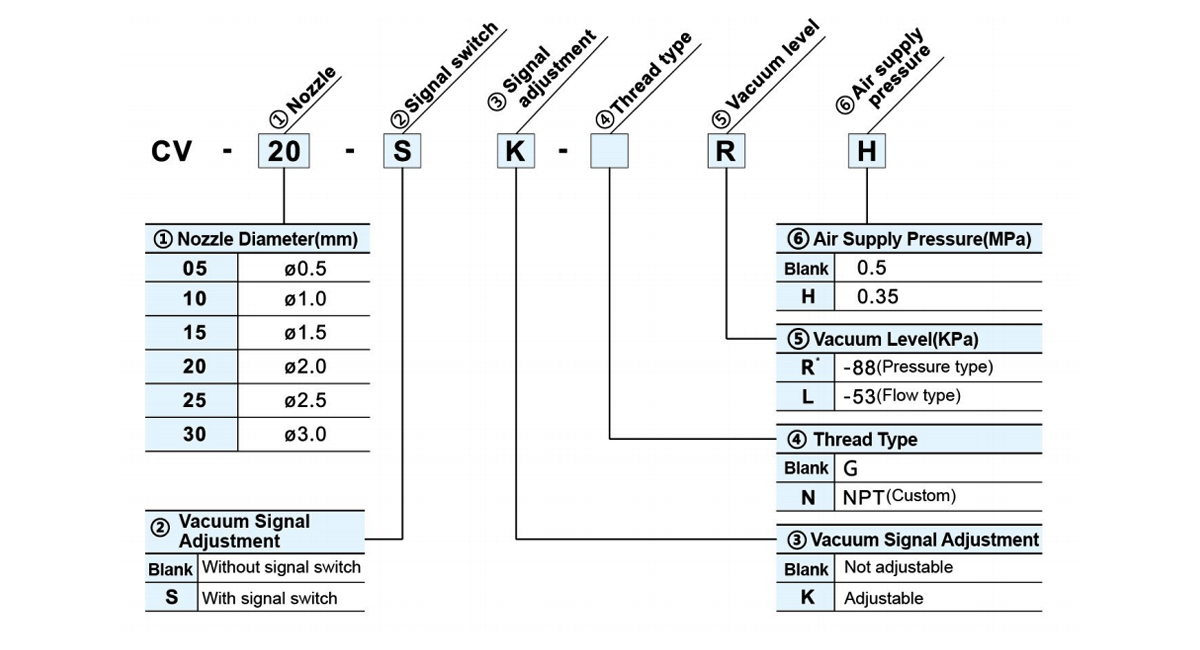

4. Multiple combination configurations: The CV series provides a variety of Model combinations, including different nozzle diameters, connector types, thread types, etc. Users can flexibly choose according to specific needs.

5. Optional vacuum signal switch: Some Models are equipped with a vacuum signal switch, which can realize vacuum degree monitoring and feedback, facilitating system integration and automatic control.

E-mail: manager@cktworld.com
Download
PREV：CCV Series Vacuum Generator CCV-04
NEXT：No next article
  • Item  CV-05 CV-10 CV-15 CV-20 CV-25 CV-30
    R L R L RH R L RH R L RH R L R L
    Fluid           Oil-free compressed air
    Environment &
    Fluid temperature   (℃)    		 0~60(unfrozen)
    Pressure range   (MPa) 0.1～0.6
    Rated pressure    (mm)   Ø0.5 Ø1.0 Ø1.5 Ø2.0 Ø2.5 Ø3.0
    Suction flow     (MPa) 0.5  0.5  0.35  0.5  0.35  0.5  0.35  0.5  0.5
    Vacuum level      (kPa) -87  -57  -92  -57  -91  -92  -57  -91  -92  -57  -91  -92  -57  -92  -57
    Suction flow    (1/min) 6  9  27  36  25  63  95  54  110  165  88  160  250  225  350
    Air consumption(I/min) 13  44  100  180  265  385

    Vacuum Signal Switch
    Item VACUUM   SIGNAL   NOT   ADJUSTABLE VACUUM       SIGNALADJUSTABLE
    CV-□□-S CV-□□-SK
    Fluid Air
    Environment &
    Fluid     temperature   (℃)    		 0~60(unfrozen)
    Set Pressure range(kPa) -39.9  -20~-53
    Factory set value (kPa) -39.9  -46.6
    Repeat accuracy (kPa) ±5.3
    Contrast       (kPa) 4.0～13.3
    Voltage          (V) Below  AC250V Below  DC250V Below  AC250V Below  DC250V
    Load current     (A) 3  0.2  3  0.2

  • Mode A B C D E F G H ØI K M L P V Available Silencer Model
    CV-05□ 8  32  16  10  G1/8 14  20  4.5  4.2  10  14  55  G1/8 G1/8 MSS-01
    CV-10□
    CV-15□ 10  35  20  11  G1/4 20  25  5  4.5  15  17  78  G1/4 G1/4 MSS-02
    CV-20□ 13  40  27  15  G1/2 28  32  7  6  20  22  105  G3/8 MSL-04
    CV-25□ 16  60  40  20  G3/4 20  50  5.5  17  26  117  G3/8 G1/2 MS6-01
    CV-30□ 20  33  20  30  138  G1/2 G3/4

    Mode B C L ØN O Dedicated
    Silencer Model

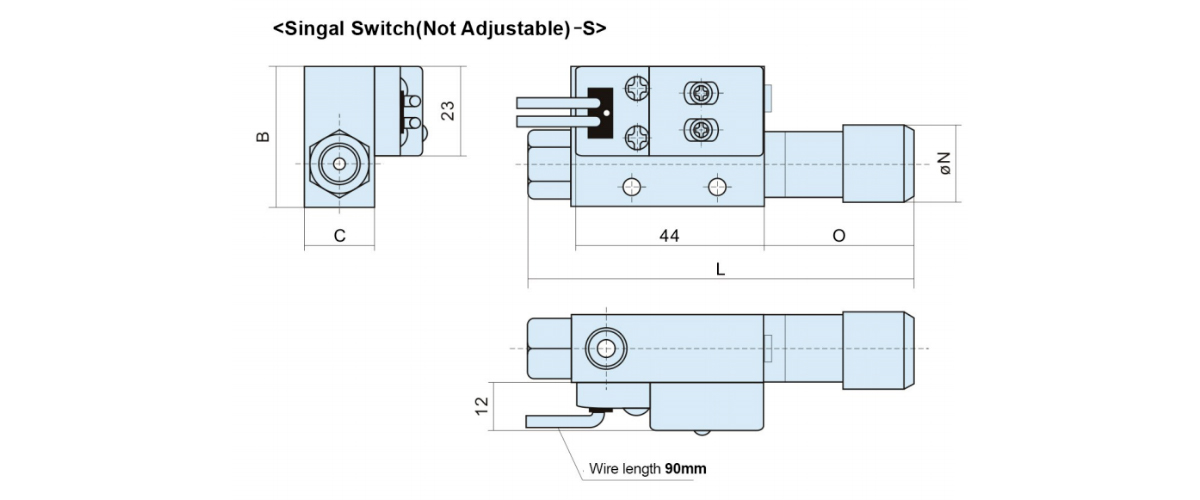

    CV-05-S 32  16  90  18.5  35  MSS-01
    CV-10-S
    CV-15-S 35  20  123.5  20  45.5  MSS-02
    CV-20-S 40  30  160.5  30  60.5  MSL-04
    CV-25-S 60  40  213  40  96  MS6-01
    CV-30-S 234

    Mode B C L ØN O Dedicated
    Silencer Model

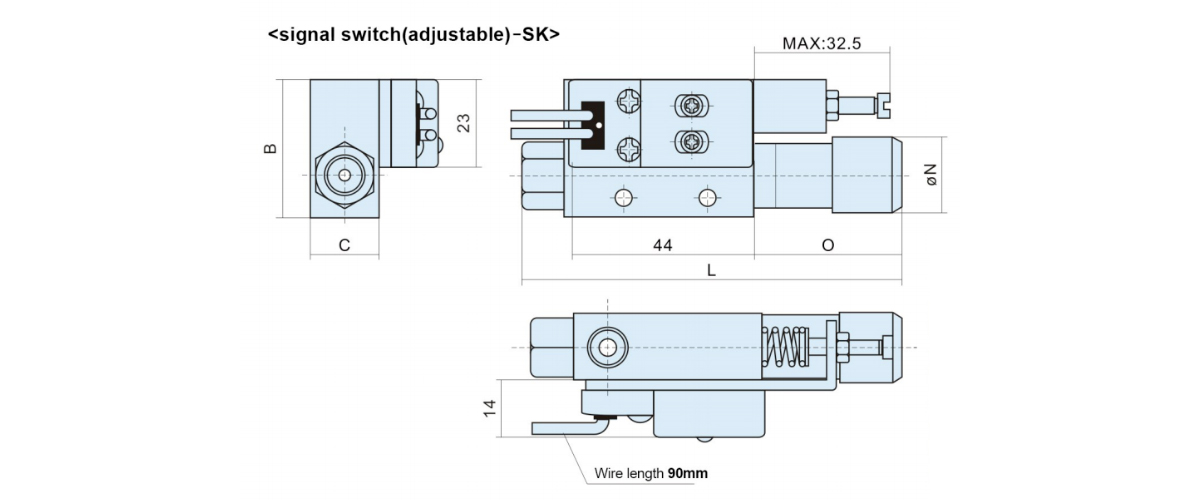

    CV-05-SK 32  16  90  18.5  35  MSS-01
    CV-10-SK
    CV-15-SK 35  20  123.5  20  45.5  MSS-02
    CV-20-SK 40  30  160.5  30  60.5  MSL-04
    CV-25-SK 60  40  213  40  96  MS6-01
    CV-30-SK 234
