·The cylinder stops instantly to position.
·Prevents the cylinder from self-propelling after stopping.
·Safety circuit for pressure maintenance.

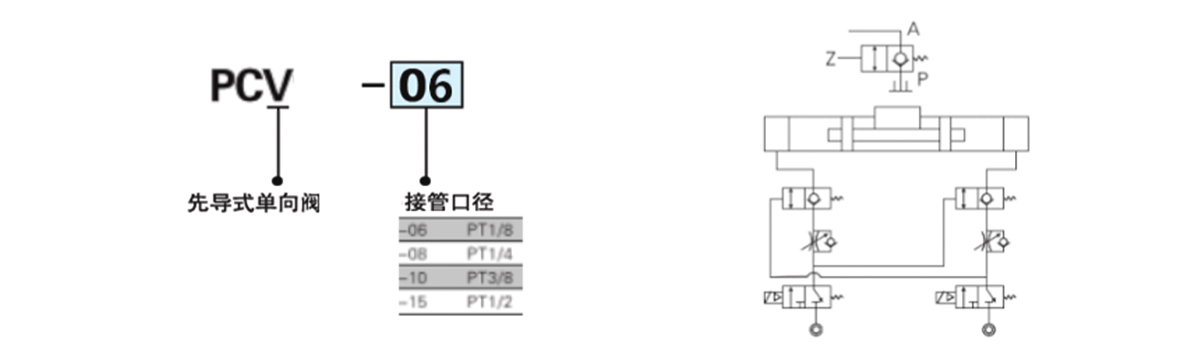

·Special circuit design and application.
| Specifications | |
| Use fluid | Air |
| Ensure pressure resistance | 1.5MPa |
| Maximum operating pressure | 1MPa |
| Minimum operating pressure | 0.15MPa |
| Suitable pipe material | Nylon, soft nylon, polyurethane |
| Note: Pay attention to the maximum operating pressure of soft nylon and polyurethane. | |

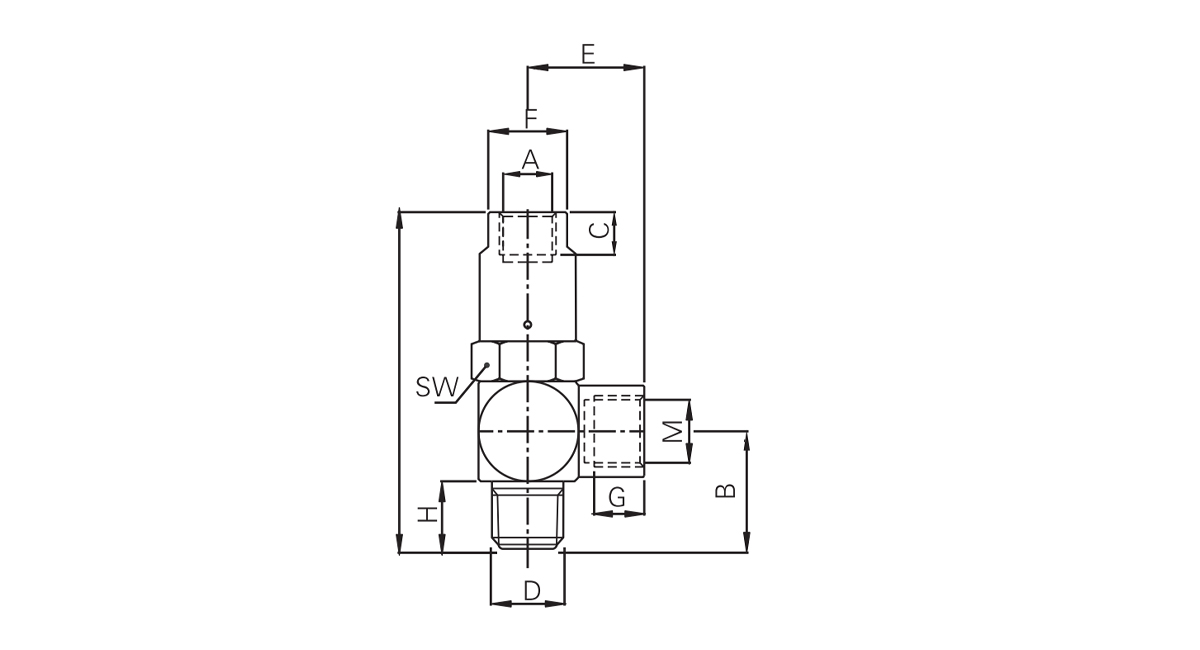

| Size chart | ||||||||||||
| Model | A | F | C | E | B | M | G | D | H | L | SW | Weight (g) |
| PCV-06 | M5 | 12 | 5.5 | 16 | 16.5 | G1/8 | 8 | PT1/8 | 7.5 | 48.5 | 14 | 55 |
| PCV-08 | G1/8 | 14 | 8.5 | 20.3 | 21 | G1/4 | 8.5 | PT1/4 | 10 | 59.5 | 17 | 95.4 |
| PCV-10 | G1/4 | 16 | 10 | 25 | 26.5 | G3/8 | 11 | PT3/8 | 11 | 75 | 22 | 212.7 |
| PCV-15 | G1/4 | 19 | 10 | 28 | 30 | G1/2 | 12 | PT1/2 | 14 | 80 | 24 | 276.5 |

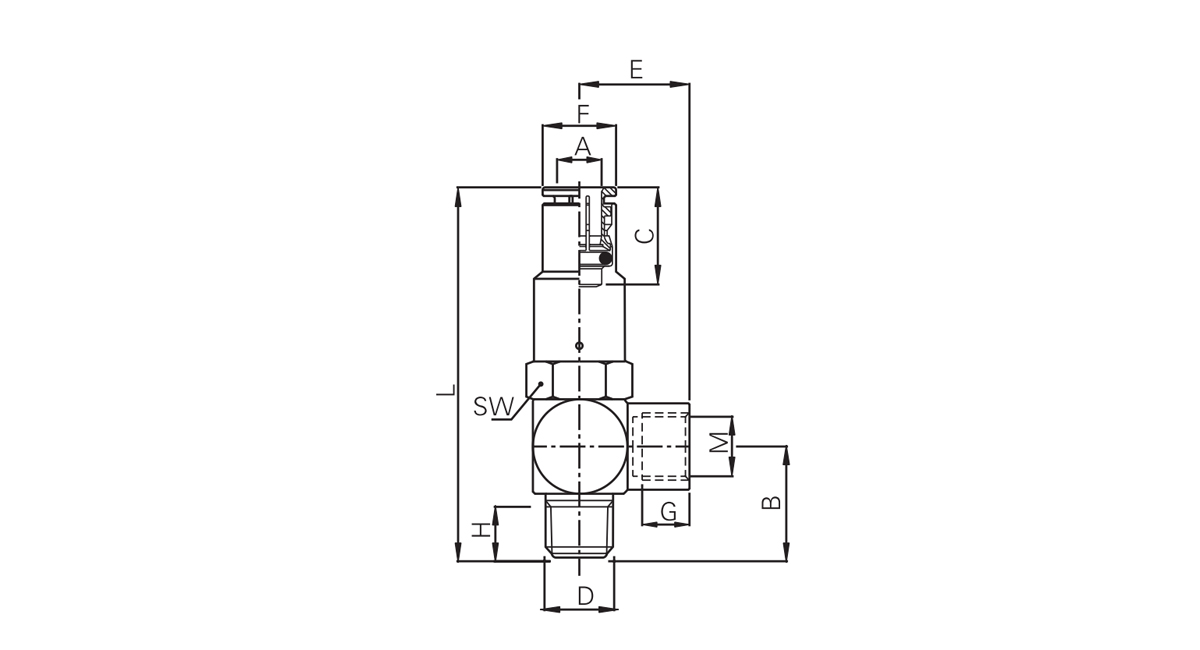

| Size chart | ||||||||||||
| Model | A | F | C | E | B | M | G | D | H | L | SW | Weight (g) |
| PCV-06F | 6 | 11.8 | 17 | 16 | 16.5 | G1/8 | 8 | PT1/8 | 7.5 | 58.5 | 14 | - |
| PCV-08F | 6 | 11.8 | 17 | 20.3 | 21 | G1/4 | 8.5 | PT1/4 | 10 | 67 | 17 | - |
| PCV-10F | 8 | 13.6 | 17.5 | 25 | 26 | G3/8 | 11 | PT3/8 | 11 | 82 | 22 | - |
| PCV-15F | 8 | 13.6 | 17.5 | 28 | 29.5 | G1/2 | 12 | PT1/2 | 14 | 87 | 24 | - |
