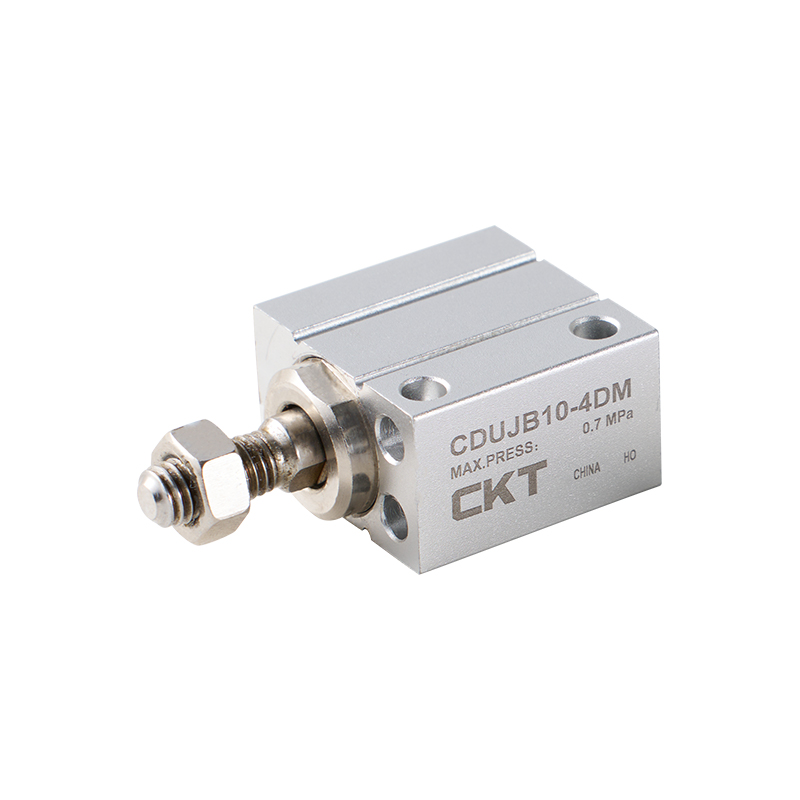

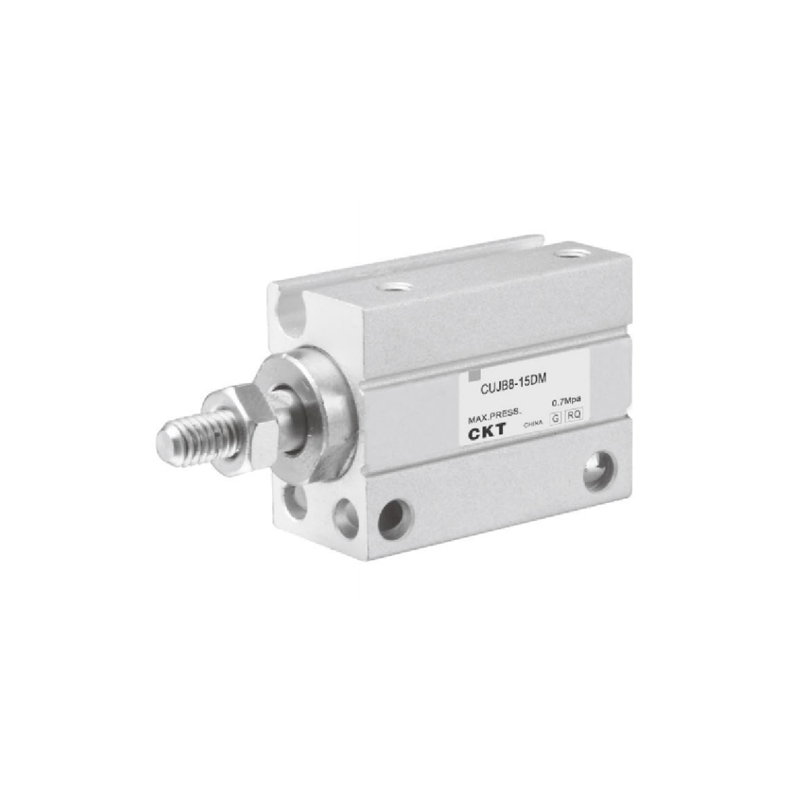

CUJB Series Small Free Installation Cylinder

CUJB Series Small Free Installation Cylinder is suitable for space-constrained working conditions. Its core feature is that it provides basic linear motion drive while achieving highly flexible mechanical integration and sensor expansion capabilities based on structural optimization.

Key features

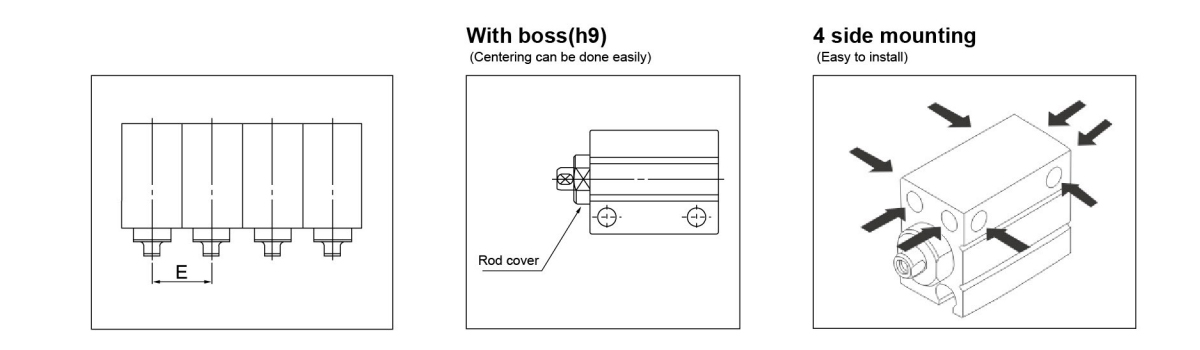

● Multi-directional installation compatible design
The main body integrates multiple reference fixed interfaces, supports rapid positioning and locking in four directions of axial/radial, and significantly improves the equipment assembly adaptability and spatial layout freedom.

● Expandable position sensing module
The embedded magnetic ring kit can be optionally equipped to generate displacement signals through the principle of non-contact magnetic coupling, providing basic state feedback for the closed-loop control of the pneumatic system.

● Integrated sensor connection structure
The cylinder body is pre-set with standardized sensor switch guide grooves, which are compatible with the tooling-free positioning installation of mainstream proximity switches, simplifying the function addition process of the position detection unit.

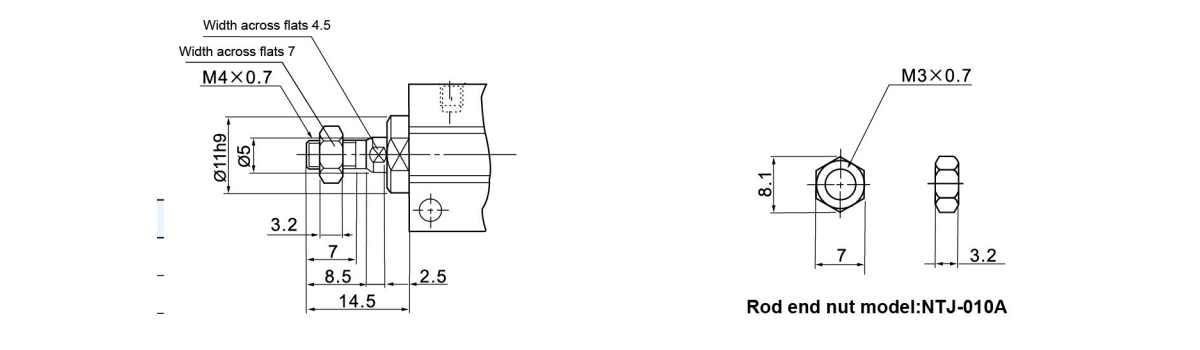

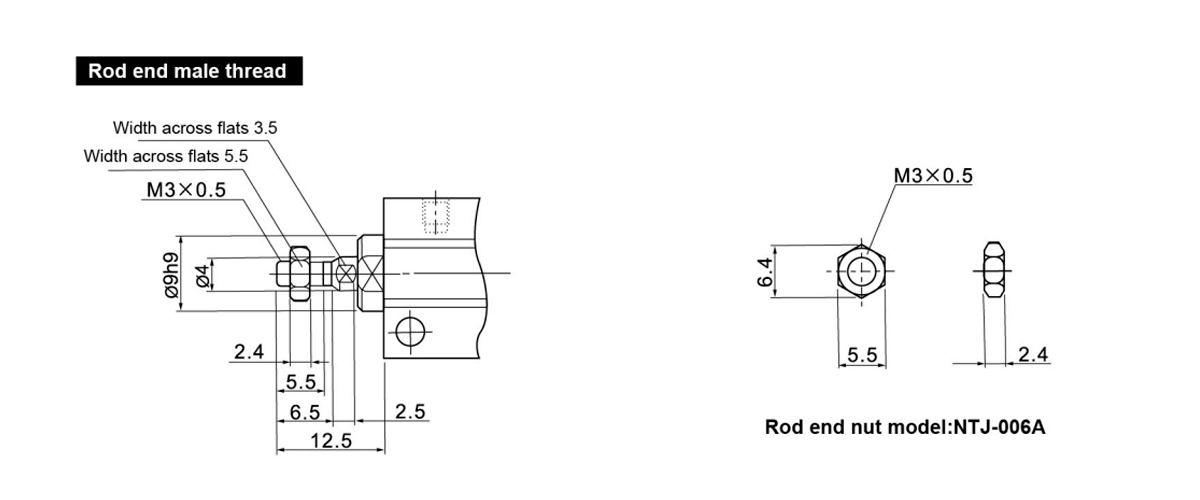

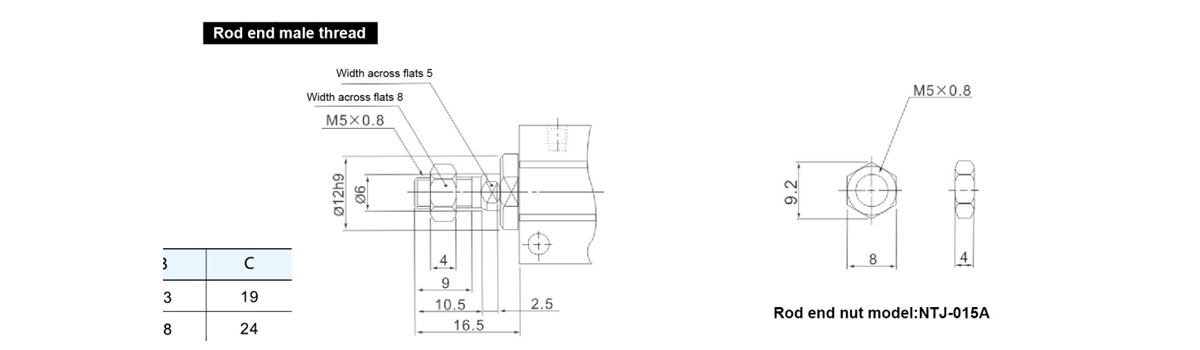

● Highly adaptable mechanical interface configuration
The piston rod end adopts the industrial universal connection paradigm, and with the multi-dimensional mounting surface of the main body, it can realize the deployment of the mechanism linkage solution without directional constraints.
