AF/BF Series Air Filters Suppliers

Home / Products / Pneumatic Pressure Control Components / Modular F.R.L. Units A/B Series / AF/BF Series Air Filters

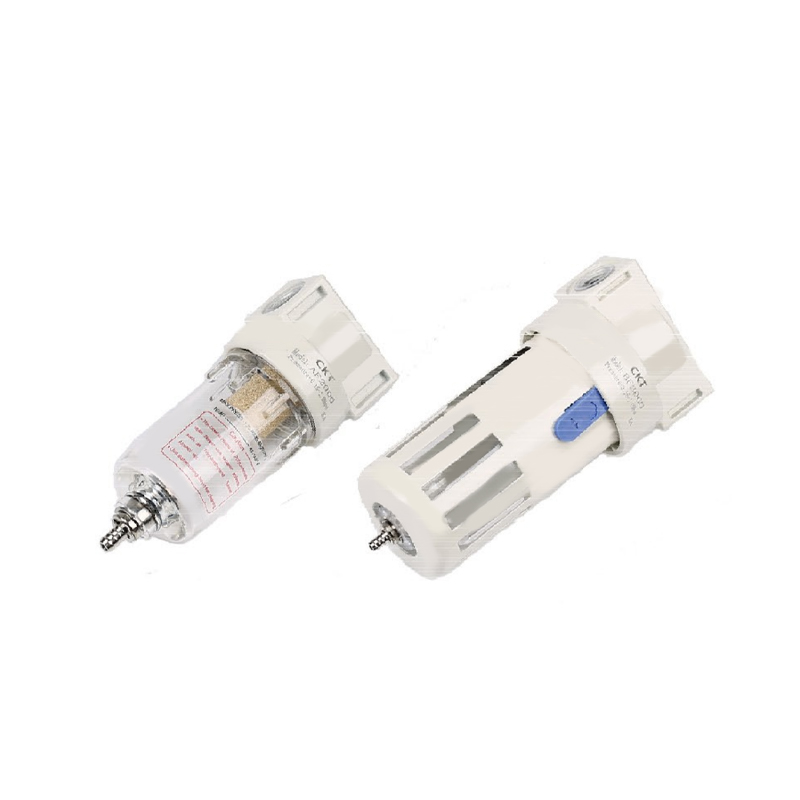

AF/BF Series Air Filters
  • AF/BF Series Air Filters
Modular F.R.L. Units A/B Series

AF/BF Series Air Filters

AF series
·Lightweight and compact structure, easy to install and use.
·Small pressure loss, high water separation efficiency.
·Filter accuracy 5μm, 40μm optional.


BF series
·Small pressure loss, high water separation efficiency.
·The water cup is protected by a high-strength plastic cover, which is safe and reliable to use.
·Filter accuracy 5μm, 40μm optional.

E-mail: manager@cktworld.com
Download
PREV：AR/BR Series Pressure Regulating Valve
NEXT：No next article

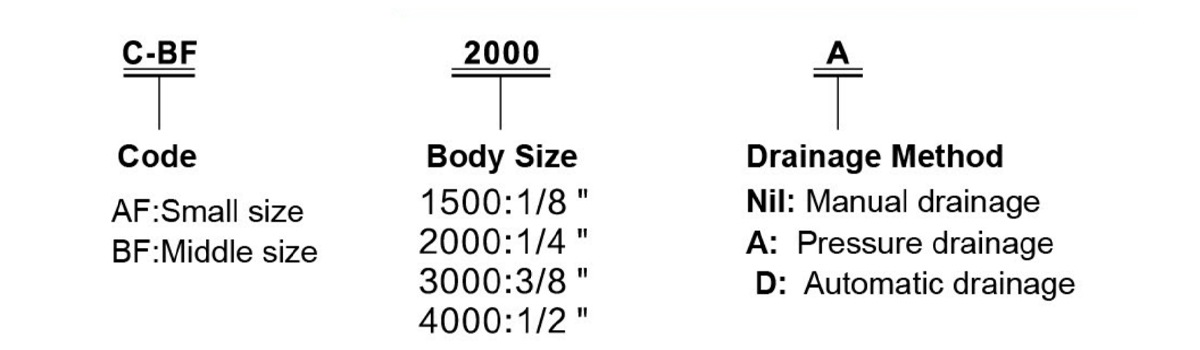

  • Model C-AF1500 C-AF2000 C-BF2000 C-BF3000 C-BF4000
    Port Size(PT) 1/8" 1/4" 1/4" 3/8" 1/2"
    Fluid Air
    Proof Pressure 1.5Mpa(213psi)
    Temperature Range 5-60℃
    Filter Accuracy 40μm
    Capacity Of Drain Bowl 15CC 60CC
    Weight (Kg) 0.14  0.33
    Main
    Material    		 Body Material Aluminum alloy
    Bowl Material PC
    Bonnet Material C-AF1500~AF2000:Without         C-BF2000~BF4000:With(Plastic)
