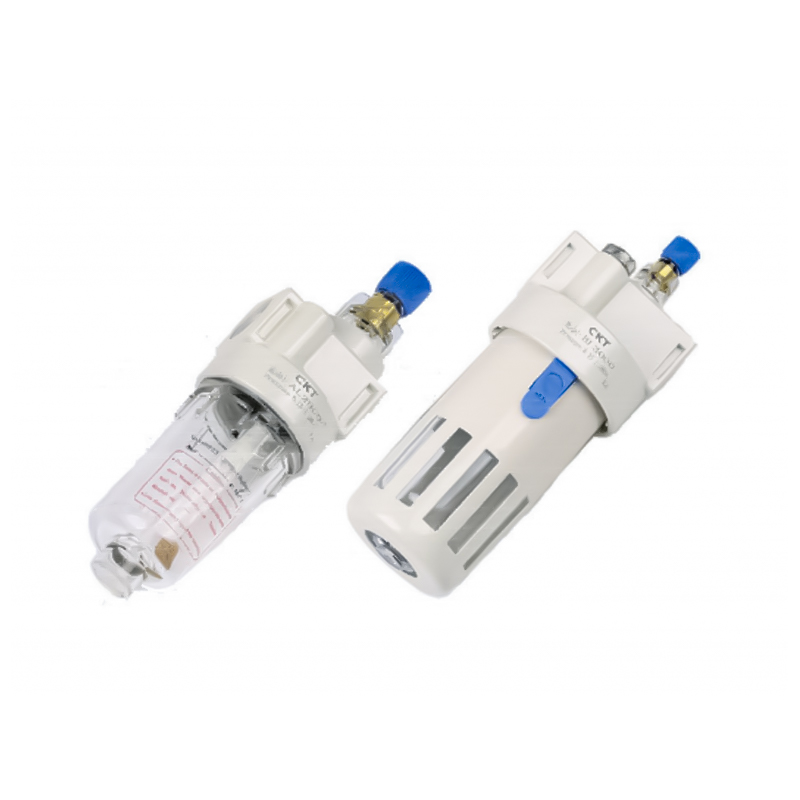

Lightweight and compact structure, easy to install and use.
BL has a high-strength plastic protective cover, safe and reliable to use.
Transparent inspection cover, can directly observe the amount of oil dripping
Small pressure loss, low oil misting.
| Model | C-AL1500 | C-AL2000 | C-BL2000 | C-BL3000 | C-BL4000 | |
| Port Size (PT) | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | |
| Fluid | Air | |||||
| Proof Pressure | 1.5Mpa(213psi) | |||||
| Temperature Range | 5~60℃ | |||||
| Recommended Lubrication | ISOVG32 or equivalent | |||||
| Capacity Of Oil Bowl | 15CC | 90CC | ||||
| Weight(Kg) | 0.14 | 0.23 | ||||
| Main Material |
Body Material | Aluminum alloy | ||||
| Bowl Material | PC | |||||
| Bonnet Material | C-AL1500~C-AL2000:Without C-BL2000~C-BL4000:With(Plastic) | |||||
