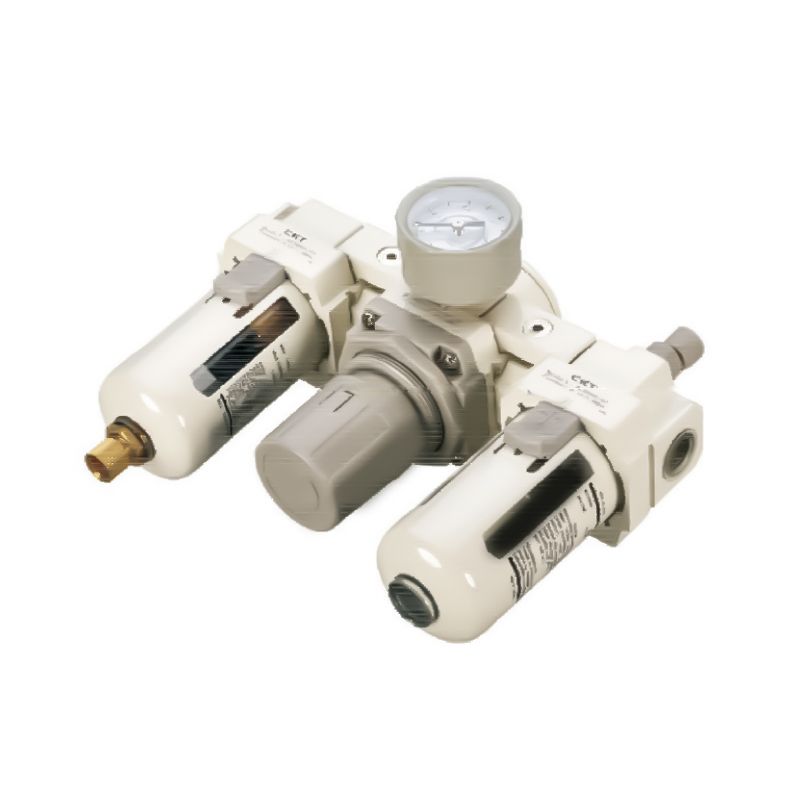

AC Series Filter Combination (Triple Piece)

AC Series Filter Combination (Triple Piece) is the core basic unit for air source pretreatment in industrial pneumatic systems. It typically integrates three functions: impurity filtration, pressure regulation and actuator lubrication. It provides clean, stable and suitable working medium for downstream pneumatic components, ensuring the reliability and life of system operation.

Core features:

1. Excellent medium cleanliness: It has efficient impurity capture ability, can effectively filter out solid particles and liquid water mist in the air source, and significantly reduce its potential damage to precision components.

2. Stable pressure output: The built-in pressure regulation mechanism operates reliably, can accurately set and maintain the required working pressure level of the system, and effectively buffer the impact of upstream pressure fluctuations on downstream equipment.

3. Optimized lubrication control: Its oil mist design focuses on efficiency, and can achieve stable and controllable lubricant atomization supply with a lower air flow, ensuring that the actuators are fully and economically lubricated. Protection.

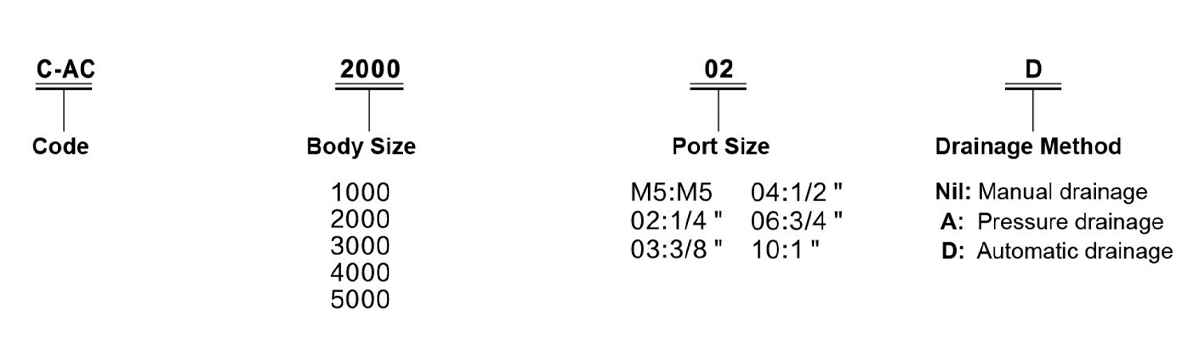

4. Flexible specification adaptation: Provide 2000/3000/4000/5000 series options, covering from basic applications to more demanding working conditions, easy to adapt and select according to system load and flow requirements.

5. Wide range of interface compatibility: Support 1/8", 1/4", 3/8", 1/2", 3/4", 1" and other standard pipe diameters, easy to connect and integrate with pneumatic pipes of different specifications, simplifying on-site installation.
