AW Series Filter Pressure Regulator

Home / Products / Pneumatic Pressure Control Components / Modular F.R.L. Units AC Series / AW Series Filter Pressure Regulator

AW Series Filter Pressure Regulator
  • AW Series Filter Pressure Regulator
Modular F.R.L. Units AC Series

AW Series Filter Pressure Regulator

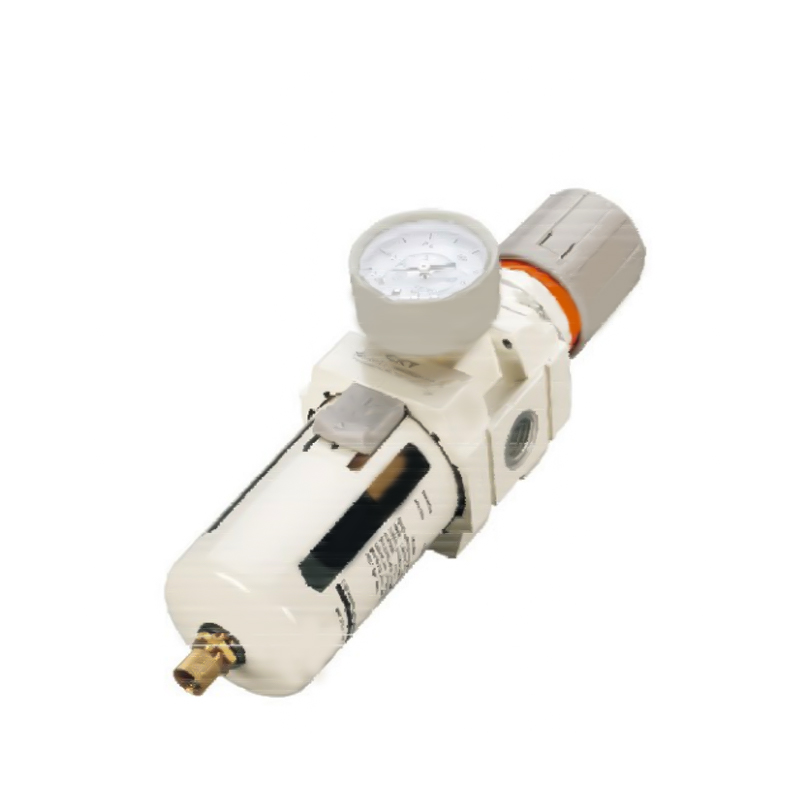

AW Series Filter Pressure Regulator is a key air source processing component in industrial pneumatic systems. It integrates filtering and pressure regulation functions to provide clean and pressure-stable compressed air for actuators, ensuring the reliability and long-term operation of the system.

1. Multi-stage impurity interception capability

The built-in high-efficiency filtration structure can deeply separate solid particles and liquid residues in the air source, reducing the risk of pipeline contamination.


2. Pressure dynamic balance control

The pressure regulating mechanism has low hysteresis characteristics, and the output pressure fluctuation range is narrow, which effectively suppresses the pressure drift caused by load changes.


3. Modular assembly interface

The standard port quick-connect design is adopted, which is compatible with mainstream gas manifolds and pipeline layouts, significantly shortening the on-site installation cycle.


4. Full-scenario specification coverage

Provides 2000/3000/4000/5000 series flow levels to adapt to the working conditions of pneumatic circuits of different sizes.


5. Universal pipeline adaptation

Supports 1/8" to 1" cross-diameter pipe configuration to achieve rapid compatible deployment with existing gas supply networks.

E-mail: manager@cktworld.com
Download
PREV：AC Series Filter Combination (Two Piece)
NEXT：AL Series Lubricator
  • Proof Pressure 1.5Mpa{15.3kgf/cm²}
    Max Operating Pressure 1.0Mpa{10.2kgf/cm²}
    Ambient And Fluid Temperature 5~60℃
    Strainer Aperture 5μm
    Bowl Material Polycarbonate
    Bowl Guard C-AW1000~2000(Without)       C-AW3000~5000(With)
    Set Pressure Range C-AW1000:0.05~0.7Mpa(0.51~7.1kgf/cm²)
    C-AW2000~5000:0.05~0.85Mpa(0.51~8.7kgf/cm²)
    Remark:2,10,20,40,70,100μm for optional

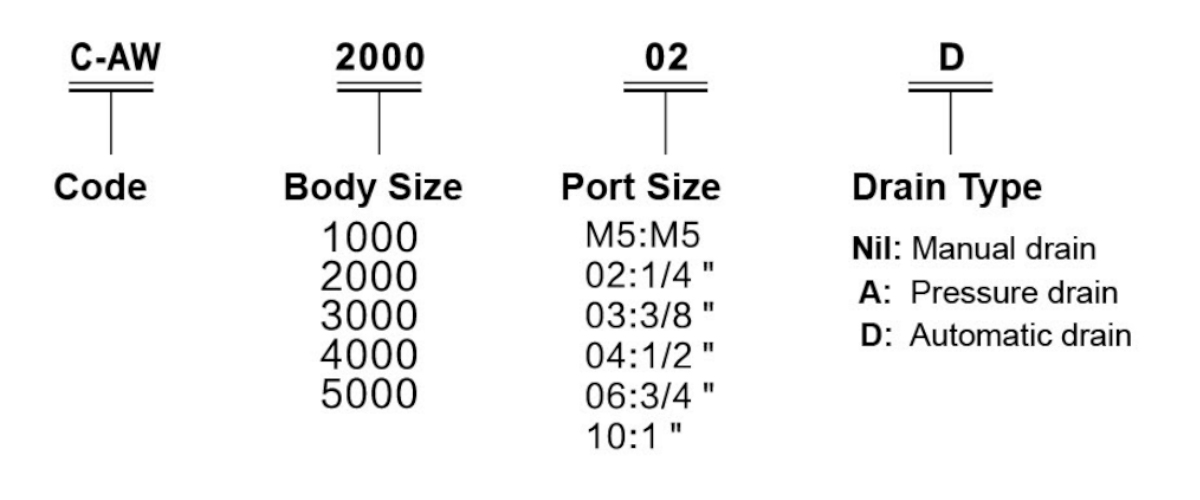

    Model Specification
    Rated Flow Port Size
    Rc(PT)    		 Gauge Port Size
    Rc(PT)    		 Weight
    (Kgf)
    Mannual Drain  Automatic Drain
    C-AW1000-M5   C-AW1000-M5D 100  M5×8 1/16 0.09
    C-AW2000-02   C-AW2000-02D 550  1/4 1/8 0.36
    C-AW3000-02   C-AW3000-02D 2000  1/4 1/8 0.56
    C-AW3000-03   C-AW3000-03D 2000  3/8 1/8 0.56
    C-AW4000-03   C-AW4000-03D 4000  3/8 1/4 1.15
    C-AW4000-04   C-AW4000-04D 4000  1/2 1/4 1.15
    C-AW4000-06   C-AW4000-06D 4500  3/4 1/4 1.21
    C-AW5000-06   C-AW5000-06D 5000  3/4 1/4
    C-AW5000-10   C-AW5000-10D 5000  1  1/4
    Note: 1. The standard automatic drain is normally open (N.O.). The C-AW3000~4000 series also offers a normally closed (N.C.) option. The minimum operating pressure is: normally open - 0.1 MPa (1 kgf/cm²), normally closed - 0.15 MPa (1.5 kgf/cm²).
    2. Under a supply pressure of 0.7 MPa (7.1 kgf/cm²).

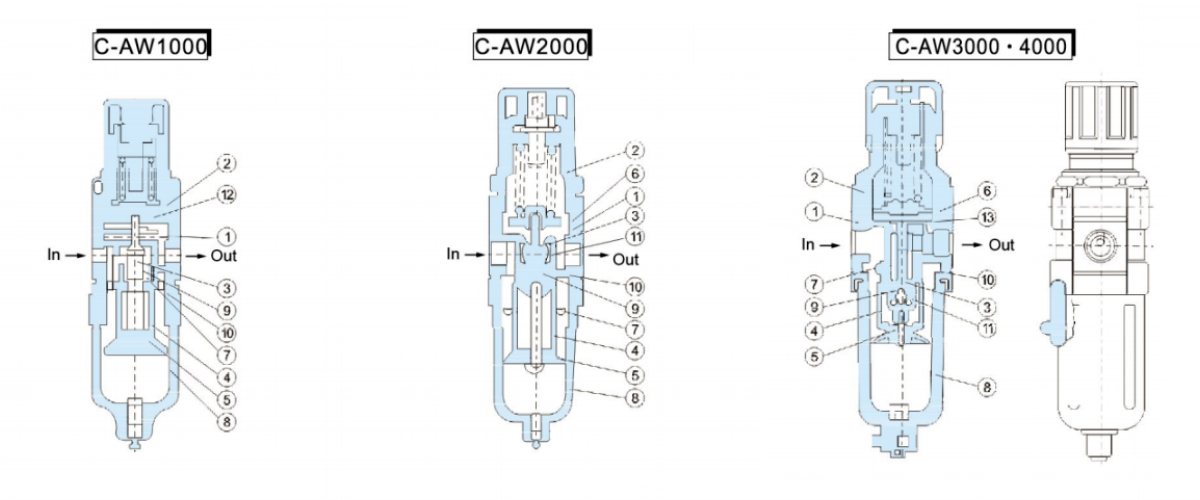

  • Main Components
    Item Name Material Remark
    C-AW1000~2000 C-AW3000 C-AW4000/C-AW4000-06
    1  Body Zinc Die-cast Aluminum Die-cast Aluminum Die-cast White
    2  Bonnet Metacetaldehyde Aluminum Die-cast Black

    Componnets
    Item Name Material Part  No.
    C-AW1000   C-AW2000  C-AW3000 C-AW4000 C-AW4000-06
    3  Valve Assembly Brass NBR - - - - -
    4  Filter Element Resin - - - - -
    5  Bulkhead ABS - - - - -
    6  Diaphragm Assembly NBR - - - - -
    7  Deflecting Plate ABS - - - - -
    8  Bowl Assembly Polycarbonate - - - - -
    9  Valve Spring Stainless Steel - - - - -
    10  Body O-ring NBR - - - - -
    11  Valve O-ring NBR - - - - -
    12  MY-ring NBR - - - - -
    13  O-ring NBR - - - - -

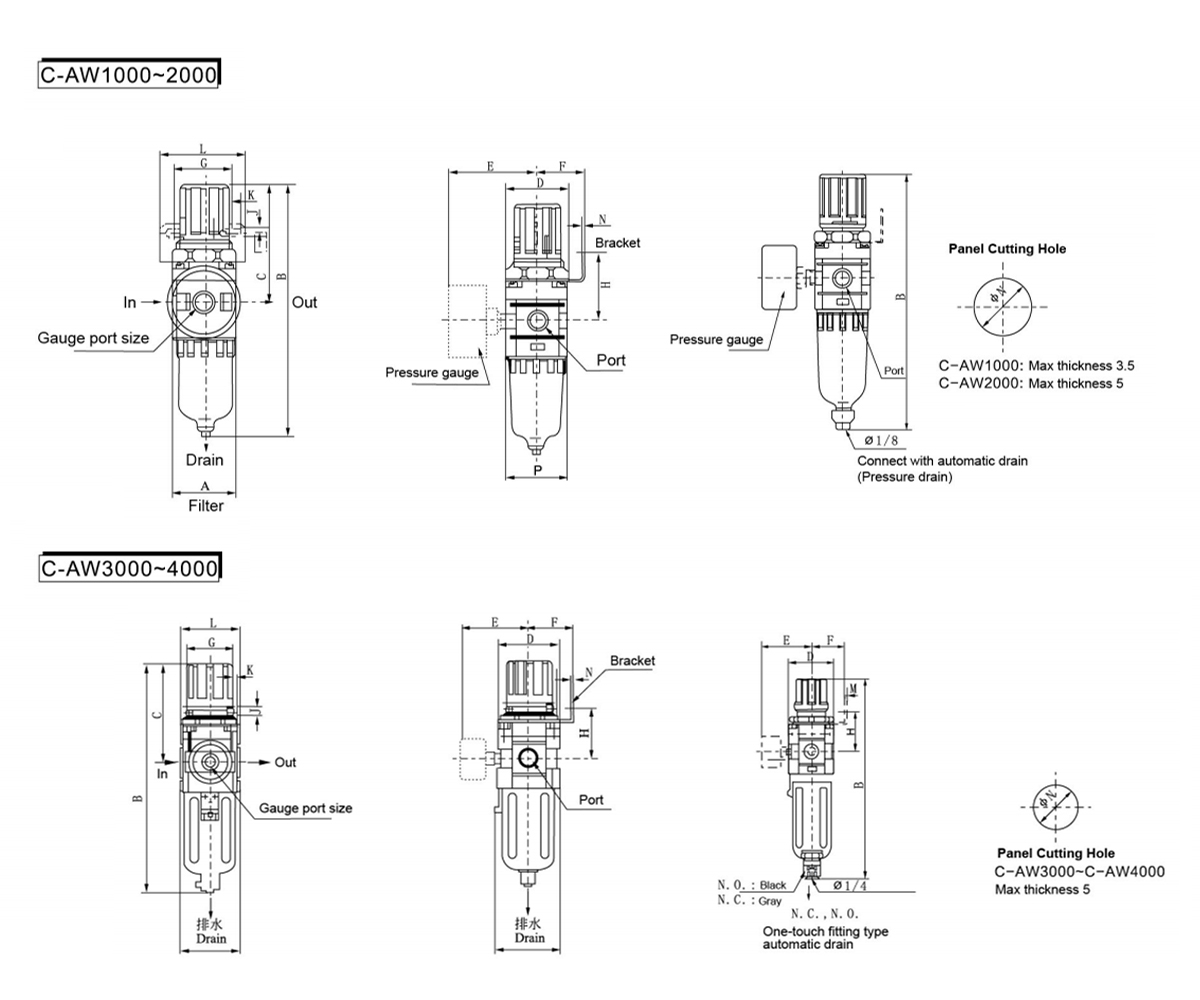

    Model Port
    Size    		 A B C D E F G H J K L M N P Connect With
    Automatic Drain
    B
    C-AW1000 M5×0.8 25  109.5  50.5  25  26  25  28  30  4.5  6.5  40  2.0  20.5  28  130
    C-AW2000 1/4 40  164.5  78  40  56.8  30  30  45  5.4  15.4  55  2.3  33.5  40  187.5
    C-AW3000 1/4 ·3/8 53  211  92.5  53  60.8  41  40  46  6.5  8.0  53  2.3  42.5  56  248.5
    C-AW4000 3/8 · 1/2 70  262.5  112  70  70.5  50  54  54  8.5  10.5  70  2.3  52.5  73  300
    C-AW4000-06 3/4 75  267  114  70  70.5  50  54  56  8.5  10.5  70  2.3  52.5  73  304
