TDA/TN Series Double Cylinder (Ø10~Ø32)

Home / Products / Air Cylinder / Multi-axis cylinder / TDA/TN Series Double Cylinder (Ø10~Ø32)

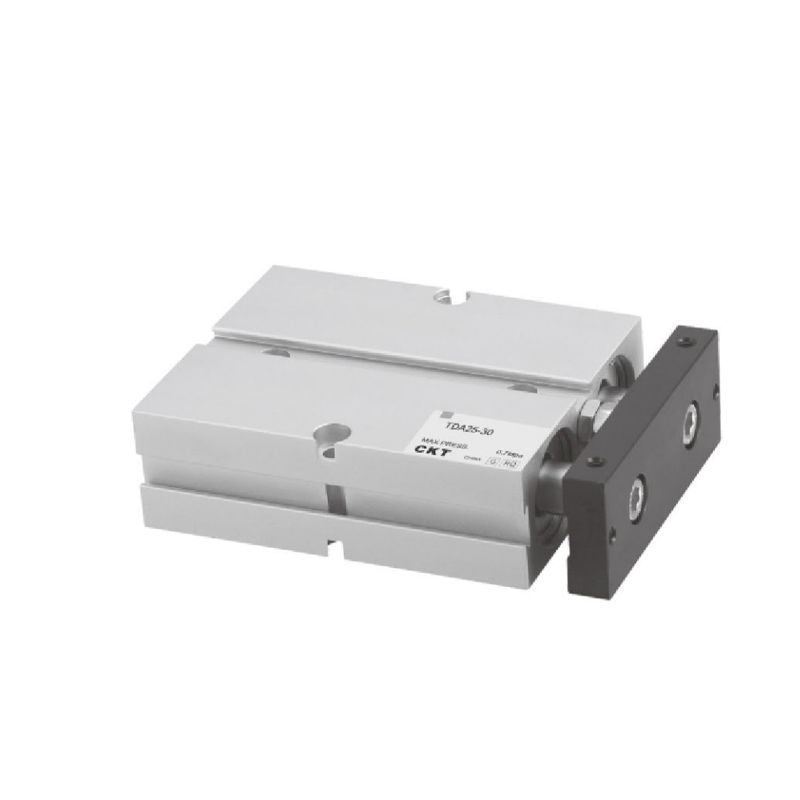

TDA/TN Series Double Cylinder (Ø10~Ø32)
  • TDA/TN Series Double Cylinder (Ø10~Ø32)
Multi-axis cylinder

TDA/TN Series Double Cylinder (Ø10~Ø32)

1. The embedded body is fixed and installed to save installation space;
2. It has certain anti-bending and anti-torsion properties and can withstand certain lateral loads;
3. There are mounting holes on three sides of the fixing plate to facilitate multi-position loading;
4. The anti-collision pad at the front end of the body can adjust the cylinder stroke and relieve impact;
5. The standard configuration of this series of cylinders is magnetic type, and there is no option without magnetic type.

E-mail: manager@cktworld.com
Download
PREV：CXS Series Double Cylinder (Basic Type)
NEXT：No next article

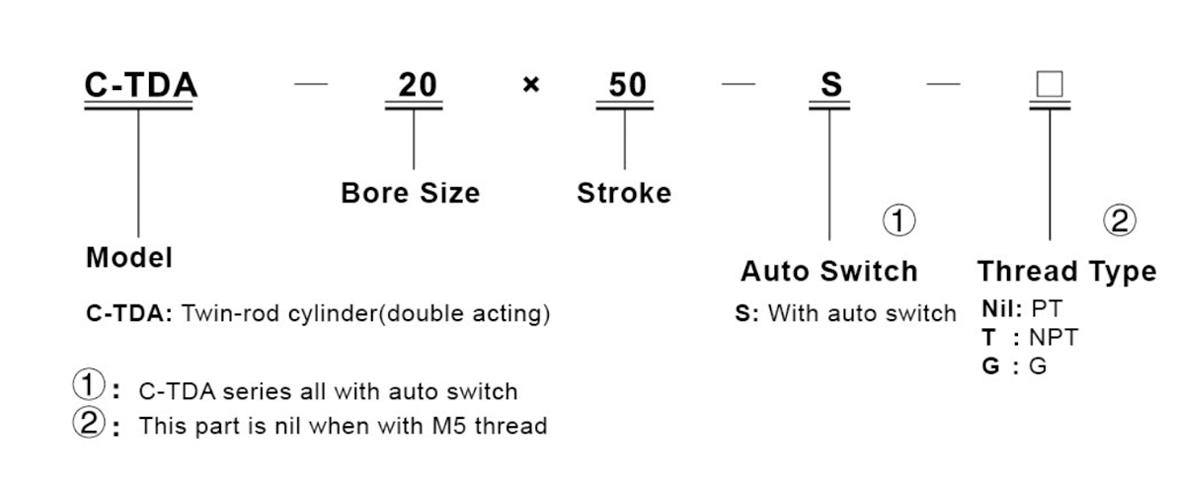

  • Specification
    Bore Size(mm) 10  16  20  25  32
    Action Double acting
    Fluid Air
    Operatinhg Pressure Range 0.1~1.0MPa(14~145psi)
    Proof Pressure 1.5MPa(215psi)
    Opearing Temperature
           (℃)    		 -20~70
    Operating Speed Range
           (mm/s)    		 30~500
    Adjustable Stroke -10~0
    Stroke Length Tolerance +1.00
    Cushion Bumper
    Non-rotating Tolerance ±0.4° ±0.3°
    Port Size M5×0.8 PT1/8
    *Non-rotation accuracy refers to the angle at which the cylinder fixing plate can rotate when the cylinder is fully retracted；
    **NPT and G thread types are available for the pipe connection.
    Also: C-TN series fully magnetic.

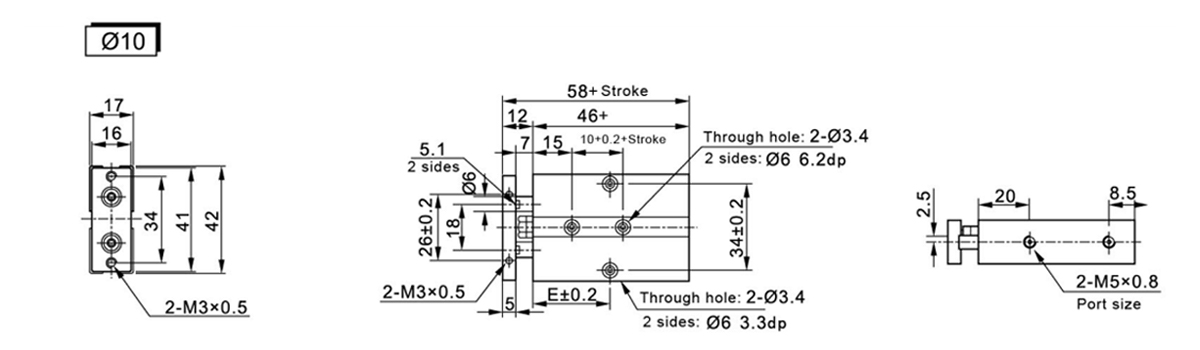

  • Symbol/Stroke 10  20  30  40  50  60  70  80  90  100
    E 30  30  35  40  45  50  55  60  65  70

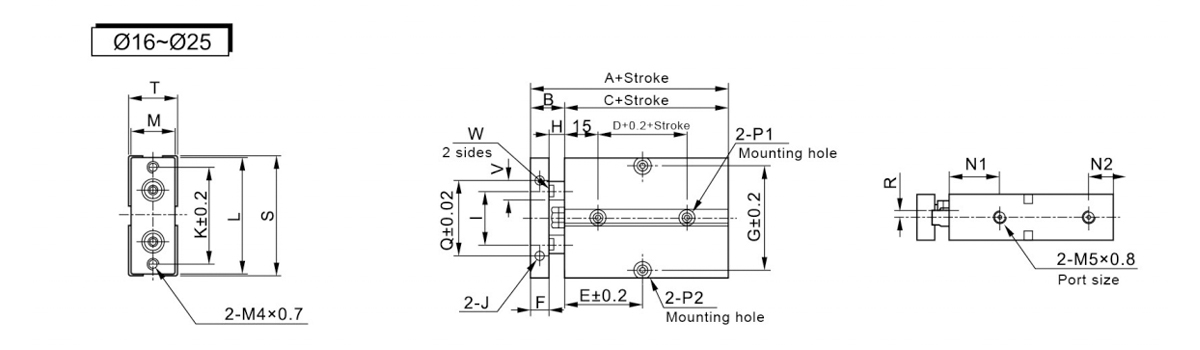

    Symbol/Stroke A B C D Stroke≤ 10  20  30  40  50  60  70  80  90  100  125  150  175  200  F
    16  68  15  53  20  E 30  35  40  45  50  55  60  65  70  75  87.5  100  112.5  125  8
    20  78  20  58  20  35  35  40  45  50  55  60  65  70  75  87.5  100  112.5  125  10
    25  81  19  62  30  40  40  45  50  55  60  65  70  75  80  92.5  105  117.5  130  10

    Symbol/Stroke G H 1  J K L M N1 N2 P1 P2 Q R S T V W
    16  47  7  24  M4×0.7Depth5 47  53  20  22  11  Both sides:07.5 Depth 7.2mm Through hole Ø4.5 Both sides:08 Depth4.5mm Through holeØ4.5 34  3  54  21  8  6.1
    20  55  10  28  M4×0.7Depth5 55  61  24  25  12  Both sides:07.5 Depth 7.2mm Through hole Ø4.5 Both sides:08 Depth4.5mm Through hole Ø4.5 44  3.5  62  25  10  8.1
    25  66  9  34  M4×0.7Depth5 66  72  29  27  12  Both sides:07.5 Depth 7.2mm Through hole Ø4.5 Both sides:08 Depth4.5mm Through holeØ4.5 56  6  73  30  12  10.1

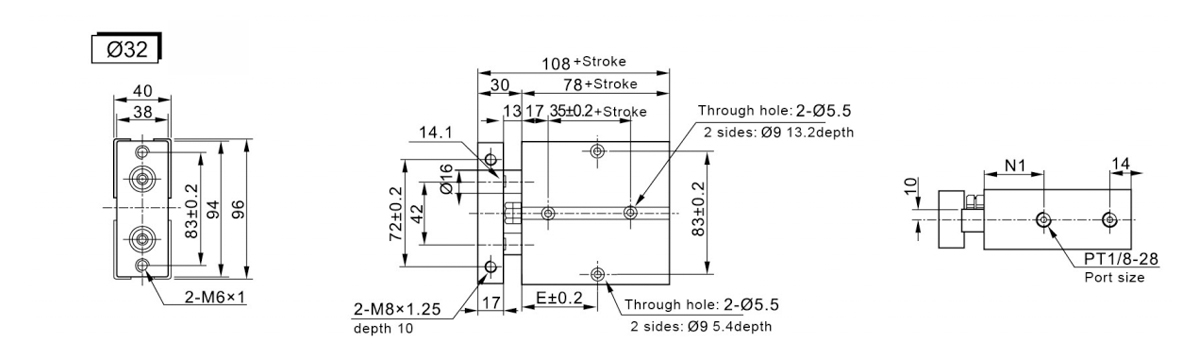

    Symbol/Stroke 10  20  30  40  50  60  70  80  90  100  125  150  175  200
    E 45  50  55  60  65  70  75  80  85  90  102.5  115  127.5  140
    N1 35  40
