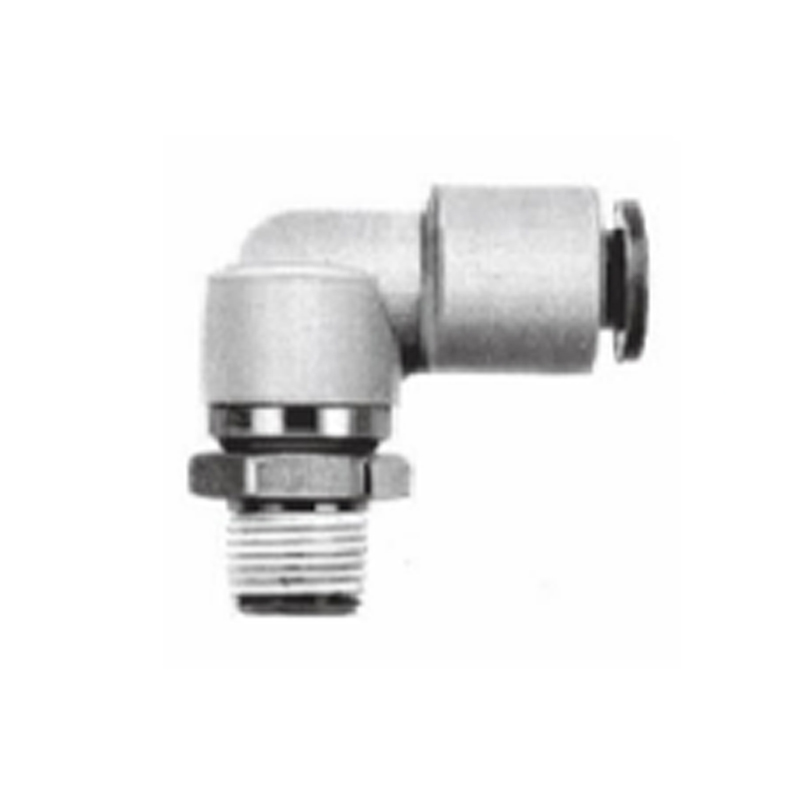

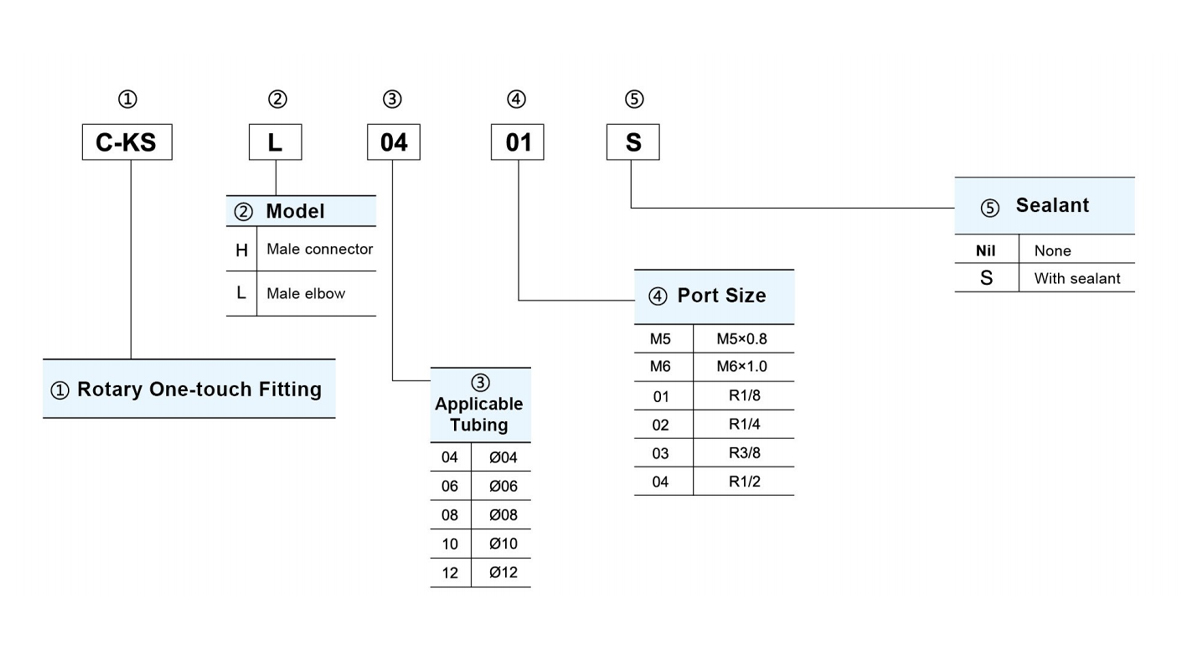

Features
·Built-in bearing
·High speed rotating
·Copper-free specifications, brass parts are all electriless nickel plated.
·Can be used in vacuum system(vacuum degree below100kPa)
| Fluid | Air |
| Max Operating Pressure | 1.0MPa |
| Vacuum Operating Pressure | -100kPa |
| Proof Pressure | 3.0MPa |
| Ambient And Fluid Temperature | -5~60℃(No freezing) |
| Rotating Torque /Allowable Number Of Rotations Opreating Pressure:Below 0.5MPa |
||||||
| Applicable Tubing O.D | Ø4 | Ø6 | Ø8 | Ø10 | Ø12 | |
| Rotating Torque | 0.006 | 0.012 | 0.014 | 0.020 | 0.022 | |
| Allowable Number Of Rotations |
C-KS Series | 500 | 500 | 400 | 300 | 250 |
| C-KX Series | 1500 | 1200 | 1200 | 1000 | 1000 | |
| Applicable Tubing O.D (mm) |
Model | Connection Thread T | H Width Across Flats | D1 | D2 | L | A | M | Min Port Size |
Effective Area (mm²) |
Weight (g) |
|
| Nylon | Urethane | |||||||||||

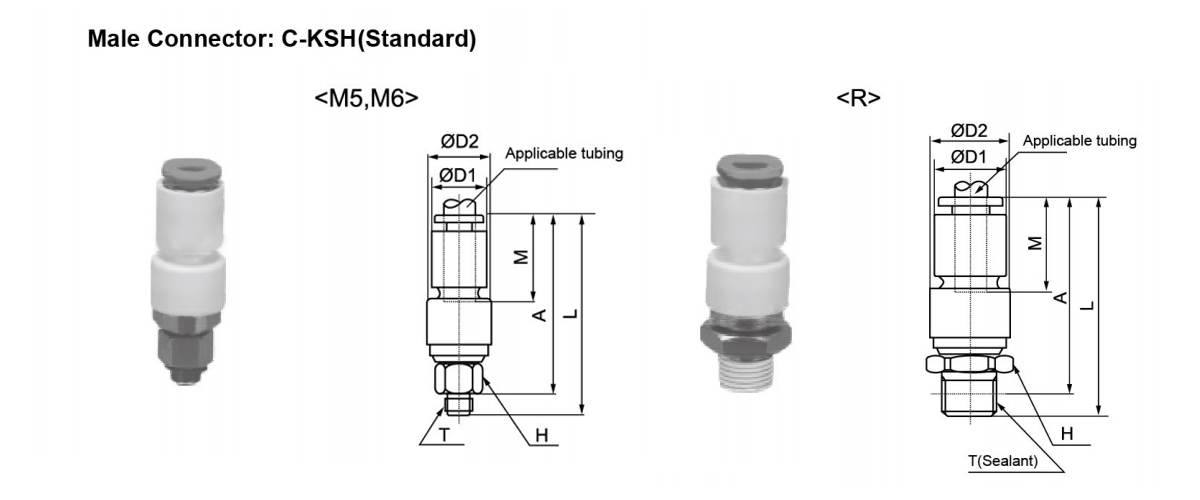

| Ø4 | C-KSH04-M5 | M5×0.8 | 8 | 10.4 | 12 | 36.5 | 33 | 16 | 2.5 | 4.0 | 4.0 | 9 |
| C-KSH04-M6 | M6×1 | 37 | ||||||||||
| C-KSH04-01S | 1/8 | 12 | 38 | 34 | 14 | |||||||
| Ø6 | C-KSH06-M5 | M5×0.8 | 8 | 12.8 | 14 | 37.5 | 33.5 | 7 | 2.5 | 4.0 | 4.0 | 12 |
| C-KSH06-M6 | M6×1 | 38 | 34 | 3 | 5.6 | 5.6 | ||||||
| C-KSH06-01S | 1/8 | 14 | 39.5 | 35.5 | 4 | 10.4 | 10.4 | 17 | ||||
| C-KSH06-02S | 1/4 | 42.5 | 36.5 | 23 | ||||||||
| Ø8 | C-KSH08-01S | 1/8 | 17 | 15.2 | 17 | 44 | 40 | 18.5 | 6 | 26.1 | 18.0 | 23 |
| C-KSH08-02S | 1/4 | 47 | 41 | 29 | ||||||||
| C-KSH08-03S | 3/8 | 48 | 41.5 | 37 | ||||||||
| Ø10 | C-KSH10-02S | 1/4 | 22 | 18.5 | 22 | 54 | 48 | 21 | 7 | 36.3 | 29.5 | 55 |
| C-KSH10-03S | 3/8 | 55 | 48.5 | 63 | ||||||||
| C-KSH10-04S | 1/2 | 57.5 | 49.5 | 81 | ||||||||
| Ø12 | C-KSH12-03S | 3/8 | 24 | 20.9 | 24 | 57 | 50.5 | 22 | 8 | 46.1 | 16.1 | 75 |
| C-KSH12-04S | 1/2 | 60 | 52 | 92 | ||||||||
| Applicable Tubing O.D (mm) |
Model | Connection Thread T | H Width Across Flats | D1 | D2 | L | A | M | Min Port Size |
Effective Area (mm²) |
Weight (g) |
|
| Nylon | Urethane | |||||||||||

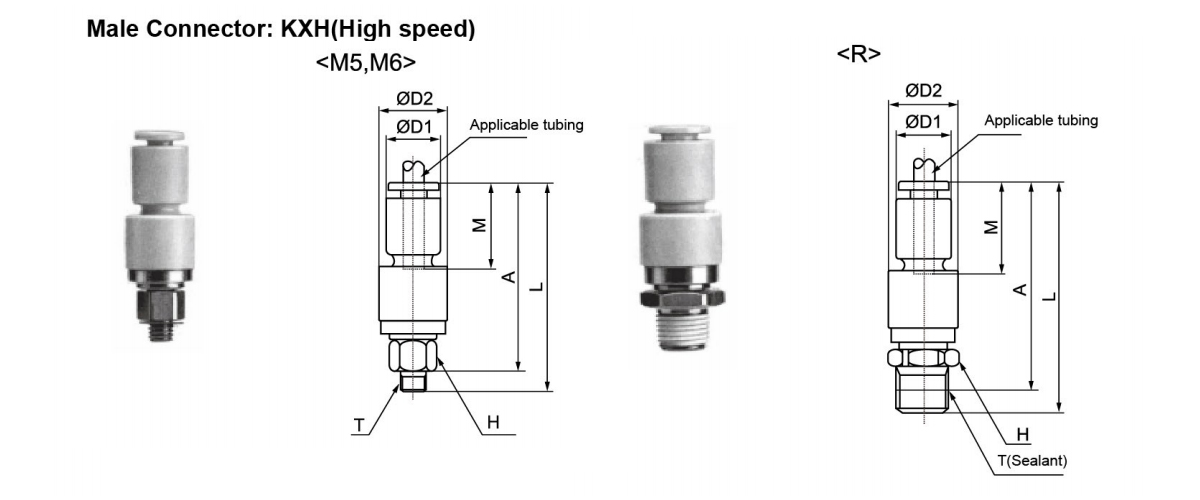

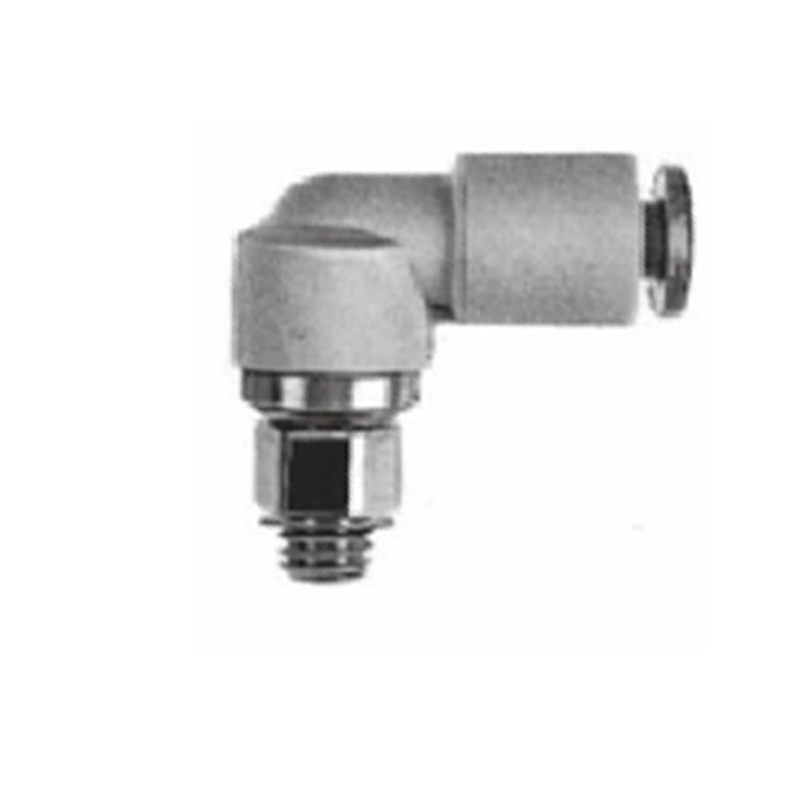

| Ø4 | C-KXH04-M5 | M5×0.8 | 8 | 10.4 | 13 | 38.5 | 35 | 16 | 2.5 | 4.0 | 4.0 | 11 |
| C-KXH04-M6 | M6×1 | 39 | ||||||||||
| C-KXH04-02S | 1/8 | 12 | 40 | 36 | 16 | |||||||
| Ø6 | C-KXH06-M5 | M5×0.8 | 8 | 12.8 | 15 | 39.5 | 36 | 17 | 2.5 | 4.0 | 4.0 | 15 |
| C-KXH06-M6 | M6×1 | 40 | 3 | 5.6 | 5.6 | |||||||
| C-KXH06-01S | 1/8 | 14 | 42 | 38 | 4 | 10.4 | 10.4 | 20 | ||||
| C-KXH06-02S | 1/4 | 45 | 39 | 26 | ||||||||
| Ø8 | C-KXH08-01S | 1/8 | 17 | 15.2 | 18 | 46 | 42 | 18.5 | 6 | 26.1 | 18.0 | 28 |
| C-KXH08-02S | 1/4 | 49 | 43 | 34 | ||||||||
| C-KXH08-03S | 3/8 | 50 | 44 | 42 | ||||||||
| Ø10 | C-KXH10-02S | 1/4 | 22 | 18.5 | 23.5 | 58 | 52 | 21 | 7 | 36.3 | 29.5 | 68 |
| C-KXH10-03S | 3/8 | 59 | 76 | |||||||||
| C-KXH10-04S | 1/2 | 62 | 53 | 94 | ||||||||
| Ø12 | C-KXH12-03S | 3/8 | 24 | 20.9 | 26 | 60 | 54 | 22 | 8 | 46.1 | 46.1 | 88 |
| C-KXH12-04S | 1/2 | 63 | 55 | 105 | ||||||||
| Applicable Tubing O.D (mm) |
Model | Connection Thread T | H Width Across Flats |
D1 | D2 | L1 | L2 | A | M | Min Port Size |
Effective Area (mm²) |
Weight (g) |
|
| Nylon | Urethane | ||||||||||||

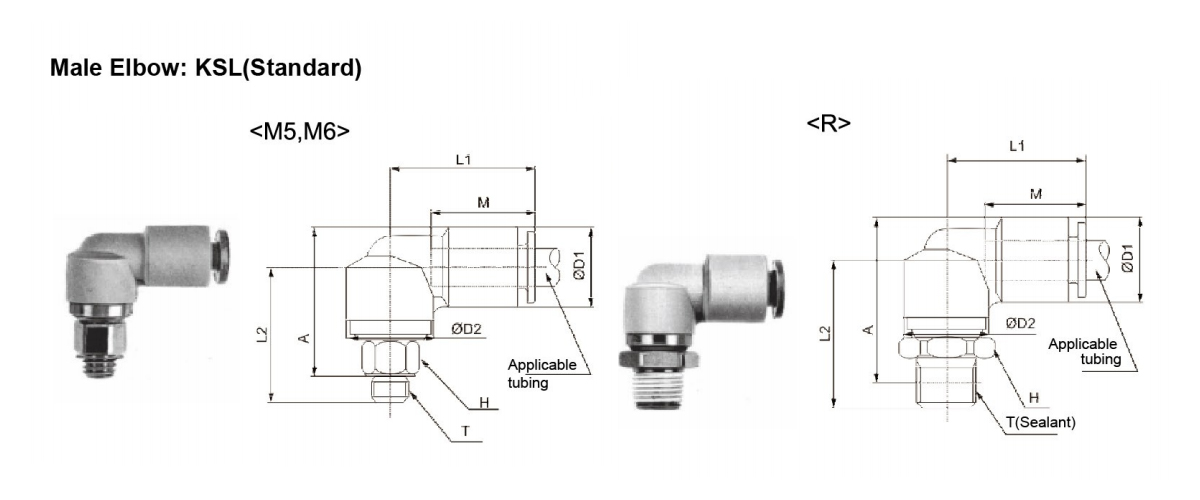

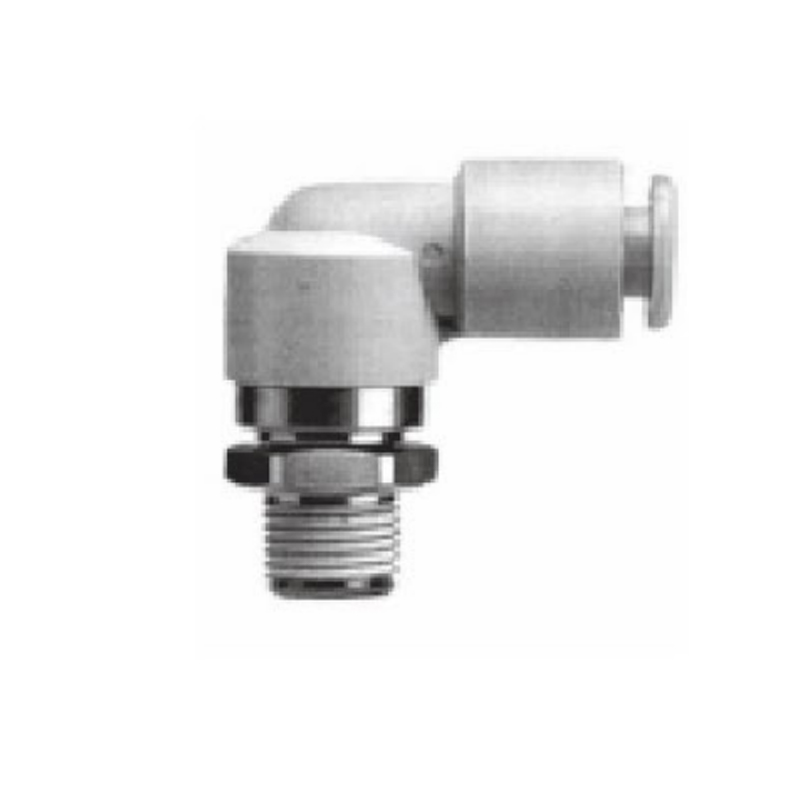

| Ø4 | C-KSL04-M5 | M5×0.8 | 8 | 10.4 | 12 | 21 | 20.5 | 22 | 16 | 2.5 | 3.5 | 3.5 | 9 |
| C-KSL04-M6 | M6×1 | 21 | |||||||||||
| C-KSL04-01S | 1/8 | 12 | 22 | 23.5 | 14 | ||||||||
| Ø6 | C-KSL06-M5 | M5×0.8 | 8 | 12.8 | 14 | 23 | 21 | 23.5 | 17 | 2.5 | 3.5 | 3.5 | 12 |
| C-KSL06-M6 | M6×1 | 21.5 | 24 | 3 | 5.0 | 5.0 | |||||||
| C-KSL06-01S | 1/8 | 14 | 23 | 25.5 | 4 | 8.6 | 8.6 | 17 | |||||
| C-KSL06-02S | 1/4 | 26 | 26.5 | 23 | |||||||||
| Ø8 | C-KSL08-01S | 1/8 | 17 | 15.2 | 17 | 26 | 26.5 | 30 | 18.5 | 6 | 21.6 | 14.9 | 23 |
| C-KSL08-02S | 1/4 | 29.5 | 31 | 29 | |||||||||
| C-KSL08-03S | 318 | 31 | 32 | 38 | |||||||||
| Ø10 | C-KSL10-02S | 1/4 | 22 | 18.5 | 22 | 21.5 | 34 | 37.5 | 21 | 7 | 30.5 | 25.0 | 56 |
| C-KSL10-03S | 318 | 35 | 38 | 64 | |||||||||
| C-KSL10-04S | 1/2 | 38 | 39.5 | 82 | |||||||||
| Ø12 | C-KSL12-03S | 318 | 24 | 20.9 | 24 | 34 | 36.5 | 40.5 | 22 | 8 | 35.1 | 35.1 | 76 |
| C-KSL12-04S | 1/2 | 39.5 | 42 | 93 | |||||||||
| Applicable Tubing O.D (mm) |
Model | Connection Thread T | H Width Across Flats |
D1 | D2 | L1 | L2 | A | M | Min Port Size |
Effective Area (mm²) |
Weight ( g) |
|
| Nylon | Urethane | ||||||||||||

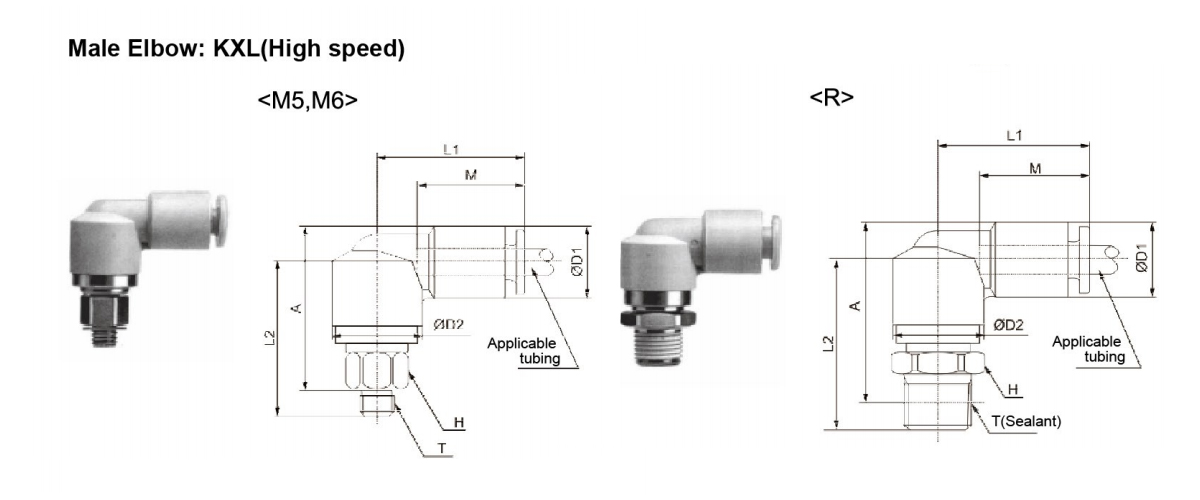

| Ø4 | C-KXL04-M5 | M5×0.8 | 8 | 10.4 | 13 | 22 | 22.5 | 24 | 16 | 2.5 | 3.5 | 3.5 | 11 |
| C-KXL04-M6 | M6×1 | 23 | |||||||||||
| C-KXL04-01S | 1/8 | 12 | 24 | 25 | 16 | ||||||||
| Ø6 | C-KXL06-M5 | M5×0.8 | 8 | 12.8 | 15 | 24 | 23.5 | 26 | 17 | 2.5 | 2.5 | 3.5 | 15 |
| C-KXL06-M6 | M6×1 | 24 | 3 | 5.0 | 5.0 | ||||||||
| C-KXL06-01S | 1/8 | 14 | 25 | 28 | 4 | 8.6 | 8.6 | 20 | |||||
| C-KXL06-02S | 1/4 | 28 | 29 | 26 | |||||||||
| 88 | C-KXL08-01S | 1/8 | 17 | 15.2 | 18 | 27 | 29 | 32 | 18.5 | 6 | 21.6 | 14.9 | 28 |
| C-KXL08-02S | 1/4 | 32 | 33 | 34 | |||||||||
| C-KXL08-03S | 318 | 33 | 34 | 43 | |||||||||
| Ø10 | C-KXL10-02S | 1/4 | 22 | 18.5 | 23.5 | 32 | 38 | 42 | 21 | 7 | 30.5 | 25.0 | 39 |
| C-KXL10-03S | 318 | 39 | 77 | ||||||||||
| C-KXL10-05S | 1/2 | 42 | 43 | 95 | |||||||||
| Ø12 | C-KXL12-03S | 318 | 24 | 20.9 | 26 | 35 | 40 | 44 | 22 | 8 | 35.1 | 35.1 | 89 |
| C-KXL12-04S | 1/2 | 43 | 45 | 105 | |||||||||
