MHZ2 Series (Parallel Opening and Closing Type) Pneumatic Gripper

Home / Products / Air Cylinder / Pneumatic Grippers / MHZ2 Series (Parallel Opening and Closing Type) Pneumatic Gripper

MHZ2 Series (Parallel Opening and Closing Type) Pneumatic Gripper MHZ2 Series (Parallel Opening and Closing Type) Pneumatic Gripper
  • MHZ2 Series (Parallel Opening and Closing Type) Pneumatic Gripper
  • MHZ2 Series (Parallel Opening and Closing Type) Pneumatic Gripper
Pneumatic Grippers

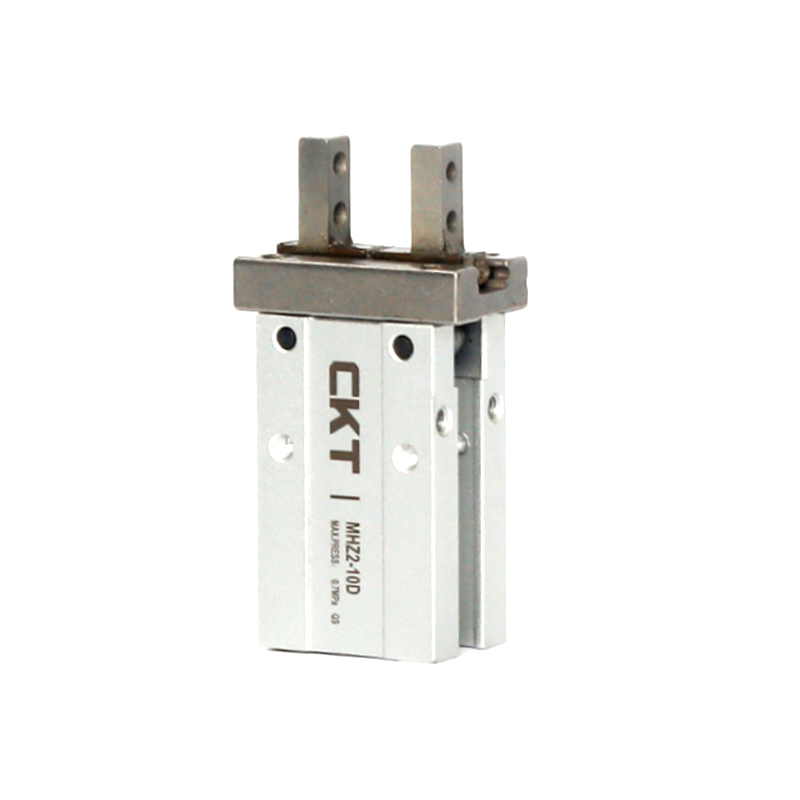

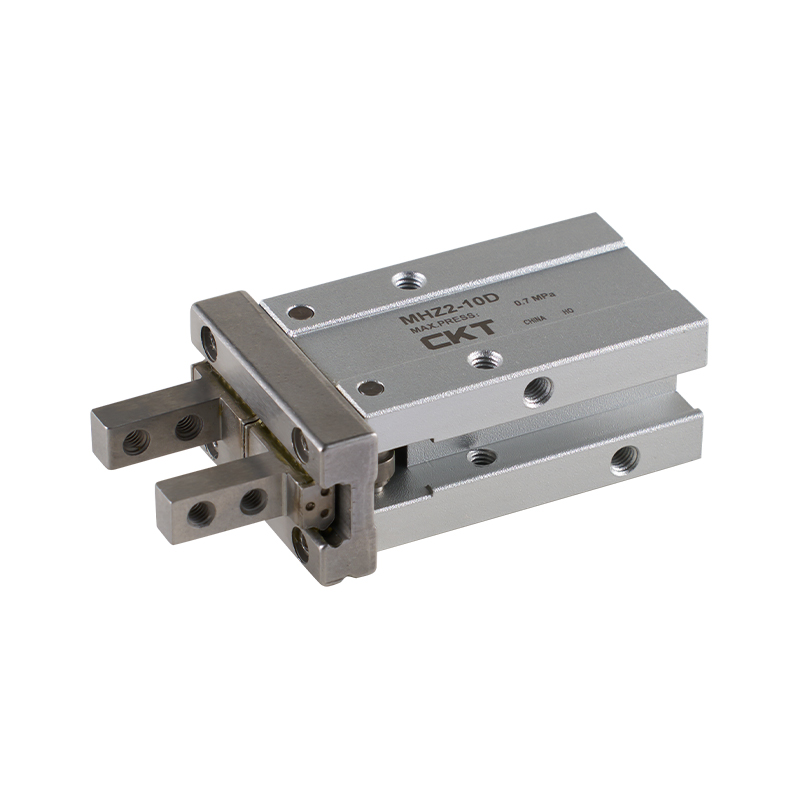

MHZ2 Series (Parallel Opening and Closing Type) Pneumatic Gripper

MHZ2 Series (Parallel Opening and Closing Type) Pneumatic Gripper focuses on providing stable and reliable parallel clamping action. Its design concept is to balance core performance and adaptability to meet the basic needs of precision grasping in the automation execution link.

Core features:

1. Integrated guide system: The integrated guide mechanism ensures that the actuator has sufficient structural rigidity and action accuracy during operation.

2. Enhanced guide stability: An auxiliary positioning structure is provided at the bottom of the guide component to maintain the relative position relationship between the key moving parts and the main structure, and improve the reliability of long-term operation.

3. Precision positioning performance: The optimized structural design brings good positioning consistency, which helps to achieve accurate clamping of the workpiece and enhance the certainty of the clamping process.

4. Flexible installation and compatibility: Provides a variety of standardized installation interfaces for easy integration into different equipment layouts or space-constrained environments.

5. Body integrated control assistance: The body is preset with magnetic components, which provides basic convenience for the integration of standard position detection devices.

6. Adaptability of induction switch: There are multiple induction switch installation slots designed on the surface of the cylinder body, which provides adjustment space for the layout of the detection device to adapt to different signal collection requirements.

E-mail: manager@cktworld.com
Download
PREV：MHC2 Series (Fulcrum Opening and Closing Type) Pneumatic Gripper
NEXT：No next article

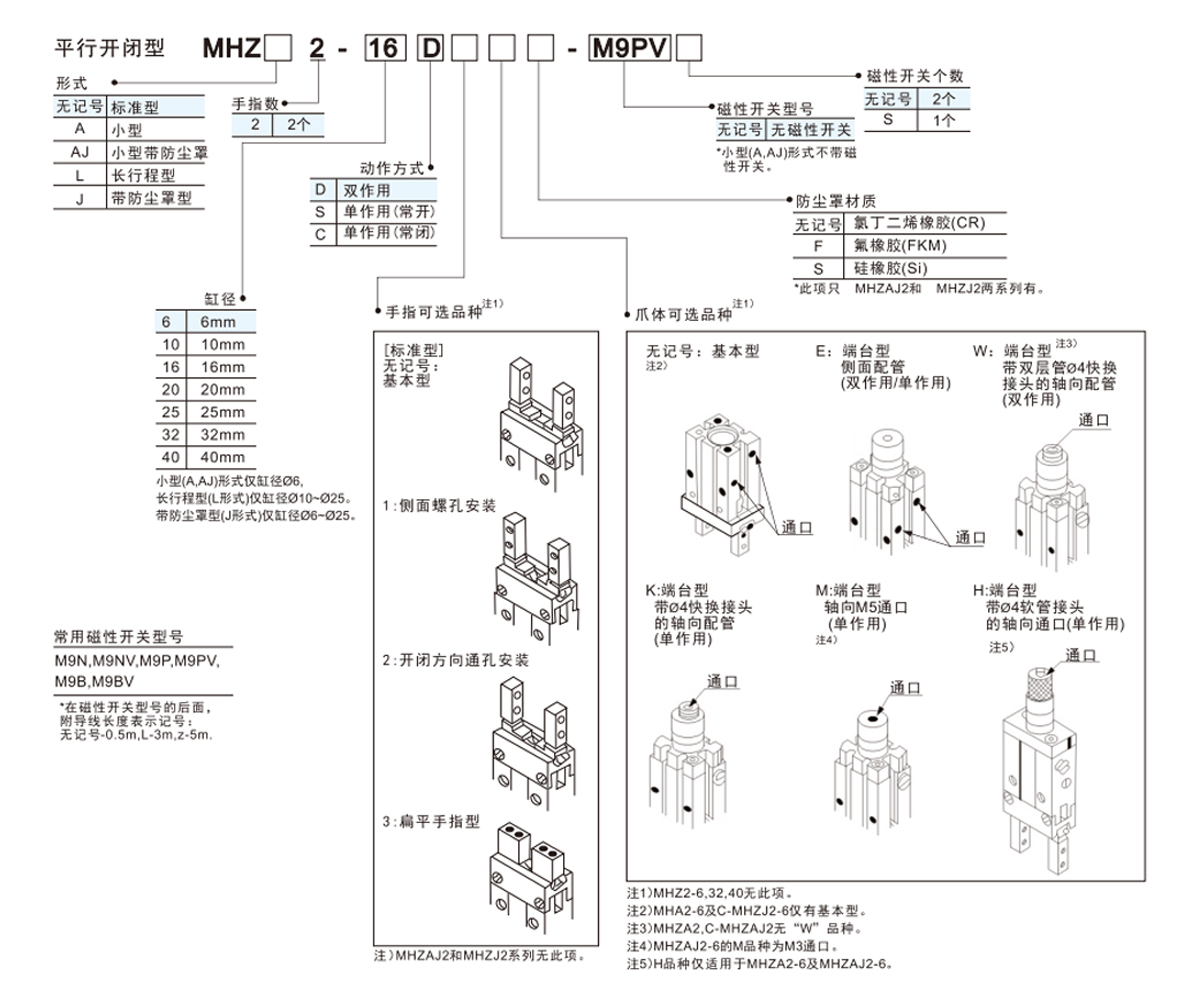

  • Cylinder diameter
    mm    		 6 10 16 20 25 32 40
    Use fluid Air
    Operating pressure
    range (MPa)    		 Double-acting 0.15~0.7 0.2~0.7 0.1~0.7 0.1~0.7
    Single-acting 0.3~0.7 0.35~0.7 0.25~0.7 0.25~0.7
    Fluid temperature for environmental use     -10~60℃
    Repeatability (mm)     ±0.01 ±0.02
    Maximum operating frequency (c.p.m)     180 (MHZL2 series is 120) 60
    Oil supply     Not required
    Operating mode   Double-acting · Single-acting
    Magnetic switch (optional)     Non-contact magnetic switch (MHZA2, MHZAJ2 without magnetic switch)
    Connection diameter M3×0.5 M5×0.8

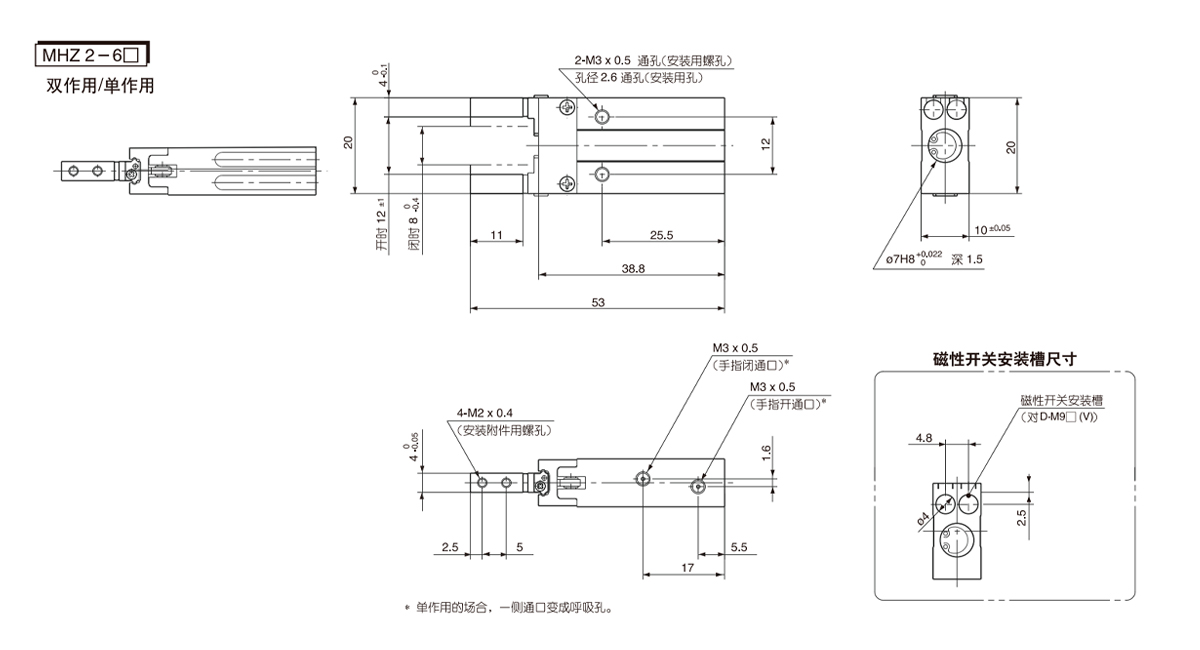

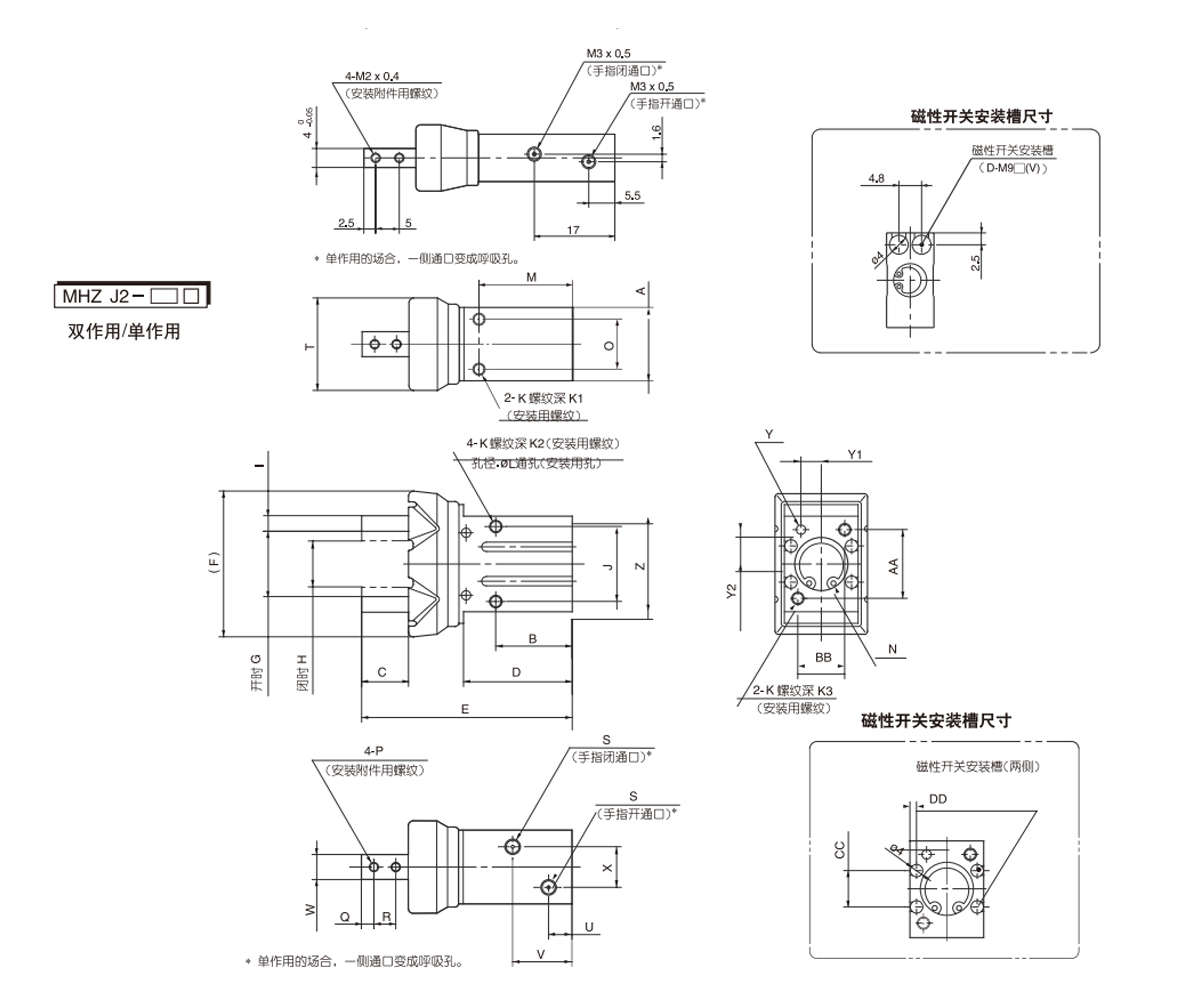

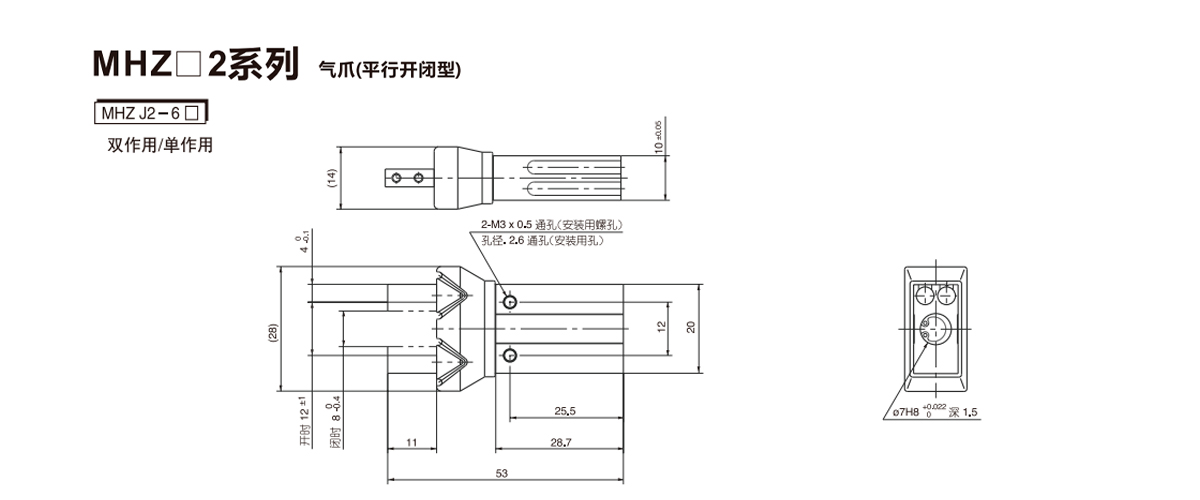

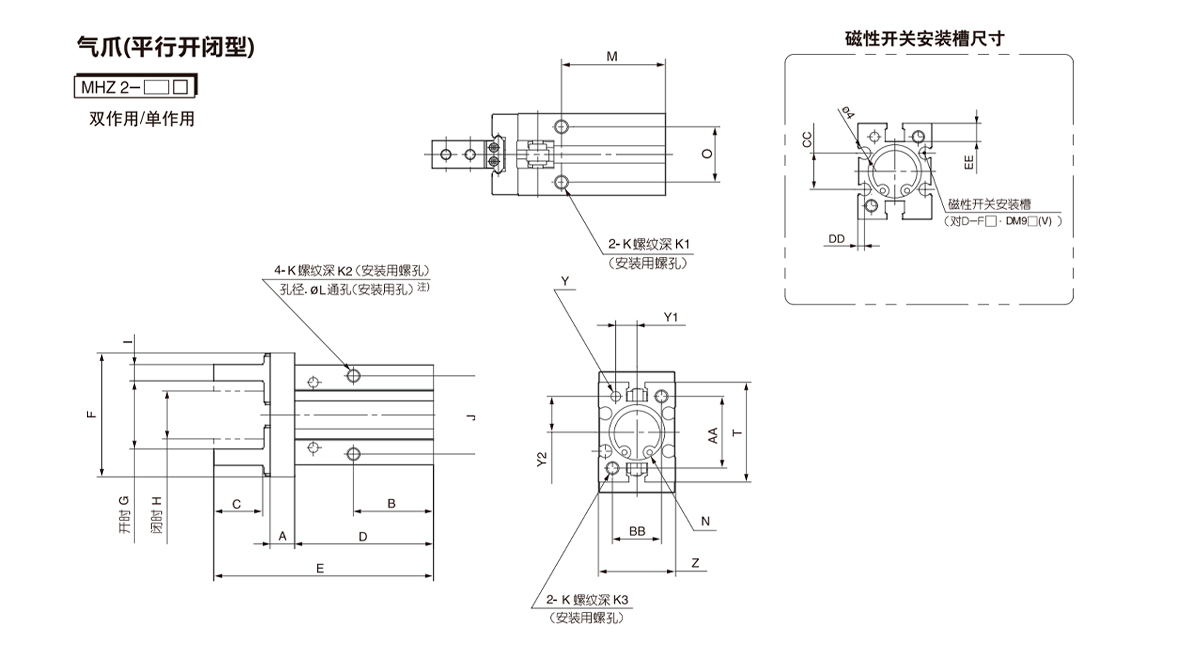

  • Model
    (mm)    		 A B C D E F G H I J K K1 K2 K3 ØL M N 0 P Q R S
    10 6 23 12 37.8 57 29 15.2 11.2 4 16 M3×0.5 6 5.5 6 26 27 Ø11H9 Deep 2 11.4 M2.5×0.45 3 5.7 M3×0.5
    16 7.5 24.5 15 42.5 67.3 38 20.9 14.9 5 24 M4×0.7 4.5 8 8 3.4 30 Ø17H9 Deep2 16 M3×0.5 4 7 M5×0.8
    20 9.5 29 20 52.8 84.8 50 26.3 16.3 8 30 M5×0.8 8 10 10 4.3 35 021H9 Deep3 18.6 M4×0.7 5 9 M5×0.8
    25 11 30 25 63.6 102.7 63 33.3 19.3 10 36 M6×1 10 12 12 5.1 36.5 026H9 Deep3.5 22 M5×0.8 6 12 M5×0.8
    32 12 40(49) 29 67(76) 113(122) 97 48 26 12 46 M6×1 10 13 13 5.1 48(57) 034H9 Deep4 26 M6×1 7 14 M5×0.8
    40 15 49(62) 36 83(96) 139(152) 119 60 30 14 56 M8×1.25 13 16 17 6.6 58(71) 042H9 Deep4 32 M8×1.25 9 17 M5×0.8

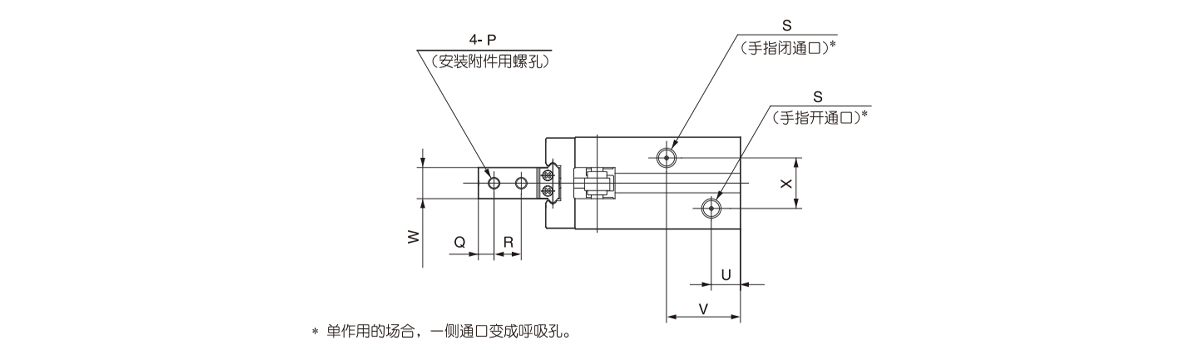

    Model
    (mm)    		 T U V W X Y Z Y1 Y2 AA BB CC DD EE
    10  23  9  19  5 11  Ø2H9 Deep3 16.4±0.05 5.2±0.02 7.6±0.02 18  12  5.4
    16  30.6  7.5  19  8 13  Ø3H9 Deep3 23.6±0.05 6.5±0.02 11±0.02 22  15  11.6  2.1  5.8
    20  42  10  23  10 15  Ø4H9 Deep4 27.6±0.05 7.5±0.02 16.8±0.02 32  18  14  2.1  9
    25  52  10.7  23.5  12 20  Ø4H9 Deep4 33.6±0.05 10±0.02 21.8±0.02 40  22  19  3.5  11.5
    32  60  11  31(37) 15 24  Ø5H9 Deep5 40±0.1 12±0.02 23±0.02 46  26  24  3.3  11.5
    40  72  12  38(45) 18 28  Ø5H9 Deep5 48±0.1 14±0.02 29±0.02 56  32  29.4  3.7  13

    Cylinder diameter
    mm    		 A B C  D E F G H I J K K1 K2 K3 ØL M N 0 P Q R S T U v W x Y Y1 Y2 Z AA BB CC DD
    10 16.4±0.05 23 2 31 57 34 15.2 11.2 4 16 M3×0.5 6 5.5 6: 2.6 27 Ø11H9 Deep2 11.4 M2.5x4.5 3 5.7 M3×0.5 21 7 19 5 11 Ø2H9 Deep3 5.2±0.02 7.6±0.02 23 18 12 - 2.5
    16 23.6±0.05 24.5 15 34.8 67.3 45 20.9 14.7 5 24 M4×0.7 4.5 8 8 3.4 30 Ø17H9 Deep2 16 M3×0.5 4 7 M5×0.8 29.6 7.5 19 8 13 Ø3H9 Deep3 6.5±0.02 11±0.02 30.6 22 15 11.6 2
    20 27.6±0.05 29 20 43.5 84.8 58 26.3 16.3 8 30 M5×0.8 8 10 10 4.3 35 Ø21H9 Deep3 18.6 M4×0.7 5 9 M5×0.8 34.5 8.5 23 10 15 Ø4H9 Deep4 7.5±0.02 16.8±0.02 42 32 18 14 2
    25 33.6±0.05 30 25 53 102.7 73 33.3 19.3 10 36 M6×1 10 12 2 5.1 36.5 Ø26H9 Deep3.5 22 M5×0.8 6 12 M5×0.8 42 9 24 12 20 Ø4H9 Deep4 10±0.02 21.8±0.02 52 40 22 19 3.5
