MK Series Rotary Clamp Cylinder

Home / Products / Air Cylinder / Rotary Cylinder / MK Series Rotary Clamp Cylinder

MK Series Rotary Clamp Cylinder
  • MK Series Rotary Clamp Cylinder
Rotary Cylinder

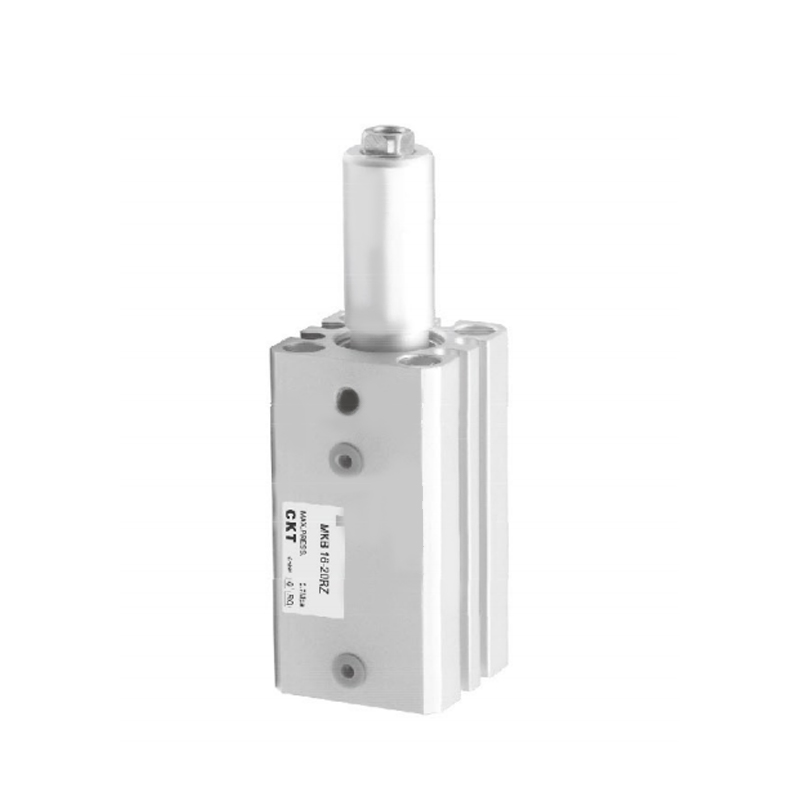

MK Series Rotary Clamp Cylinder

MK Series Rotary Clamp Cylinder is a composite pneumatic actuator with integrated rotary drive and radial clamping functions. Its integrated design achieves workpiece rotation positioning and rigid locking synchronously through a single cylinder, significantly optimizing the complexity of the mechanical system.

Core features:
▸Dual-action composite structure

The timing linkage of rotation and clamping actions is realized under air circuit drive, without the need for additional transmission mechanism, eliminating the coordination error of multiple actuators

▸Space-saving advantage

The rotation axis and the clamping jaw are coaxially arranged, reducing the axial installation space by more than 40% compared with the split solution

▸High-rigidity locking

The wedge-shaped force expansion mechanism produces a mechanical self-locking effect at the end position, and the clamping force remains unaffected by air source fluctuations

▸Wide-range adaptability

The modular interface is compatible with ISO standard mounting baseplates and supports customized clamping jaw stroke and rotation angle (90°/180°)

▸Long-term sealing protection

The guide part adopts a double-lip wear-resistant sealing ring, and the internal integrated dust scraping structure is suitable for cutting oil mist environment

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：No next article
  • Bore Size(mm) 12 16 20 25 32 40 50 63
    Fluid Air
    Action Double acting
    Max Operating Pressure 1MPa
    Min Operating Pressure 0.1MPa
    Ambient &Fluid Temperature With auto switch:-10~+60℃ Without auto switch:-10~+70℃
    Piston Speed 50～200 mm/s
    Cushion Rubber Bumper
    Stroke Length Tolerance (mm) +0.6
    -0.4
    *Lubrication Not required
    Rotary Angle 90°±10°
    Rotary Direction Clockwise ·Counterclockwise
    Rotary Stroke (mm) 7.5 9.5 15 19
    Clamp stroke (mm) 10 ·20 20 ·50
    Allowable Bending Moment(M ·m) 1 3.8 7 13 27 47 107 182
    **Theoretical Clamp Force(N) 40 7.5 100 185 300 525 825 1400
    Non-rotating Accuracy(Clamp part) ±14° ±1.2° ±0.9° ±0.7°
    Piping Port M5×0.8 Rc¹/8 Rc¹/4
    *Please use ISOVG32 if you want to use lubrication.
    * * At a pressure of 0.5MPa.

  • Stroke   /Auto   Switch   Model
    Applicable
    Bore Size
       (mm)    		 *Auto Switch Model
    Basic Type
    In-line Ø12,Ø16
    Ø32~063    		 M9NV M9NAV** A96V
    M9PV M9PAV** A93V
    M9BV M9BAV** A90V
    M9NWV
    M9PWV
    M9BWV
    Perpend-
    icular    		 Ø20~063 M9N M9NA** A96
    M9P M9PA** A93
    M9B M9BA** A90
    M9NW
    P3DW
    M9PW
    M9BW
    Wire length marking: No marking - 0.5 m, L - 3 m, Z - 5 m
    Example: A73, A73L

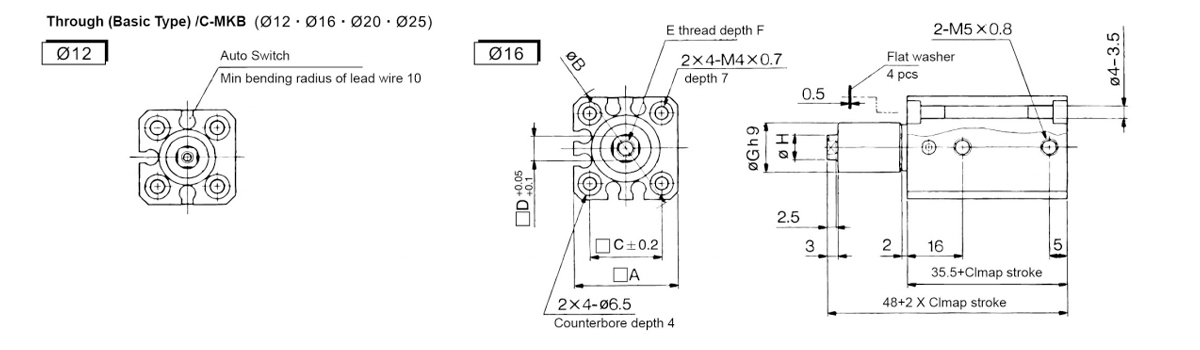

  • Basic
    Model A B C D E F Gh9 H
    C-MKB12 25 32 15.5 5 M3×0.5 5.5 11 6
    C-MKB16 29 38 20 7 M5×0.8 6.5 14 8

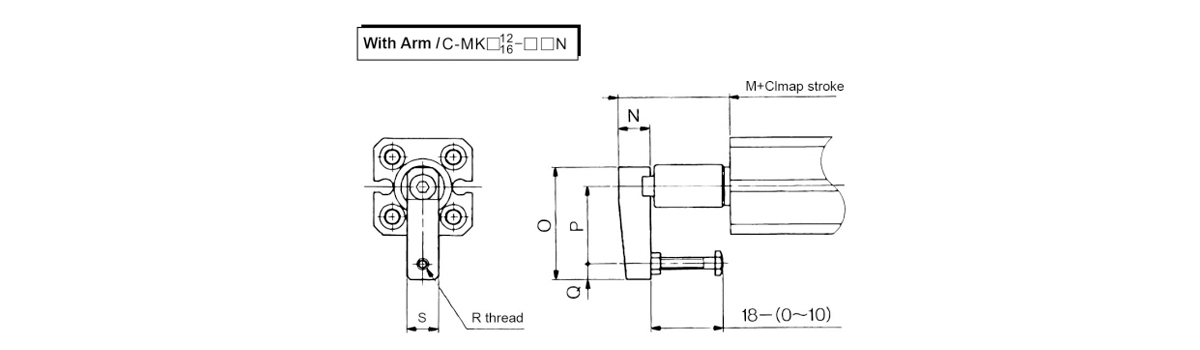

    With Arm
    Model M N O P Q R S
    C-MKB12-□□N 18.5 8 29 20 4 M3×0.5 8
    C-MKB16-□□N 21.5 11 36 25 5 M4×0.7 11

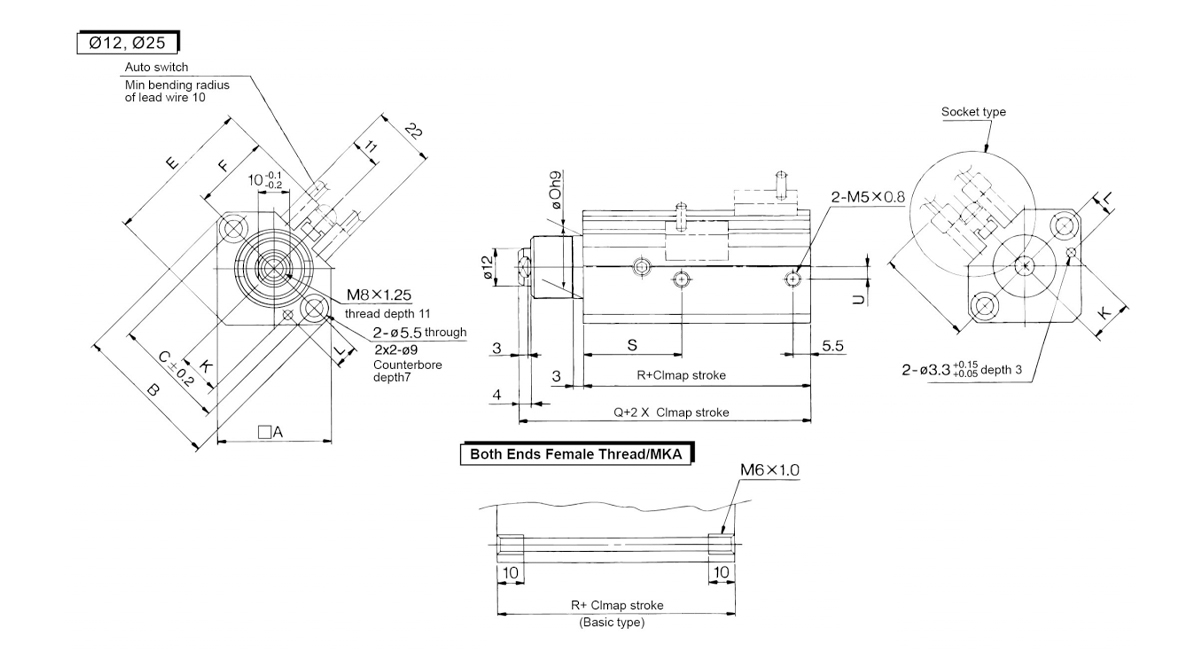

    Model A B C E F K L Oh9 Q R S U
    C-MKB20 36 46.8 36 48 24.5 13.5=0.15 7.5±0.15 20-8.052 72.5 62 31 4
    C-MKB25 40 52 40 53.8 27.5 16±0.15 8±0.15 238052 73.5 63 32 5
    Note 1) The above dimensions are based on the D-A73L magnetic switch.
    Note 2) When the piston rod is fully extended, add the clamping stroke and return stroke to the appropriate dimensions.

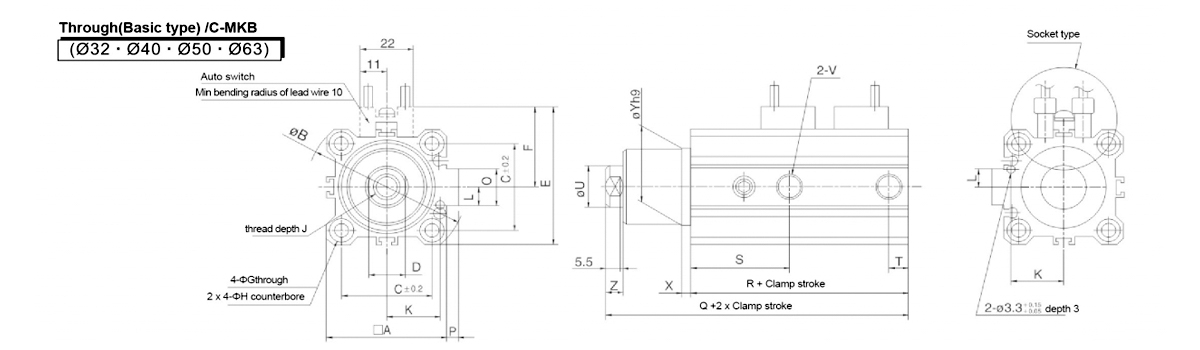

    Model A B C D E F G H I J K L O P Q R S T U V X Yh9 Z
    C-MKB32 45 60 34 14 -0.1 54 31.5 5.5 9 deep 7 M10×1.5 12 20±0.15 7±0.15 14 4.5 93.5 71.5 37 7.5 16 Rc1/8 3 30 0 6.5
    -0.2 -0.062
    C-MKB40 52 69 40 14 -0.1 61 35 5.5 9 deep 7 M10×1.5 12 24±0.15 7±0.15 14 5 94.5 65 29.5 8 16 Rc1/8 3 30 0 6.5
    -0.2 -0.062
    C-MKB50 64 86 50 17 -0.1 73 41 6.6 11 deep 8 M12×1.75 15 30±0.15 8±0.15 19 7 112 76.5 34 10.5 20 Rc1/4 3.5 37 0 7.5
    -0.2 -0.062
    C-MKB63 77 103 17 -0.1 86 47.5 9 14 deep 10.5l M12×1.75 15 35±0.15 9±0.15 19 7 115 80 35 10.5 20 Rc1/4 3.5 48 0 7.5
    60 -0.2 -0.062

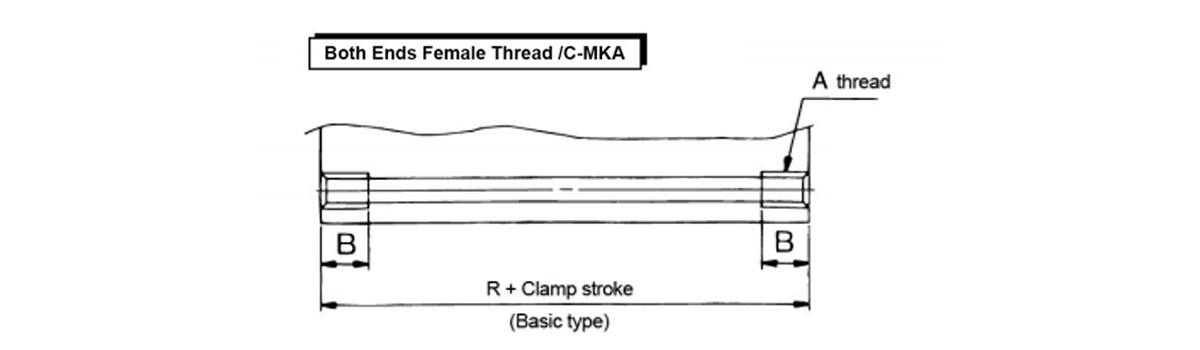

    Model A B
    C-MKA32 M6×1.0 10
    C-MKA40 M6×1.0 10
    C-MKA50 M8×1.25 14
    C-MKA63 M10×1.5 18

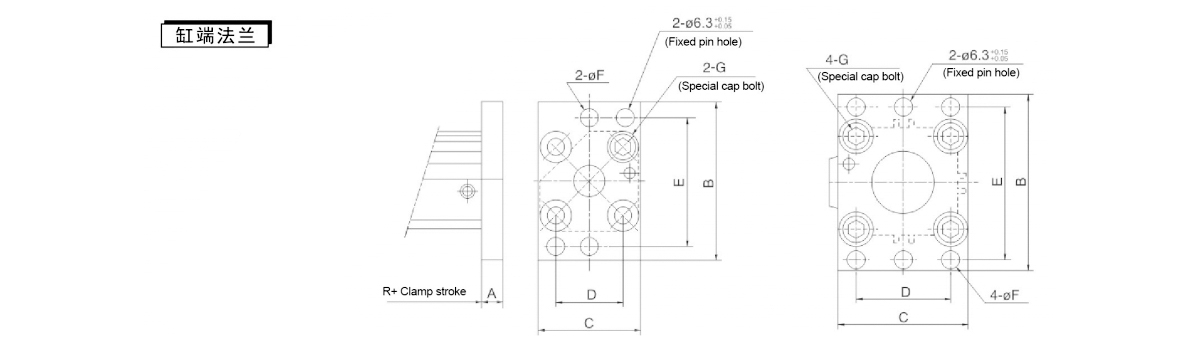

    Cylinder end flange
    Components Applicable
    Bore Size    		 A B C D E F G
    C-MK-F020 20 8 60 39 25.5 48 6.6 M6×1.0
    C-MK-F025 25 8 64 42 28 52 6.6 M6×1.0
    C-MK-F032 32 8 65 48 34 56 5.5 M6×1.0
    C-MK-F040 40 8 72 54 40 62 5.5 M6×1.0
    C-MK-F050 50 9 89 67 50 76 6.6 M8×1.25
    C-MK-F063 63 9 8 80 60 92 9 M10×1.5
    Note: When installing the flange, be sure to select the rodless side cylinder cover installation type: C-MK□□-□□F.

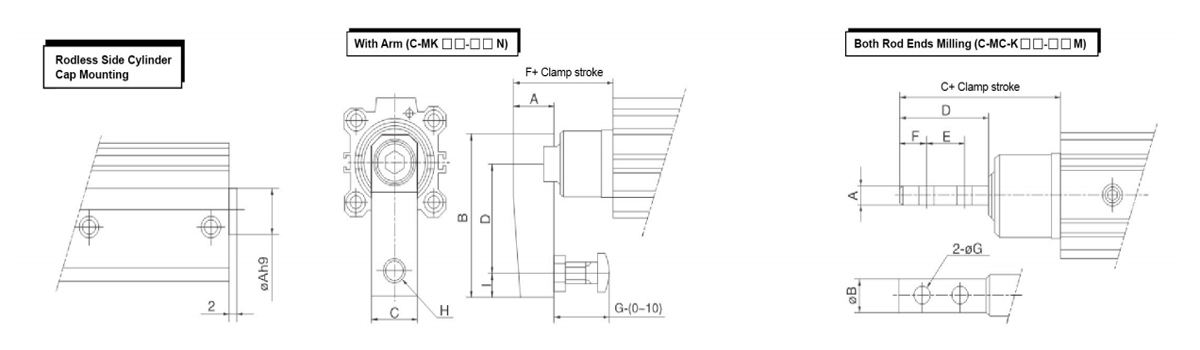

    Rodless Side Cylinder Cap Mounting With Arm Both Rod Ends Milling
    Model A B C D F G H I Model A B C D E F G
    Model Ah9 C-MKD20-□ON 14 51 16 35 22 22 M6×1.0 7 C-MKD20-□□M 4 10 42.5 34 17 8.5 5.2
    C-MK□20-□□F 13 C-MKD25-□ON 14 51 16 35 22 22 M6×1.0 7 C-MK□25-□□M 4 10 42.5 34 17 8.5 5.2
    C-MK□25-□□F 15 C-MKD32-□□N 18 67 20 45 35.5 25 M8×1.25 10 C-MK□32-□□M 6 14 53.5 36 18 9 6.2
    C-MK□32-□□F 21 C-MKD40-□□N 18 67 20 45 43 25 M8×1.25 10 C-MK□40-□□M 6 14 61 36 18 9 6.2
    C-MK□40-□□F 28 C-MK□50-□ON 22 88 22 65 53 40 M10×1.5 10 C-MK□50-□□M 8 18 77 46 23 11.5 8.2
    C-MK□9-□□F 35 C-MKD63-□□N 22 88 22 65 52.5 40 M10×1.5 10 C-MKD63-□□M 8 18 76.5 46 23 11.5 8.2
