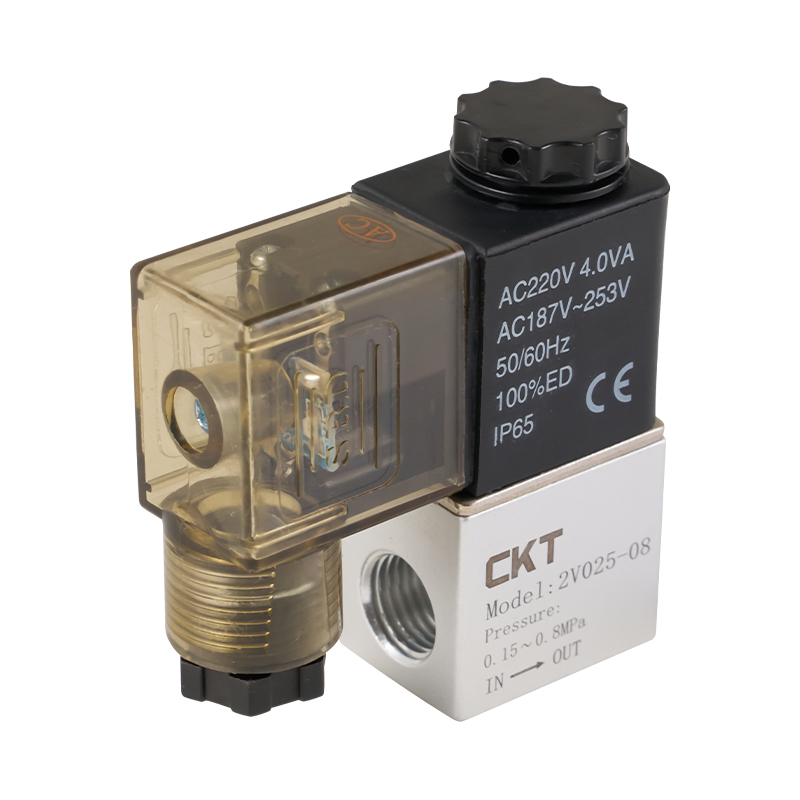

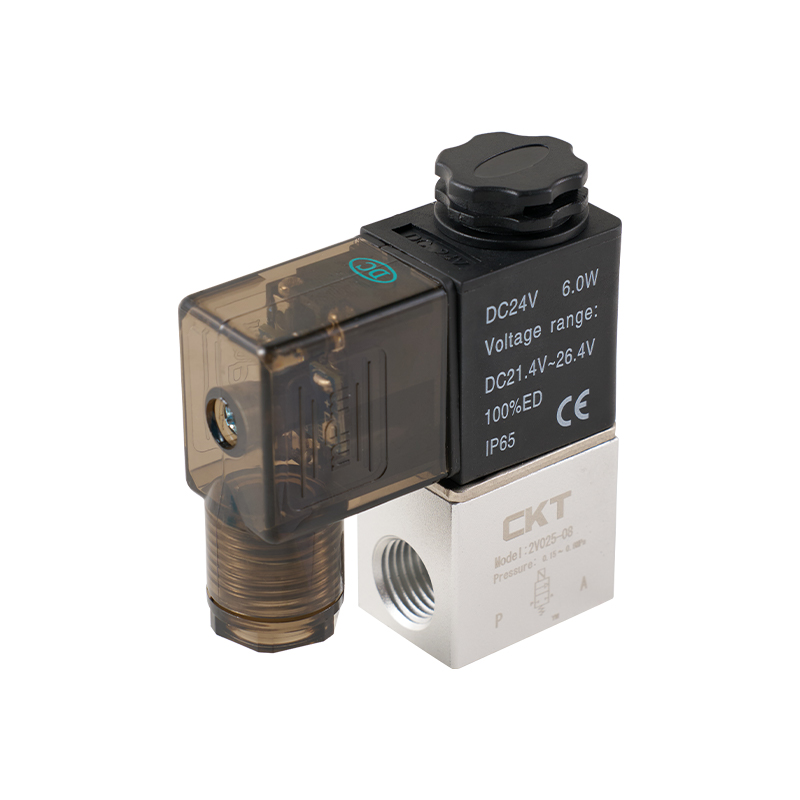

2V025 Series Direct Acting 2 Way Solenoid Valve

The 2V025 series is a compact, direct-acting, normally closed, two-position, two-way solenoid valve designed for fast response and small flow fluid control scenarios. Its core feature is to drive the spool action directly by electromagnetic force, without external pressure assistance, suitable for air, water, oil and other media on and off control.

Key features
1. Rapid commutation and high sensitivity
Adopting direct-acting structure, the electromagnetic coil directly pushes the valve spool after being energized, and the response time of the action is shorter than 0.05 seconds, which ensures the immediacy of fluid on-off.
Normally closed design (automatically closed in power failure), suitable for frequent start-stop or emergency cut-off conditions, such as automated production line air control.

2. Lightweight and compact structure
valve body is made of aluminum alloy or brass (according to the Model customization), the overall weight is light (about 200 grams), occupies a small space, suitable for equipment within the narrow installation environment.

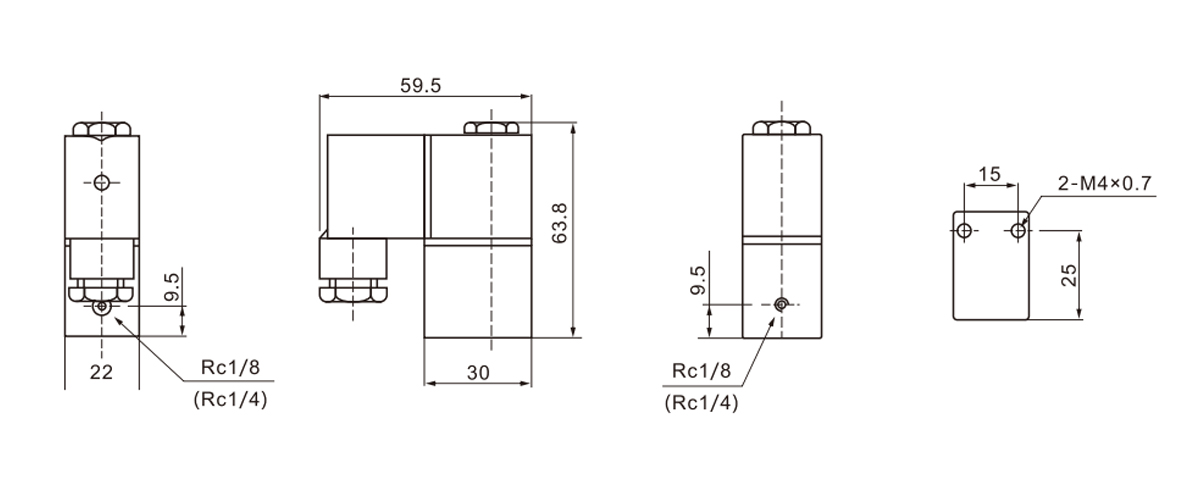

Modular design simplifies piping connections, standard G1/8 or G1/4 female threaded interface, reducing the complexity of system integration.

3. Wide range of media and pressure adaptability
compatible with air, water, hydraulic oil and other media (viscosity ≤ 20CST), fluorine rubber (VITON) seals to provide corrosion resistance, applicable to the temperature range of -10 ℃ to +80 ℃.
The working pressure covers 0.05~1.0MPa (no differential pressure startup), and the peak pressure resistance reaches 1.5MPa, which meets the needs of low-pressure precision control and conventional industrial pressure.

4. Reliability and easy maintenance
Electromagnetic coil insulation class B, protection class IP65, anti-vibration and dustproof, adapt to the vibration environment of the workshop.
Maintenance only requires regular cleaning of the filter assembly (40μm filter element is recommended) and checking the aging of seals, and supports quick coil replacement.

Typical application scenarios
1. Industrial automation: pneumatic fixture control of packaging machinery, start/stop of assembly line actuators.
2. Fluid equipment: air compressor, oil-free compressor media on and off.
3. Environmental control: valves for water treatment systems, small cooling circuits.
