3V2 Series Direct Acting 3 Port 2 Position Solenoid Valve Suppliers

Home / Products / Pneumatic control components / Solenoid Valve / 3V2 Series Direct Acting 3 Port 2 Position Solenoid Valve

3V2 Series Direct Acting 3 Port 2 Position Solenoid Valve 3V2 Series Direct Acting 3 Port 2 Position Solenoid Valve
  • 3V2 Series Direct Acting 3 Port 2 Position Solenoid Valve
  • 3V2 Series Direct Acting 3 Port 2 Position Solenoid Valve
Solenoid Valve

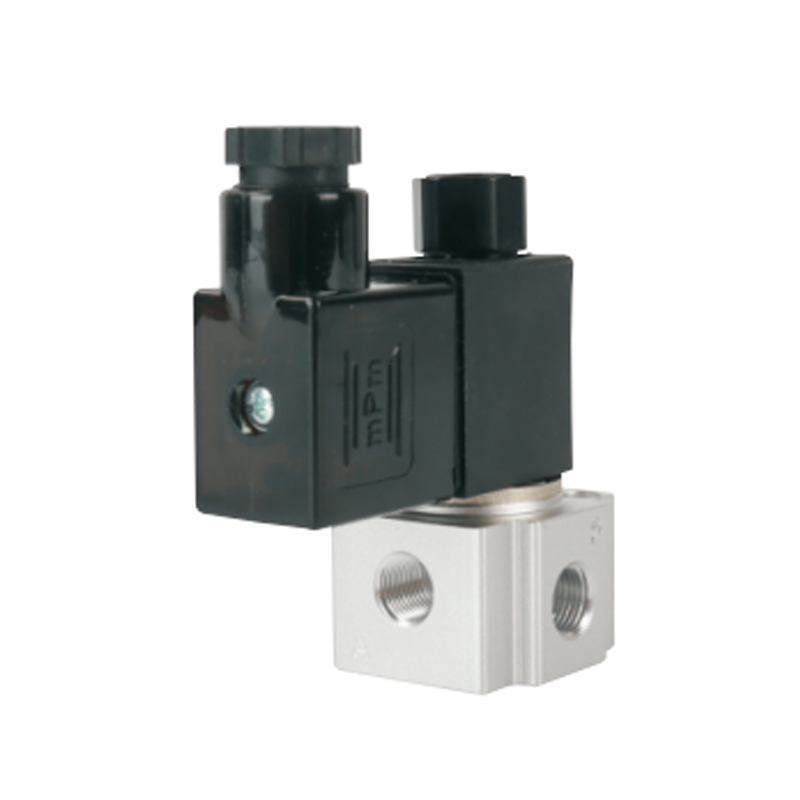

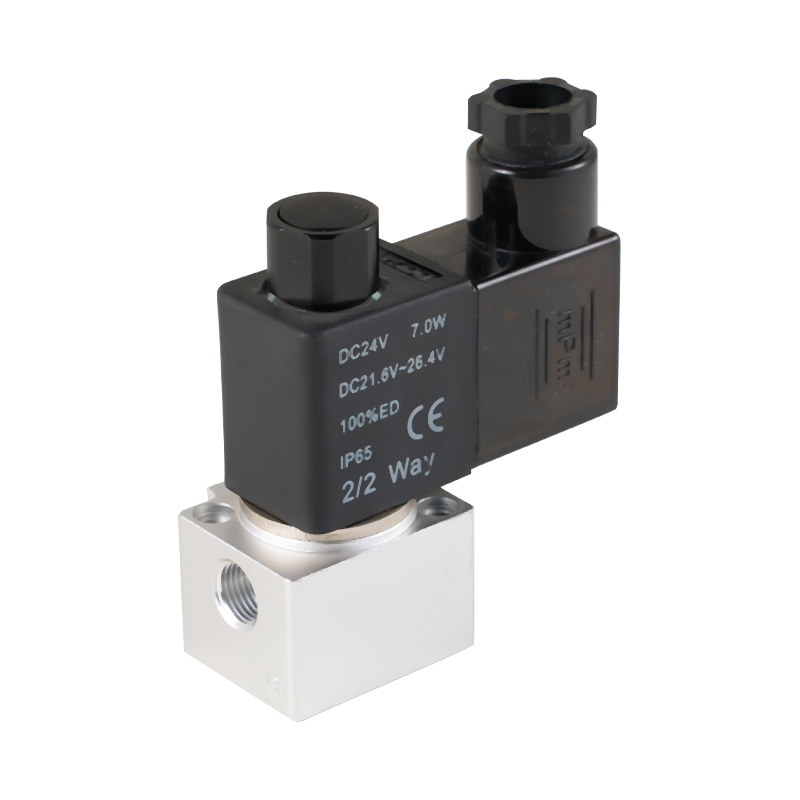

3V2 Series Direct Acting 3 Port 2 Position Solenoid Valve

1. Direct acting structure, sensitive commutation;
2. Normally closed type and normally open type are optional;
3. Coaxial cut-off structure, good sealing, large flow;
4. No need for oil lubrication;
5. Manual device is attached, which is convenient for installation and debugging;
6. A variety of standard voltage levels are available for selection.

E-mail: manager@cktworld.com
Download
PREV：3PA Series Direct Acting 3 Way Valve SELEX Valve
NEXT：4M Series Pilot Operated Side Panel 5 Way Solenoid Valve
  • Item Specific Parameters
    Standard Voltage AC220V, AC110V, AC24V, DC12V
    Operating Voltage Range AC:±15% DC:±10%
    Power Consumption AC:7VA DC:7.0W
    Protection Class Ip65(DIN40050)
    Heat Resistance Class Class B
    Connection Form DIN Socket Type, Outlet Type
    Excitation Time Less than 0.05 seconds
    Maximum Action Frequency①  10 times/second

    ①Maximum frequency of action is at idle state

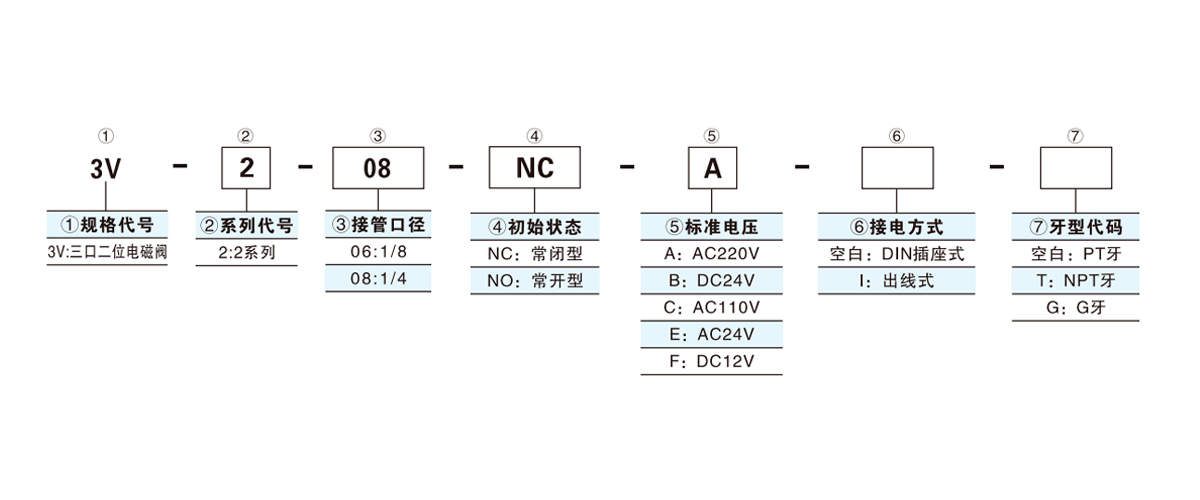

    Model 3V206 3V208
    Working medium  Air (filtered by 40μm or more)
    Action method  Direct-acting
    Gland caliber①  PT1/8 PT1/4
    Number of positions  Triplex and doublex.
    Effective cross-sectional area  3.2mm²(Cv=0.18) 3.4mm²(Cv=0.19)
    Lubrication  Not Required
    Pressure range  0~0.8MPa(0~114psi)
    Guaranteed pressure  1.2MPa(175psi)
    Operating temperature ℃  -20~70
    Body material Aluminum

    ①The receiver tooth type is available in NPT and G teeth.

  • Number Name Number Name
    1 Countersunk screws  9 Coil
    2 Spacer  10 Movable Iron Set
    3 Shaft set  11 Fixed Washer
    4 Spring  12 Fixed Nut
    5 Body  13 Manual Pushbutton
    6 Gasket  14 Wiring Terminal
    7 Solenoid set  15 Terminal Spacer
    8 Top bar

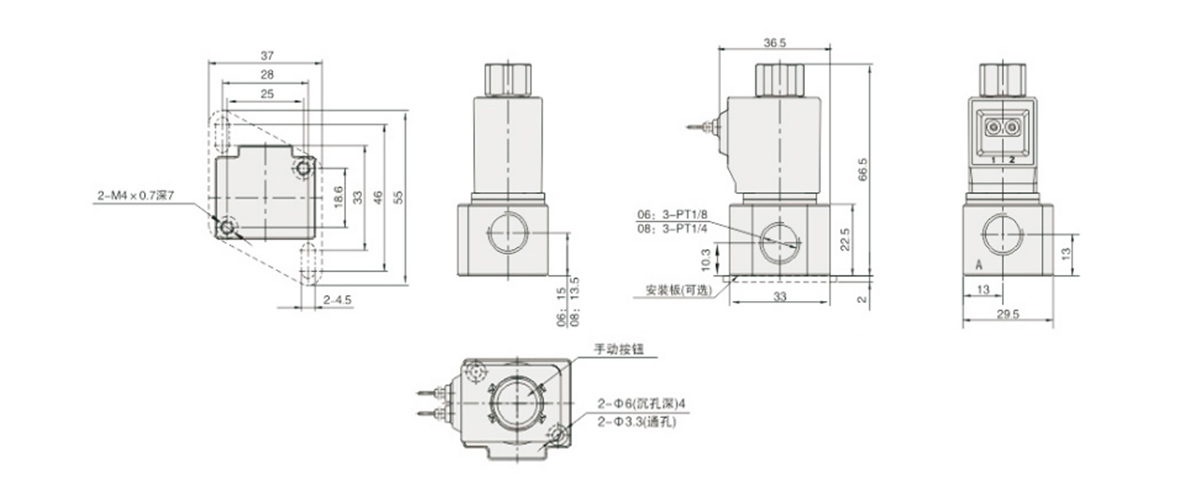

    DIN Socket Type

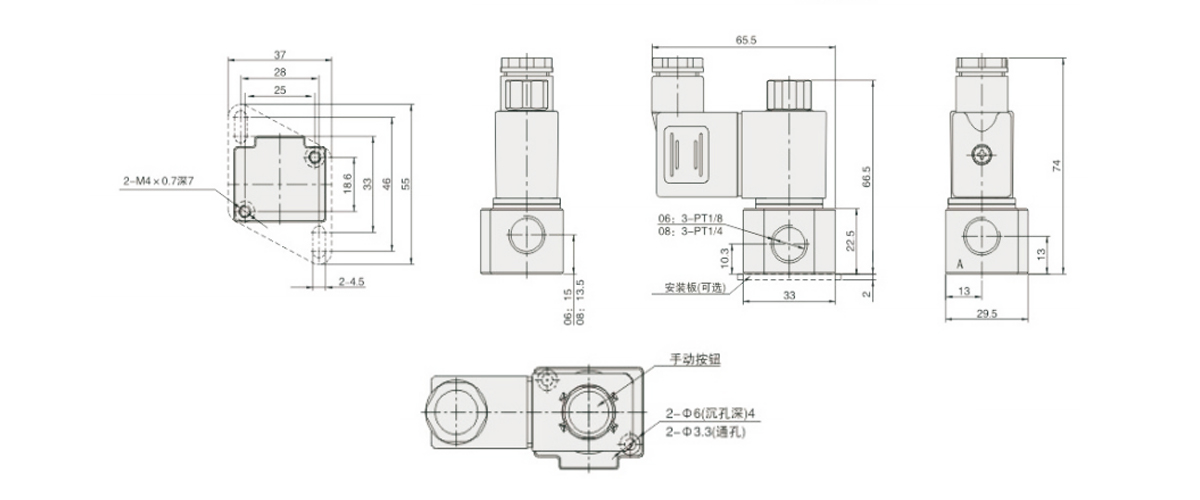

    Take-out type
