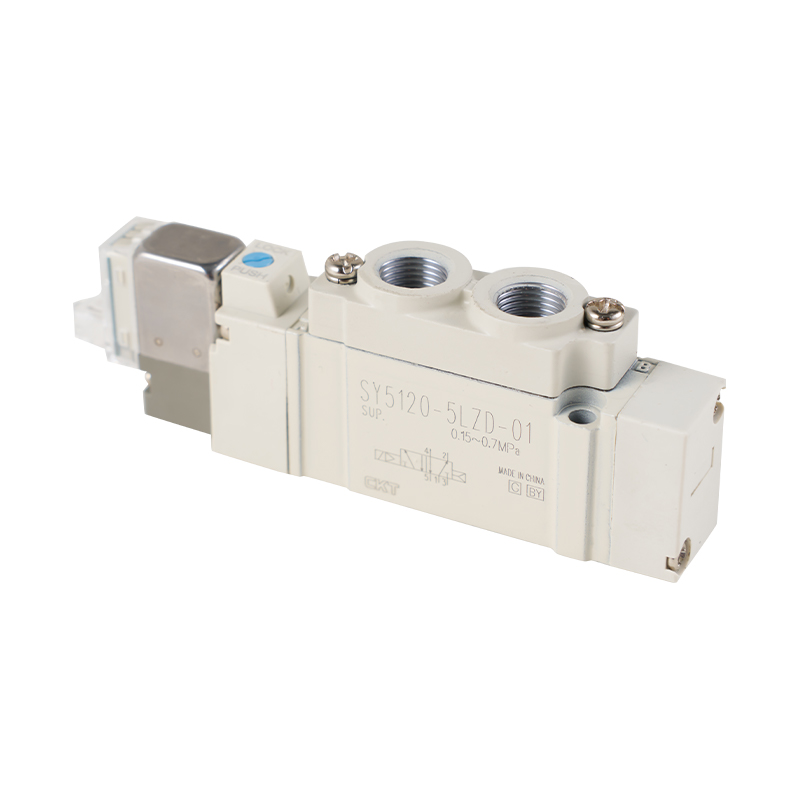

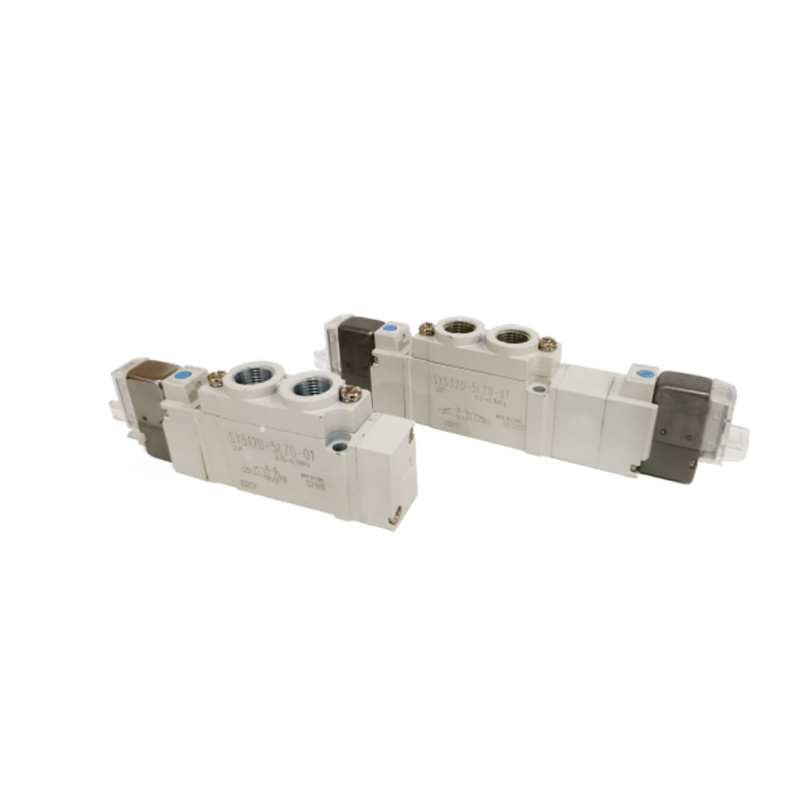

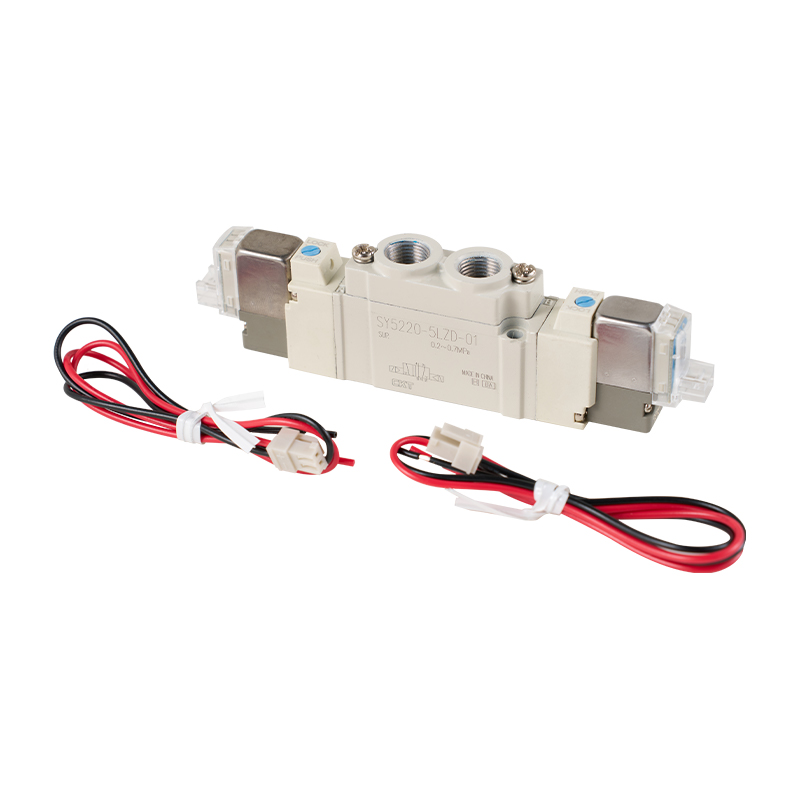

SY Series 5 Way Solenoid Valve Direct Piping Type/Single Type

SY Series 5 Way Solenoid Valve Direct Piping Type/Single Type is a basic actuator suitable for pneumatic control systems. It adopts a monolithic structure design, supports direct pipe connection, and simplifies the system installation and configuration process.

Main features:
Compact architecture and flexible expansion: Its miniaturized physical structure significantly saves equipment space, and its modular structure supports rapid combination with a standard base, making it easy to build a centralized control integrated valve island system.

Efficient fluid transmission characteristics: The internal flow channel is topologically optimized to effectively suppress pressure energy loss, improve medium flow efficiency, and help reduce the overall energy consumption level of the system.

Diversified interface configuration solutions: It provides two standard interface forms: threaded connection and quick plug-in, which can adapt to the pipeline connection requirements under different working conditions and enhance the compatibility of on-site deployment.

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：35 Series Direct Acting 3 Way Solenoid Valve MAC valve

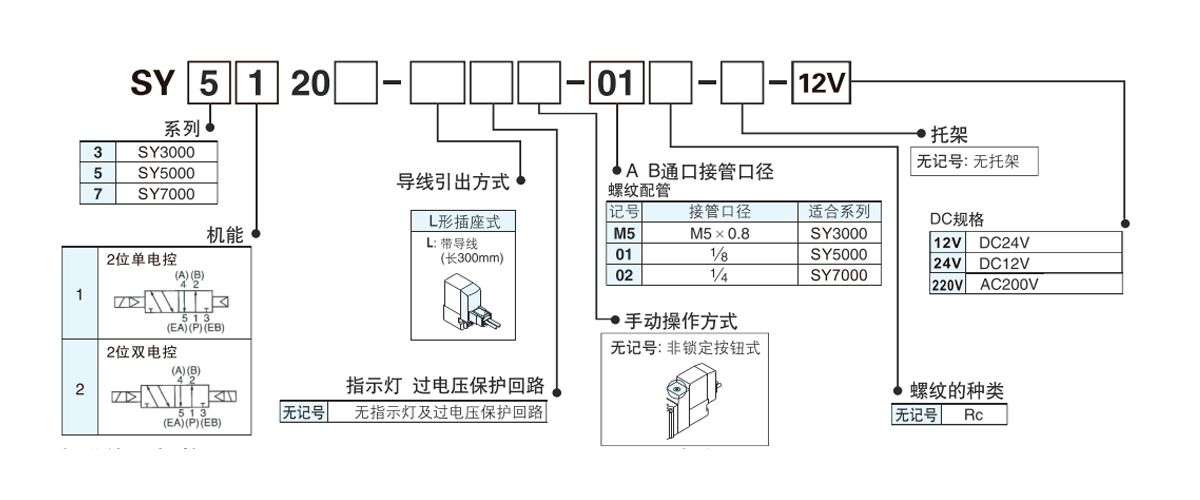

  • Series SY3000 SY5000  SY7000
    Using Fluids Atmosphere
    Internal pilot type
    Operating pressure range
    MPa    		 2-position single electric control 0.15~0.7
    2-position dual electric control 0.1~0.7
    Ambient temperature and medium temperature ℃ -10~50(But not frozen)
    Maximum operating frequency Hz 2-position single electric control, double electric control  10  5  5  5
    3-position 3  3  3  3
    Manual operation method  Non-locking push-button type, rotary locking type with rotary tool press down, rotary locking type with manual press down
    Pilot valve venting method  Centralised venting of main and pilot valves
    Oil supply  No
    Mounting position  Freedom
    Note) Shock/vibration resistance m/s²  150/30
    Protective construction Dust-proof (IP65 for DIN socket type and M8 connector type)
    Note) Impact resistance: In the falling type impact testing machine, along the main spool and the moving core of the axial direction and perpendicular to the axial direction, in the energised and non-energised conditions, each do a test, there is no malfunction (for the initial value).
    Vibration resistance: Along the axial direction of the main valve spool and the moving iron core and perpendicular to the axial direction, under each condition of energisation and non-energisation, vibration test is carried out according to 45~2000Hz, and there is no malfunction (for the initial value).

  • Solenoid Specifications
    Rated coil voltage V DC   24、12.
    AC50%oHz 220
    Allowable voltage fluctuation
    Power consumption W DG   Standard 0.35 {with lamp: 0.4 (DIN socket type with lamp 0.45)}
      With power saving circuit 0.1((with light)
    ※Apparent power VA AC 220V
    [230V]    		 1.30 (with lights: 1.34)
    [1.42 (with lights: 1.46]    		   1.27 (with lights: 1.46)
     [1.39 (with lights: 1.60)]
    Overvoltage protection circuit Diode (DIN socket type, non-polarised type as variable resistor)
    Indicator light LED (Neon for DIN socket type AC)
    Response time
    SY3000 SY5000 SY7000
    Function Response time ms (at 0.5MPa) Function Response time ms (at 0.5MPa) Function Response time ms (at 0.5MPa)
    No indicator lamps and overvoltage
    Protection circuits    		 No indicator lamps and overvoltage
    Protection circuits    		 No indicator lamps and overvoltage
    Protection circuits
    2-position single electric control  Less than 12 2-position single electric control  Less than 19 2-position single electric control  Less than 31
    2-position dual electric control Less than 10 2-position dual electric control  Less than 18 2-position dual electric control Less than 27A
    Flow Characteristics/Mass Tables
    Model /SY3000 Series
    Valve
    Models    		 Function Receiver calibre Flow Rate Characteristics Quality g
    1、5.3
    P.EA.EB)    		 4、2
    (A、B)    		 1→4/2(P→A/B) 4/2→5/3(A/B→EAEB) Direct
    Outlet    		 L-Shape,
    M-Shape
    Socketed    		 W-Shape
    M8
    Fitting
    C[dm³
    s bar)]    		 b Cv C[dm³
    s bar)]
    SY3□20
    -□-M5    		 2-bit Single electric control
    Dual electric control    		 0.61 0.44  0.16  0.64 51  53  57
    68  74  82
    Model / SY5000 Series
    Valve
    Models    		 Function Receiver calibre Flow Rate Characteristics Quality g
    1、5.3
    P.EA.EB)    		 4、2
    (A、B)    		 1→4/2(P→A/B) 4/2→5/3(A/B→EAEB) Direct
    Outlet    		 L-Shape,
    M-Shape
    Socketed    		 W-Shape
    M8
    Fitting
    C[dm³
    s bar)]    		 b Cv C[dm³
    s bar)]
    SY5□20
    -□-01    		 2-bit Single electric control
    Dual electric control    		 1.9  0.35  0.49  2.4  70  72  93  76
    88  93  135  101
    Model /SY7000 Series
    Valve
    Models    		 Function Receiver calibre Flow Rate Characteristics Quality g
    1、5.3
    P.EA.EB)    		 4、2
    (A、B)    		 1→4/2(P→A/B) 4/2→5/3(A/B→EAEB) Direct
    Outlet    		 L-Shape,
    M-Shape
    Socketed    		 W-Shape
    M8
    Fitting
    C[dm³
    s bar)]    		 b Cv C[dm³
    s bar)]
    SY7□20
    -□-02    		 2-bit Single electric control
    Dual electric control    		 4.1  0.23  0.93  3.3  101  104  125  108
    120  125  167  133

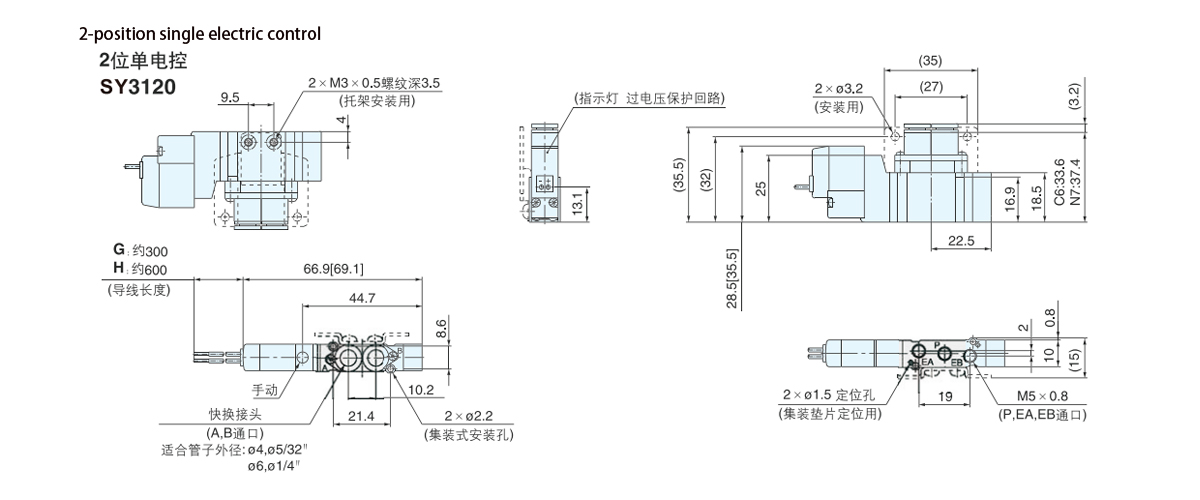

  • SY3000 Series External Dimensions

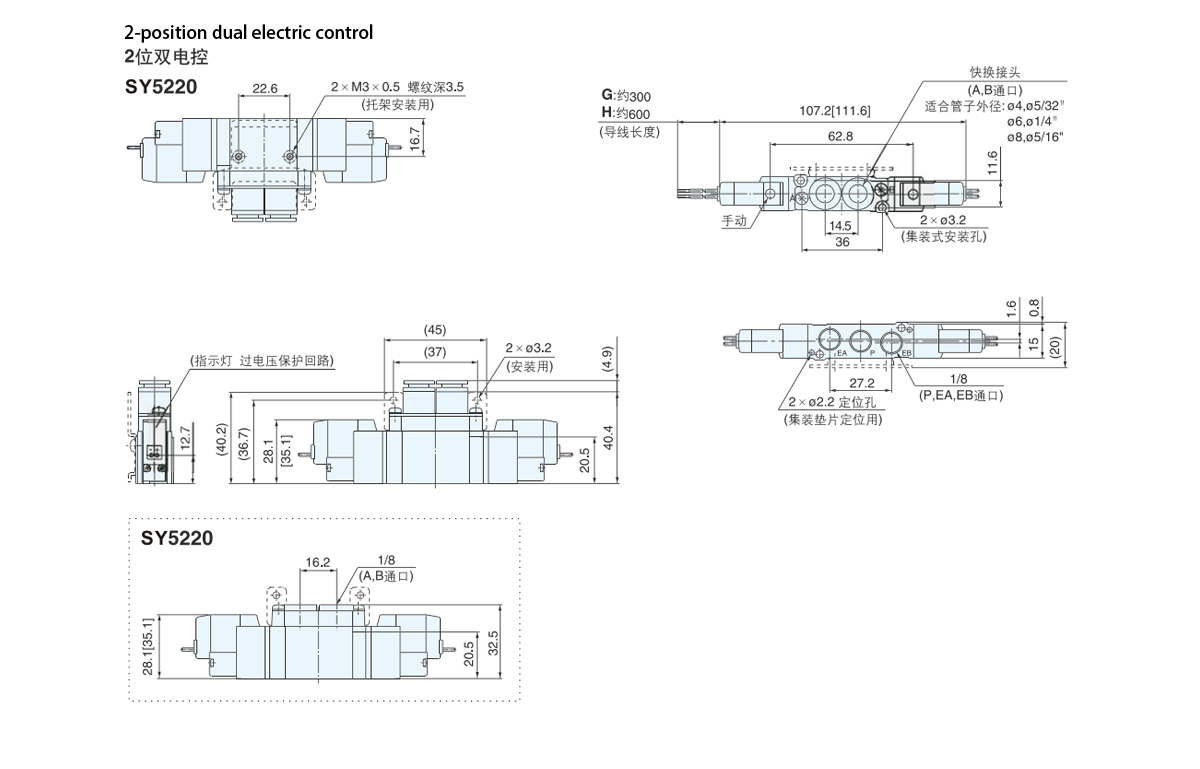

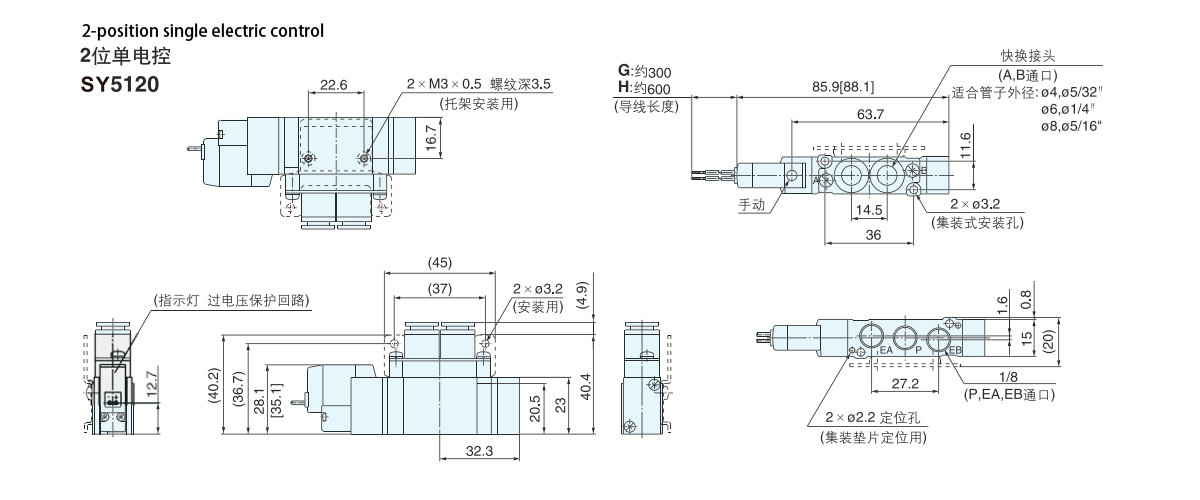

    SY5000 Series External Dimensions

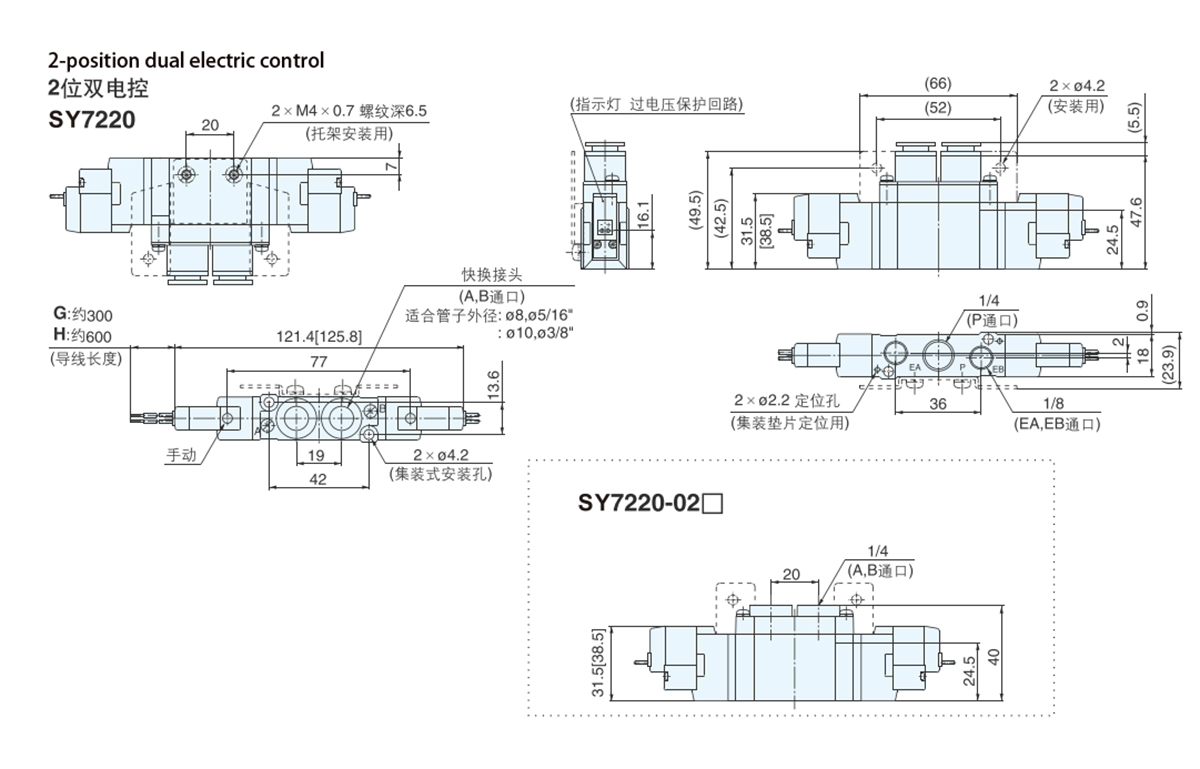

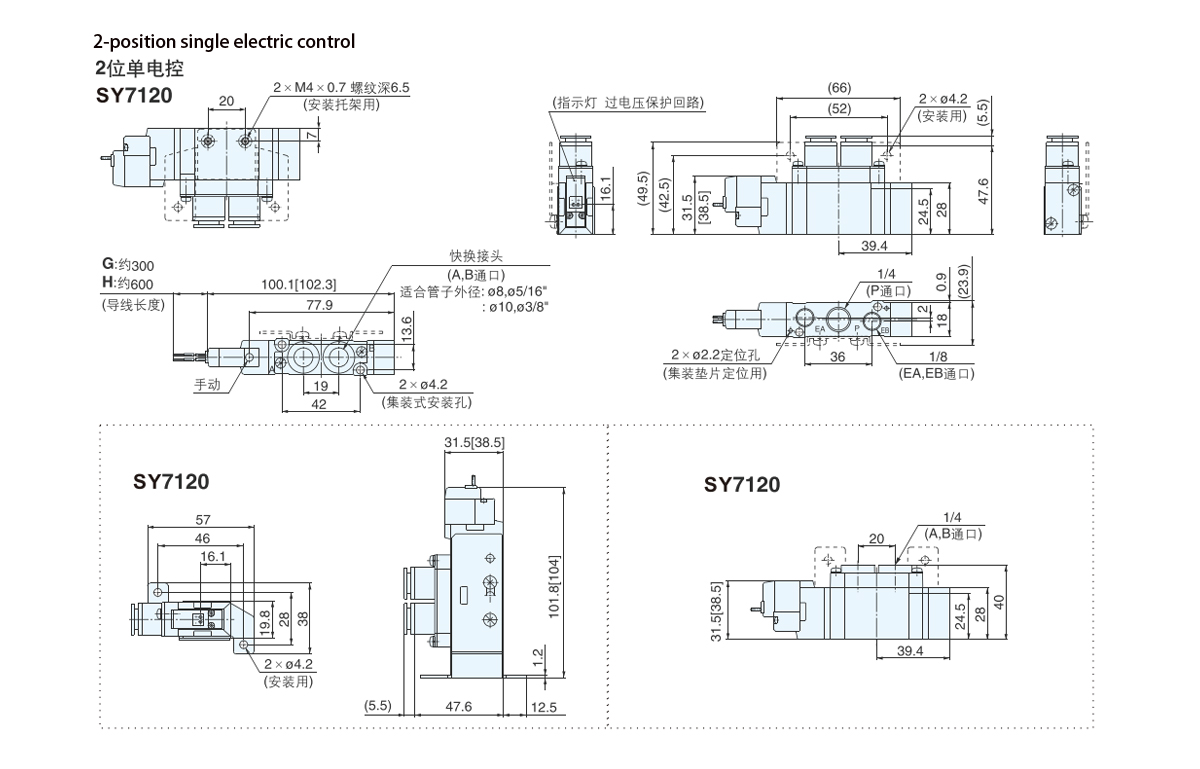

    SY7000 Series External Dimensions
