CBF Series Vacuum Filter

Home / Products / Vacuum Components / Vacuum Filter / CBF Series Vacuum Filter

CBF Series Vacuum Filter
  • CBF Series Vacuum Filter
Vacuum Filter

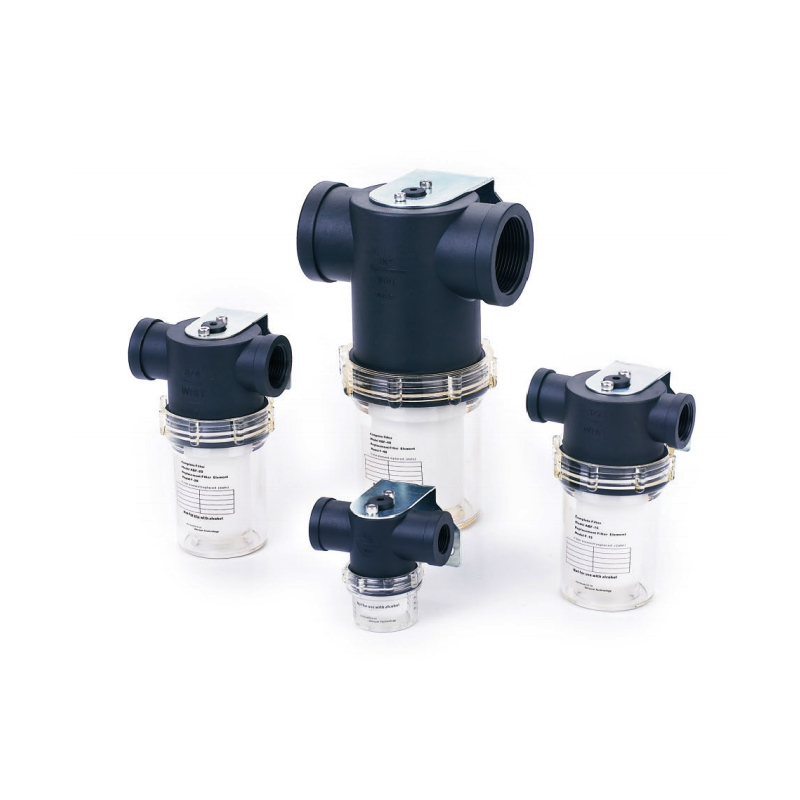

CBF Series Vacuum Filter

1. Filter dust and other impurities sucked in from the air inlet.
2. The transparent shell allows you to visually see the degree of contamination of the filter.
3. The filter element can be quickly replaced.
4. Reduce the risk of interruption or stoppage of the vacuum pump and vacuum generator.
5. There are different nominal flow specifications for customers to choose from.

E-mail: manager@cktworld.com
Download
PREV：CLF/VYF Series Linear Vacuum Filter
NEXT：No next article
  • Model Applicable Pressure
    Range(kPa)    		 Material Temperature
    Range (℃)    		 Filtration
    Accuracy
    (μm)    		 Nominal Flow
    (L/min)    		 Internal Vacuum
    (cm³)    		 Filter Area
    (m²)    		 Weight(g)
    PE
    CBF10 -100~0 PE -20~80 10  150  45  0.003  70
    CBF15 -100~0 PE -20~80 10  900  195  0.010  168
    CBF20 -100~0 PE -20~80 10  900  205  0.010  170
    CBF25 -100~0 PE -20~80 10  2520  495  0.019  424
    CBF40 -100~0 PE -20~80 10  5100  675  0.023  550

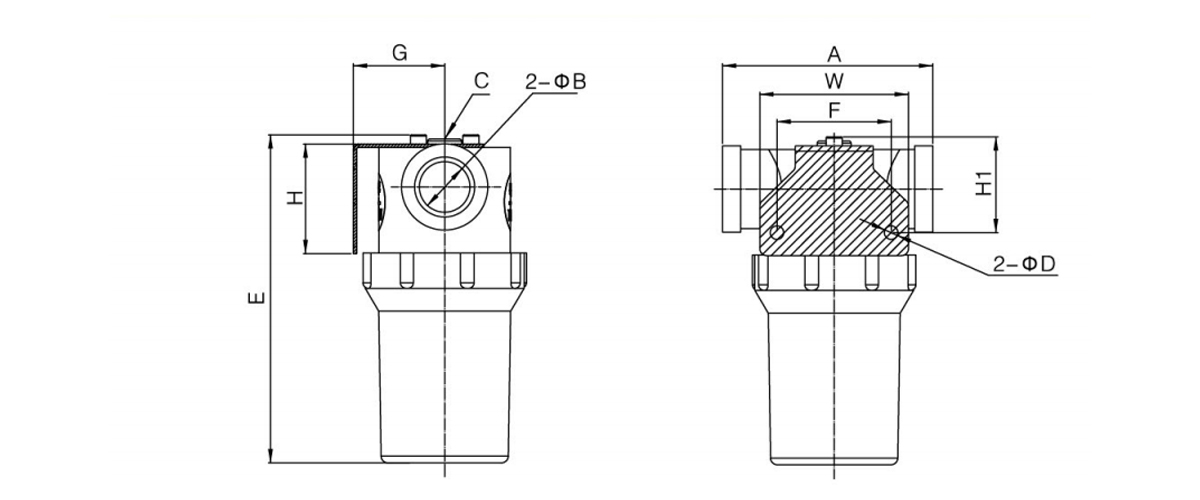

  • Model/Size A B C D E F G H H1 W
    CBF10 76.5  2-G3/8 NPFS1/8 6  74.5  50  40  48  43.5  65
    CBF15 91.5  2-G1/2 NPFS1/8 6  134.5  50  40  48  43.5  65
    CBF20 92  2-G3/4 NPFS1/8 6  143.5  50  40  48  43.5  65
    CBF25 127  2-G1 NPFS1/8 6  169.5  70  56  52  48  85
    CBF40 127  2-G11/2 NPFS1/8 6  212.5  70  56  52  48  85

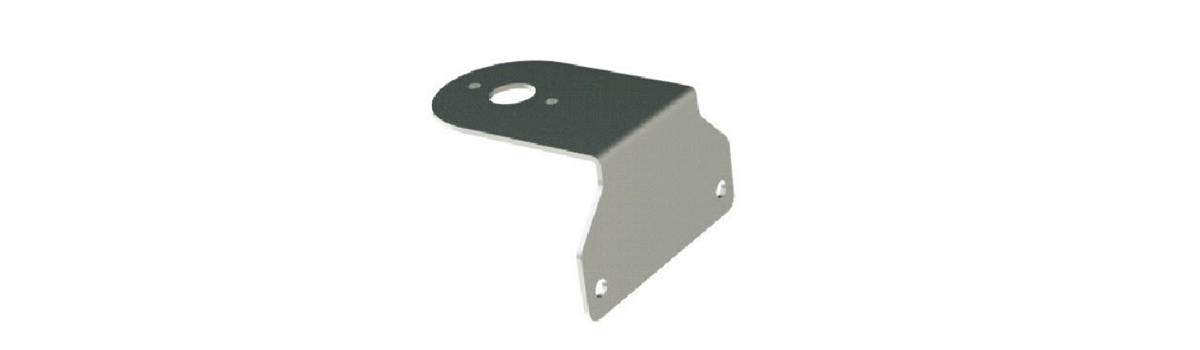

    Mounting Bracket
    Model Suitable Filter
    CBF10-B CBF 10,CBF 15,CBF 20
    CBF25-B CBF 25,CBF 40

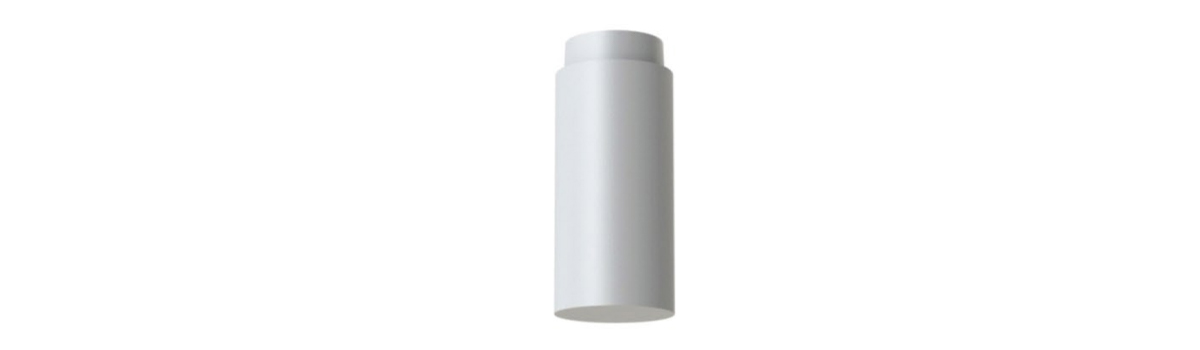

    Filter cartridge
    Model
    PE    		 Suitable Filter
    CBF10-PE CBF 10
    CBF20-PE CBF 15,CBF 20
    CBF25-PE CBF 25
    CBF40-PE CBF 40
