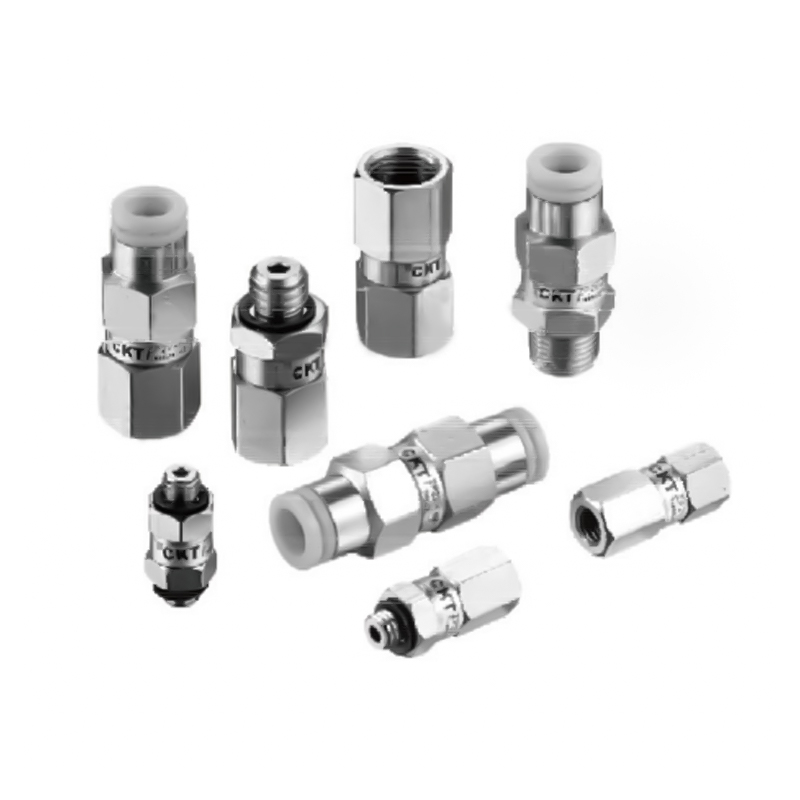

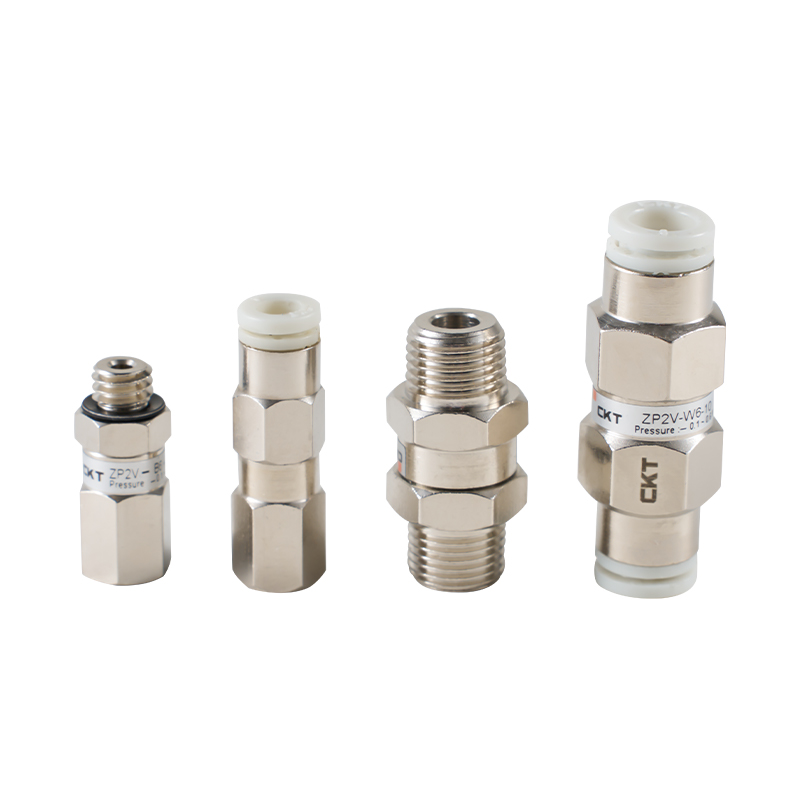

ZP2V Series Vacuum Safety Valve

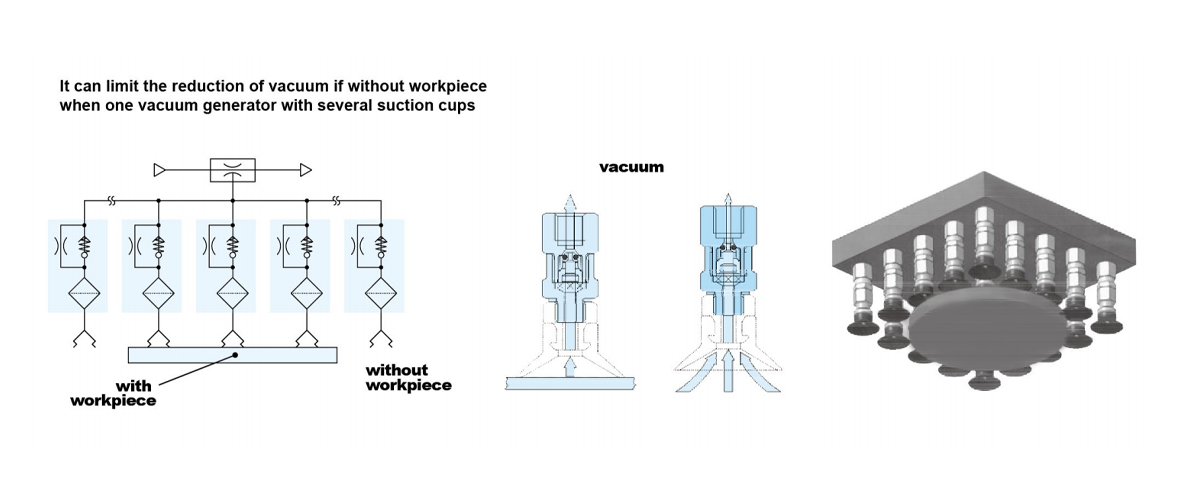

ZP2V Series Vacuum Safety Valve is an automatic control element designed for multi-suction cup vacuum systems. Its core function is to actively block the leakage path when individual suction cups fail, maintain the overall vacuum pressure of the system stable, and ensure the continuous adsorption force of effective suction cups.

Core Features
· Pressure balance
Automatically isolate the faulty suction cup circuit to prevent local leakage from causing system pressure decay.

· Logic self-control
Valve action is triggered by pressure difference changes without external signal or circuit intervention.

· Energy-saving design
Reduce the frequent start and stop of the vacuum generator, reduce energy consumption and equipment loss.

· Ready to use
Integrated filter module and quick-change interface, suitable for diversified industrial pipeline layout.

· Scenario coverage
Suitable for automation scenarios such as robot grasping and flexible production lines that require stable vacuum adsorption.
