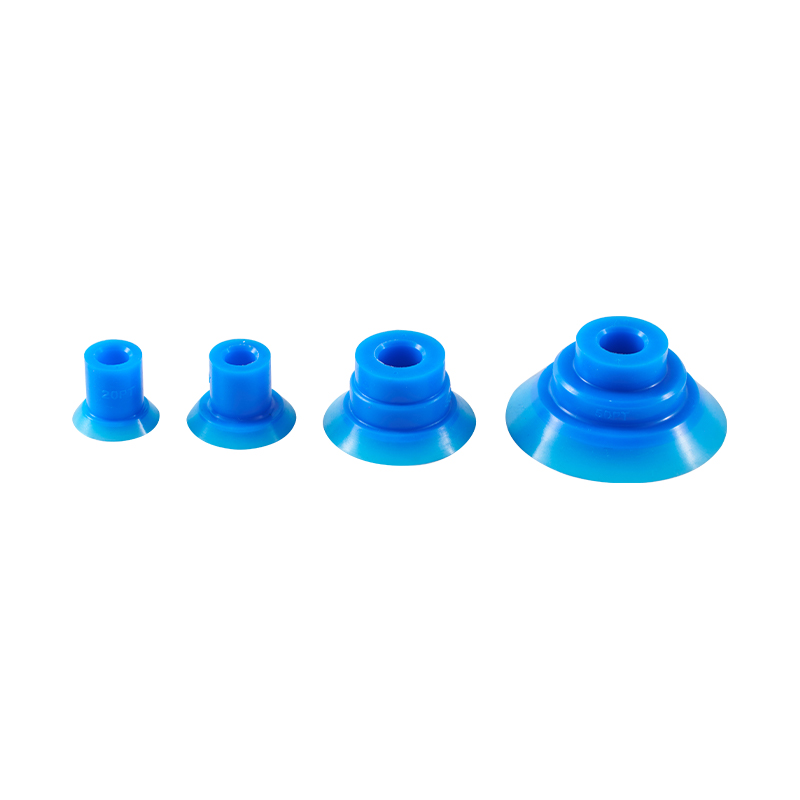

ZP3P Series Vacuum Suction Cup (Ø20~Ø50)

ZP3P Series Vacuum Suction Cup (Ø20~Ø50) is a flexible execution unit in the field of industrial gripping. This series realizes lossless transfer of materials through the principle of vacuum negative pressure, and is suitable for the basic handling needs of small and medium-sized load scenarios.

Core features
Adaptive interface topology
The flexible contact surface can passively fit the surface of the slightly curved workpiece, compensate for the gap formed by the assembly tolerance, and reduce the dependence on positioning accuracy.

Energy conduction redundancy design
The multi-channel vacuum circuit has built-in independent flow channels. When a single channel fails, the backup flow channel automatically maintains the stability of the adsorption field and blocks the risk of desorption caused by energy interruption.

Adsorption safety wall mechanism
The negative pressure threshold monitoring module provides real-time feedback on the adsorption status, and the critical value triggers an audible and visual alarm or interlock shutdown to avoid sudden decompression during handling.

Liquid interference suppression
The sealing layer uses a hydrophobic composite medium to block liquid media such as cutting fluid and condensed water from invading the vacuum flow path and maintain the integrity of the airtight boundary.

Fatigue stress dissipation structure
The bellows section absorbs the impact of the robot arm acceleration through axial deformation, converting the instantaneous kinetic energy into elastic potential energy dissipation, thus extending the polymer life cycle.
