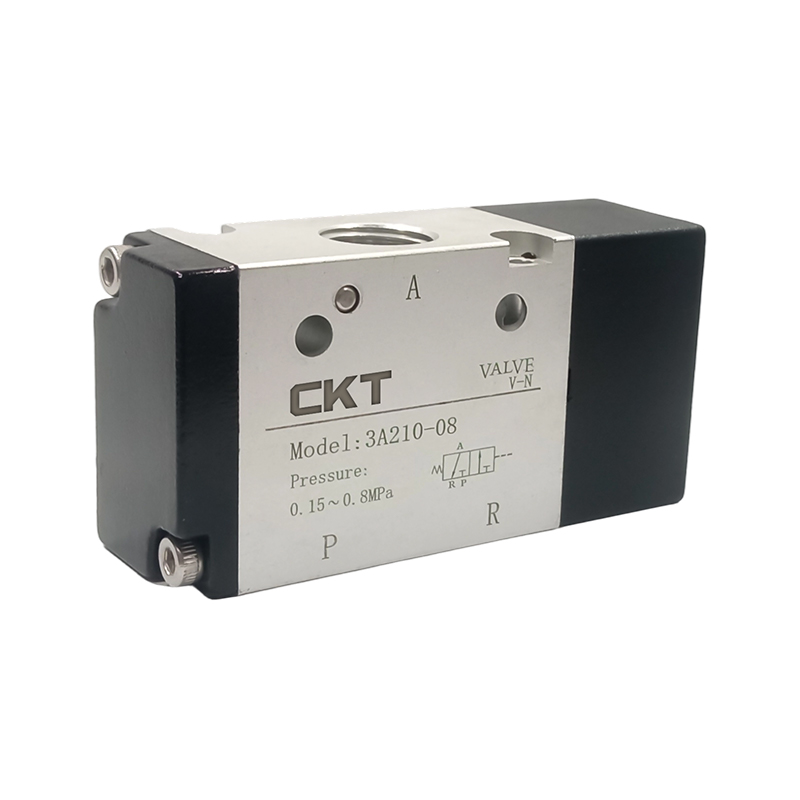

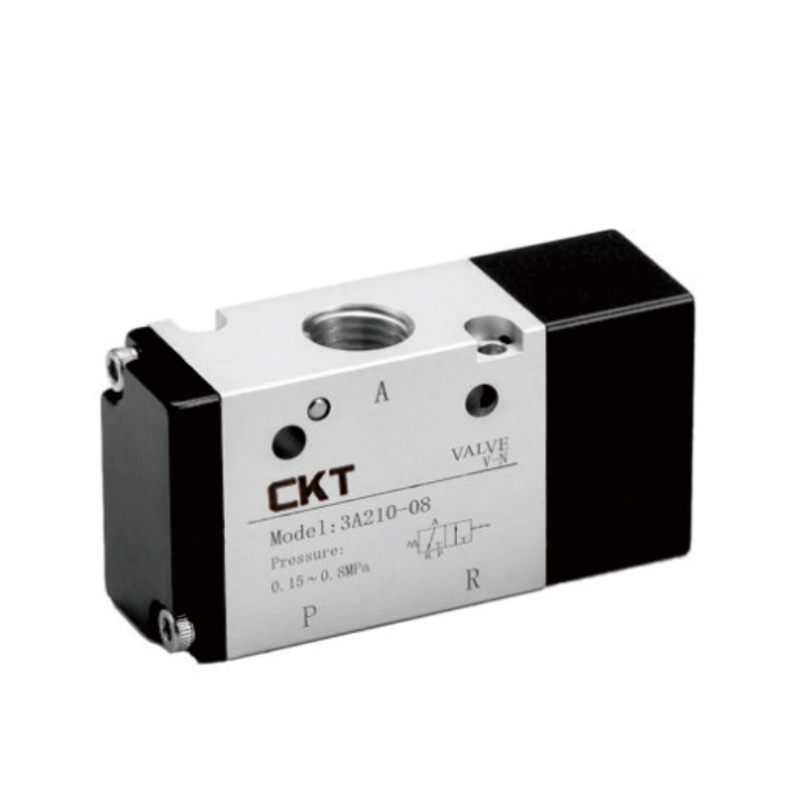

3A Series 3 Way Air Control Valve

3A Series 3 Way Air Control Valve is one of the core actuators in the field of industrial automation fluid control, focusing on switching and flow control of compressed air passages.

Overview of core features
Specific valve core configuration and dynamic response: The sliding column valve core design is adopted, and the internal sealing efficiency is significant, which gives the valve excellent response sensitivity and ensures rapid and reliable state switching.

State retention mechanism: The dual control mode has a state retention feature (memory function). After the input signal is revoked, the valve outlet state remains unchanged until the reverse control signal is triggered.

Precision process and long life: The core flow channel is processed by precision machining technology, which effectively reduces the friction resistance of moving parts, brings extremely low starting air pressure requirements, and greatly extends the service life of the valve.

Oil-free operation adaptability: The overall structure and material design meet the requirements of oil-free lubrication conditions, and can be directly connected to the conventional oil-free lubrication air source system for operation.

Convenient integration features: The structural design optimizes the installation process, is compatible with mainstream industrial interface standards, and realizes rapid deployment (ready-to-use).

Modular combination features: It supports the integration of multiple valves through standardized baseboards to form a compact valve group, greatly optimizing the equipment space utilization (space-intensive design).
