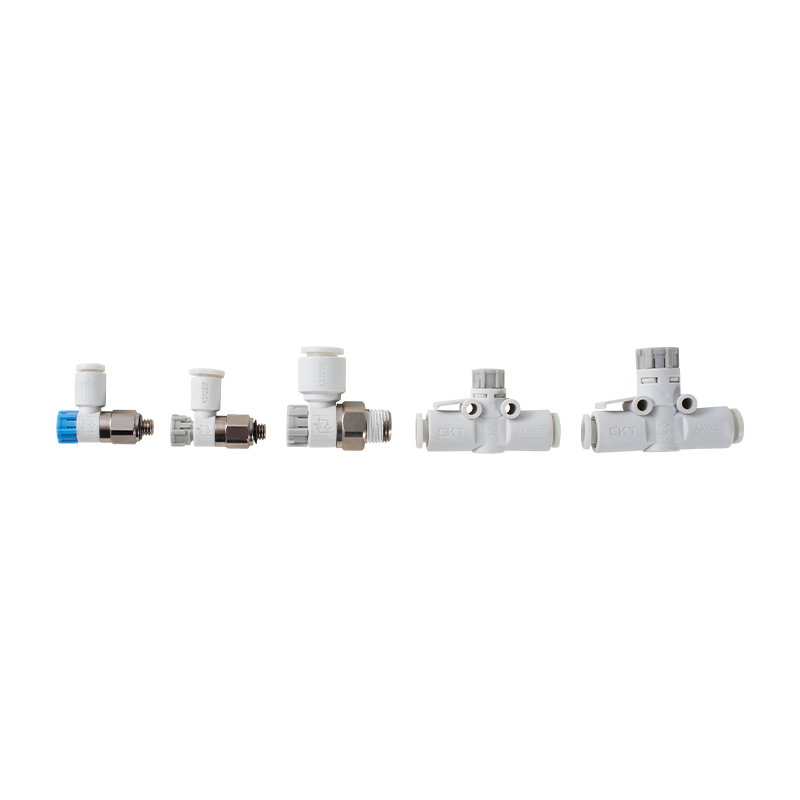

AS Series Speed Control Valve With Quick Change Connector (Straight Through Type)

The AS series speed control valve with quick change connector (straight through type) to adjust the movement rate of the fluid actuator. Its structural design takes into account the convenience of flow regulation and pipeline connection, and is suitable for dynamic fluid control occasions.

Core features
Flow channel form: The straight-through flow channel layout reduces pressure loss, has better medium permeability, and is suitable for conventional flow control scenarios
Interface characteristics: The quick-change connector structure omits the need for auxiliary tools, realizes rapid disassembly and assembly of the pipeline, and improves maintenance response speed
Regulation mechanism: The stepless throttling design provides continuous flow control, and the actuator speed stability is less affected by operating condition fluctuations
Operating condition adaptability: The valve body material meets the compatibility requirements of industrial fluids and maintains the linearity of regulation within the conventional pressure range
System integration: The modular design allows independent installation or combined use, and both pneumatic and hydraulic circuits can be used as basic speed regulation units

Application orientation
This type of valve is commonly used in actuator speed regulation, buffer control and other occasions. Its quick-change characteristics are particularly suitable for flexible production lines that require frequent tooling changes. The straight-through flow channel is less sensitive to system back pressure and has practical value in occasions with medium flow accuracy requirements. The valve body structure has a basic tolerance for fluid cleanliness, but a pre-filter unit is still recommended for highly polluted media environments.
