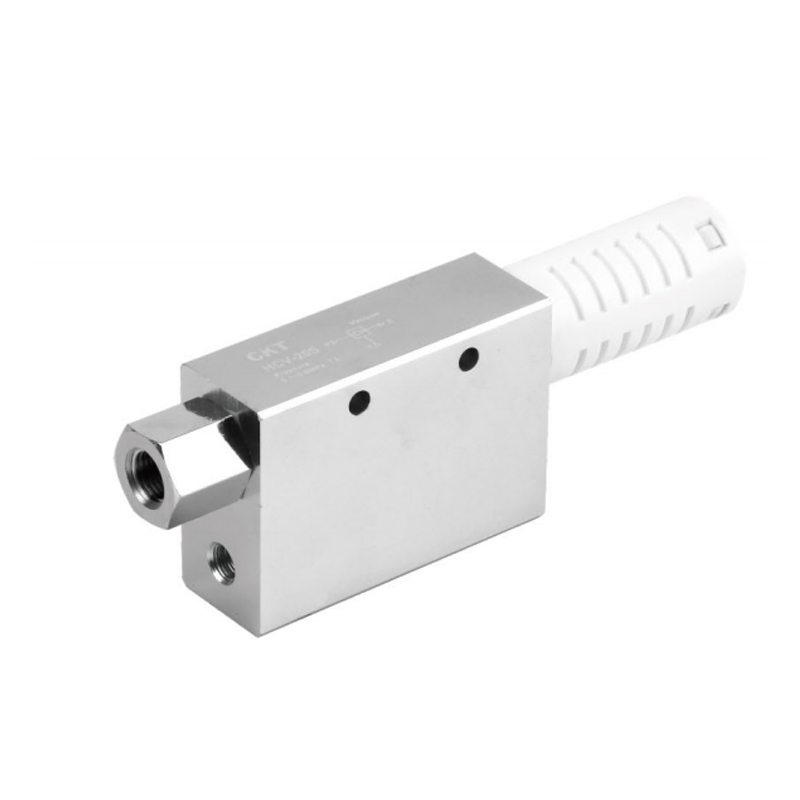

HCV Series Multistage Vacuum Generator

The HCV Series Multistage Vacuum Generator is a cutting-edge pneumatic device designed to provide high-performance vacuum generation solutions for a wide range of industrial applications. The series stands out for its innovative multistage design, which significantly improves vacuum efficiency and suction performance.

Main Features
1. Multistage design for improved performance: The HCV series uses a multistage vacuum generation mechanism. This design converts compressed air into a high vacuum environment more efficiently, achieving faster and stronger suction compared to traditional single-stage vacuum generators.

2. High vacuum and suction flow: It is capable of achieving high vacuum levels, with a vacuum level of - 81.8kPa for the vacuum generator and up to - 98.6kPa for the high vacuum Model. This ensures reliable extraction of gas from containers and vacuum chambers, suitable for demanding applications that require strong clamping or lifting forces.

3. Wide operating range: The generator operates in a pressure range of 0.2 - 0.6MPa, with flexibility under different compressed air supply conditions. It is able to meet various flow requirements, for example, the HCV-20S Model has a suction flow of 35l/min, meeting the needs of diverse industrial processes.

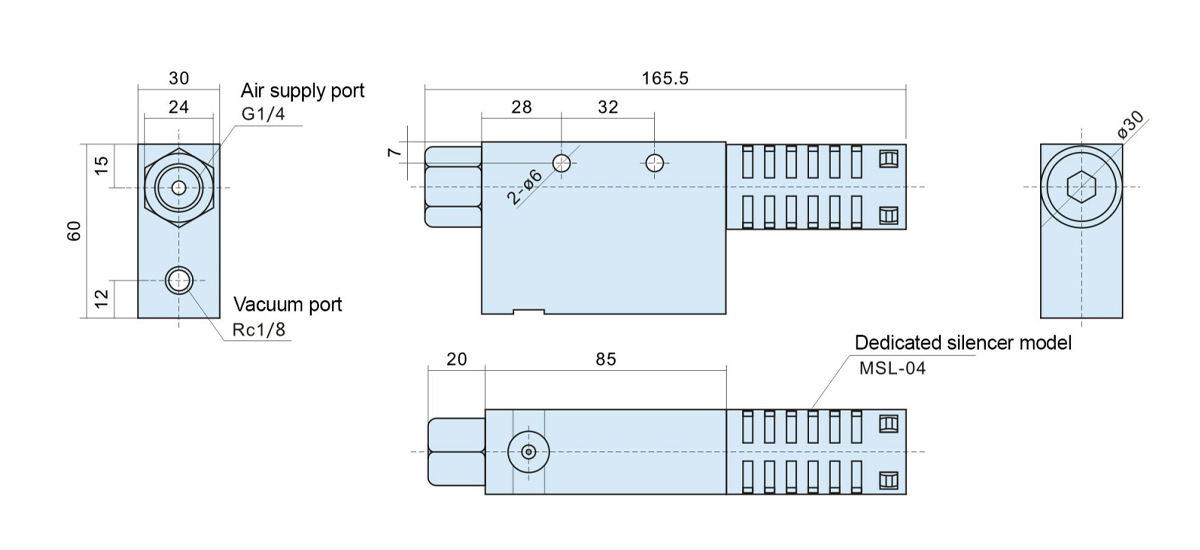

4. Compact and lightweight: Despite its powerful performance, the HCV series has a compact design. For example, the relatively small size of the HCV-20S facilitates installation in space-constrained environments. Its lightweight structure (HCV-20S weighs 480g) also simplifies handling and integration with existing systems.

5. Durable structure: The HCV series is made of high-quality materials and is designed to withstand the rigors of industrial use. It can operate in an oil-free compressed air environment at 0 - 60°C (non-freezing), ensuring long-term reliability and stability.
