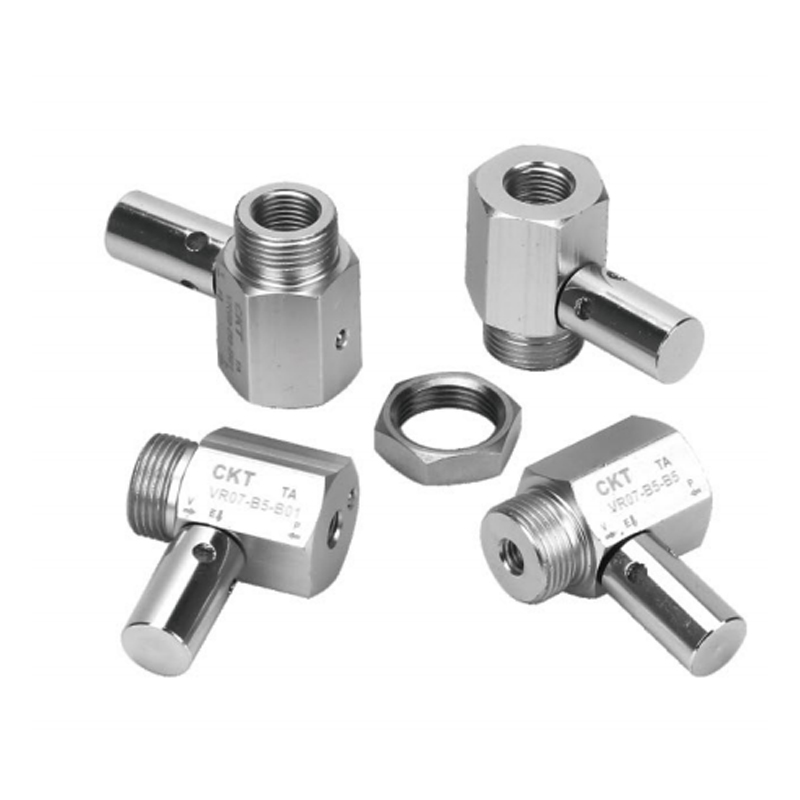

VR Series Linear Vacuum Generator

VR Series Linear Vacuum Generator is an innovative pneumatic device that provides efficient and reliable vacuum generation solutions for many industrial applications. Compared with traditional vacuum generators, this series stands out for its unique linear design and has many advantages.

Main Features
1. Straight-line design for direct airflow: The VR Series' linear structure allows the flow of compressed air and vacuum generation to proceed along a straight path. This design minimizes energy loss and pressure drop, resulting in faster vacuum response time and higher efficiency.

2. Compact and lightweight: Made of aluminum, the VR Series is small and lightweight (only 16.6g without muffler and bracket). This makes it easy to install in space-constrained environments and reduces the overall load on the system.

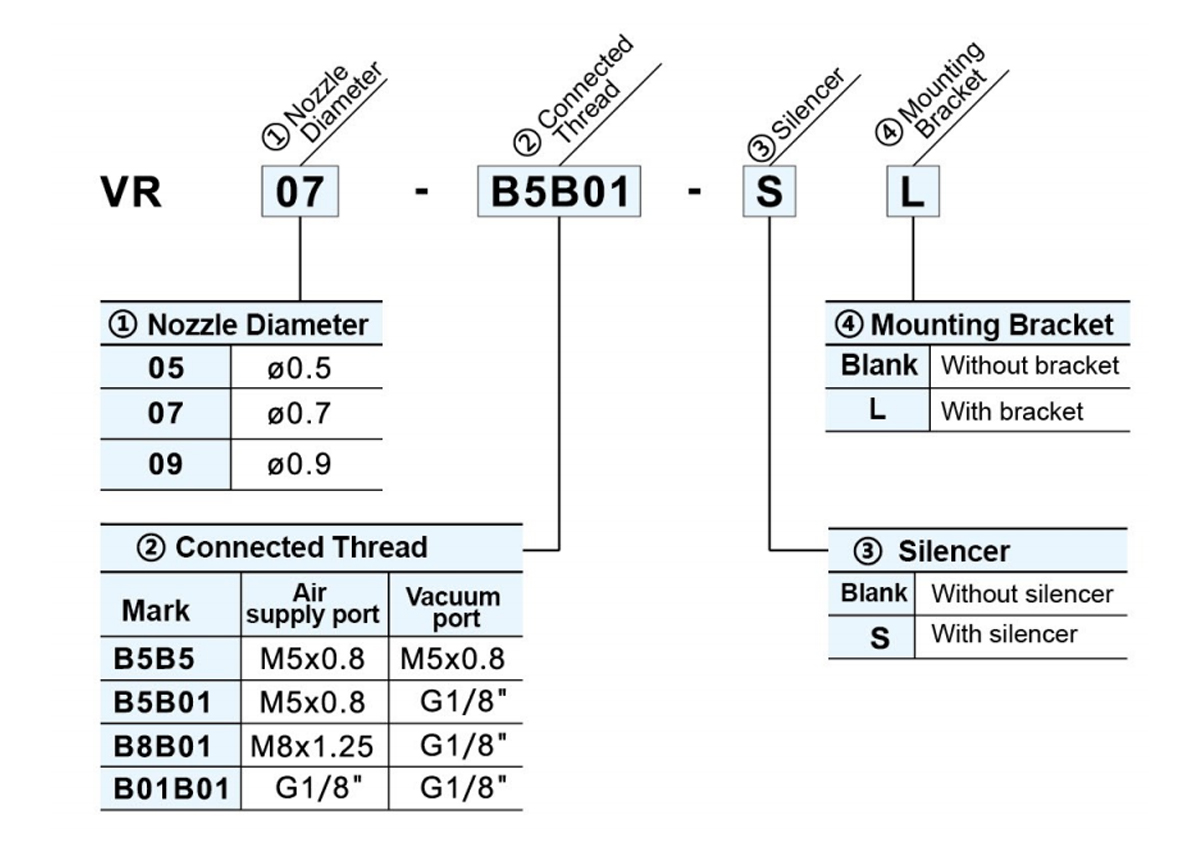

3. Multiple nozzle diameters available: A variety of nozzle diameters (0.5, 0.7, 0.9mm) are available, allowing users to select the most suitable Model based on specific flow and vacuum requirements.

4. High-performance vacuum generation: The maximum vacuum can reach - 88 kPa, ensuring strong suction in applications such as picking and placing delicate components or handling light objects.

5. Low air consumption: Despite its excellent performance, the VR series has a relatively low air consumption. For example, the VR05 Model has an air consumption of only 12 l/min, which is energy-saving and cost-effective.
