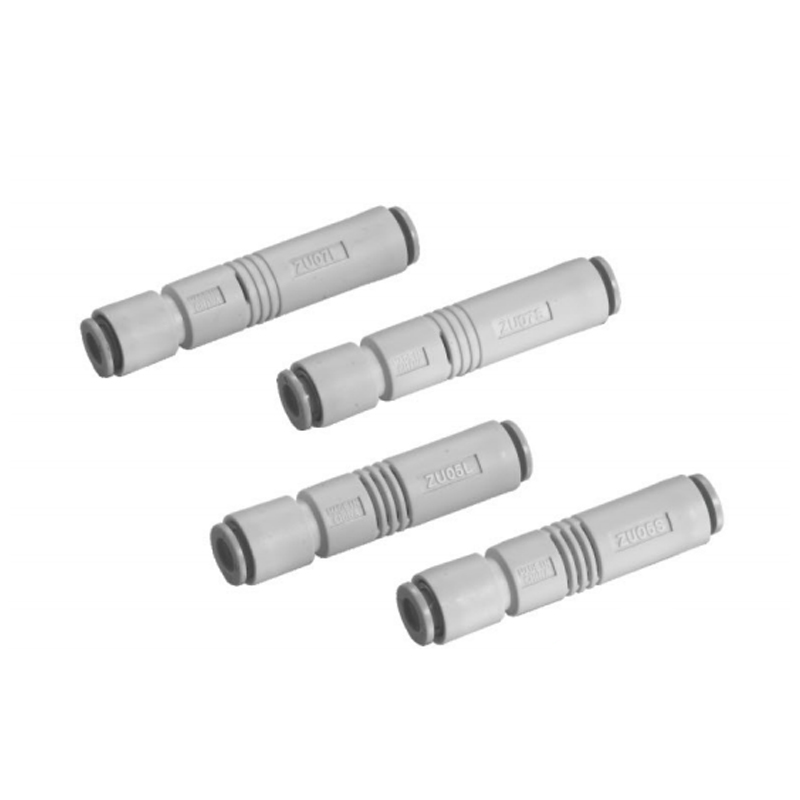

ZU Series Vacuum Generator

The ZU Series Vacuum Generator is an efficient and versatile pneumatic device designed to provide vacuum for a wide range of industrial applications. It combines compact design, reliable performance and ease of use, making it an ideal choice for automation systems, material handling and a variety of other processes.

Main Features
1. Compact and lightweight: The ZU Series is compact, making it easy to install in space-constrained environments. Its lightweight construction also reduces the overall load on the system, facilitating integration into existing installations.

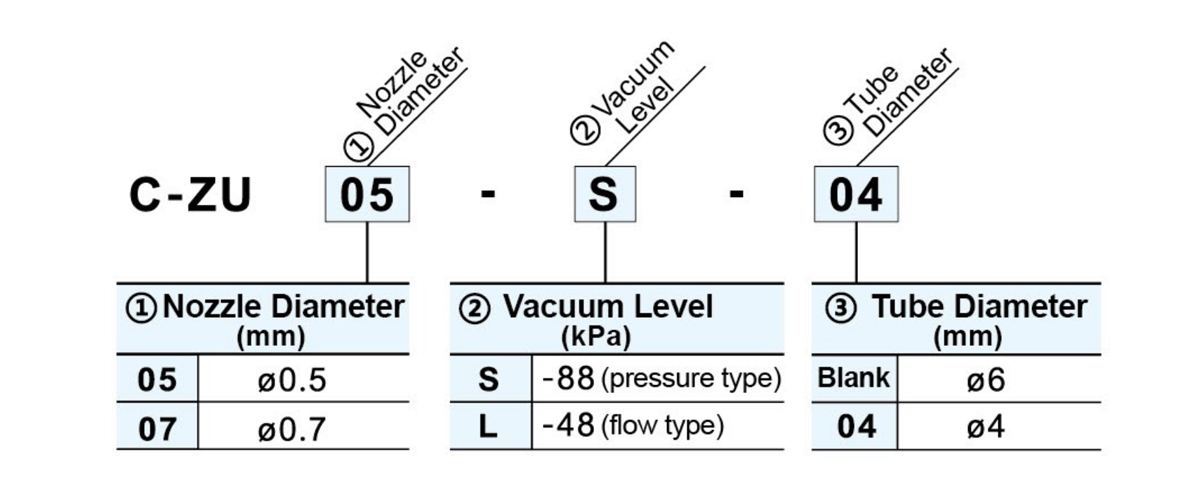

2. Multiple nozzle diameters: Models with different nozzle diameters (such as φ0.5, φ0.7) are available, allowing users to select the appropriate Model based on specific flow and vacuum requirements. This flexibility ensures optimal performance in a variety of applications.

3. High vacuum generation capability: Capable of achieving significant vacuum levels. For example, some Models have a maximum vacuum pressure of - 85 kPa or - 48 kPa, providing strong suction for tasks such as picking up and fixing objects.

4. Low air consumption: Despite its excellent vacuum generation performance, the ZU Series has a relatively low air consumption. This not only reduces energy costs, but also reduces the impact on the compressed air supply system.

5. Easy pipe connection: Equipped with quick connectors, the ZU series allows easy and quick pipe connection. This feature simplifies the installation process and reduces downtime when setting up or maintaining the system.

6. Resin material construction: Made of resin material, the vacuum generators are lightweight and have a small nozzle diameter. This makes them excel in applications where weight and size are critical.
