ZH Series Vacuum Generator

Home / Products / Vacuum Components / Basic Vacuum Ejector / ZH Series Vacuum Generator

ZH Series Vacuum Generator
  • ZH Series Vacuum Generator
Basic Vacuum Ejector

ZH Series Vacuum Generator

ZH Series Vacuum Generator is a pneumatic component that performs well in the field of industrial automation. With its unique design and excellent performance, it is widely used in a variety of scenarios that require a vacuum environment.

Product Features
1. Various nozzle diameters: This series offers a variety of nozzle diameters, ranging from φ0.5 to φ2.0. This rich selection allows users to flexibly choose according to specific flow requirements, whether it is a small flow or a large flow application scenario, they can find a suitable configuration.

2. Compact and lightweight design: The nozzle and body adopt an integrated molded resin structure, which is not only light in weight but also easy to install. This design helps save space and is particularly suitable for working environments with strict requirements on equipment size and weight.

3. Multiple types are available: including box type (built-in muffler) and direct exhaust type (no muffler) to meet the needs of different users for noise control and installation methods.

4. Efficient vacuum generation: It can quickly generate high vacuum, and some Models have a maximum vacuum pressure of - 88kPa (pressure type) and - 53kPa (flow type), providing strong suction guarantee for various adsorption and handling operations.

5. Quick connector design: Equipped with quick connector, it makes pipeline connection more convenient, greatly shortens installation and commissioning time, and improves work efficiency.

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：ZU Series Vacuum Generator
  • Item Nozzle Diameter
    (mm)    		 Suction Flow(L/min) Air Consumption
    (L/min)    		 Vacuum Level(kPa) Air Supply Pressure
         (MPa)
    S L S L
    C-ZH05□ Ø0.5 5  8  13  -88  -48  0.45
    C-ZH07□ Ø0.7 12  20  23
    C-ZH10□ Ø1.0 24  34  46
    C-ZH13□ Ø1.3 40  70  78
    C-ZH15□ Ø1.5 55  75  95  -53
    C-ZH18□ Ø1.8 65  110  150
    C-ZH20□ Ø2.0 85  135  185

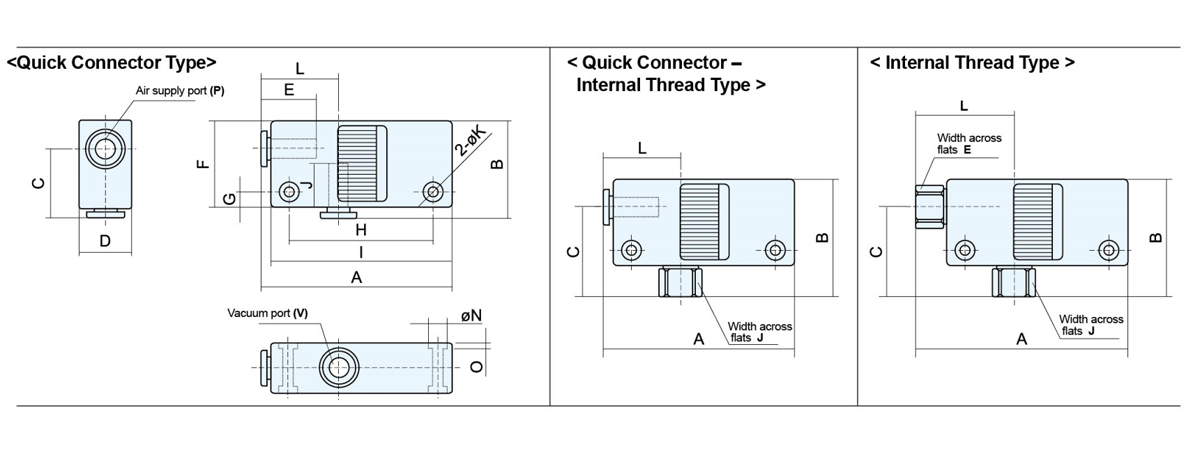

  • Model A B C D E F G H I J ØK L ØN 0  P V
    C-ZH05B□-06-06 60  31  22  16  17  28  5  47  57  17  3.2  24  5.8  2  Ø6 Ø6
    C-ZH07B□-06-06
    C-ZH10B□-06-06 63  32  23  18  29  50  60  26
    C-ZH13B□-08-10 78  38.5  27.5  23  18.5  35  7  61  75  21  4.2  28  7.5  3  Ø8 Ø10
    C-ZH05B□-06-01 60  38.5  29.5  16  17  28  5  47  57  12  3.2  24  5.8  2  Ø6 Rc1/8
    C-ZH07B□-06-01
    C-ZH10B□-06-01 63  39.5  30.5  18  29  50  60  26
    C-ZH13B□-08-02 78  50  39  23  18.5  35  7  61  75  17  4.2  28  7.5  3  Ø8 Rc1/4
    C-ZH05B□-01-01 67.5  38.5  29.5  16  12  28  5  47  57  12  3.2  31.5  5.8  2  Rc1/8 Rc1/8
    C-ZH07B□-01-01
    C-ZH10B□-01-01 70.5  39.5  30.5  18  29  50  60  33.5
    C-ZH13B□-01-02 86.5  50  39  23  14  35  7  61  75  17  4.2  36.5  7.5  3  Rc1/4

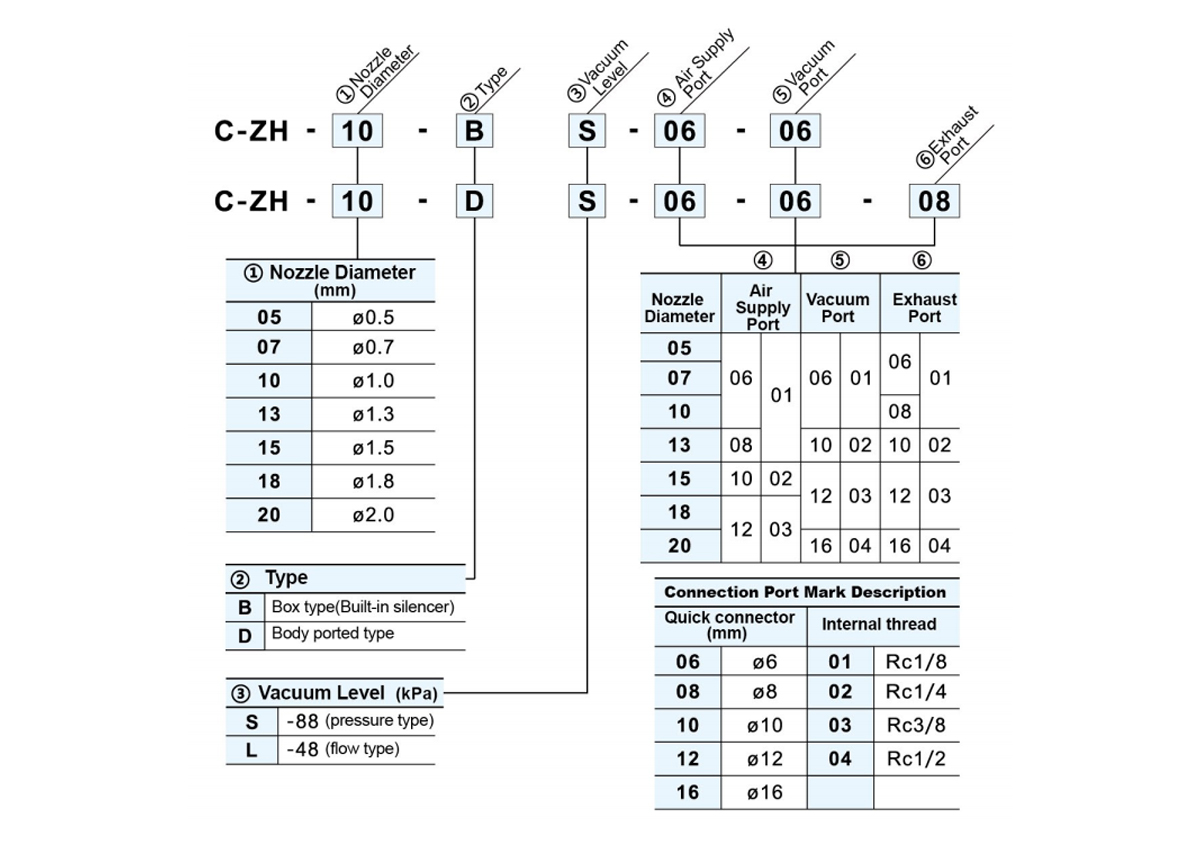

    □S:Pressure Type L:Big Flow Type

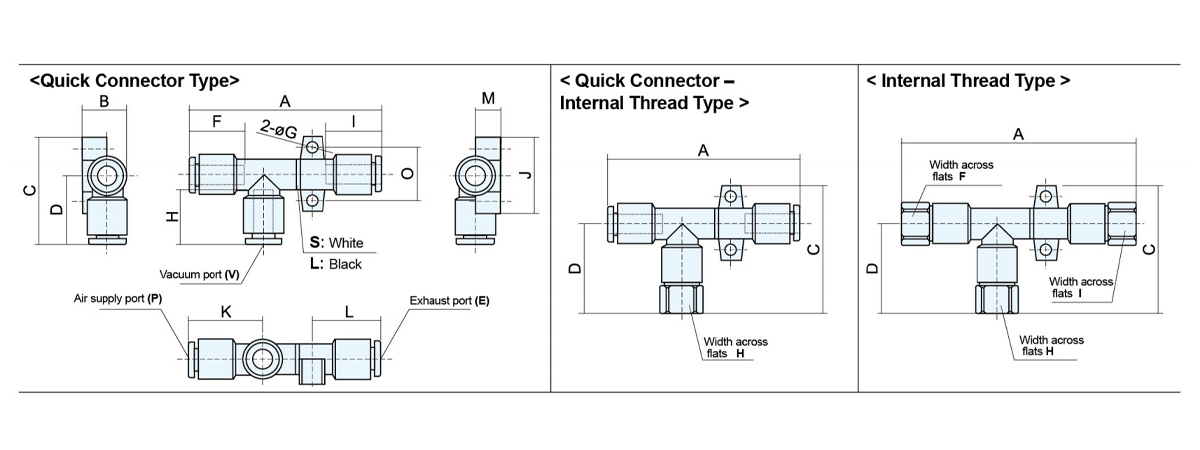

    Model A B C D E F ØG H 1  J K L N 0  P V
    C-ZH05D□-06-06-06 58.5  14.2  34  22  Ø6 17  3.2  17  17  24  24  21  7.8  17  Ø6 Ø6
    C-ZH07D□-06-06-06 61
    C-ZH10D□-06-06-08 66/70 17.2  37  23  Ø8 4.2  18.5  28  28  24.5  9.6  20
    C-ZH13D□-08-10-10 74.5/79.5 20  42.5  27.5  Ø10 18.5  4.2  21  21  30  30  27  10.7  22  Ø8 Ø10
    C-ZH15D□-10-12-12 93.3  22.45  47  29.5  Ø12 21  4.2  22  22  35  35  32.8  12  27  Ø10 Ø12
    C-ZH05D□-06-01-06 58.5  14.2  41.5  29.5  Ø6 17  3.2  12  17  24  24  21  7.8  17  Ø6 Rc1/8
    C-ZH07D□-06-01-06 61
    C-ZH10D□-06-01-08 66/70 17.2  44.5  30.5  Ø8 4.2  18.5  28  28  24.5  9.6  20
    C-ZH13D□-08-02-10 74.5/79.5 20  54  39  Ø10 18.5  4.2  17  21  30  30  27  10.7  22  Ø8 Rc1/4
    C-ZH15D□-10-03-12 93.3  22.45  58.5  41  Ø12 21  4.2  19  22  35  35  32.8  12  27  Ø10 Rc3/8
    C-ZH05D□-01-01-01 73.5  14.2  41.5  29.5  Rc1/8 12  3.2  12  12  24  31.5  28.5  7.8  17  Rc1/8 Rc1/8
    C-ZH07D□-01-01-01 76
    C-ZH10D□-01-01-01 82/86 17.2  44.5  30.5  4.2  14  28  33.5  33  9.6  20
    C-ZH13D□-01-02-02 94.5/99.5 20  54  39  Rc1/4 14  4.2  17  17  30  36.5  38.5  10.7  22  Rc1/4
    C-ZH15D□-02-03-03 116.5  22.45  58.5  41  Rc3/8 17  4.2  19  19  35  43  44.5  12  27  Rc1/4 Rc3/8
    □S:Pressure Type L:Big Flow Type   Mark:S type size/L type size

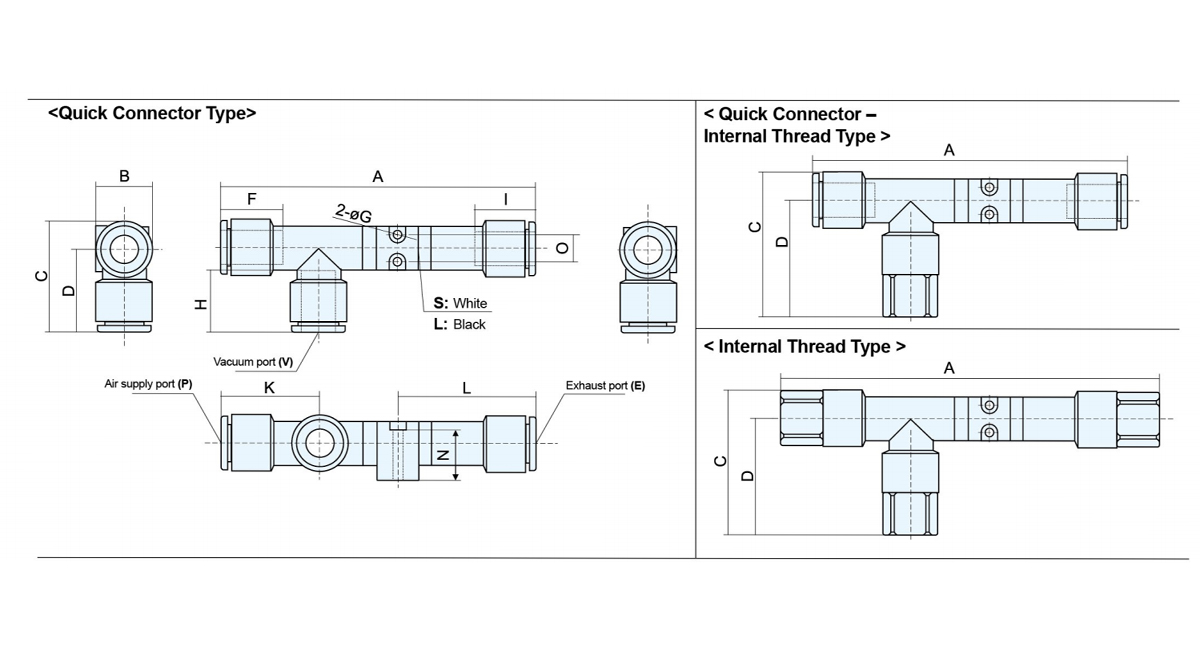

    Model A B C D E F G H I K L N 0  P V
    C-ZH18D□-12-12-12 114  20.95  40.95  30.5  Ø12 22  3.5  22  22  35.5  50  17  10  Ø12 Ø12
    C-ZH20D□-12-16-16 124.6  26.75  45.95  32.7  Ø16 25  25  38.5  54.3  21.7  12  Ø16
    C-ZH18D□-12-03-12 114  20.95  52.45  42  Ø12 19  22  35.5  50  17  10  Rc3/8
    C-ZH20D□-12-04-16 124.6  26.75  60.95  47.7  Ø16 24  25  38.5  54.3  21.7  12  Rc1/2
    C-ZH18D□-03-03-03 133  20.95  52.45  42  Rc3/8 19  19  19  47  57.5  17  10  Rc3/8 Rc3/8
    C-ZH20D□-03-04-04 151.1  26.75  60.95  47.7  Rc1/2 24  24  50  69.3  22  12  Rc1/2
    □S:Pressure Type L:Big Flow Type
