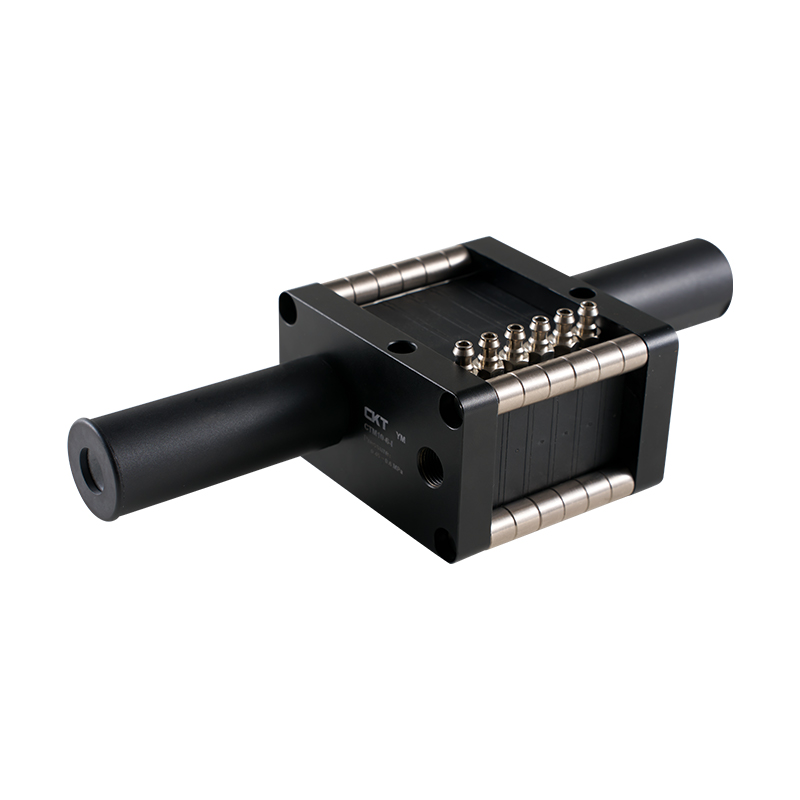

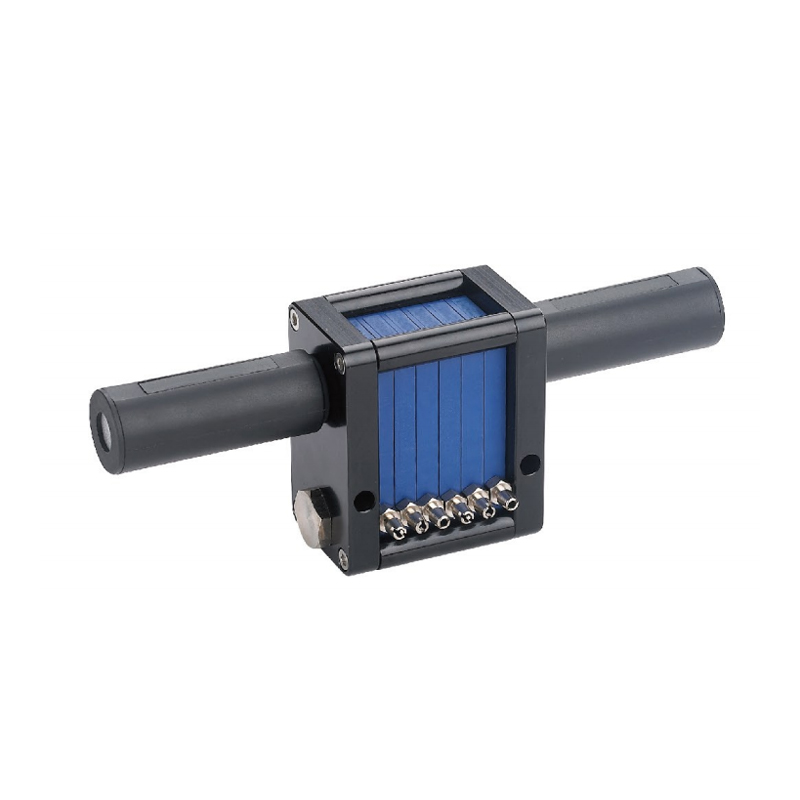

CTM/CTX I Series Integrated Vacuum Generator

CTM/CTX I Series Integrated Vacuum Generator is a compact and efficient vacuum generator module designed for automated handling. It generates instantaneous negative pressure through compressed air jets, replacing traditional vacuum pumps, and is suitable for space-constrained and high-beat scenarios.

Key features

1. Jet entrainment technology

No mechanical moving parts, pure pneumatic vacuum generation (typical value -85kPa), long life and maintenance-free.

Multi-stage expansion channel reduces gas consumption by more than 40%, suitable for 0.1-1.5MPa gas source.

2. Extremely fast response capability

Establish/release vacuum in milliseconds, support high-frequency operation of 300 times/minute.

Wide temperature range operation (-20℃~80℃), resistant to dust and oil mist environment.

3. Ready-to-use architecture

The main body integrates filtering and silencer units, which can be directly connected to the suction cup or the end of the robot arm.

Modular design supports variable frequency flow regulation and is compatible with PLC/IIoT control.
4. Scenario adaptability

Solve the space limitation of robot wrist and realize embedded vacuum grasping.
The oil-free design meets the clean requirements of food/pharmaceuticals and can handle millimeter-level electronic components.
