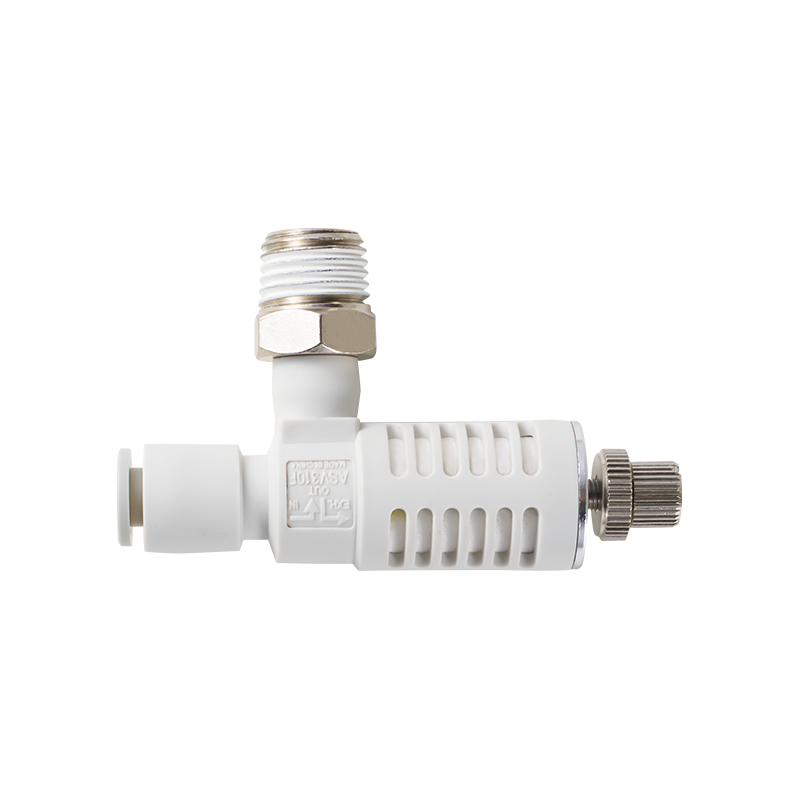

ASV Series Quick Exhaust Valve

ASV series quick exhaust valve is a special valve used to accelerate the exhaust process of the actuator in the pneumatic system. It shortens the reset response time of the cylinder or pneumatic component by optimizing the exhaust path and improves the dynamic performance of the system.

Core features
Exhaust path optimization

Establish a low-resistance channel directly to the atmosphere to ensure unimpeded pressure relief of the gas in the inner cavity of the actuator and eliminate the action delay caused by back pressure.

Integrated functional design

The single valve body integrates the dual functions of intake pressure difference diversion and quick exhaust, without the need for external complex control circuits, simplifying the system structure.

Working condition adaptability

The internal dynamic balance structure adapts to air pressure fluctuations and maintains stable exhaust characteristics under frequent start-stop or load mutation conditions.

System efficiency improvement

By shortening the exhaust cycle and reducing the idle time of the equipment, the cycle rate and energy utilization efficiency of the pneumatic equipment are indirectly improved.

Fault mitigation mechanism

Automatically switch to exhaust mode when the air supply is interrupted to avoid uncontrollable displacement of the actuator due to residual pressure.
