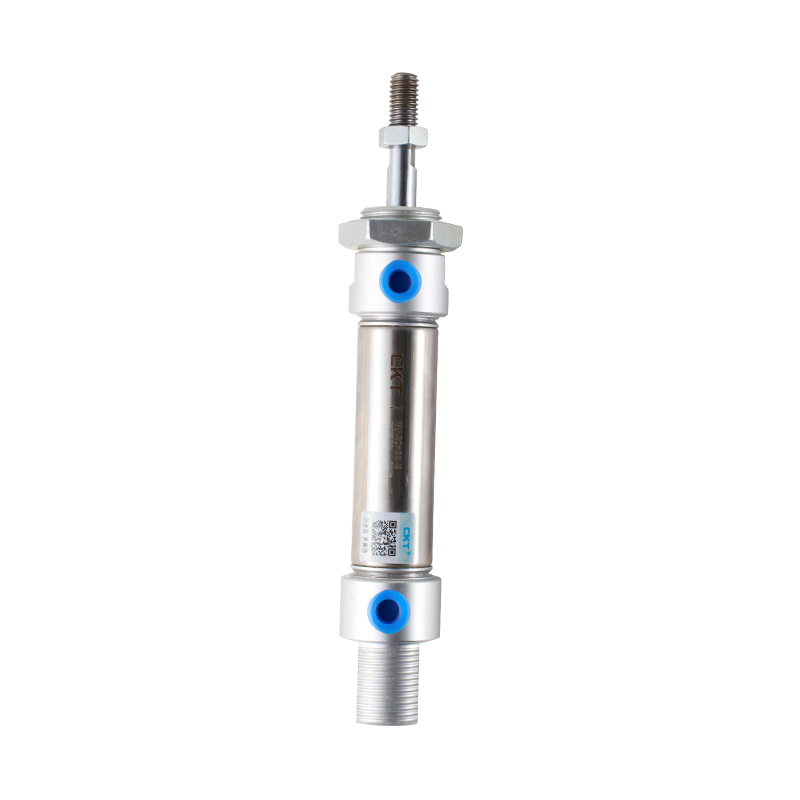

MA Series Stainless Steel Mini Cylinders

1. The piston seal adopts a special-shaped two-way sealing structure with compact size and oil storage function;
2. The front and rear covers are equipped with fixed anti-collision pads to reduce the reversing impact of the cylinder;
3. A variety of rear cover forms make cylinder installation more convenient;
4. The front and rear covers and the stainless steel cylinder body adopt a riveted rolling structure with reliable connection;
5. The cylinder body adopts high-precision stainless steel pipe with high strength and corrosion resistance;
6. Cylinders of various specifications and cylinder installation accessories are available for customers to choose;
7. All cylinders in this series are attached with magnets.

E-mail: manager@cktworld.com
Download
PREV：MAL Series Aluminum Alloy Mini Cylinder
NEXT：CM2 Series Stainless Steel Mini Cylinder (Single Acting)

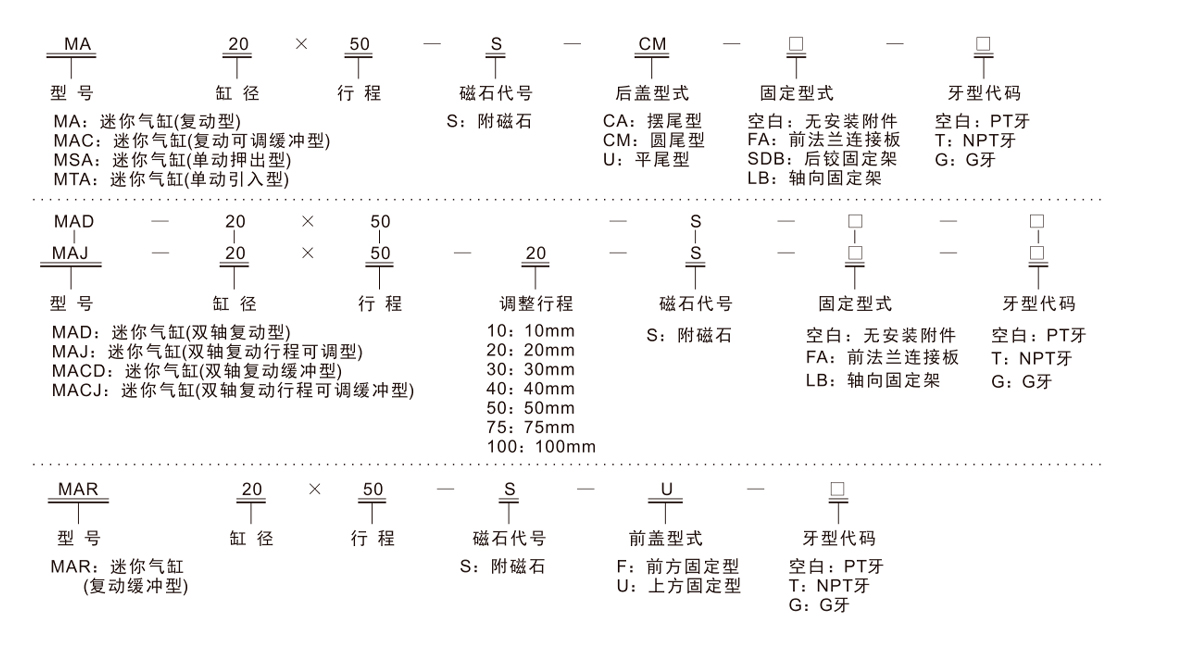

  • Inner diameter (mm) 16 20 25 32 40 50 63
    Action Type MSAI  MTA Single-acting type -
    MAR - Reciprocating type
    MAI  MADI  MAJ Reciprocating type -
    MACI  MACDI   MACJ - Double-acting cushioning type
    working medium Air
    Operating pressure range Reciprocating type 0.1~1.0MPa(15~145Psi)
    Single-acting type 0.2~1.0MPa(28~145Psi)
    Guaranteed pressure resistance 1.5MPa(215Psi)
    Operating temperature range °C -20~70
    Operating speed range Single-acting type:50~800mm/s
    Recurring type:30~800mm/s
    Travel tolerance range 0~150*10        >150+14
    Buffer type C-MAC, C-MACD, C-MACJ series: Adjustable buffering;
    Other series: Anti-collision pads
    *Takeover diameter M5×0.8 PT1/8 PT1/4
    *NPT and G thread types are available for the connection.

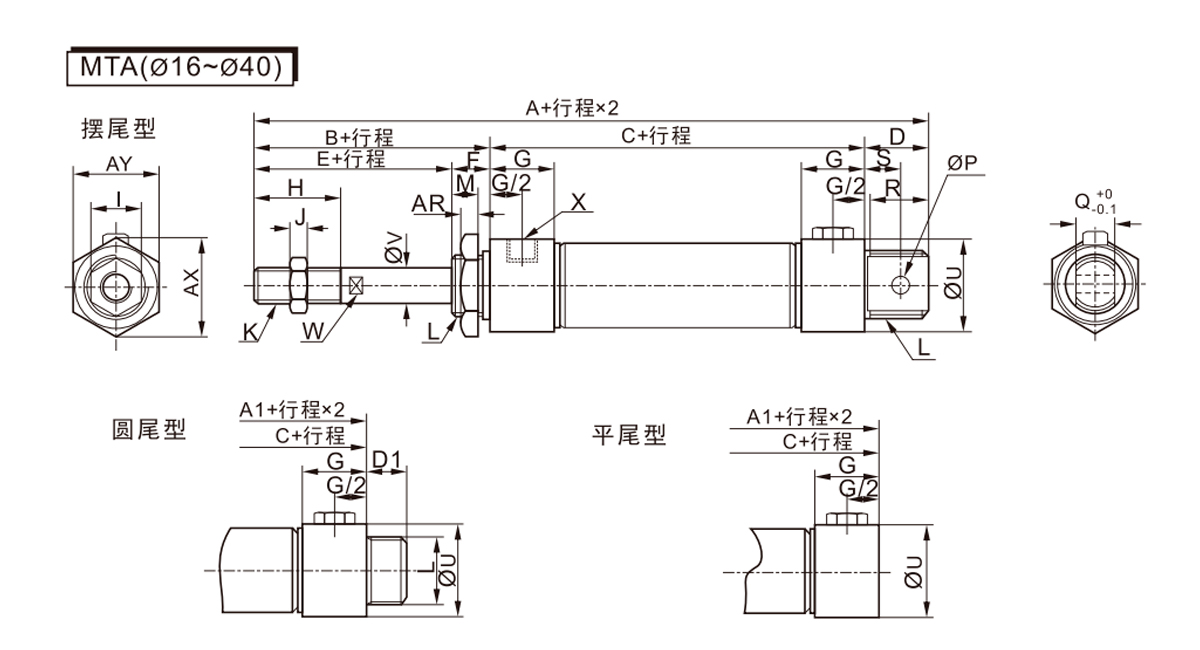

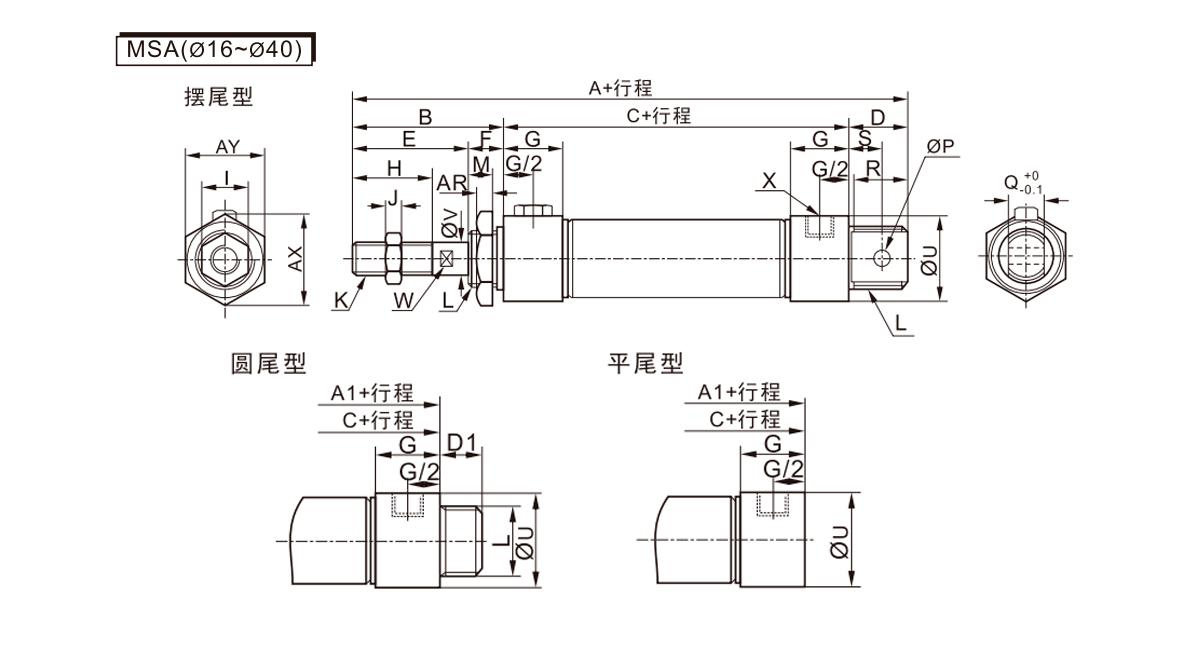

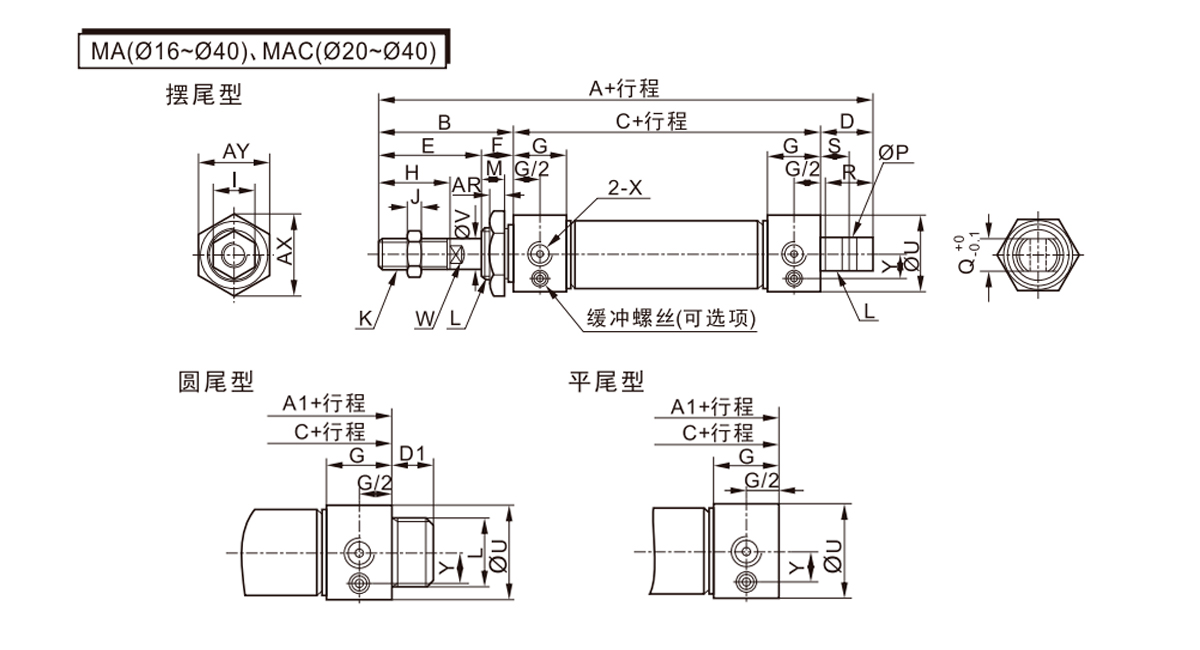

  • Inner diameter/symbol A A1 B C D D1 E F G H 1 J K L M P Q R S U V W X AR AX AY Y
    16 114 98 38 60 16 16 22 16 10 16 10 5 M6×1 M16×1.5 14 6 12 14 9 21 6 8 M5×0.8 6 25 22 -
    20 137 116 40 76 21 12 28 12 16 20 12 6 M8×1.25 M22×1.5 10 8 16 19 12 27 8 6 PT1/8 7 33 29 8.7
    25 141 120 44 76 21 14 30 14 16 22 17 6 M10×1.25 M22×1.5 12 8 16 19 12 30 10 8 PT1/8 7 33 29 10.2
    32 147 120 44 76 27 14 30 14 16 22 17 6 M10×1.25 M24×2.0 12 10 16 25 15 35 12 10 PT1/8 8 37 32 12
    40 149 122 46 76 27 14 32 14 16.7 24 17 7 M12×1.25 M30×2.0 12 12 20 25 15 41.6 16 14 PT1/8 9 47 41 15

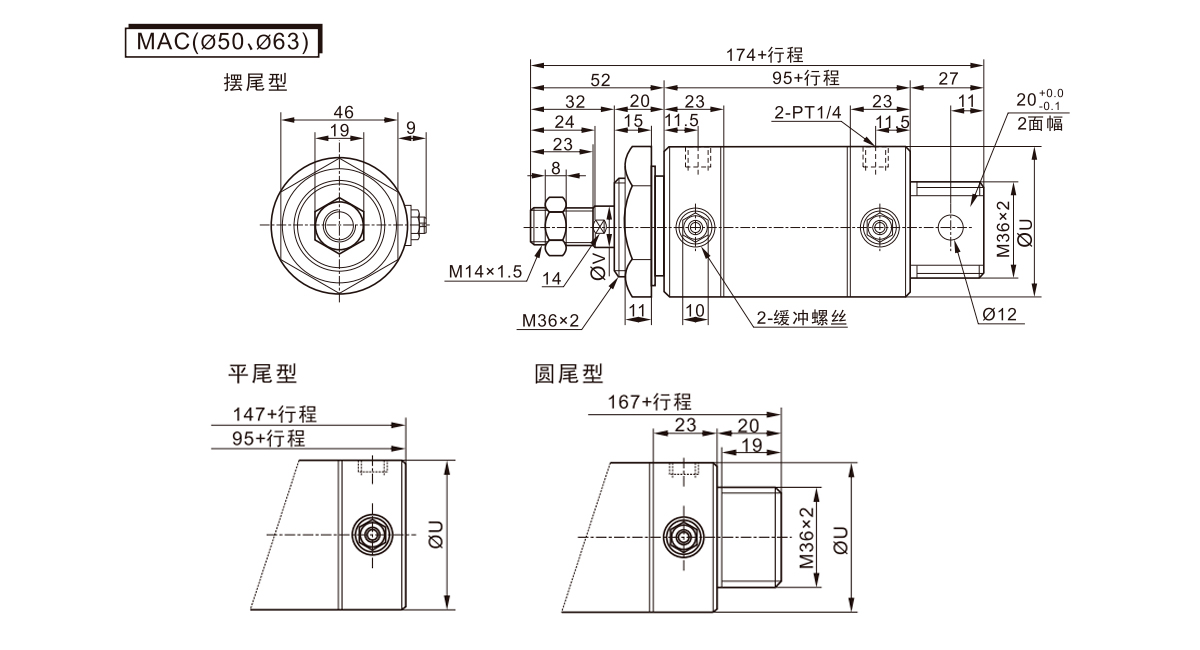

    Cylinder diameter/symbol U V
    50 53 16
    63 67 16

    Symbol A A1 B C D D1 E F G H I
    Inner diameter/stroke ≤50 51-100 ≥101 ≤50 51-100 ≥101 ≥50 51-100 ≥101
    16 139 164 - 123 148 - 38 85 110 - 16 16 22 16 10 16 10
    20 162 187 212 141 166 191 40 101 126 151 21 12 28 12 16 20 12
    25 166 191 216 145 170 195 44 101 126 151 21 14 30 14 16 22 17
    32 172 197 222 145 170 195 44 101 126 151 27 14 30 14 16 22 17
    40 174 199 224 147 172 197 46 101 126 151 27 14 32 14 16.7 24 17

    Inner diameter/symbol J K L M P Q R S U V W X AR AX AY
    16 5 M6×1 M16×1.5 14 6 12 14 9 21 6 5 M5×0.8 5 25 22
    20 6 M8×1.25 M22×1.5 10 8 16 19 12 27 8 6 PT1/8 7 33 29
    25 6 M10×1.25 M22×1.5 12 8 16 19 12 30 10 8 PT1/8 7 33 29
    32 6 M10×1.25 M24×2.0 12 10 16 25 15 35 12 10 PT1/8 8 37 32
    40 7 M12×1.25 M30×2.0 12 12 20 25 15 41.6 16 14 PT1/8 9 47 41

    Symbol A A1 B C D D1 E F
    Inner diameter/stroke ≤25 ≤50 ≤75 ≤100 ≤25 ≤50 ≤75 ≤100 ≤25 ≤50 ≤75 ≤100
    16 129 139 154 164 113 123 138 148 38 75 85 100 110 16 16 22 16
    20 152 162 177 187 131 141 156 166 40 91 101 116 126 21 12 28 12
    25 156 166 181 191 135 145 160 170 44 91 101 116 126 21 14 30 14
    32 162 172 192 192 135 145 165 165 44 91 101 121 121 27 14 30 14
    40 164 174 194 204 137 147 167 177 46 91 101 121 131 27 14 32 14

    Inner diameter/symbol G H I J K L M P Q R S U V W X AR AX AY
    16 10 16 10 5 M6×1 M16×1.5 14 6 12 14 9 21 6 5 M5×0.8 6 25 22
    20 16 20 12 6 M8×1.25 M22×1.5 10 8 16 19 12 27 8 6 PT1/8 7 33 29
    25 16 22 17 6 M10×1.25 M22×1.5 12 8 16 19 12 30 10 8 PT1/8 7 33 29
    32 16 22 17 6 M10×1.25 M24×2.0 12 10 16 25 15 35 12 10 PT1/8 8 37 32
    40 16.7 24 17 7 M12×1.25 M30×2.0 12 12 20 25 15 41.6 16 14 PT1/8 9 47 41

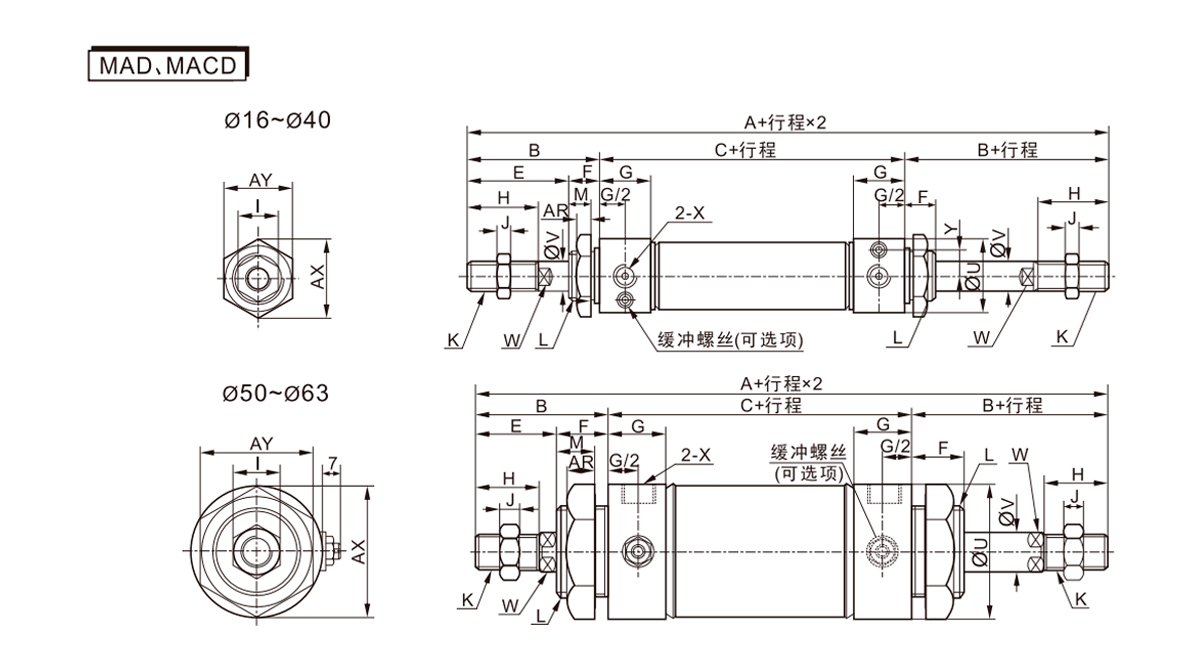

    Inner diameter/symbol A B C E F G H I J K L M U V W X AR AX AY Y
    16 136 38 60 22 16 10 16 10 5 M6×1 M16×1.5 14 21 6 5 M5×0.8 6 25 22 -
    20 156 40 76 28 12 16 20 12 6 M8×1.25 M22×1.5 10 27 8 6 PT1/8 7 33 29 8.7
    25 164 44 76 30 14 16 22 17 6 M10×1.25 M22×1.5 12 30 10 8 PT1/8 7 33 29 10.2
    32 164 44 76 30 14 16 22 17 6 M10×1.25 M24×2.0 12 35 12 10 PT1/8 8 37 32 12
    40 168 46 76 32 14 16.7 24 17 7 M12×1.25 M30×2.0 12 41.6 16 14 PT1/8 9 47 41 15
    50 199 52 95 32 20 23 24 19 8 M14×1.5 M36×2.0 15 53 16 14 PT1/4 11 53 46 -
    63 199 52 95 32 20 23 24 19 8 M14×1.5 M36×2.0 15 67 16 14 PT1/4 11 53 46 -

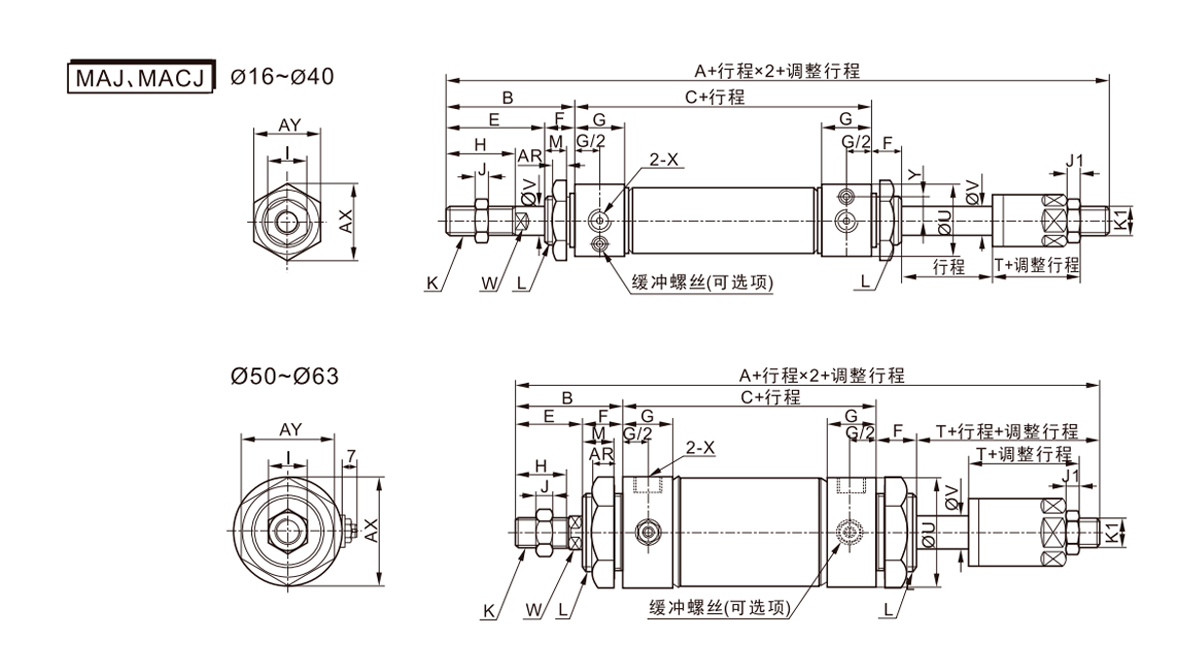

    Inner diameter/symbol A B C E F G H I J J1 K K1 L M U V W X AR AX AY Y T
    16 135 38 60 22 16 10 16 10 5 5 M6×1 M6×1 M16×1.5 14 21 6 5 M5×0.8 6 25 22 - 21
    20 153 40 76 28 12 16 20 12 9 6 M8×1.25 M8×1.25 M22×1.5 10 27 8 6 PT1/8 7 33 29 8.7 25
    25 161 44 76 30 14 16 22 17 6 6 M10×1.25 M10×1.25 M22×1.5 12 30 10 8 PT1/8 7 33 29 10.2 27
    32 161 44 76 30 14 16 22 17 6 6 M10×1.25 M10×1.25 M24×2.0 12 35 12 10 PT1/8 8 37 32 12 27
    40 164 46 76 32 14 16.7 24 17 7 7 M12×1.25 M12×1.25 M30×2.0 12 41.6 16 14 PT1/8 9 47 41 15 28
    50 195 52 95 32 20 23 24 19 8 7 M14×1.5 M12×1.25 M36×2.0 15 53 16 14 PT1/4 11 53 46 - 28
    63 195 52 95 32 20 23 24 19 8 7 M14×1.5 M12×1.25 M36×2.0 15 67 16 14 PT1/4 11 53 46 - 28

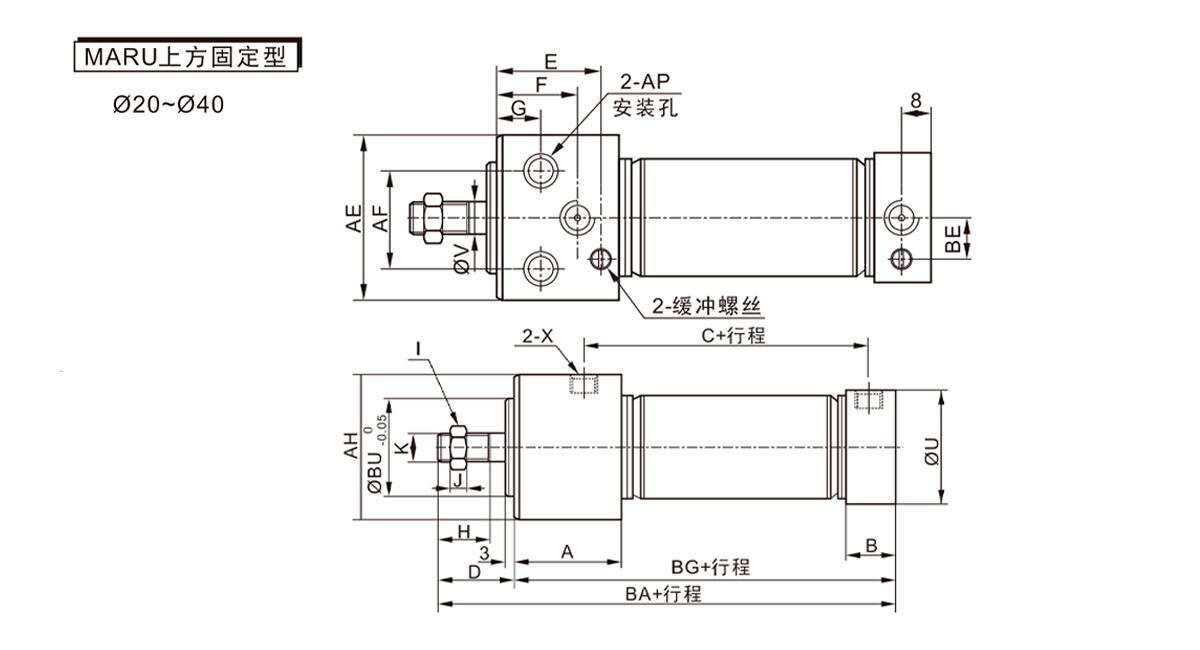

    Inner diameter/symbol A B C D E F G H I J K U V X AE AF AP AH BA BE BG BU
    20 29 16 59 31 24 22 12 20 13 5 M8×1.25 27 8 PT1/8 33.5 21 Ø9.5
    Depth 6.5
    Through hole: Ø5.5    		 30.3 120 8.7 89 20
    25 29 16 59 33 24 22 12 22 17 6 M10×1.25 30 10 PT1/8 39 25 Ø11.0
    Depth 7.5
    Through hole: Ø6.6    		 36.3 122 10.2 89 26
    32 29 16 59 33 25 22 12 22 17 6 M10×1.25 35 12 PT1/8 47 30 Ø14.0
    Depth 10
    Through hole: 09.0    		 42.3 122 12 89 26
    40 37.5 16.6 62 35 31 27 15 24 19 8 M14×1.5 41.6 16 PT1/8 58.5 38 Ø17.5
    Depth 12.5
    Through hole: Ø11    		 52.3 132.6 15 97.6 32

    Inner diameter/symbol U AE AF Al AP
    50 53 62 44 31 Bilateral: 011.0 dp 6.5
    Through hole: 06.6
    63 67 74 48 37 Double-sided: Ø14.0 dp 8.5
    Through hole: Ø9.0

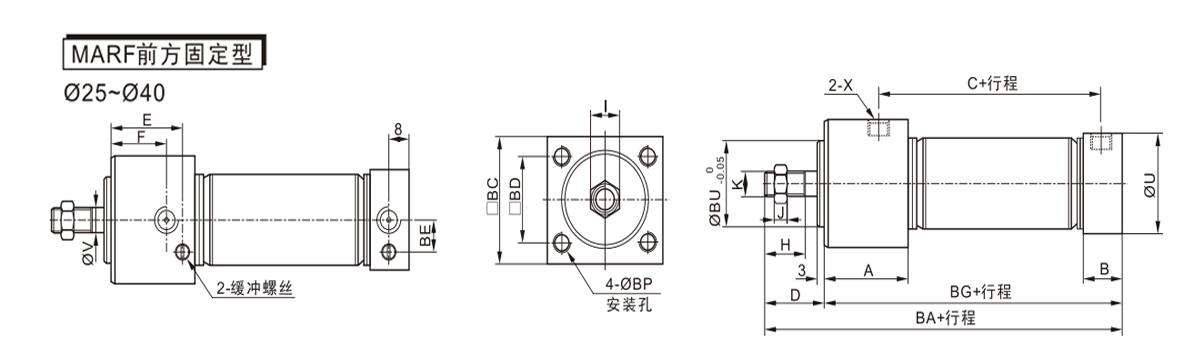

    Inner diameter/symbol A B C D E F H 1 J K U V X BA BC BD BE BG BP BU
    20 29 16 59 31 24 22 20 13 5 M8×1.25 27 8 PT1/8 120 30.5 22 8.7 89 M8×0.8 Deep9 20
    25 29 16 59 33 24 22 22 17 9 M10×1.25 30 10 PT1/8 122 36.5 26 10.2 89 M6×1.0 Deep11 26
    32 29 16 59 33 25 22 22 17 6 M10×1.25 35 12 PT1/8 122 42.5 30 12 89 M6×1.0 Deep11 26
    40 37.5 16.6 62 35 31 27 24 19 8 M14×1.5 41.6 16 PT1/8 132.6 52.5 36 15 97.6 M8×1.25 Deep14 32

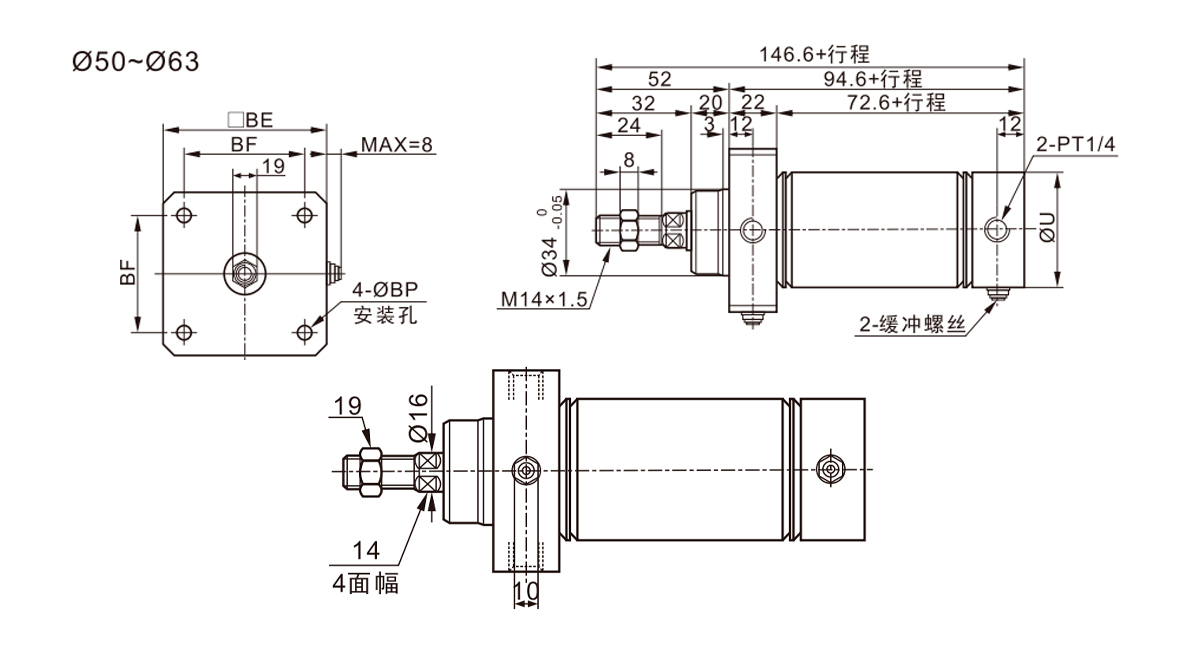

    Inner diameter/symbol U BE BF BP
    50 53 62 48 6.6
    63 67 74 58 9

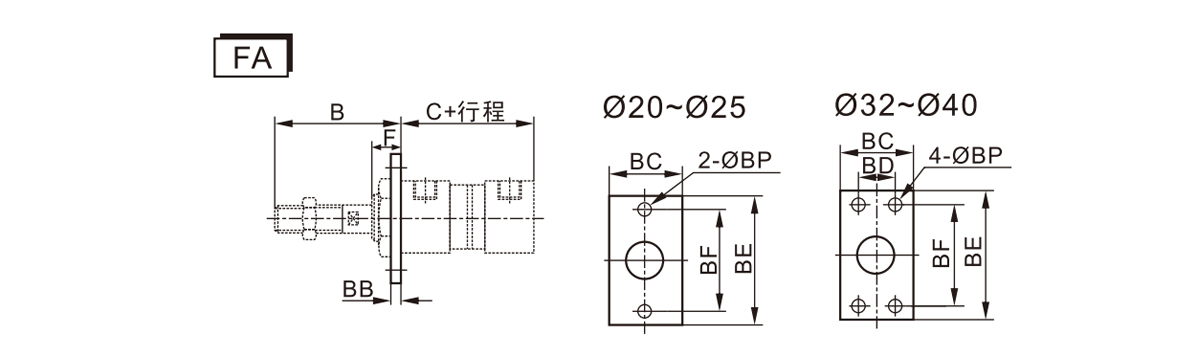

    Symbol B C(MA series) C (MSA series) BB BC BD BE BF BP F
    Bore/stroke 0~50 51~100 101~150
    16 38 60 85 110 - 3 26 - 52 40 5.5 16
    20 40 76 101 126 151 4 38 - 64 50 6.5 12
    25 44 76 101 126 151 4 38 64 50 6.5 14
    32 44 76 101 126 151 4 47 33 72 58 6.5 14
    40 46 76 101 126 151 4 50 36 84 70 6.5 14

    Symbol B F AA(MA series) AA (MSA series) AB AC (MA Series) AC (MSA series) AE AF AL AQ AP AT AH
    Bore/stroke 0~50 51~100 101~150 0~50 51~100 101~150
    16 38 16 98 123 148 - 25 86 111 136 - 44 32 13 6 5.5 3 20
    20 40 12 122 147 172 197 25 106 131 156 181 54 40 15 8 6.5 3 25
    25 44 14 122 147 172 197 29 106 131 156 181 54 40 15 8 6.5 3 25
    32 44 14 142 167 192 217 19 126 151 176 201 59 45 25 8 6.5 4 32
    40 46 14 142 167 192 217 21 126 151 176 201 64 50 25 8 6.5 4 36

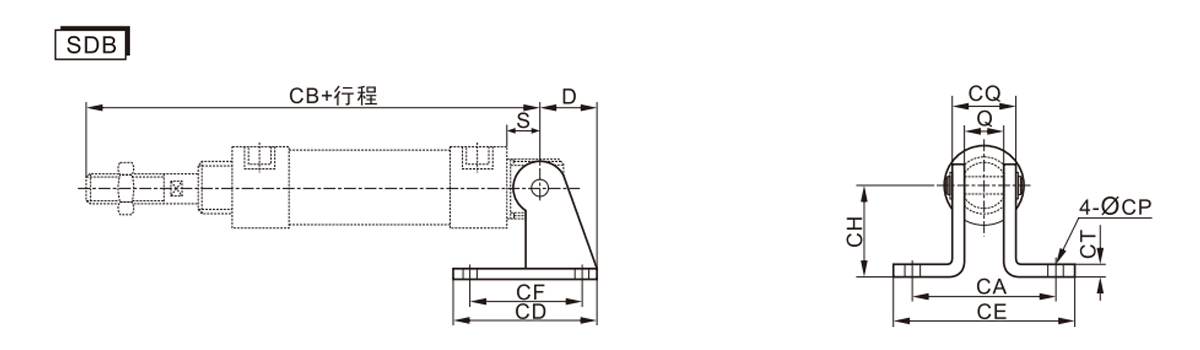

    Symbol D S Q CA CB(MA series) CB (MSA series) CD CE CF CH CT CP CQ
    Bore/stroke 0~50 51~100 101~150
    16 16 9 12 - 107 132 157 - 23 12 20 2 5.5 16
    20 21 12 16 51 128 153 178 203 48 67 32 32 3 6.5 22
    25 21 12 16 51 132 157 182 207 48 67 32 32 3 6.5 22
    32 27 15 16 51 135 160 185 210 52 67 36 36 4 6.5 24
    40 27 15 20 55 137 162 187 212 56 71 40 40 4 6.5 28
