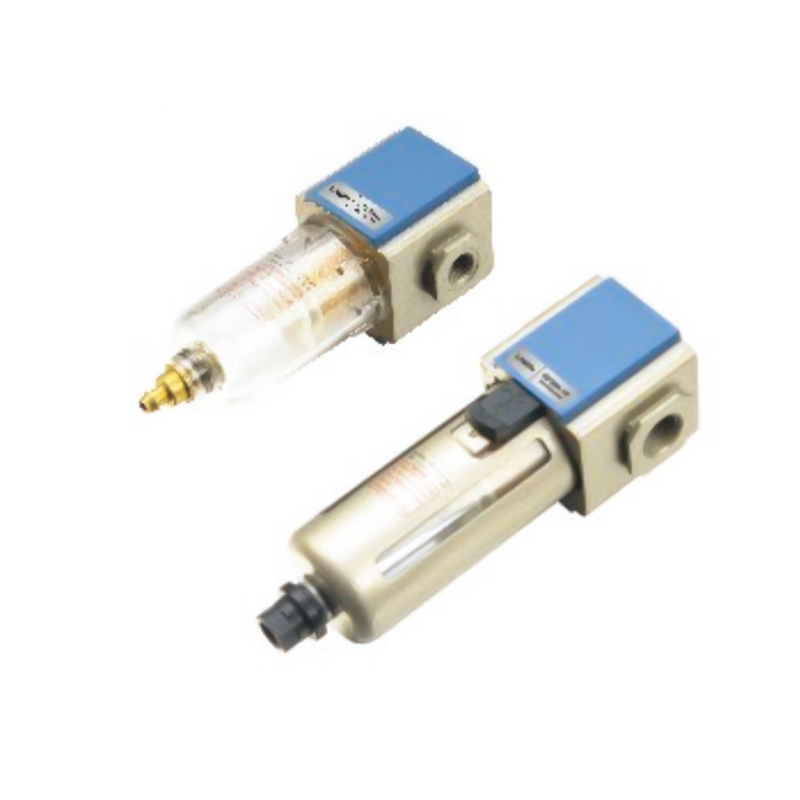

GF Series Air Filter
  • GF Series Air Filter
Modular F.R.L. Units G Series

GF Series Air Filter

  1. Unique flow-guiding structure allows the circulating gas to rotate appropriately, thereby more effectively separating the liquid in the gas and reliably filtering solid particles;
  2. Small pressure loss, high water separation efficiency, and large water cup capacity;
  3. Filtering accuracy of 5μm and 40μm are optional;
  4. There are three drainage modes to choose from, including manual, differential pressure and automatic drainage;
  5. You can choose to use a fixed bracket for installation.
E-mail: manager@cktworld.com
Download
PREV：GR Series Pressure Regulating Valve
NEXT：No next article
  • Model GF200-06 GF200-08 GF300-08 GF300-10 GF300-15 GF400-10 GF400-15 GF600-20 GF600-25
    Working medium Air
    Connection diameter PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT3/8 PT1/2 PT3/4 PT1
    Filter element accuracy 40μm or 5μm
    Operating pressure range Automatic and differential pressure drainage type: 0.15–0.9 MPa (20–130 psi) Manual drainage type: 0.05–0.9 MPa (7–130 psi)
    Guaranteed pressure resistance 1.5Mpa(215Psi)
    Operating temperature range -20~70℃
    Water filter cup capacity 10CC 40CC 80CC 230CC
    Weight 135g 360g 680g 1440g

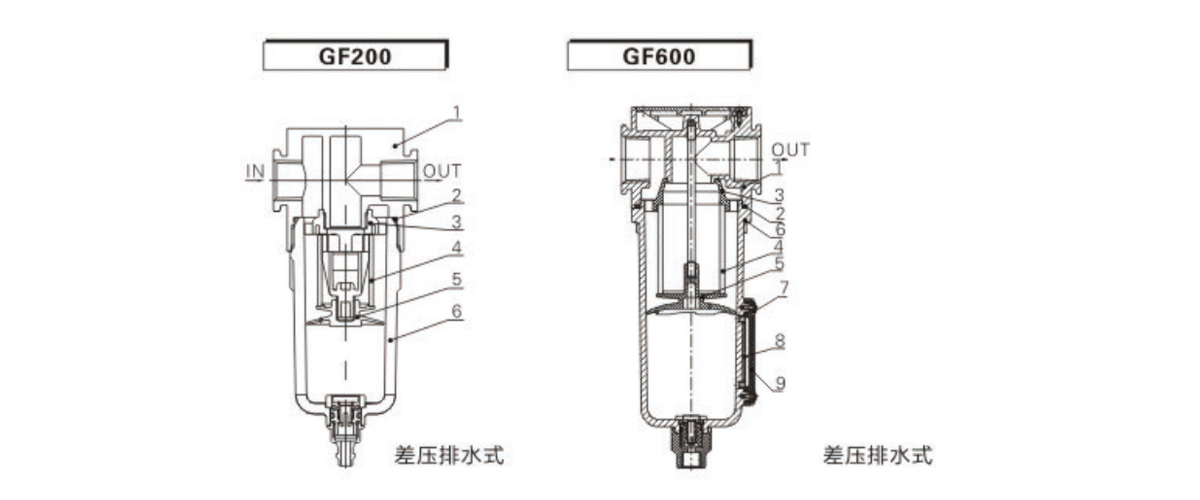

  • Number   Name     Material
    1  Water filter body Aluminium alloy
    2  O-ring NBR
    3  Deflector POM high viscosity
    4  Filter element Sintered bronze particles (40μm)
    Sintered brass particles (GF600)
    Polypropylene fibre
    5  Umbrella-shaped fixing seat POM high viscosity
    6  Water filter cup Aluminium alloy (GF600)/PC (other)
    7  Liquid level gauge protective cover SPCC
    8  Liquid level gauge leak prevention pad Fluorine rubber
    9  Liquid level gauge inner cover PC

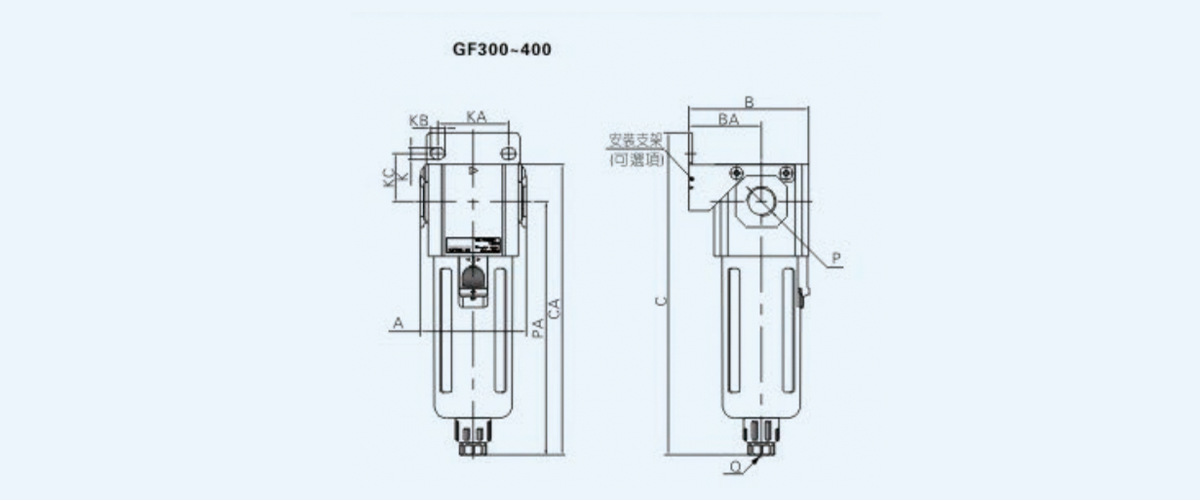

    Model/Symbol A B BA C CA K KA KB KC P PA Q
    GF300-08 60  67.5  41  182  164  6.5  40  8  27  PT1/4 143  G1/8
    GF300-10 60  67.5  41  182  164  6.5  40  8  27  PT3/8 143  G1/8
    GF300-15 60  67.5  41  182  164  6.5  40  8  27  PT1/2 143  G1/8
    GF400-10 80  85.5  50  208  191.5  8.6  55  11  33.5  PT3/8 166.5  G1/4
    GF400-15 80  85.8  50  208  191.5  8.6  55  11  33.5  PT1/2 166.5  G1/4
