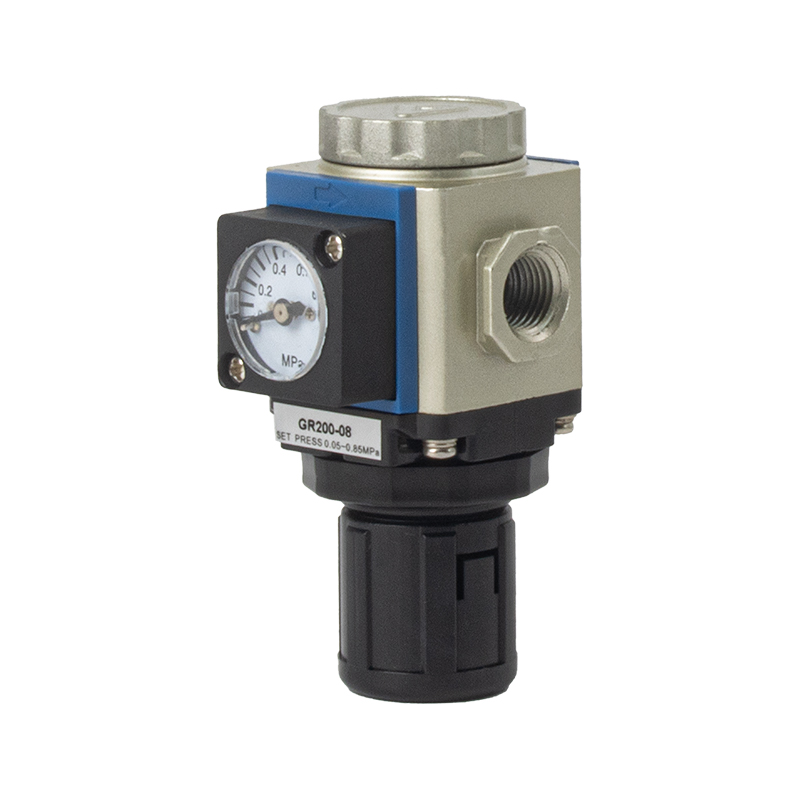

GR Series Pressure Regulating Valve

1. Embedded square pressure gauge is used to save installation space (external round pressure gauge can also be used);
2. Pressure self-locking structure can prevent the set pressure from being disturbed by external factors;
3. The pressure adjustment mechanism adopts balanced design, which makes the pressure adjustment more stable, with small drift and good pressure characteristics;
4. In addition to panel installation, fixed bracket installation can be selected;
5. In addition to the standard form, low-pressure type is also available (maximum adjustable pressure 0.4MPA).
