GFC Series Air Filter Combination Suppliers

Home / Products / Pneumatic Pressure Control Components / Modular F.R.L. Units G Series / GFC Series Air Filter Combination

GFC Series Air Filter Combination GFC Series Air Filter Combination GFC Series Air Filter Combination
  • GFC Series Air Filter Combination
  • GFC Series Air Filter Combination
  • GFC Series Air Filter Combination
Modular F.R.L. Units G Series

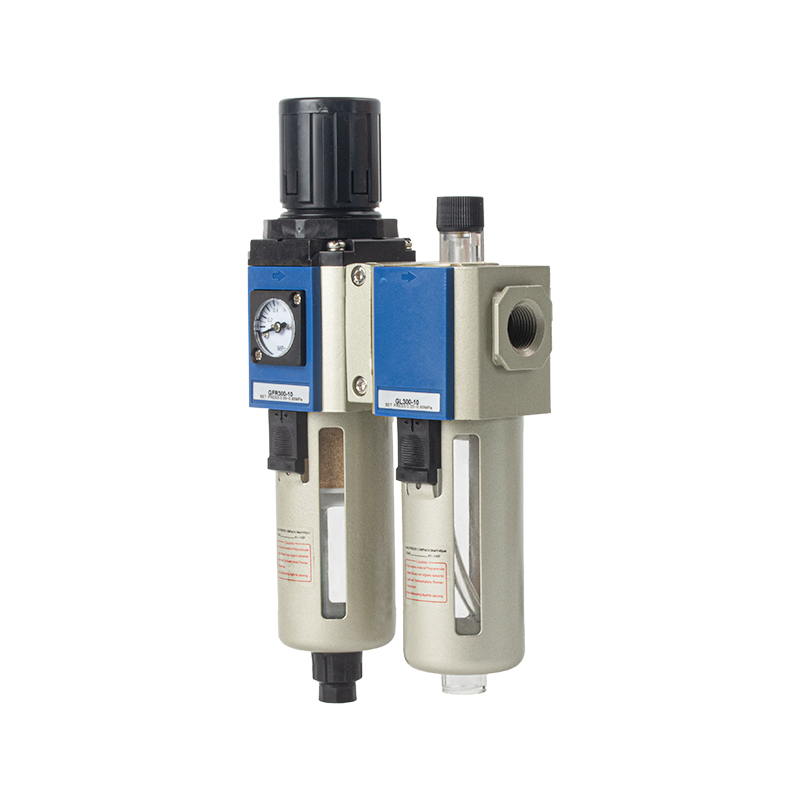

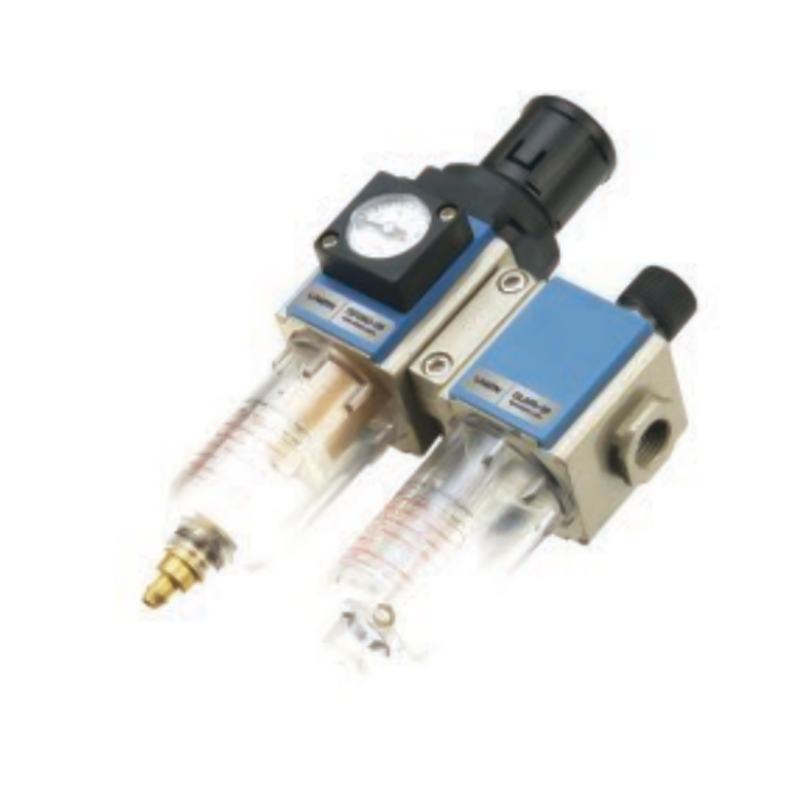

GFC Series Air Filter Combination

1. Fast and reliable fixed connection, easy to install and use;
2. Stable pressure regulation and high repeatability;
3. Efficient water and solid particle removal function;
4. Three drainage modes are available: manual, differential pressure and automatic drainage.

E-mail: manager@cktworld.com
Download
PREV：GC Series Air Filter Combination
NEXT：GFR Series Pressure Regulating Valve

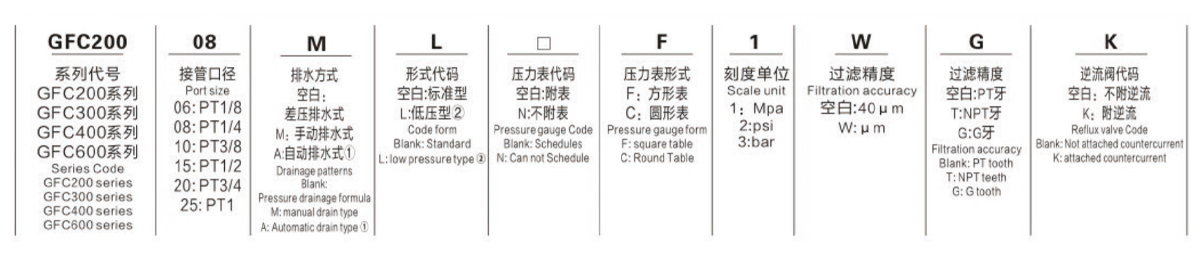

  • Model     GFC200-06 GFC200-08 GFC300-08 GFC300-10 GFC300-15 GFC400-10 GFC400-15 GFC600-20 GFC600-25
    Working medium     Air
    Connection diameter     PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT3/8 PT1/2 PT3/4 PT1
    Filter element accuracy    40μm or 5μm
    Operating pressure range Automatic and differential pressure drainage type: 0.15–0.9 MPa (20–130 psi) Manual drainage type: 0.05–0.9 MPa (7–130 psi)
    Guaranteed pressure resistance 1.5Mpa(215Psi)
    Operating temperature range  -20~70℃
    Water filter cup capacity 10CC 40CC 80CC 230CC
    Oil cup capacity  25CC 75CC 160CC 380CC
    Recommended lubricating oil     ISO VG 32 or equivalent oil
    Weight 430g 980g 1950g 4320g
    Constituent elements Pressure regulating filter GFR200-06 GFR200-08 GFR300-08 GFR300-10 GFR300-15 GFR400-10 GFR400-15 GFR600-20 GFR600-25
    Oil mist lubricator GL200-06 GL200-08 GL300-08 GL300-10 GL300-15 GL400-10 GL400-15 GL600-20 GL600-25

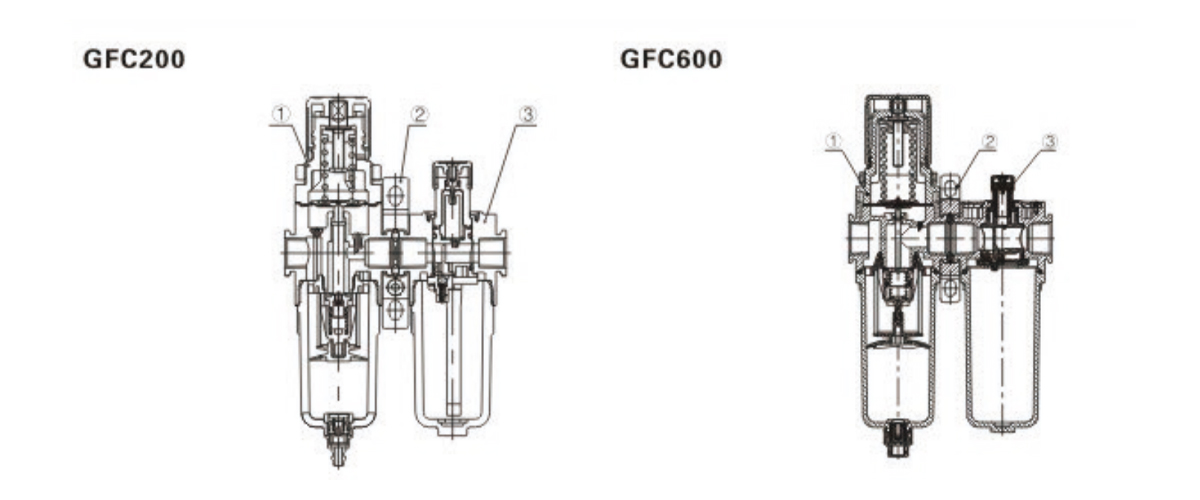

  • Number Name
    ① G Series Pressure Regulating Filter
    ② Connection Bracket
    ③ G Series Oil Mist Lubricator

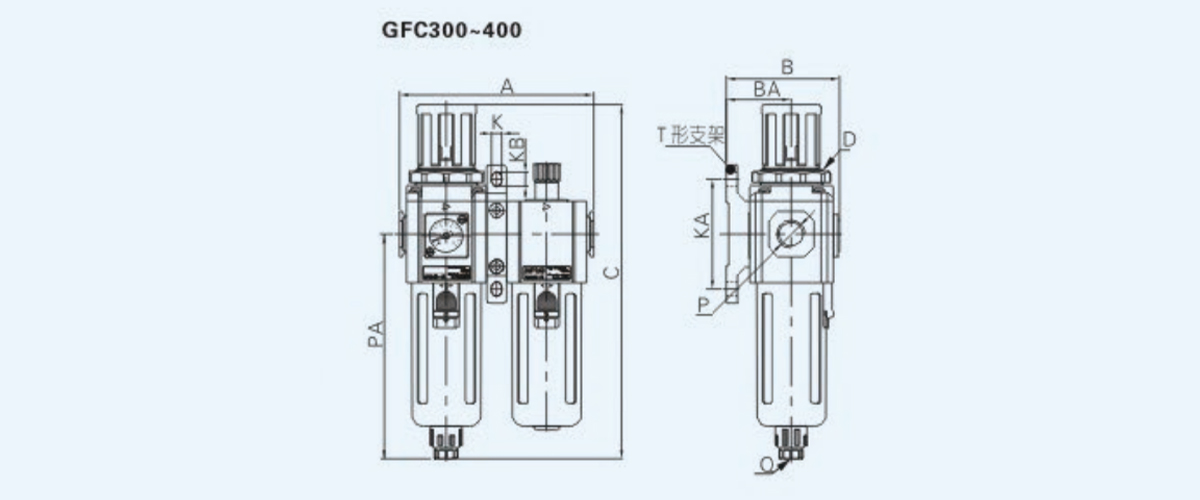

    Model/Symbol A B BA C D K KA KB P PA Q
    GFC300-08 124  72  41.5  225.5  M40×1.5 6.5  70  9  PT1/4 143  G1/8
    GFC300-10 124  72  41.5  225.5  M40×1.5 6.5  70  9  PT3/8 143  G1/8
    GFC300-15 124  72  41.5  225.5  M40×1.5 6.5  70  9  PT1/2 143  G1/8
    GFC400-10 164  89  50  270.5  M55×2.0 8.6  80  12  PT3/8 166.5  G1/4
    GFC400-15 164  89  50  270.5  M55×2.0 8.6  80  12  PT1/2 166.5  G1/4
