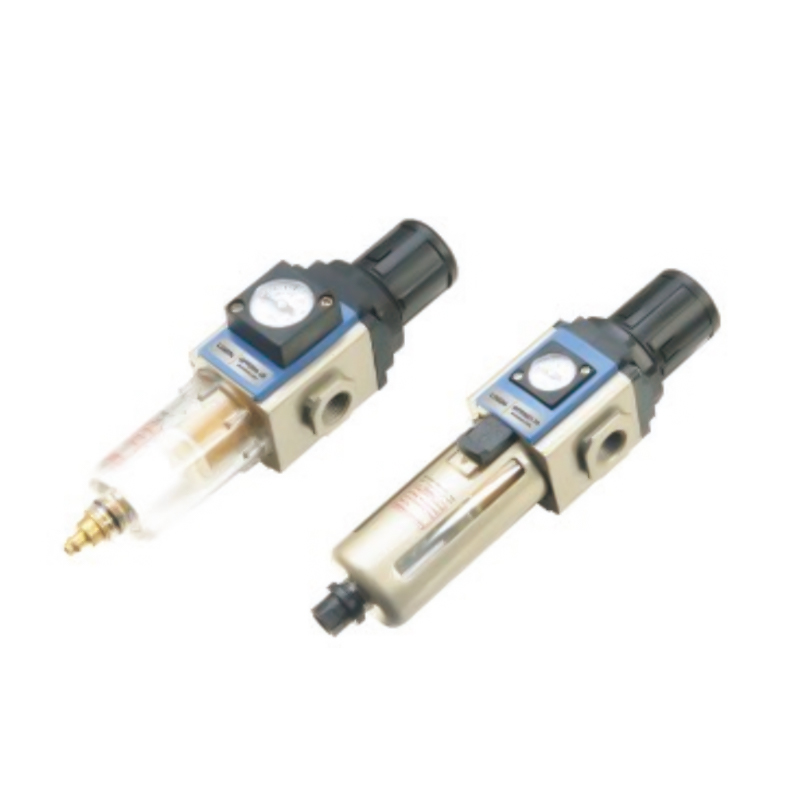

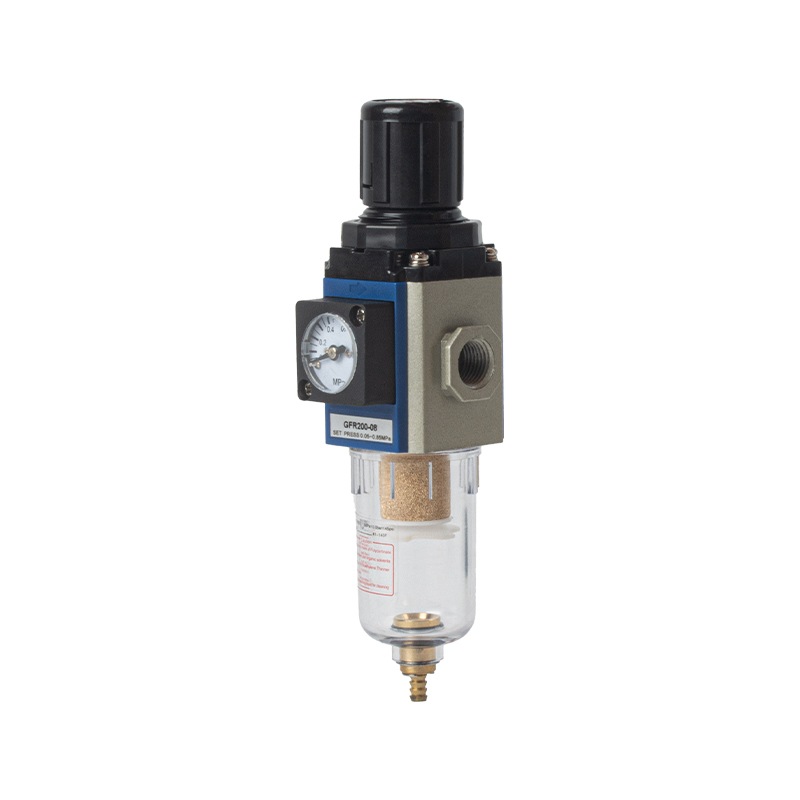

GFR Series Pressure Regulating Valve

1. Embedded square pressure gauge is used to save installation space (external round pressure gauge can also be used);
2. Pressure self-locking structure can prevent the set pressure from being disturbed by external factors;
3. The pressure regulating mechanism adopts balanced design, which makes the pressure regulation more stable, with small drift and good pressure characteristics;
4. In addition to the standard form, low-pressure type is also available (maximum adjustable pressure 0.4MPA);
5. Unique flow guide structure makes the gas flow properly rotate, so as to more effectively share the liquid in the gas and reliably filter solid particles;
6. Filtering accuracy 5μm and 40μm are optional;
7. There are three drainage forms to choose from: manual, differential pressure and automatic drainage;
8. Fixed bracket can be used for installation.
