CXSW Series Through Rod Double Rod Cylinder

Home / Products / Air Cylinder / Multi-axis cylinder / CXSW Series Through Rod Double Rod Cylinder

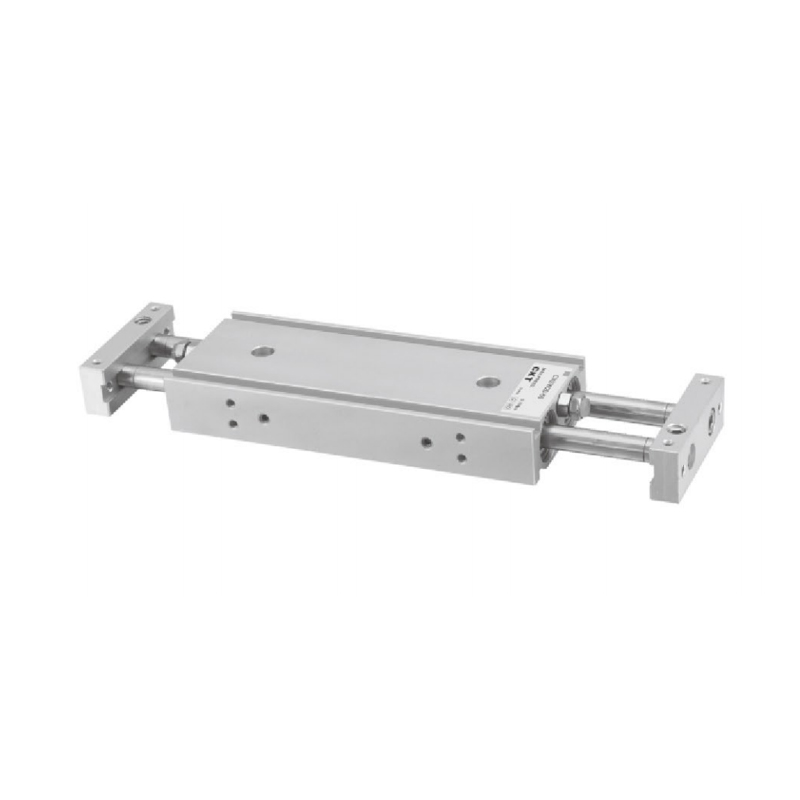

CXSW Series Through Rod Double Rod Cylinder
  • CXSW Series Through Rod Double Rod Cylinder
Multi-axis cylinder

CXSW Series Through Rod Double Rod Cylinder

1. Maximum allowable load is 2-3 times greater than the CXS series
2. Dual cylinder design, 2 times the output force
3. High non-rotation accuracy
4. Strong side load resistance
5. Standard with stroke adjustment device: 0-10mm.

E-mail: manager@cktworld.com
Download
PREV：MGP Series Thin Cylinder With Guide Rod
NEXT：CXS Series Double Cylinder (Basic Type)
  • Specification
    Bore Size(mm) 6  10  15  20  25  32
    Fluid Air
    Action Double acting
    Max.Operating Pressure
            (Mpa)    		 0.7
    Min.Operating Pressure
            (Mpa)    		 0.15  0.1
    Ambient &Fluid Temperature -10~+60℃(No freezing)
    Cushion Both ends rubber bumper
    Operating Piston Speed
            (mm/s)    		 50~500
    Structure Twin-rod(Twice output force)
    *Lubrication Not required
    Adjustable Stroke Range 0~-10mm
    Bearing Slide bearing/Ball bushing bearing
    Piping Port M5×0.8 Rc1/8
    *Please use ISOVG32 if you want to use lubrication.

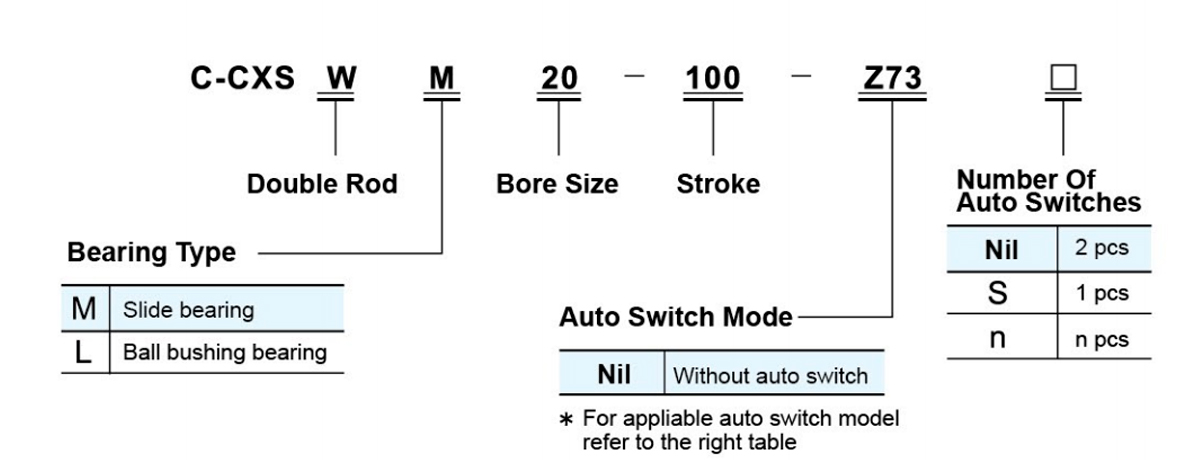

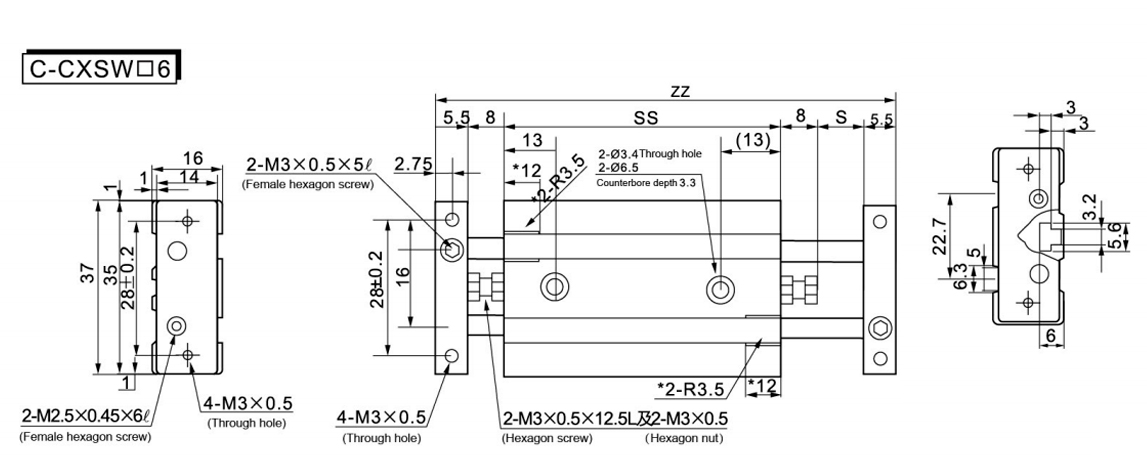

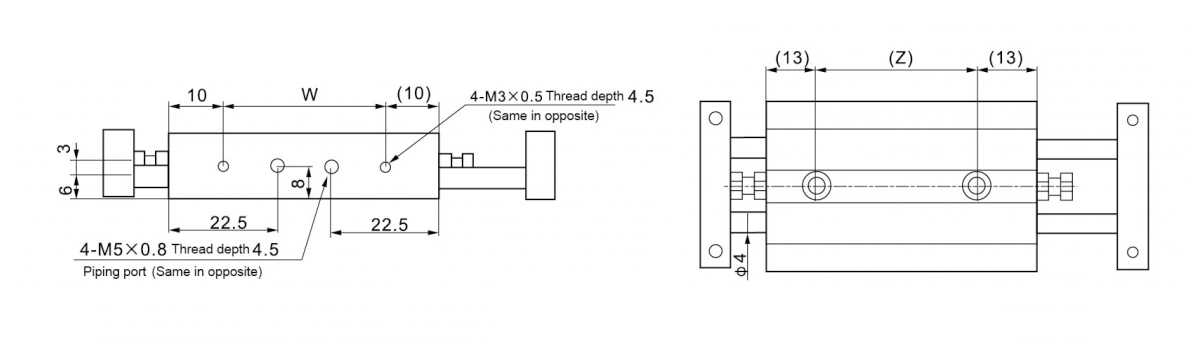

  • Model S SS ZZ Z W
    C-CXSW□6-10 10  66  103  40  46
    C-CXSW□6-20 20  76  123  50  56
    C-CXSW□6-30 30  86  143  60  66
    C-CXSW□6-40 40  96  163  70  76
    C-CXSW□6-50 50  106  183  80  86
    To install the magnetic switches for the C-CXSW□6-10   and C-CXSW□6-20   cylinders, remove the part used to secure the magnetic switch pit.(Dimensions marked with *)

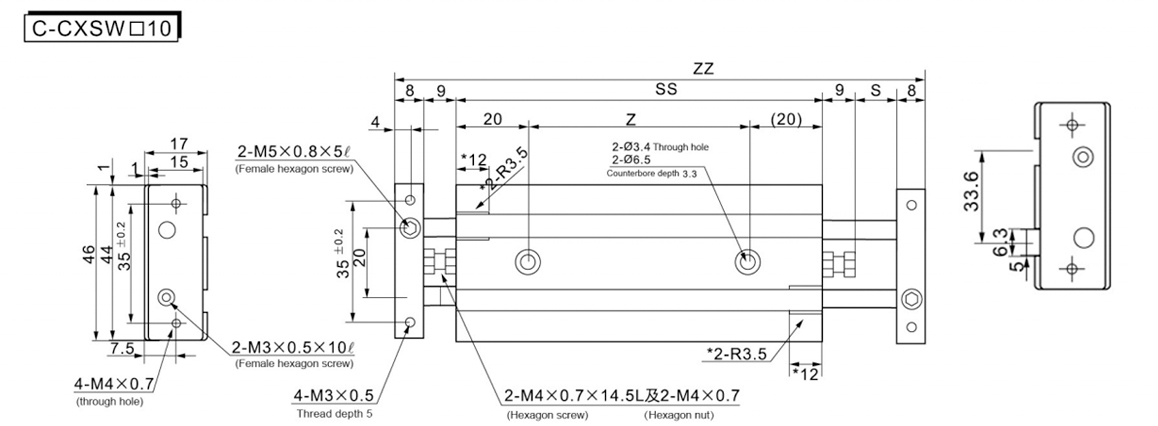

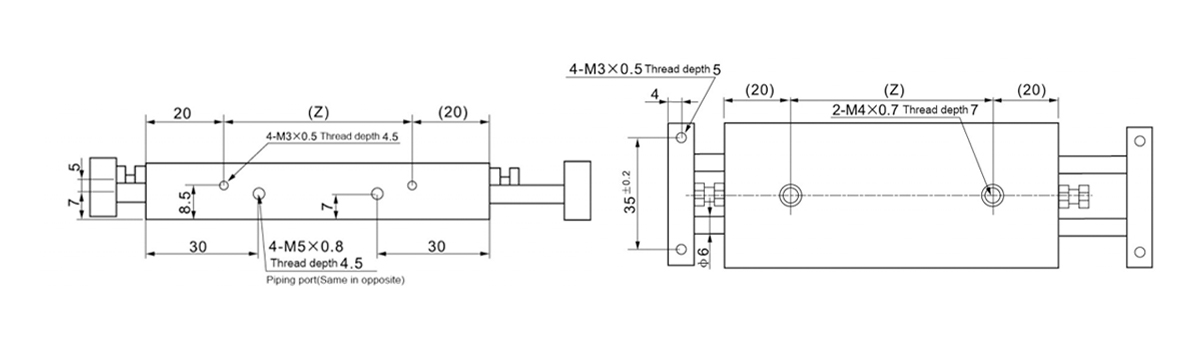

    Model S SS ZZ Z
    Standard
    Stroke    		 C-CXSW□10-10 10  92  136  52
    C-CXSW□10-20 20  102  156  62
    C-CXSW□10-30 30  112  176  72
    C-CXSW□10-40 40  122  196  82
    C-CXSW□10-50 50  132  216  92
    C-CXSW□10-75 75  157  266  117
    C-CXSW□10-100 100  182  316  142
    Long
    Stroke
    (-XB11)    		 C-CXSW□10-125 125  207  366  167
    C-CXSW□10-150 150  232  416  192
    To install the magnetic switches for the C-CXSW□10-10 and C-CXSW□10-20 cylinders, remove the part of the magnetic switch pit that is used to secure the magnetic switch.(Dimensions marked with *)

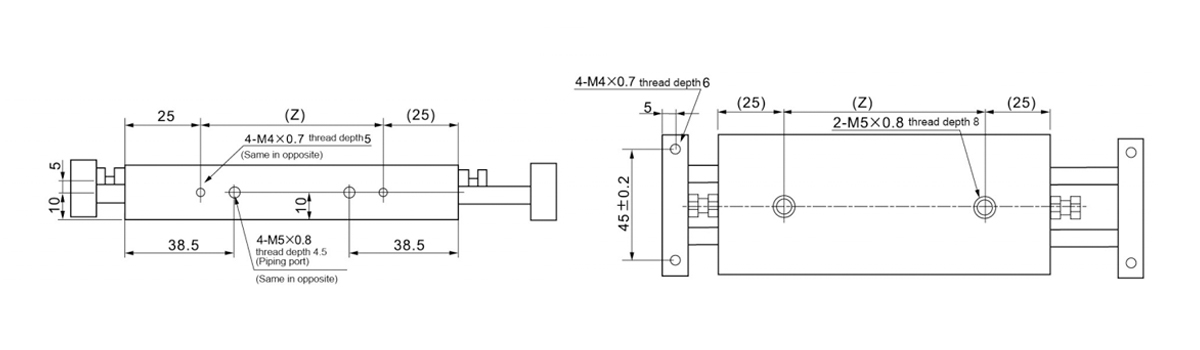

    Model S SS ZZ Z
    Standard
    Stroke    		 C-CXSW□15-10 10  105  153  55
    C-CXSW□15-20 20  115  173  65
    C-CXSW□15-30 30  125  193  75
    C-CXSW□15-40 40  135  213  85
    C-CXSW□15-50 50  145  233  95
    Long
    Stroke
    (-XB11)    		 C-CXSW□15-75 75  170  283  120
    C-CXSW□15-100 100  195  333  145
    C-CXSW□15-125 125  220  383  170
    C-CXSW□15-150 150  245  433  195
    To install the magnetic switches for the C-CXSW□15-10 and C-CXSW□15-20 cylinders, remove the part used to secure the magnetic switch pit.(Dimensions marked with *)

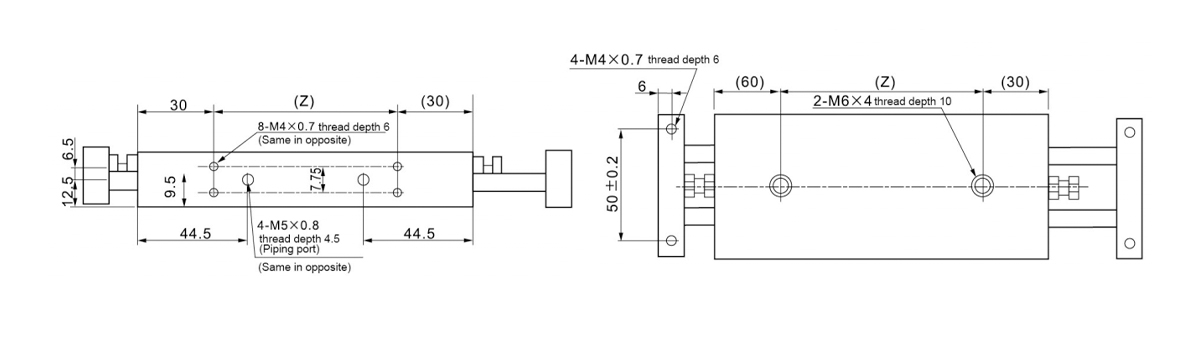

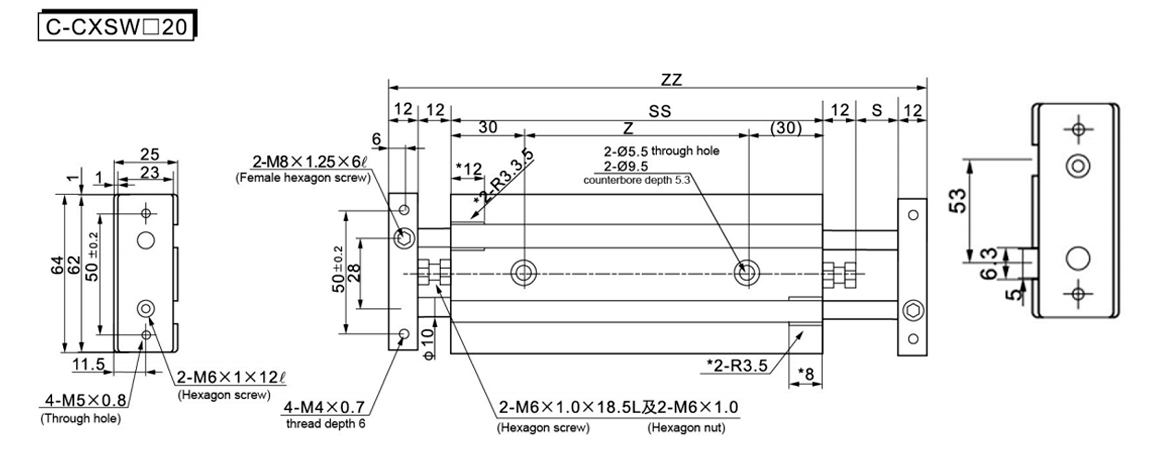

    Model S SS ZZ Z
    Standard
    Stroke    		 C-CXSW□-20-10 10  120  178  60
    C-CXSW□-20-20 20  130  198  70
    C-CXSW□20-30 30  140  218  80
    C-CXSW□20-40 40  150  238  90
    C-CXSW□20-50 50  160  258  100
    C-CXSW□20-75 75  165  308  125
    C-CXSW□20-100 100  210  358  150
    Long
    Stroke
    (-XB11)    		 C-CXSW□20-125 125  235  408  175
    C-CXSW□20-150 150  260  458  200
    C-CXSW□20-175 175  285  508  225
    C-CXSW□20-200 200  310  558  250
    To install the magnetic switch for the C-CXSW□20-10 cylinder, cut away the part of the magnetic switch pit that is used to secure it.(Dimensions marked with *)

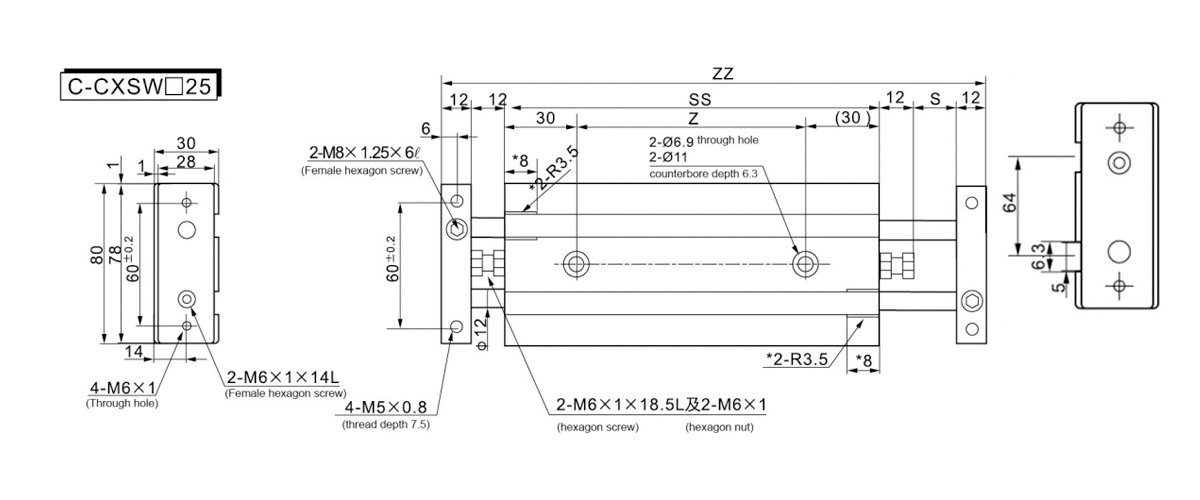

    Model S SS ZZ Z
    Standard
    Stroke    		 C-CXSW□25-10 10  122  180  62
    C-CXSW□25-20 20  132  200  72
    C-CXSW□25-30 30  142  220  82
    C-CXSW□25-40 40  152  240  92
    C-CXSW□25-50 50  162  260  102
    C-CXSW□25-75 75  187  310  127
    C-CXSW□25-100 100  212  360  152
    Long
    Stroke
    (-XB11)    		 C-CXSW□25-125 125  237  410  177
    C-CXSW□25-150 150  262  460  202
    C-CXSW□25-175 175  287  510  227
    C-CXSW□25-200 200  321  560  252
    To install the magnetic switch for the C-CXSW□25-10 cylinder, remove the part used to secure the magnetic switch pit.
    (Dimensions marked with *)

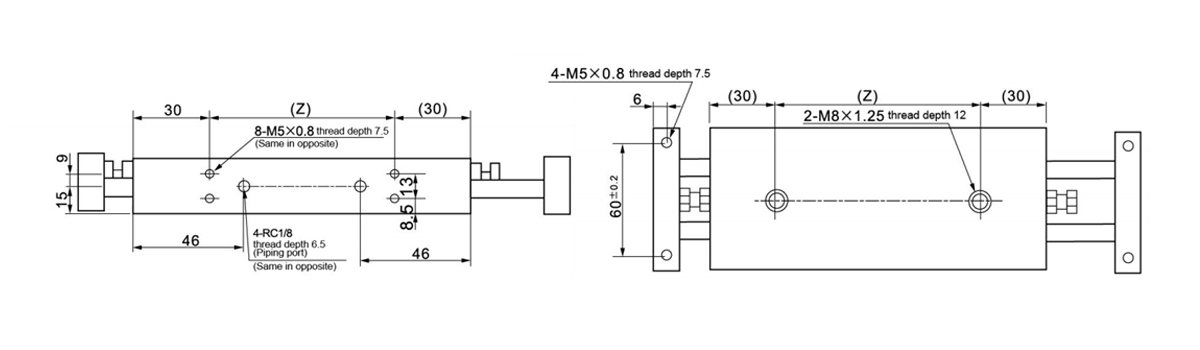

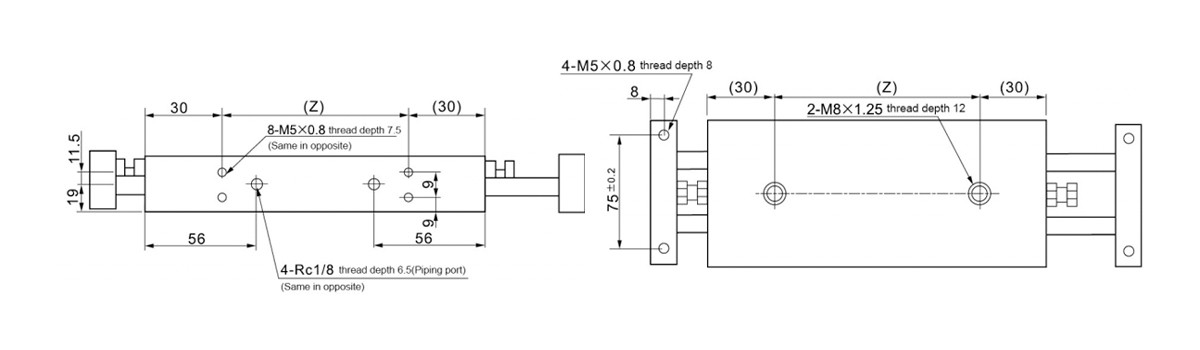

    Model S SS ZZ Z




    Standard
    Stroke    		 C-CXSW□32-10 10  143  213  83
    C-CXSW□32-20 20  153  233  93
    C-CXSW□32-30 30  163  253  103
    C-CXSW□32-40 40  173  273  113
    C-CXSW□32-50 50  183  293  123
    C-CXSW□32-75 75  208  343  148
    C-CXSW□32-100 100  233  393  173
     Long
    Stroke
    (-XB11)    		 C-CXSW□32-125 125  258  443  198
    C-CXSW□32-150 150  283  493  223
    C-CXSW□32-175 175  308  543  248
    C-CXSW□32-200 200  333  593  273
    To install the magnetic switch for the C-CXSW□32-10 cylinder, remove the part used to secure the magnetic switch pit.(Dimensions marked with *)
