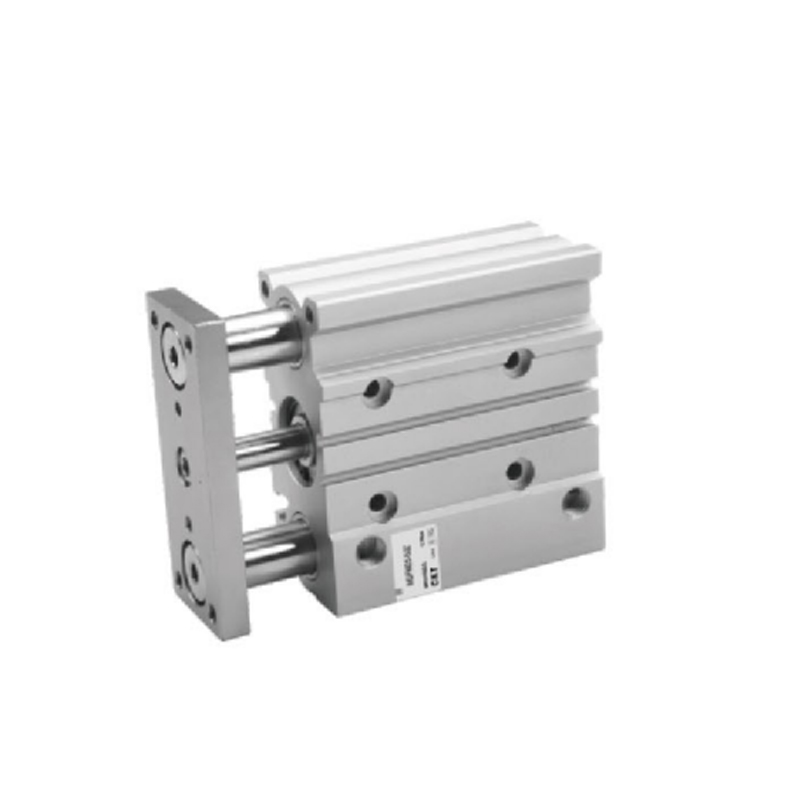

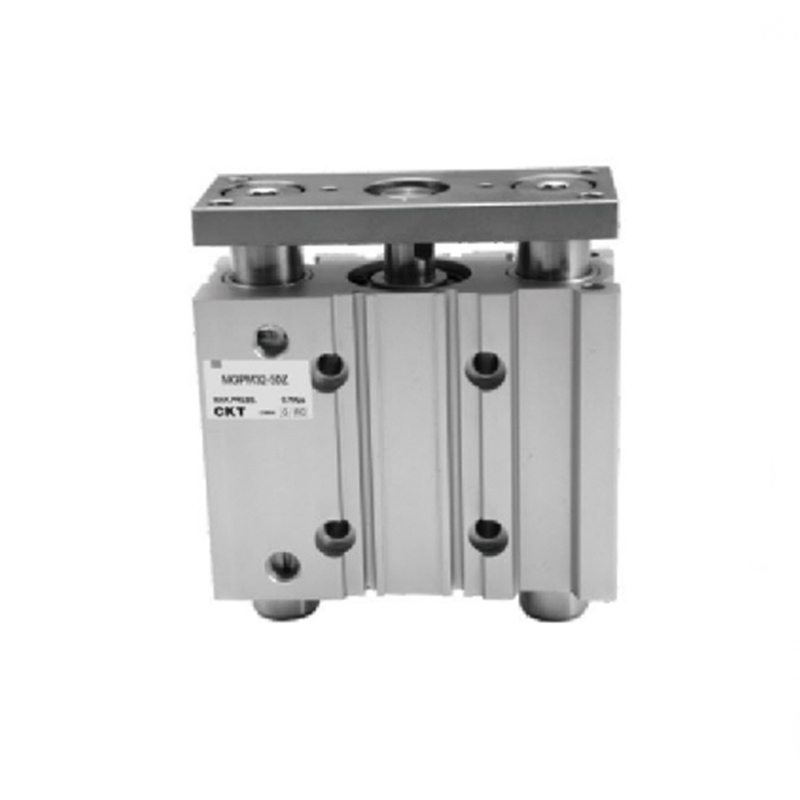

MGP Series Thin Cylinder With Guide Rod

Home / Products / Air Cylinder / Multi-axis cylinder / MGP Series Thin Cylinder With Guide Rod

MGP Series Thin Cylinder With Guide Rod MGP Series Thin Cylinder With Guide Rod
  • MGP Series Thin Cylinder With Guide Rod
  • MGP Series Thin Cylinder With Guide Rod
Multi-axis cylinder

MGP Series Thin Cylinder With Guide Rod

1. Small size and light weight
2. Strong lateral load resistance
3. Strong torque resistance
4. High non-rotation precision
5. The guide rod bearing can be a sliding bearing or a ball bearing
6. Easy to install
7. The two-side pipe position can be selected

E-mail: manager@cktworld.com
Download
PREV：MGJ Series Miniature Cylinder With Guide Rod
NEXT：CXSW Series Through Rod Double Rod Cylinder

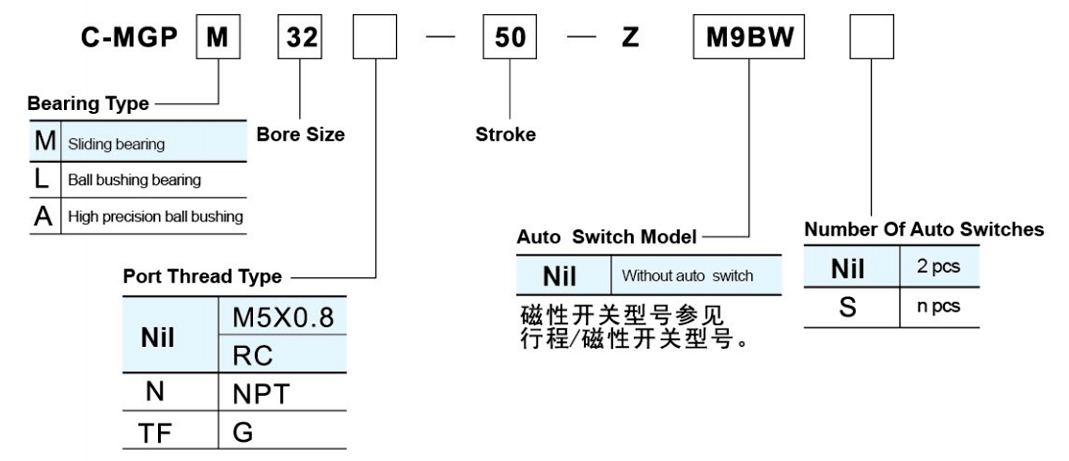

  • Standard Specification
    Bore Size (mm) 12  16  20  25  32  40  50  63  80  100
    Fluid Air
    Action Double acting
    Max Operating Pressure(MPa) 1.0
    Min Operating Pressure(MPa) 0.12  0.1
    Ambient &Fluid Temperature -10~+60℃(No freezing)
    Piston Speed 50~500mm/s 50~400mms
    Cushion Both ends rubber bumper
    Stroke Length Tolerance +1.5mm
    *Lubrication Not required
    Bearing Slide bearing/Ball bushing/High precision ballbushing
    Non-rotating
    Accuracy
    (Clamp part)    		 Slide Bearing ±0.08° ±0.07° ±0.06° ±0.05° ±0.04°
    Ball Bushing ±0.10° ±0.09° ±0.08° ±0.06° ±0.05°
    High  Precision
    Ball Bushing
    Piping Port M5×0.8 1/8 1/4 3/8
    *Please  use  ISOVG32  ifyou  want  to  use  lubrication.

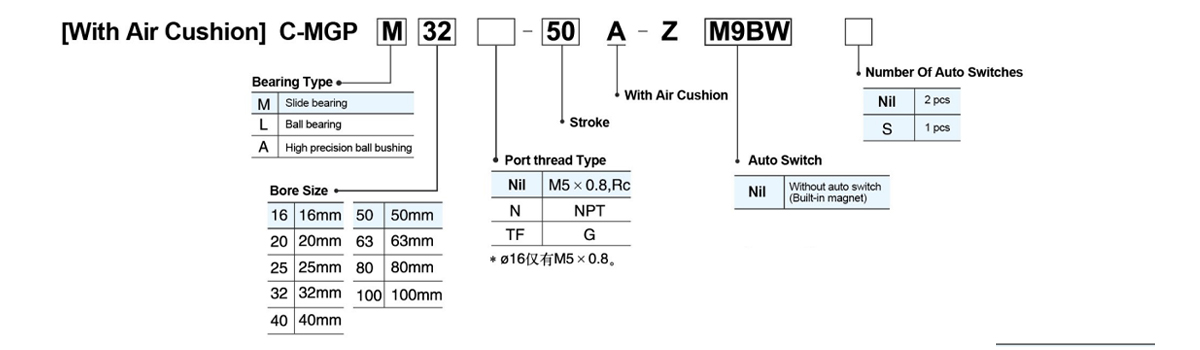

    Bore Size(mm) 16  20,25,32,40,50,63,80,100
    Max Operating Pressure(MPa) 1.0
    Min Operating Pressure(MPa) 0.15  0.12
    Cushion Air cushion on both ends

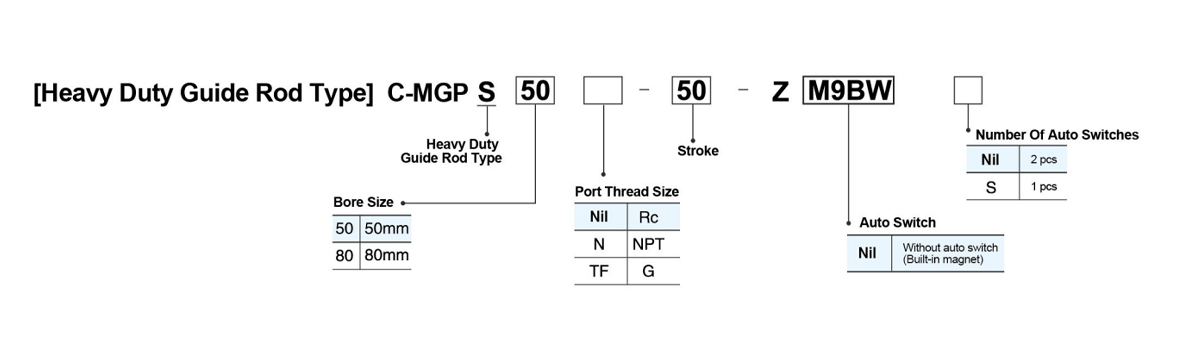

    Specification
    Bore Size (mm) 50  80
    Operating pressure range(MPa) 0.1~1.0
    Operating Piston Speed (mm/s) 50~400
    Cushion Rubber bumper on both ends
    Standard Stroke 25,50,75,100,125,150,175,200
    End Plate Non-rotating Accuracy ±0.05° ±0.04°

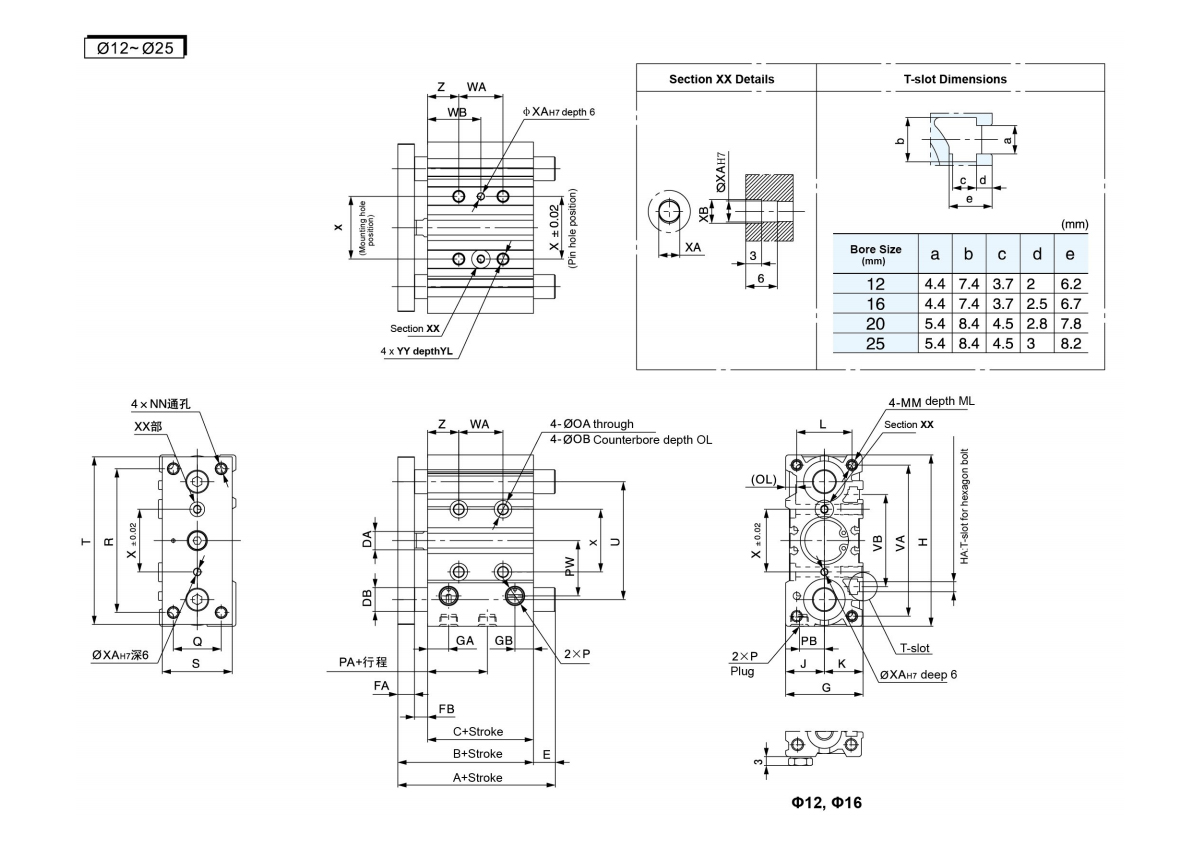

  • C-MGPM,C-MGPL,C-MGPA Common Dimensions                                                                                                                                                             (mm)
    Bore
    Size
    (mm)    		 Stroke (mm) B C DA FA FB G GA GB H HA J K L  MM ML NN OA OB OL P
    Nil TN TF
    12  10,20,30,40,50,75,100,
    125,150,175,200,250    		 42  29  6  7  6  26  11.5  8  58  M4 13  13  18  M4×0.7 10  M4×0.7 4.3  8  4.5  M5×0.8 - -
    16  46  33  8  7  6  30  11.5  8.5  64  M4 15  15  22  M5×0.8 12  M5×0.8 4.3  8  4.5  M5×0.8 - -
    20  20,30,40,50,75,100,125,150,
    175,200,250,300,350,400    		 53  37  10  8  8  36  11.5  9  83  M5 18  18  24  M5×0.8 13  M5×0.8 5.4  9.5  5.5  Rc1/8 NPT1/8 G1/8
    25  53  37.5  10  9  7  42  11.5  9.5  93  M5 21  21  30  M6×1.0 15  M6×1.0 5.4  9.5  5.5  Rc1/8 NPT1/8 G1/8

    Bore
    Size
    (mm)    		 PA PB PW Q R S T U VA VB WA WB X XA XB YY YL Z
    30st or
    Less    		 9sr3oS
    Less    		 Over 100st 200st Or Less Over 200st 300st Or Less Over 300st 30st or
    Less    		 Over 30st 100st Or Less Over 100st 200st Or Less Over200st 300st Or Less Over 300st
    12  13  8  18  14  48  22  56  41  50  37  20  40  110  200  - 15  25  60    105  - 23  3  3.5 M5×0.8 10  5
    16  14.5  10  19  16  54  25  62  46  56  38  24  44  110  200  - 17  27  60    105  - 24  3  3.5 M5×0.8 10  5
    20  13.5  10.5 25  18  70  30  81  54  72  44  24  44  120  200  300 29  39  77    117  167  28  3  3.5 M6×1.0 12  17
    25  12.5  13.5 30  26  78  38  91  64  82  50  24  44  120  200  300 29  39  77    117  167  34  4  4.5 M6×1.0 12  17

    C-MGPM Slide Bearing IA,DB,E Dimension                                       (mm)
    Bore
    Size
    (mm)    		 A DB E
    50st or Less Over 50st 100st Or Less Over 100st 200st Or Less Over 200st 50st or Less Over 50st 100st Or Less Over 100st 200st Or Less Over 200st
    12    42  60.5  82.5  82.5  8  0  18.5  40.5  40.5
    16    46  64.5  92.5  92.5  10  0  18.5  46.5  46.5
    20    53  77.5  77.5  110  12  0  24.5  24.5  57
    25  53.5  77.5  77.5  109.5  16  0  24  24  56



    C-MGPL(Ball bushing)
    C-MGPA(Hlgh precision ball bushing)/A,DB,E Dimension   (mm)
    BoreSize(mm) A DB E
    30st Or Less Over 30st 100st Or Less Over 100st 200st Or Less Over 200st 30st Or Less Over 30st 100st Or Less Over 100st 200st Or Less Over 200st
    12  43   55  84.5  84.5  6  1  13  42.5  42.5
    16  49   65  94.5  94.5  8  3  19  48.5  48.5
    20  59   76  100  117.5  10  6  23  47  64.5
    25  65.5   81.5  100.5  117.5  13  12  28  47  64

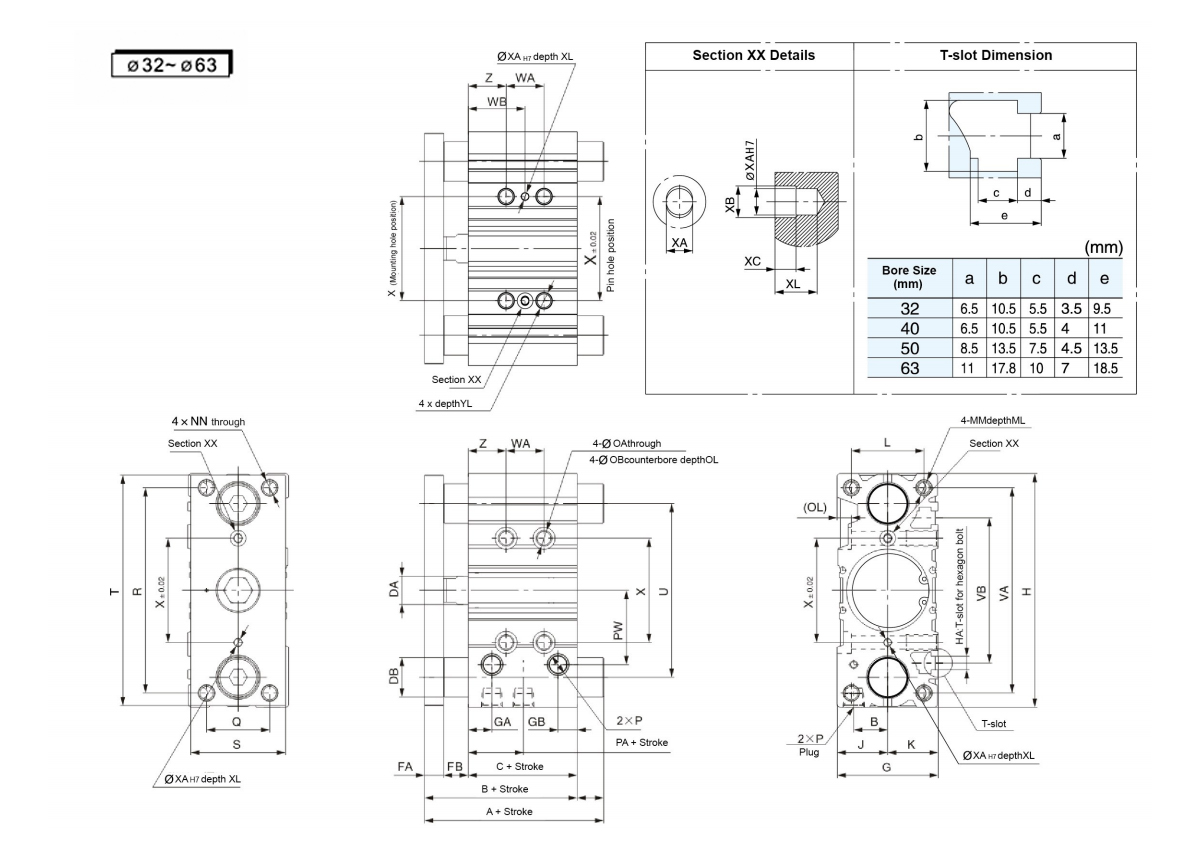

    C-MGPM,C-MGPL,C-MGPA Common Dimensions                                                                                                                                                             (mm)
    Bore
    Size
    (mm)    		 Stroke (mm) B C DA FA FB G GA GB H HA J K L MM ML NN OA OB OL P
    Nil TN TF
    32 25,50,75,
    100,125,150,
    175,200,250,
    300,350,400.    		 59.5 37.5 14 10 12 48 12 9.5 112 M6 24 24 34 M8×1.25 20 M8×1.25 6.7 11 7.5 Rc1/8 NPT1/8 G1/8
    40 66 44 14 10 12 54 15 12 120 M6 27 27 40 M8×1.25 20 M8×1.25 6.7 11 7.5 Rc1/8 NPT1/8 G1/8
    50 72 44 18 12 16 64 14.5 12 148 M8 32 32 46 M10×1.5 22 M10×1.5 8.6 14 9 Rc1/4 NPT1/4 G1/4
    63 77 49 18 12 16 78 15.5 14 162 M10 39 39 58 M10×1.5 22 M10×1.5 8.6 - 9 Rc1/4 NPT1/4 G1/4

    Bore
    Size
    (mm)    		 PA PB PW Q R S T U VA VB WA WB X XA XB XC XL YY YL Z
    25st Or Less Over 25st 100st  Or Less Over 100st 200st Or Less Over 200st 300st Or Less Over 300st 25st Or Less Over 25st 100st  Or Less Over 100st 200st Or Less Over 200st 300st Or Less Over 300st
    32 6.5 16 35.5 30 96 44 110 78 98 63 24 48 124 200 300 33 45 83 121 171 42 4 4.5 3 6 M8×1.25 16 21
    40 13 18 39.5 30 104 44 118 86 106 72 24 48 124 200 300 34 46 84 122 172 50 4 4.5 3 6 M8×1.25 16 22
    50 9 21.5 47 40 130 60 146 110 130 92 24 48 124 200 300 36 48 86 124 174 66 5 6 4 8 M10×1.5 20 24
    63 13 28 58 50 130 70 158 124 142 110 28 52 128 200 300 38 50 88 124 174 80 5 6 4 8 M10×1.5 20 24

    C-MGPM Slide Bearing IA,DB,E Dimension                                        (mm)
    Bore
    Size
    (mm)    		 A DB E
    50st Or Less Over 50st 200st Or Less Over 200st 50st Or Less Over 50st 200st Or Less Over 200st
    32 75 93.5 129.5 20 15.5 34 70
    40 75 93.5 129.5 20 9 27.5 63.5
    50 88.5 109.5 150.5 25 16.5 37.5 78.5
    63 88.5 109.5 150.5 25 11.5 32.5 73.5

    C-MGPL(Ball bushing)
    C-MGPA(Hlgh precision ball bushing)/A,DB,E Dimension(mm)
    Bore
    Size
    (mm)    		 A DB E
    50st Or Less Over 50st 100st Or Less Over 100st 200st Or Less Over 200st 50st Or Less Over 50st 100st Or Less Over 100st 200st Or Less Over 200st
    32 79.5 96.5 116.5 138.5 16 20 37 57 79
    40 79.5 96.5 116.5 138.5 16 13.5 30.5 50.5 72.5
    50 91.5 112.5 132.5 159.5 20 19.5 40.5 60.5 87.5
    63 91.5 112.5 132.5 159.5 20 14.5 35.5 55.5 82.5

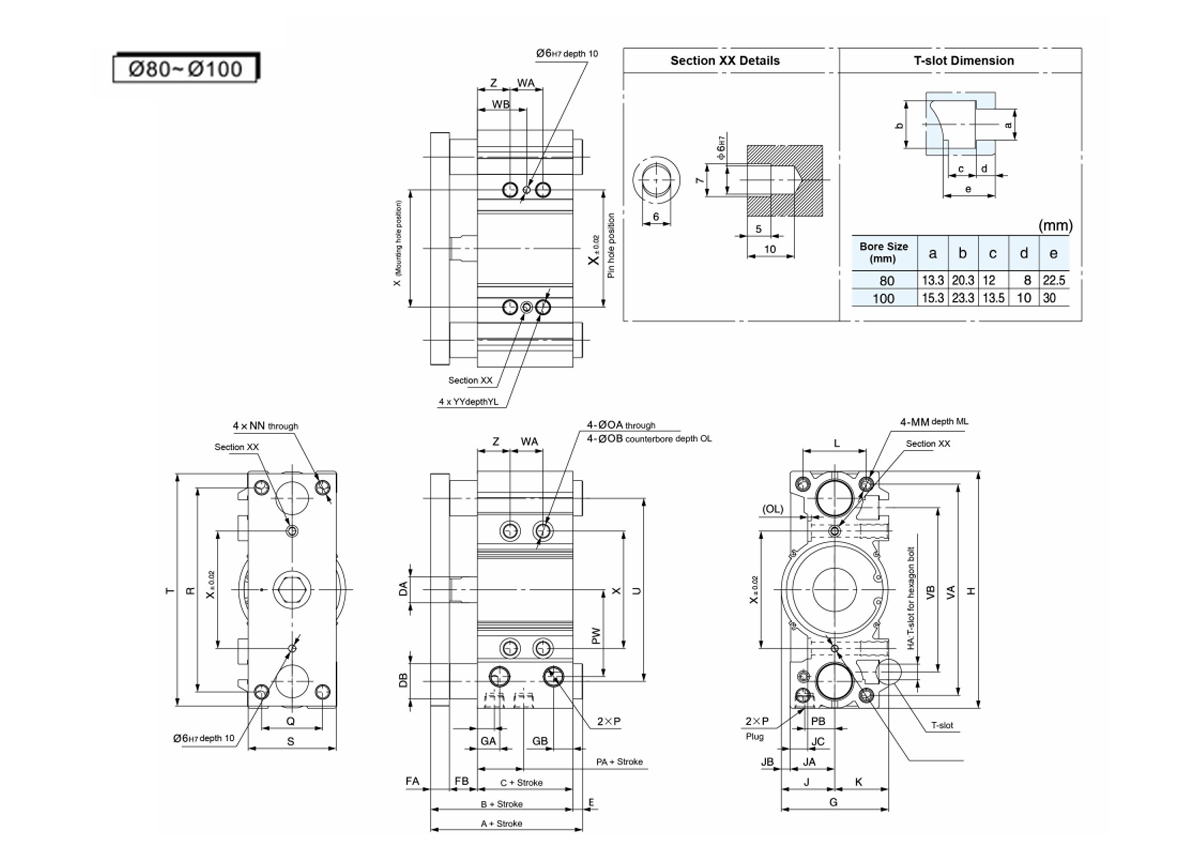

    C-MGPM,C-MGPL,C-MGPA Common Dimensions                                                                                                            (mm)
    Bore
    Size
    (mm)
    Stroke
    (mm)    		 B C DA FA FB G GA GB GC H HA J JA JB JC K L MM ML NN OA OB OL P
    Nil TN TF
    80 25,50,75,100,
    125,150,175,200,
    250,300,350,400    		 96.5 56.5 22 16 24 91.5 19 16.5 14.5 202 M12 45.5 38 7.5 15 46 54 M12×1.75 25 M12×1.75 10.6 17.5 3 Rc3/8 NPT3/8 G3/8
    100 16 66 26 19 31 111.5 22.5 20.5 18 240 M14 55.5 45 10.5 10 56 62 M14x2.0 31 M14x2.0 12.5 20 8 Rc3/8 NPT3/8 G3/8

    Bore
    Size
    (mm)    		 PA PB PW Q R S T U VA VB WA WB X YY YL Z
    25st Or Less Over 25st 100st Or Less Over 100st 200st Or Less Over 200st 300st Or Less Over 300st 25st Or Less Over 25st 100st Or Less Over 100st 200st Or Less Over 200st
    300st Or Less    		 Over 300st
    80 14.5 25.5 74 52 174 75 198 156 180 140 28 52 128 200 300 42 54 92 128 178 100 M12×1.75 24 28
    100 17.5 32.5 89 64 210 90 236 188 210 166 48 72 148 220 320 35 47 85 121 171 124 M14×2.0 28 11

    C-MGPM Slide Bearing IA, DB, E Dimension
    (mm)
    Bore
    Size
    (mm)    		 A DB E
    50st Or Less Over 50st
    200st Or Less    		 Over 200st 50st Or Less Over 50st
    200st Or Less    		 Over 200st
    80 104.5 131.5 180.5 30 8 35 84
    100 126.5 151.5 190.5 36 10.5 35.5 74.5

    C-MGPL (Ball bushing)
    C-MGPA (HIgh precision ball bushing) / A,DB,E Dimension
    (mm)
    Bore
    Size
    (mm)    		 A DB E
    25st Or Less Over 25st 50st Or Less Over 50st 200st Or Less Over 200st 25st Or Less Over 25st 50st Or Less Over 50st 200st Or Less Over 200st
    80 104.5 128.5 158.5 191.5 25 8 32 62 95
    100 119.5 145.5 178.5 201.5 30 3.5 29.5 62.5 85.5
