KC Series Self-Sealing One touch fitting

Home / Products / Pneumatic Accessory / One Touch Fitting / KC Series Self-Sealing One touch fitting

KC Series Self-Sealing One touch fitting

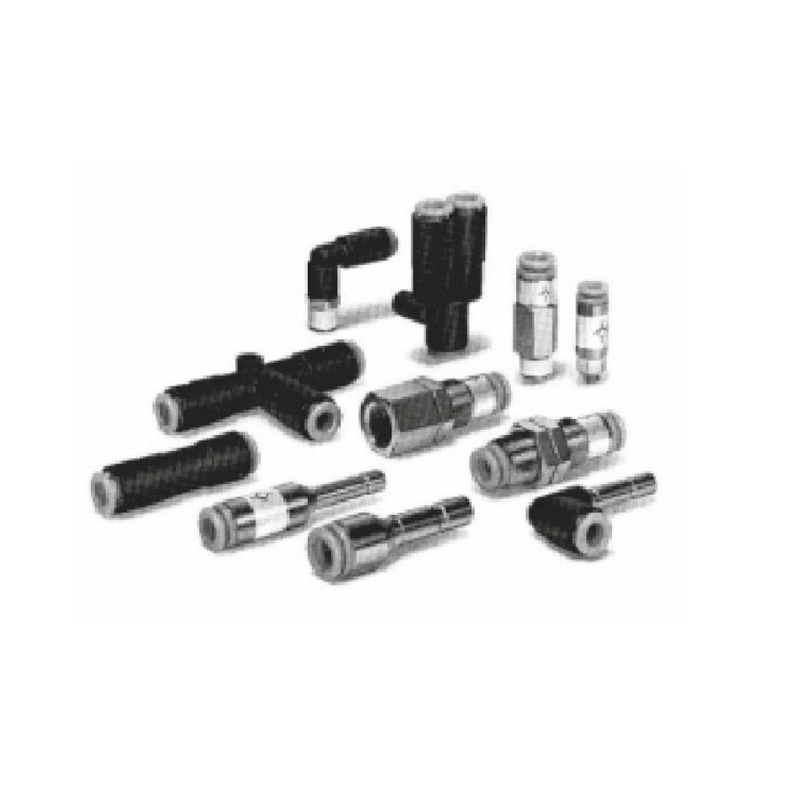

  • KC Series Self-Sealing One touch fitting
One Touch Fitting

KC Series Self-Sealing One touch fitting

Characteristic:
·One-touch fitting(built-in self-seal mechanism) to prevent air exhaust when removing tube.
·Electroless nickel plated for cooper-free applications.

E-mail: manager@cktworld.com
Download
PREV：MQR Series Low Torque Rotary One touch fitting
NEXT：KQ2 Series One touch fitting

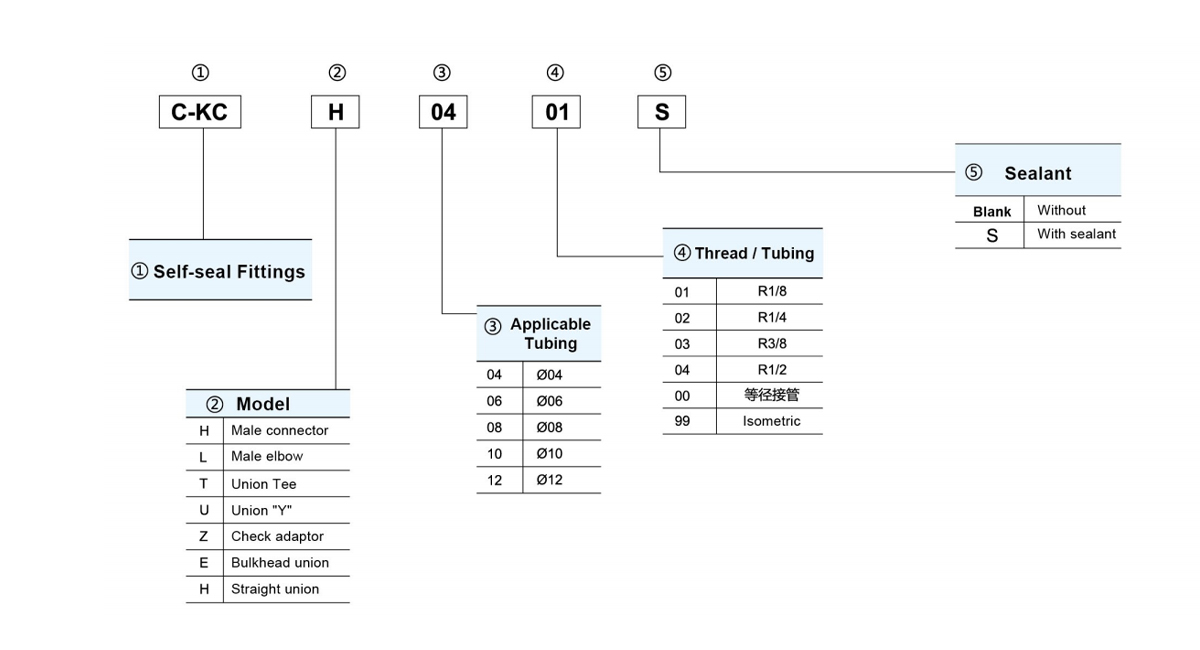

  • Fluid Air /Water
    Material Brass
    Max Operating Pressure 1.OMPa
    Vacuum Pressure -100KPa
    Proof Pressure 3.OMPa
    Ambient And Fluid Temperature Air:-5~60℃,Water:0~40℃
    Tubing Material Nylon、Polyurethane
    Tubing O.D Ø4、Ø6、Ø8、Ø10、Ø12

  • Applicable Tubing O.D
    (mm)    		 Model Connection Thread T H
    Width
    Across
    Flats    		 L A M Effective Area
    (mm²)    		 Weight
    (g)
    Nylon Urethane

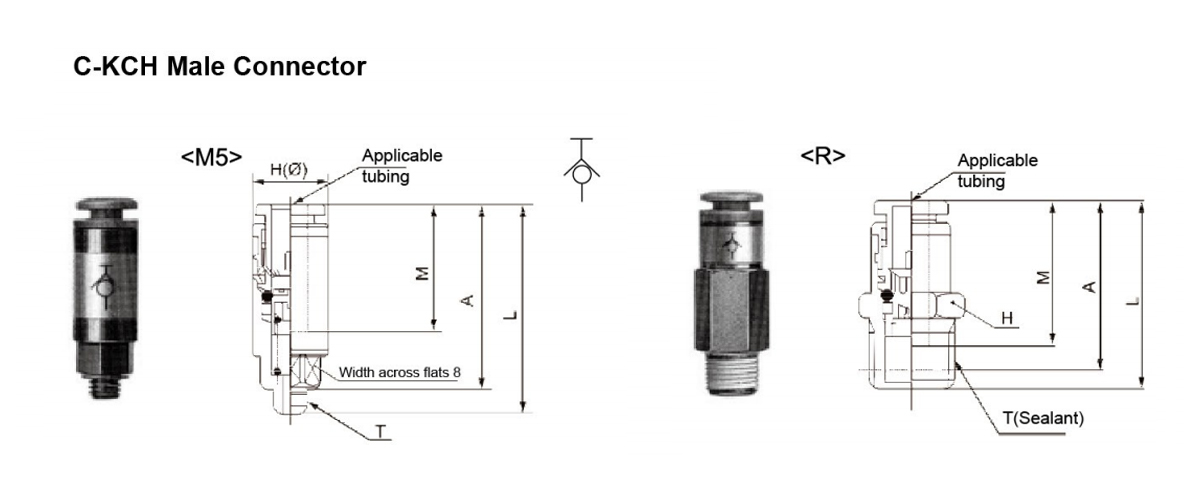

    Ø4 C-KCH04-M5 M5×0.8 9.8  30.8  27.3  18  2.1  2.1  8
     C-KCH04-01S 1/8 10  26.1  22.1  2.6  2.6
    Ø6 C-KCH06-M5 M5×0.8 11.8  32.4  28.9  19.5  2.4  2.4  10
     C-KCH06-01S 1/8 12  37.4  33.4  19  6.8  6.8  16
     C-KCH06-02S 1/4 14  28.9  22.9  14
    Ø8  C-KCH08-01S 1/8 14  42.4  38.4  21.5  16.2  13.1  20
     C-KCH08-02S 1/4 45.7  39.7  27
     C-KCH08-03S 3/8 17  34  27.5  25
    Ø10  C-KCH10-02S 1/4 17  50.5  44.5  24  25.6  20.4  34
     C-KCH10-03S 3/8 51.5  45  43
    Ø12  C-KCH12-03S 3/8 19  54.2  47.7  25.5  35.4  30.4  48
     C-KCH12-04S 1/2 22  41.6  33.6  41

    Applicable Tubing O.D
    (mm)    		 Model Connection Thread T    H
    Width
    Across
     Flats    		 OD1 ØD2 L1 L2 A M Effective Area
    (mm²)    		 Weight
    ( g)
    Nylon Urethane

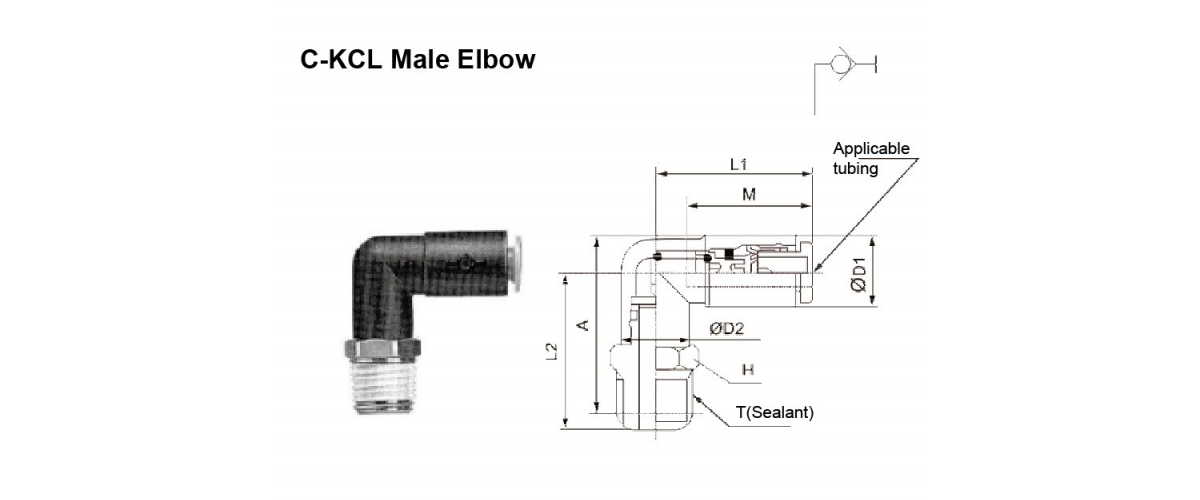

    Ø4 C-KCL04-M5 M5×0.8 8  10.4  8  25.3  16.7  18.4  18  1.9  1.9  6
    C-KCL04-01S 1/8 10  10  23  24.2  2.3  2.3  11
    Ø6 C-KCL06-M5 M5×0.8 8  12.8  8  26.8  17.4  20.3  19.5  2.2  2.2  7
    C-KCL06-01S 1/8 12  12  28  25.1  27.5  19  6.2  6.2  13
    C-KCL06-02S 1/4 14  29.1  29.5  21
    Ø8 C-KCL08-01S 1/8 14  15.2  14  34.1  27.1  30.7  21.5  13.0  10.5  16
    C-KCL08-02S 1/4 31.1  32.7  24
    C-KCL08-03S 3/8 17  34.2  37
    Ø10 C-KCL10-02S 1/4 17  18.5  17  38  33.9  37.2  24  19.5  16.5  29
    C-KCL10-03S 3/8 35.9  38.7  38
    Ø12 C-KCL12-03S 3/8 22  20.9  20.9  40.7  40.3  44.3  25.5  24.8  21.3  63
    C-KCL12-04S 1/2 43.2  45.7  81

    Applicable Tubing O.D
    (mm)    		 Model D L Q M Effective Area
    (mm²)    		 Weight
    (g)
    Nylon Urethane

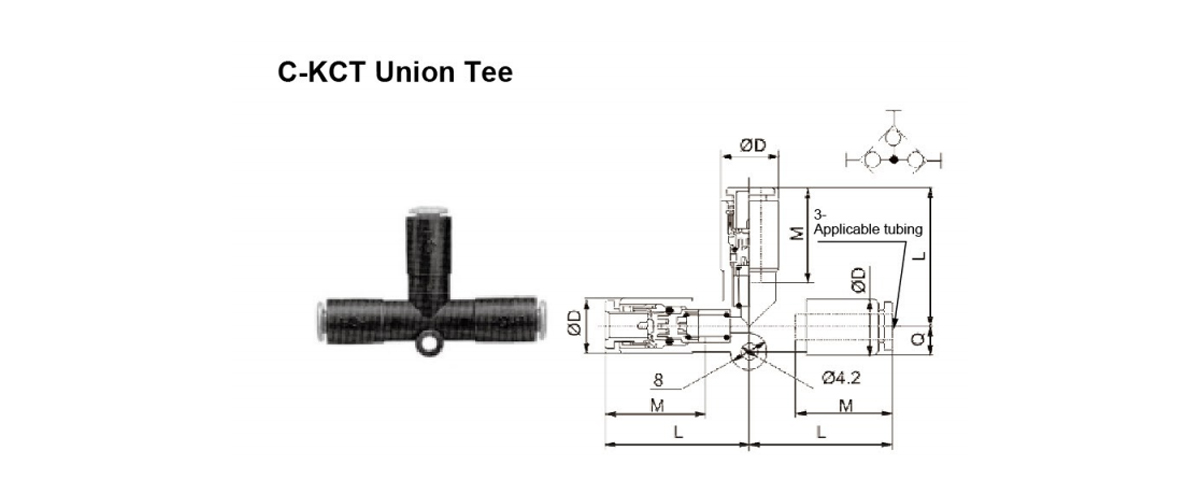

    Ø4 C-KCT04-00 10.4  28.6  5.3  18  2.8  2.8  8
    Ø6 C-KCT06-00 12.8  32.7  6.1  19  7.6  7.6  15
    Ø8 C-KCT08-00 15.2  39.2  7.1  21.5  13.7  11.1  23
    Ø10 C-KCT10-00 18.5  45.5  7.9  24  21.1  19.0  39
    Ø12 C-KCT12-00 20.9  49.2  8.6  25.5  28.3  24.3  52

    Applicable Tubing O.D
    (mm)    		 Model D L1 L2 P  Q M1 M2 Effective Area
    (mm²)    		 Weight
    (g)
    Nylon Urethane
    Ø4 C-KCU04-00 10.4  43.1  27.3  10.4  10.6  18  16  3.7  3.7  8
    Ø6 C-KCU06-00 12.8  48  31.2  12.8  12.5  19  17  10.0  10.0  14
    Ø8 C-KCU08-00 15.2  57.6  38.9  15.2  14.7  21.5  18.5  21.7  15.1  22
    Ø10 C-KCU10-00 18.5  65.2  44.9  18.5  17.1  24  21  33.3  25.6  37
    Ø12 C-KCU12-00 20.9  70.1  48.8  20.9  19.1  25.5  22  48.9  38.7  49

    Applicable Tubing O.D
    (mm)    		 Model od ØD L  A M Effective Area
    (mm²)    		 Weight
    (g)
    Nylon Urethane

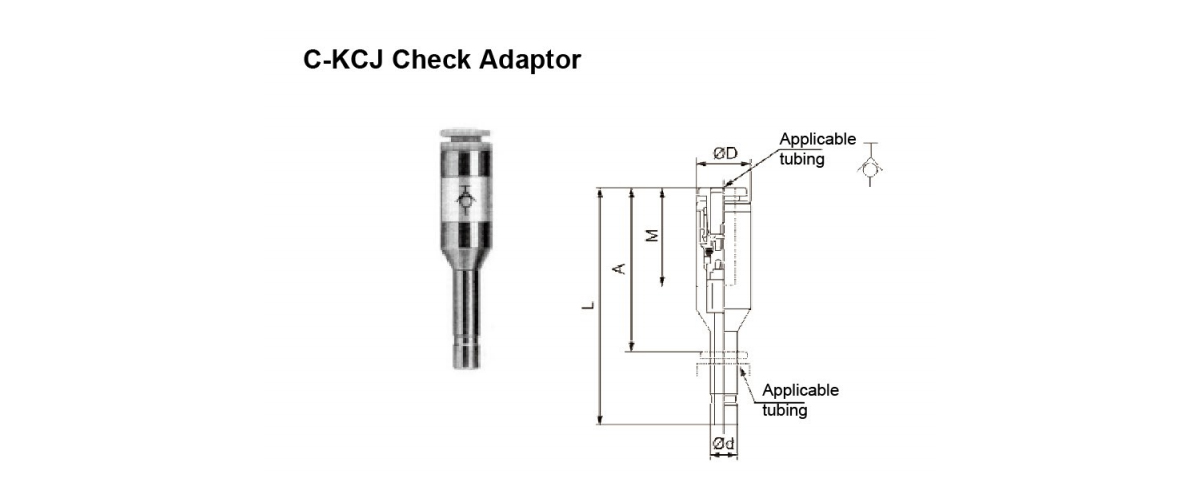

    Ø4 C-KCJ04-99 4  9.8  49.5  33.5  18  2.6  2.6  9
    Ø6 C-KCJ06-99 6  11.8  54  37  19  6.8  6.8  13
    Ø8 C-KCJ08-99 8  14  61  42.5  21.5  16.2  13.1  20
    Ø10 C-KCJ10-99 10  17  70.4  49.4  24  25.6  20.4  33
    Ø12 C-KCJ12-99 12  19  74.4  52.4  25.5  35.4  30.4  43

    Applicable
    Tubing O.D
    (mm)    		 Model
    Connection
    Thread
    T    		 H
    Width
    Across
    Flats    		 L Mounting Hole M1 M2 Effective Area
    (mm²)    		 Weight
    (g)
    Nylon Urethane

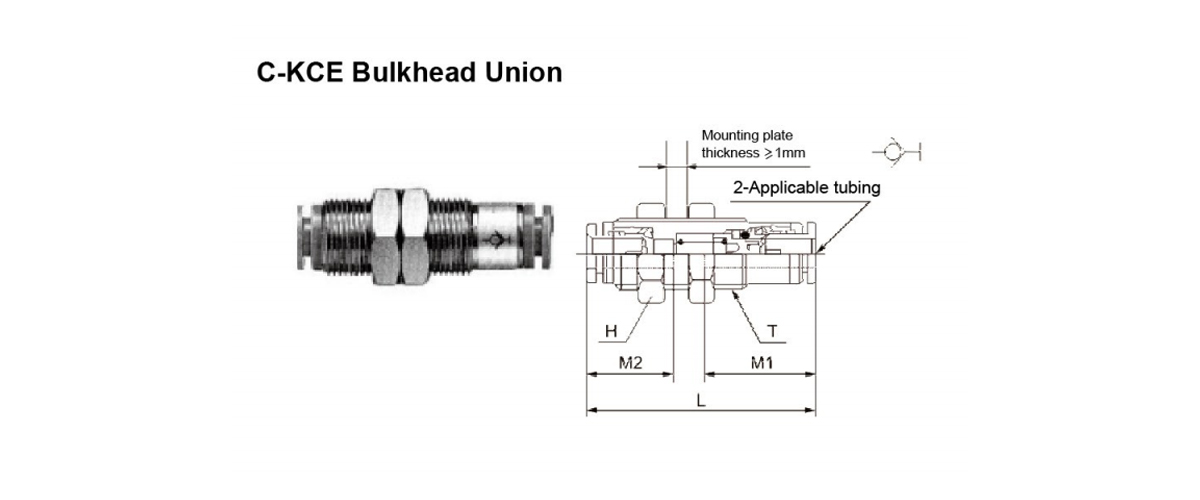

    Ø4 C-KCE04-00 M12×1 14  42  13  18  16  2.6  2.6  21
    Ø6 C-KCE06-00 M14×1 17  45.5  15  19  17  6.8  6.8  30
    Ø8 C-KCE08-00 M16×1 19  42.5  17  21.5  18.5  16.2  13.1  39
    Ø10 C-KCE10-00 M20×1 24  59.5  21  24  21  25.6  20.4  84
    Ø12 C-KCE12-00 M22×1 27  63.2  23  25.5  22  35.4  30.4  115

    Applicable Tubing O.D
    (mm)    		 Model
    Connection
    Thread
    T
    Mounting
    Thread
    T    		 H1
    Width
    Across
    Flats    		 H2
    Width
    Across

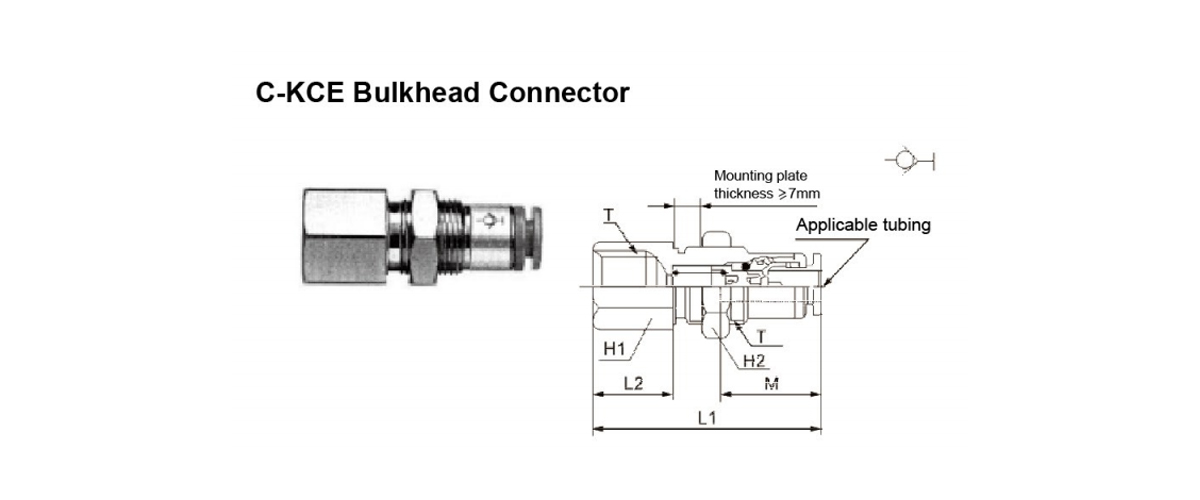

    Flats    		 L1 L2 Mounting Hole M Effective Area
    (mm²)    		 Weight
    (g)
    Nylon Urethane
    Ø4 C-KCE04-02 1/4 M12×1 17  14  40.5  14.7  3  18  2.6  2.6  32
    Ø6 C-KCE06-02 114  M14×1 17  17  42.7  14.7  15  19  6.8  6.8  36
    Ø8 C-KCE08-03 3/8 M16×1 19  19  49.4  15  17  21.5  16.2  13.1  42
    Ø10 C-KCE10-03 3/8 M20×1 22  24  53.9  14.2  21  24  25.6  20.4  79
    Ø12 C-KCE12-03 3/8 M22×1 24  27  56.1  13.7  23  25.5  35.4  30.4  105

    Applicable Tubing O.D
    (mm)    		 Model ØD L M1 M2 Effective Area
    (mm²)    		 Weight
    (g)
    Nylon Urethane

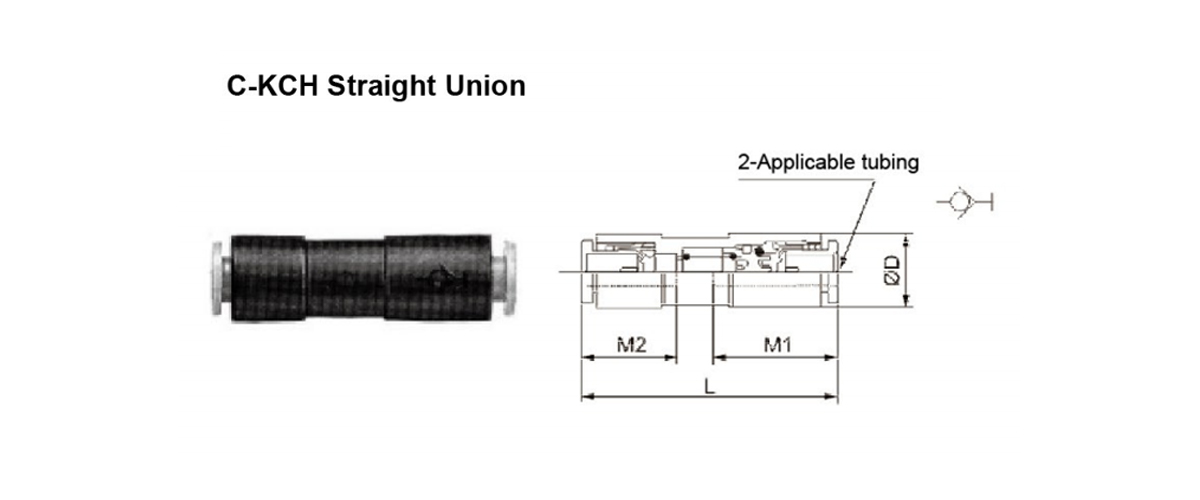

    Ø4 C-KCH04-00 10.4  42.1  18  16  2.6  2.6  5
    Ø6 C-KCH06-00 12.8  45.8  19  17  6.8  6.8  7
    Ø8 C-KCH08-00 15.2  52.8  21.5  18.5  16.2  13.1  10
    Ø10 C-KCH10-00 18.5  59.8  24  21  25.6  20.4  18
    Ø12 C-KCH12-00 20.9  63.5  25.5  22  35.4  30.4  24
