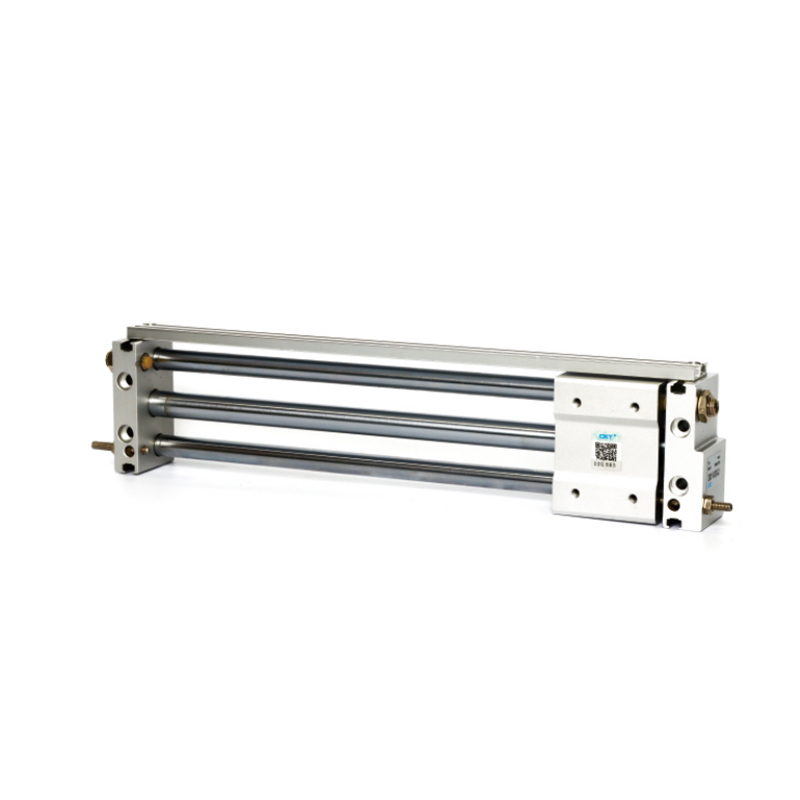

CY1S Series Magnetic Coupled Rodless Cylinder (Sliding Bearing Type)

CY1S Series Magnetic Coupled Rodless Cylinder adopts a sliding bearing structure and realizes linear motion of the load through non-contact magnetic coupling transmission. It is suitable for automation scenarios with high requirements for space utilization. Its design focuses on the stability of basic performance and maintenance convenience, and is a standardized drive solution in the general industrial field.

Core features
1. Sliding bearing guide structure
The built-in sliding bearing system balances the relationship between load and friction, provides a smooth reciprocating motion trajectory under normal working conditions, and reduces dependence on precision guide rails.

2. Long-term lubrication technology
The special lubrication retainer structure is integrated on the inner/outer surface of the cylinder barrel, which forms a uniform oil film layer by continuously releasing lubricating media, significantly improves the long-term operating characteristics of the friction pair, and extends the maintenance-free cycle.

3. Magnetic coupling transmission isolation design
Relying on the coupling effect of the inner and outer piston magnetic rings to transmit power, physically isolate the mover and stator cavity, effectively isolate external pollutants from invading the cylinder body, and adapt to dust or light sputtering environments.

4. Compact functional integration
The rodless structure reduces the axial installation space, and combined with standardized interfaces and accessory configurations, supports multi-angle installation and direct integration of position detection components, meeting the rapid deployment requirements of basic automation units.

This series achieves a balance in low-cost maintenance, environmental adaptability and space efficiency through basic structure optimization, and is suitable for long-term operation in light and medium load scenarios such as material transfer, sorting and positioning.
