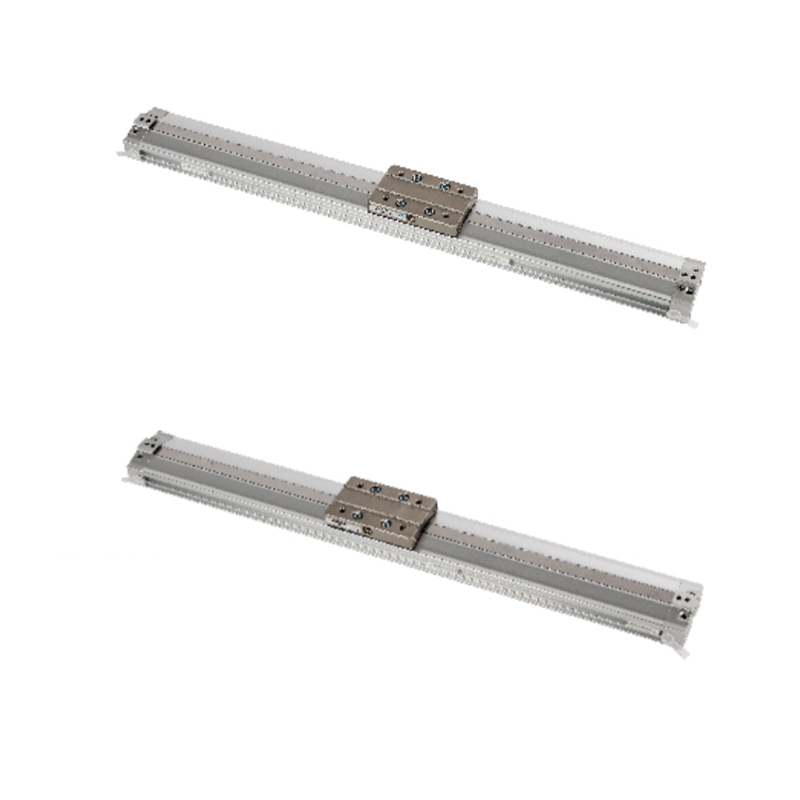

MY3A/3B Series Mechanical Joint Rodless Cylinder Basic Type: Short Type (Cushion Cushion)/Basic Type: Standard Type (Air Cushion)

MY3A/3B Series Mechanical Joint Rodless Cylinder Basic Type is a compact linear drive element that uses internal mechanical coupling to transmit power. Its core design eliminates the extended piston rod of the traditional cylinder and transmits the motion force to the external load platform through the internal slider.

▸Integrated guide rails - The cylinder body directly integrates a high-rigidity linear guide structure to provide precise guidance and support for the external load platform.

▸Concentrated load bearing - Thanks to the integrated guide rail design, the external load platform has the ability to directly bear concentrated loads without the need for additional guide mechanisms.

▸Mechanical coupling transmission - The internal piston and the external load platform achieve non-contact power transmission through a mechanical meshing structure, avoiding the magnetic force limitation of traditional magnetic coupling cylinders.

▸Stroke and protection - A variety of stroke specifications are available, and built-in scraper seals are standardly configured to meet the reliability requirements of general industrial environments.
