KQB2 Series Stainless Steel one touch fitting

Home / Products / Pneumatic Accessory / Stainless Steel One Touch Fitting / KQB2 Series Stainless Steel one touch fitting

KQB2 Series Stainless Steel one touch fitting
  • KQB2 Series Stainless Steel one touch fitting
Stainless Steel One Touch Fitting

KQB2 Series Stainless Steel one touch fitting

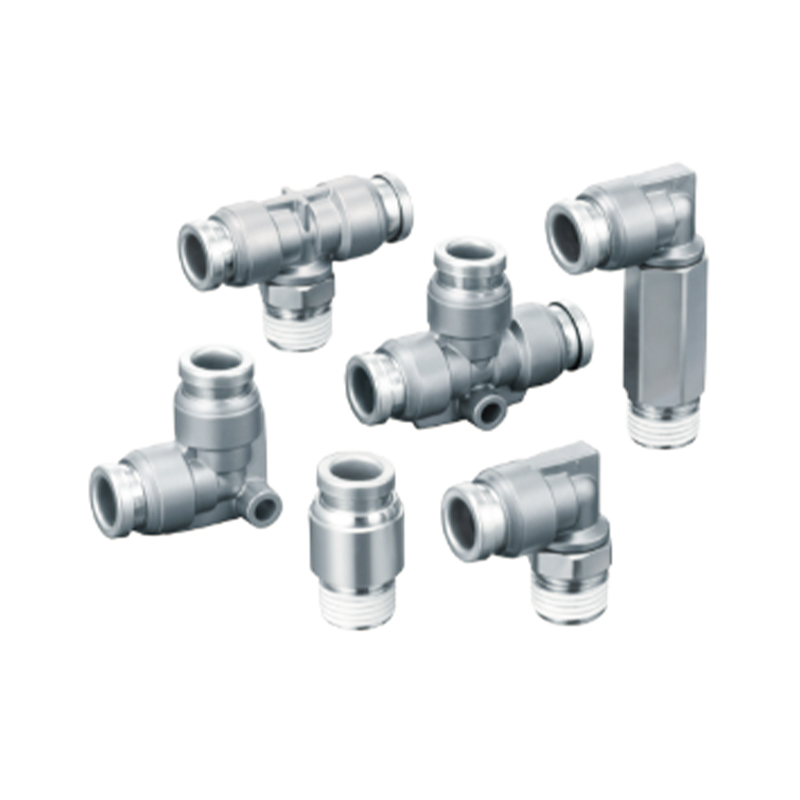

The KQB2 series stainless steel one touch fitting adopts high-grade stainless steel integrated molding technology, which is specially designed for fluid transmission scenarios that require fast disassembly and reliable sealing, meeting the comprehensive requirements of cleanliness and durability in industrial environments.

Core features
Material stability: The all-stainless steel structure has native corrosion resistance, avoids the risk of medium contamination, and adapts to acid-base environments and temperature and pressure fluctuations
Instantaneous locking mechanism: Push-pull one-way lock design realizes blind operation connection, and built-in self-compensating sealing ring eliminates leakage risks
System compatibility expansion: Supports modular series connection of multiple pipe diameters, allowing flexible configuration of branch nodes in complex pipelines
Maintenance cost optimization: The tool-free disassembly and assembly feature greatly shortens equipment downtime, and the retaining spring structure can be replaced independently to reduce maintenance expenses

E-mail: manager@cktworld.com
Download
PREV：KQG2 Series SUS316 Stainless Steel one touch fitting
NEXT：No next article
  • Specifications
    Fluid used Air, water, steam
    Pressure range Note 2) -100 kPa to 1 MPa Note 3)
    Pressure test pressure 3.0MPa
    Ambient temperature and fluid temperature Note 4) -5 to 150°C (but not frozen) Note 3)
    Grease used No grease specification
    Sealing of threaded parts With sealant
    Note 1) Water cannot be used with soft nylon tubing.
    Note 2) Since leakage is not zero, avoid using vacuum maintenance for leakage tests, etc. Note 3) Confirm the operating pressure range and operating temperature range of the piping.
    Note 4) Install a liner under the following conditions (except for □3.2).
    ·When used in environments or with fluids subject to sudden temperature changes.
    ·When used at high temperatures.

    Suitable for pipes
    Tube material FEP, PFA, nylon, soft nylon Note 1), polyurethane, polyolefin
    Tube outer diameter Ø1/8",Ø5/32",Ø1/4",Ø5/16",Ø3/8",Ø1/2"

    ※ Lining set temperature conditions
    Tubes used Temperature
    FEP tubes/TH series Above 80°C
    PFA tubes/TL series Above 120°C
    Spare parts
    Name Outer diameter of pipe Model Material
    Gasket 一 M-5G3 SUS316
    Special FKM
    Panel mounting nut Ø3.2 Ø4 KQB223-P01 SUS316
    Ø6 KQB206-P01
    Ø8 KQB208-P01
    Ø10 KQB210-P01
    Ø12 KQB212-P01
    Ø16 KQB216-P01

  • No. Name Material
    1  Release sleeve SUS304
    2  Guide sleeve 1 SUS304
    3  Guide sleeve 2 SU8304
    4  Spring clip SUS304
    5  Seal Special FKM (fluorine coating)
    6  Straight connector body C3604 (electroless nickel plating)
    7  Elbow body SU8316
    8  O-ring Special FKM (fluorine coating)
    9  Press-in button C3804 (electroless beryllium nickel plating)

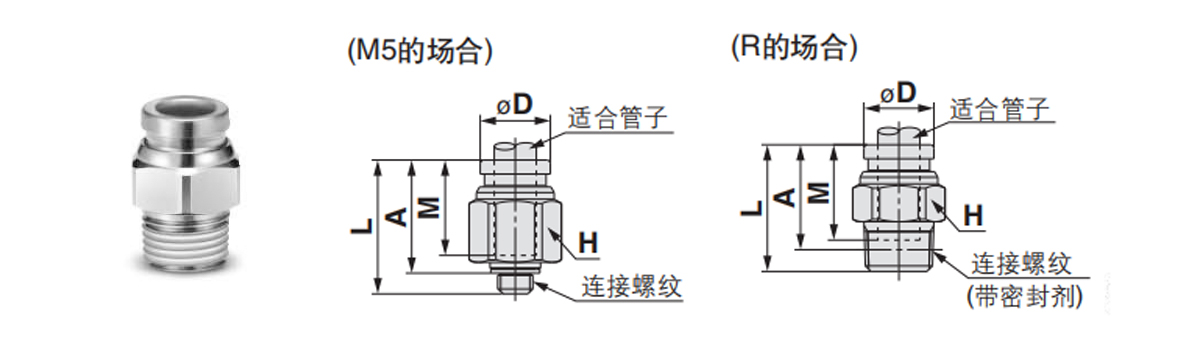

  • Straight connector: KQB2H
    Suitable for pipe outer diameter mm Connection thread
    R,M    		 Model H
    (hexagonal opposite sides)    		 ØD Note 1) L A※ M      Note 2) Effective cross-sectional area mm² Quality g
    Ø3.2 M5×0.8 KQB2H23-M5 8  8  16.5  13.5  12  3   3.4
    1/8 KQB2H23-01S 10  15.4  12.3  3.4   6
    1/4 KQB2H23-02S 14  21  16.3  17.8
    Ø4 M5×0.8 KQB2H04-M5 10  8.7  17.1  14.1  12.6  4   5.3
    1/8 KQB2H04-01S 15.3  12.2  5.6   5.6
    1/4 KQB2H04-029 14  20.9  16.2  172
    Ø6 M5×0.B KQB2H06-M5 12  11.1  19.1  16.1  13.6  4   8
    1/8 KOB2H06-01S 18.1  15  13.1   7.3
    1/4 KQB2H06-02S 14  20.8  16.1  152
    3/B KQB2H08-033 17  23  17.9  28.8
    Ø8 1/8 KCB2H08-01S 14  13.4  24.5  21.4  18.1   28.1  13.5
    1/4 KQB2H08-029 22.3  17.6
    3/B KQB2H08-033 17  23.7  18.6  26
    Ø10  1/B KQB2H10-01S 17  16.4  25.5  22.4  17  26.1  19.8
    1/4 KQB2H10-02S 27.9  23.2   41.5  22.7
    3/B KQB2H10-03S 23  17.9  21.6
    1/2 KQB2H10-04S 22  28.6  22.2  53.9
    Ø12 1/4 KQB2H12-02S 19  18.5  30.5  25.8  18.6   58.3  28.8
    3/B KQB2H12-033 24.7  19.6  21.5
    1/2 KQB2H12-04S 22  28.7  22.3  47
    Ø16 3/B KQB2H16-03S 24  24.6  33.6  28.5  20.8   81  48.3
    1/2 KQB2H16-04S 29.5  23.1   113  392
      *R Reference dimensions after screwing in the screw.
      Note 1) Ø indicates the maximum diameter.
      Note 2) Indicates the value when using FEP tubing.
         Ø16 indicates the value when using nylon tubing only.

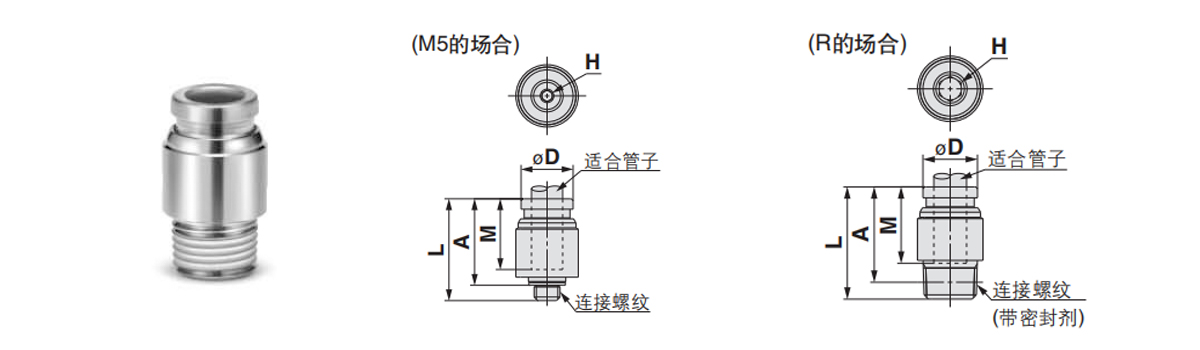

    Hexagon socket straight connector: KQB2S
    Suitable for pipe outer diameter mm Connection thread
    R,M    		 Model H
    (hexagonal opposite sides)    		 ØD Note 1) L A※ M Note 2）Effective fee Area mm² Quality g
    Ø3.2 M5×0.B KQB2S23-M5 2  9  16.5  13.5  12  3  4
    Ø4 M5×0.8 KQB2S04-M5 2  9  17.1  14.1  12.8  4  3.9
    1/B KQB2804-01S 3  10  20.4  17.3  4.1  7.9
    Ø6 M5×0.B KQB2S08-M5 2  12  18.6  16.6  13.8  4  7.8
    1/B KQB2S06-01S 4  20.6  17.5  10  9.1
    1/4 KQB2S06-02S 14  15.9  10.7  14.7
    Ø8 1/8 KQB2S08-01S 5  14  24.7  21.6  18.1    17.2  13
    1/4 KQB2S08-02S 6  22.9  18.2  23.3  13.5
    3B KQB2S08-03S 17  23.1  18  24
    Ø10 1/8 KQB2610-01S 5  17  25.6  22.5  17    17.2  18.6
    1/4 KQB2S10-02S 8  27.5  22.8    39  20
    3/B KQB2$10-03S 24  18.9  22
    1/2 KQB2810-04S 22  17.8  39.2
    Ø12 1/4 8  19  30.6  25.8  18.6    48  28
    3/B KQB2$12-03S 10  24.9  19.8    60  202
    1/2 KQB2812-04S 22  18.5  35.3
    Ø16 3/B KQB2S16-03S 10  24.6  33.2  28.1  20.8    81  43.6
    1/2 KQB2316-04S 12  29.4  23  113  40.3
      ※R Reference dimensions after screwing in the thread.
      Note 1) ØD means maximum diameter.
      Note 2) Indicates values when using FEP tubes.
          Ø16 indicates values when using nylon tubes only.

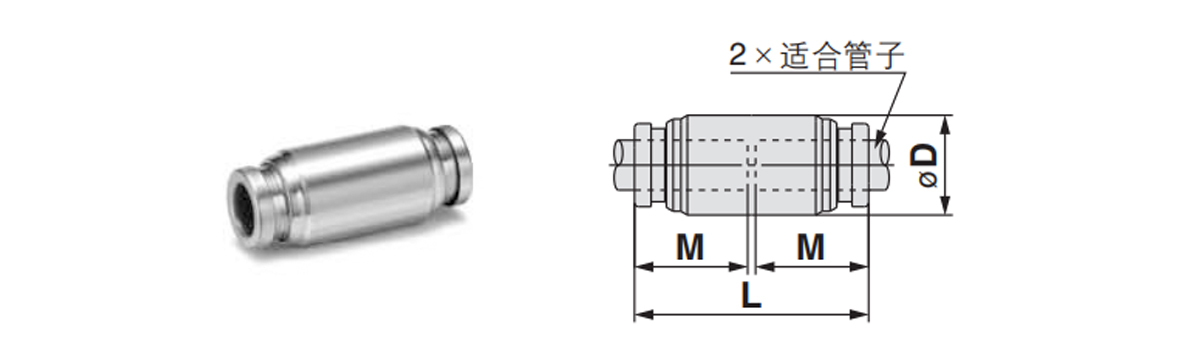

    Straight connector: KQB2H
    Suitable for pipe outer diameter mm Model ØD Note 1) L M      Note 2) Effective cross-sectional area mm² Quality g
    Ø3.2 9  25  12  3.4  8.8
    Ø4 KQB2H04-00 9  26.2  12.6  5.6  6.8
    Ø6 12  28.2  13.6  13.1  12
    Ø8 KOB2H08-00 14  33.2  18.1  26.1  17.4
    Ø10 KOB2H10-00 17  35  17  41.5  272
    Ø12 KQB2H12-00 19  38.2  18.6  58.3  33.7
    Ø18 KOB2H16-00 24.6  42.6  20.8  113  58.1
     Note 1) ØD means maximum diameter.
     Note 2) Indicates values when using FEP tubing.
         Ø16 indicates values when using nylon tubing only.

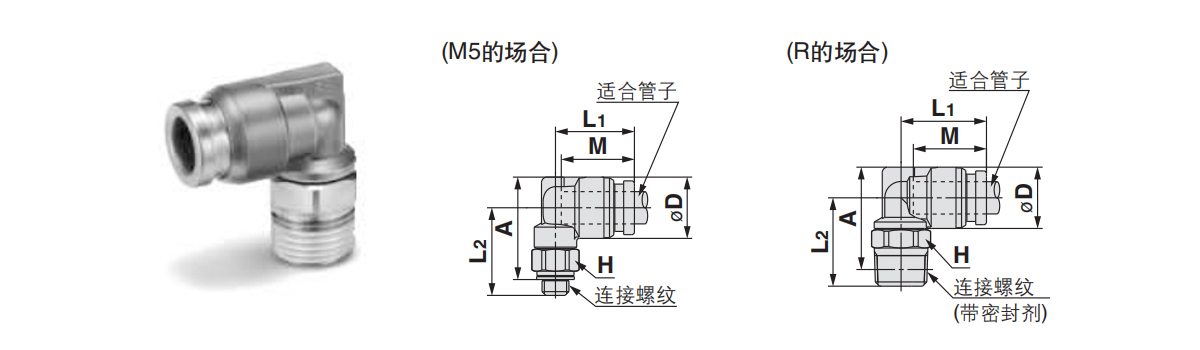

    Elbow: KQB2L
    Suitable for pipe outer diameter mm Connection thread
    R,M    		 Model H
    (hexagonal opposite sides)    		 Note 1)
    ØD    		  L1 L2 A※ M Note 2)
    Effective cross-sectional area mm 2    		 Quality g
    Ø3.2 M5×0.B KQB2L23-M5 8  8.3  13.1  14.B 16  12  2.6  6.5
    1/8 KQB2L23-01S 10  13.6  14.9  15.9  3  8
    1/4 KQB2L23-029 14  18.7  18.1  16.6
    Ø4 M5×0.B KQB2L04-M5 8  9.1  13.7  152  16.8  12.8  3.5  7
    1/8 KQB2L04-01S 10  14.4  15.3  16.7  4.2  8.6
    1/4 KQB2L04-02S 14  19.1  18.8  17.5
    Ø6 M5×0.B 8  11.4  14.7  16.3  19  13.6  3.5  9
    1/8 KQB2L06-01S 10  15.9  18.4  11.4  10.2
    1/4 KQB2L06-02S 14  202  21.2  19.1
    38  KQB2L06-035 17  21.6  22.2  31.2
    Ø8 1/8 KQB2L08-01S 12  13.7  18.6  18.3  22  18.1    21.8  14.8
    1/4 KQB2L08-02S 14  19.1  21.5  23.6  20.8
    3/8 KQB2L08-03S 17  22.9  24.6  32.8
    Ø10 1/8 KQB2L10-01S 12  16.6  20  19.7  24.9  17  21.6  20.4
    1/4 KOB2L10-02S 14  21  22.9  26.5  35.2  23.7
    38  KQB2L10-03S 17  24.3  27.5  34.5
    1/2 KQB2L10-04S 22  28.5  30.4  62.6
    Ø12 1/4 KCB2L12-028 14  18.7  22.6  24  28.6  18.6  50.2  27.4
    38  KQB2L12-03S 17  23.6  25.3  29.5  34.3
    1/2 KQB2L12-04S 22  29.5  32.4  60.8
    Ø16 3/8 KQB2L16-03S 19  24.6  28.3  28  34.5  20.8    71  47
    1/2 KQB2L16-049 22  27.3  31.8  37  100  62.6
    ※Reference dimensions after screwing in the R thread.
    Note 1) ØD means maximum diameter.
    Note 2) Indicates values when using FEP tubing.
    Ø16 indicates values when using nylon tubing.

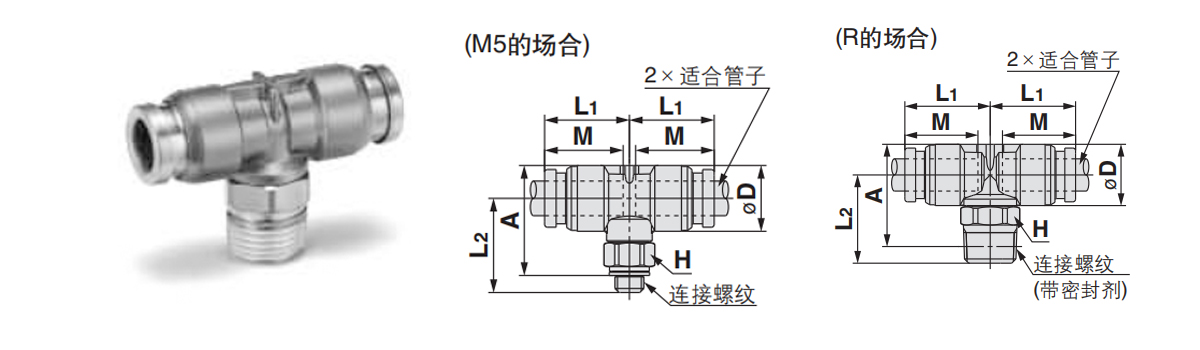

    Double-tube T-shaped connector: KQB2T
    Suitable for pipe outer diameter mm Connection thread
    R,M    		 Model H
    (hexagonal opposite sides)    		 Note 1)
    ØD    		 L1 L2 A※ M Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Ø3.2 M5×0.8 KQB2T23-M5 8  8.3  13.1  14.8  16  12  3.2  8.2
    1/8 KQB2L23-01S 10  13.8  14.9  15.9  3.4  9.6
    1/4 KQB2T23-02S 14  18.7  18.1  18.4
    Ø4 M5×0.B KQB2T04-M5 8  9.1  13.7  15.2  16.8  12.6  4.5  9.1
    18  KQB2T04-019 10  14.4  15.3  16.7  B 10.6
    1/4 KQB2T04-02S 14  19.1  18.9  19.4
    Ø6 M5×0.B KQB2T06-M5 8  11.4  14.7  18.3  19  13.6  4.5  12.1
    1/8 KQB2T06-019 10  15.9  16.4  13.9  13.6
    1/4 KQB2T06-028 14  20.2  21.2  22.5
    3/8 KQB2T06-03S 17  21.8  22.2  35
    Ø8 1/8 KQB2T08-01S 12  13.7  18.6  18.3  22  16.1  26.3  20
    1/4 KQB2T08-028 14  19.1  21.5  23.6  26.1
    3/8 KQB2T08-03S 17  22.9  24.6  38
    Ø10 1/8 KCB2T10-018 12  16.6  20  19.7  24.9  17  40.8  28.6
    1/4 KQB2T10-028 14  21  22.9  26.5  31.5
    3/8 KQB2T10-03S 17  24.3  27.5  42.4
    1/2 KQB2T10-049 22  28.5  30.4  70.4
    Ø12 1/4 KQB2T12-028 14  18.7  22.6  24  28.6  18.6  57.2  38.1
    3/8 KQB2T12-03S 17  23.6  25.3  29.5  39.7
    1/2 KQB2T12-04S 22  29.5  32.4  70.8
    Ø16 38  KQB2T16-03S 19  24.6  26.3  28  34.5  20.8  71  64.4
    1/2 KQB2T16-04S 22  27.3  31.8  37  100  79
    ※Reference dimensions after screwing in the R thread.
    Note 1) ØD means maximum diameter.
    Note 2) Indicates values when using FEP tubing.
    Ø16 indicates values when using nylon tubing only.

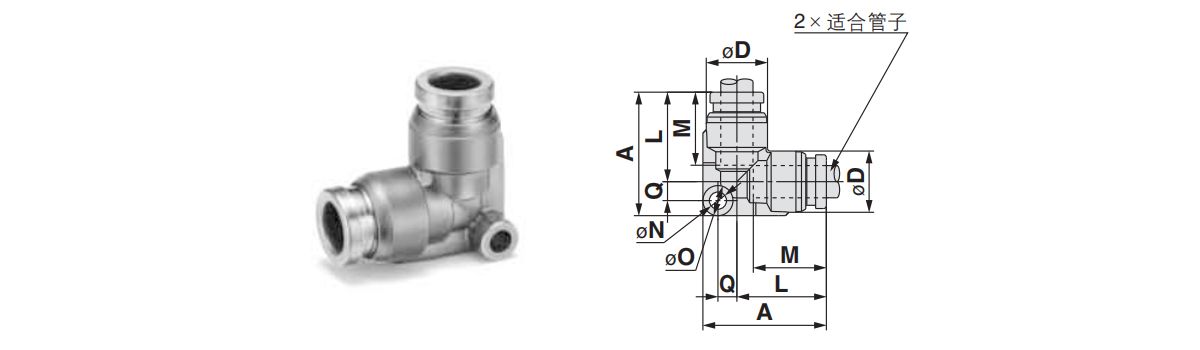

    Right angle elbow: KQB2L
    Suitable for pipe outer diameter mm Model Note 1)
    6D    		  L  A Q M ØN O Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Ø3.2 KQB2L23-00 8.3  13.6  19.3  2.8  12  3.2  5.6  3  6.3
    Ø4 KQB2L04-00 9.1  14.6  20.5  3.1  12.6  3.2  5.6  4.2  7.4
    Ø6 KQB2L06-00 11.4  16.6  23  3.6  13.6  3.2  5.6   11.4  11
    Ø8 KQB2L08-00 13.7  20.1  29.1  5  16.1  4.2  8   21.6  202
    Ø10 KQB2L10-00 16.6  22  31.7  5.7  17  4.2  8   35.2  29.6
    Ø12 KQB2L12-00 18.7  24.6  35  6.4  18.6  4.2  8   50.2  37.1
    Ø16 KQB2L16-00 24.6  28.8  40.5  7.7  20.8  4.2  8  100  59.7
    Note 1) ØD means maximum diameter.
    Note 2) Indicates values when using FEP tubing.
     Ø18 indicates values when using nylon tubing only.

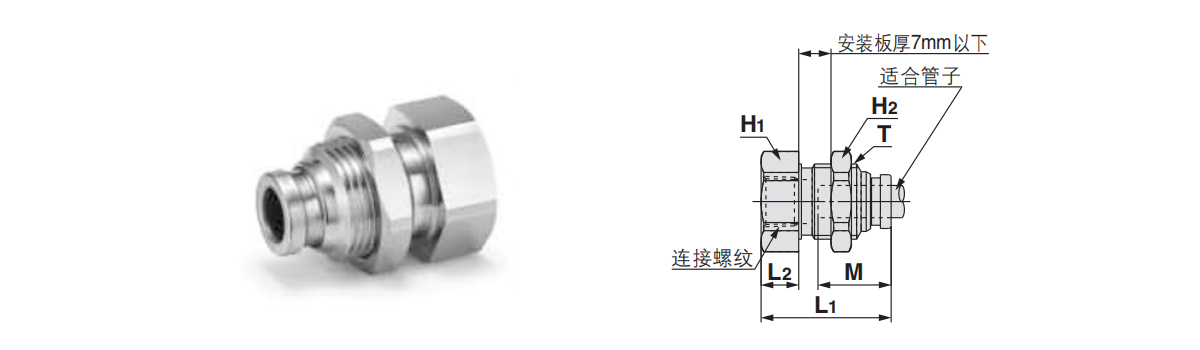

    Panel-mounted straight-through connector: KQB2E
    Suitable for pipe outer diameter mm Model T
    (M)    		 H
    (hexagonal opposite sides)    		 L Mounting holes M Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Ø3.2 KQB2E23-00 M10×1 12  322  11  12  3.4  14.8
    Ø4 KQB2E04-00 M10×1 12  32.4  11  12.6  5.6  14.7
    Ø6 KQB2E06-00 M14×1 17  35.4  15  13.6  13.1  29.2
    Ø8 KQB2E08-00 M15×1 19  38.8  16  16.1  26.1  34.9
    Ø10 KQB2E10-00 M18×1 21  40  19  17  41.5  47.1
    Ø12 KQB2E12-00 M20×1 24  42.4  21  18.6  58.3  58.7
    Ø16 KQB2E16-00 M27×1 30  48.8  28  20.8  113  107.2
    Note: Values indicate those for FEP tubing.
      Ø16 indicates values for nylon tubing only.

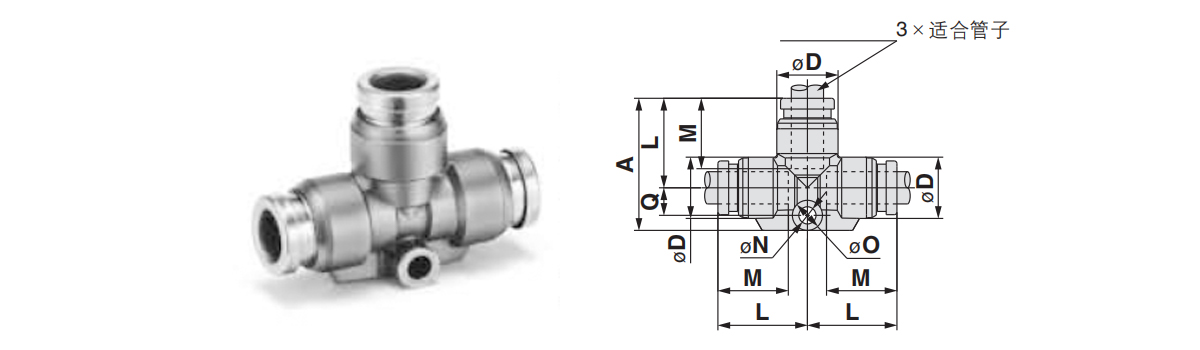

    T-shaped pipe fitting: KQB2T
    Suitable for pipe outer diameter mm Model Note 1)
    D    		 L A Q M ØN ØO Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Ø3.2 KQB2T23-D0 8.3  13.6  20.5  4.1  12  3.2  5.6  3.4  7.9
    Ø4 KQB2T04-00 9.1  14.6  21.8  4.4  12.6  3.2  5.6  6.4  9.5
    Ø6 KQB2T06-00 11.4  16.6  24.6  52  13.6  3.2  5.6   13.4  142
    Ø8 KQB2T08-D0 13.7  20.1  31.1  7  16.1  4.2  8   25.6  24.4
    Ø10 KQB2T10-00 16.6  22  34  8  17  4.2  8   40  38.8
    Ø12 KQB2T12-00 16.7  24.6  37.7  9.1  18.6  4.2  8   57.4  47
    Ø16 KQB2T16-D0 24.6  28.8  43.4  10.6  20.8  4.2  8  100  75.5
    Note 1) ØD means maximum diameter.
    Note 2) Indicates values when using FEP tubing.
    Ø16 indicates values when using nylon tubing only.

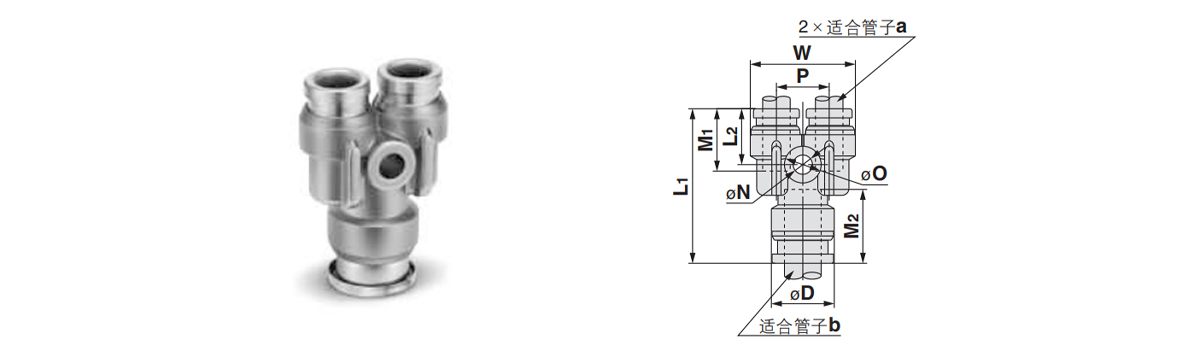

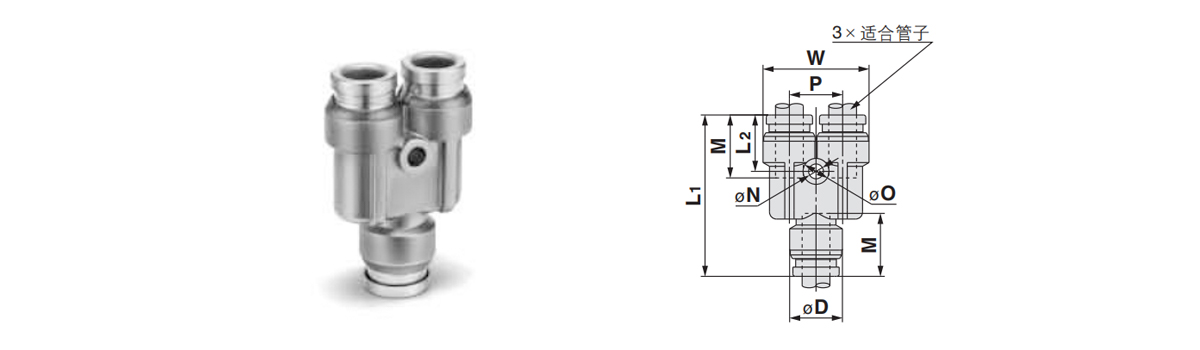

    Y-shaped pipe fitting: KQB2U
    Suitable for pipe outer diameter mm Model Note 1)
    ØD    		 W L1 L P M ØN 60  Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Ø3.2 KQB2U23-00 8.3  16.4  29  11  8.1  12  32  5.6  3.4  9.2
    Ø4 KQB2U04-00 9.1  18.2  30.4  11.3  8.1  12.6  3.2  5.6  4.2  11.1
    Ø6 11.4  22.9  34.9  12.2  11.5  13.8  32  5.6   13.4  18.8
    Ø8 KQB2U08-00 13.7  28.3  40.1  14.1  14.6  16.1  4.2  8   25.6  29.7
    Ø10 KQB2U10-00 16.8  34.2  44  14.4  17.6  17  4.2  8   40  47.4
    Ø12 KQB2U12-00 18.7  38.5  48.4  15.8  19.8  18.8  42  8   57.4  62.1
    Ø16 KQB2U16-00 24.6  49.3  56.6  17.3  26  20.8  4.2  8  113  110.2
    Note 1)②ØD means maximum diameter.
    Note 2) Indicates values when using FEP tubes.
         Ø16 indicates values when using nylon tubes only.

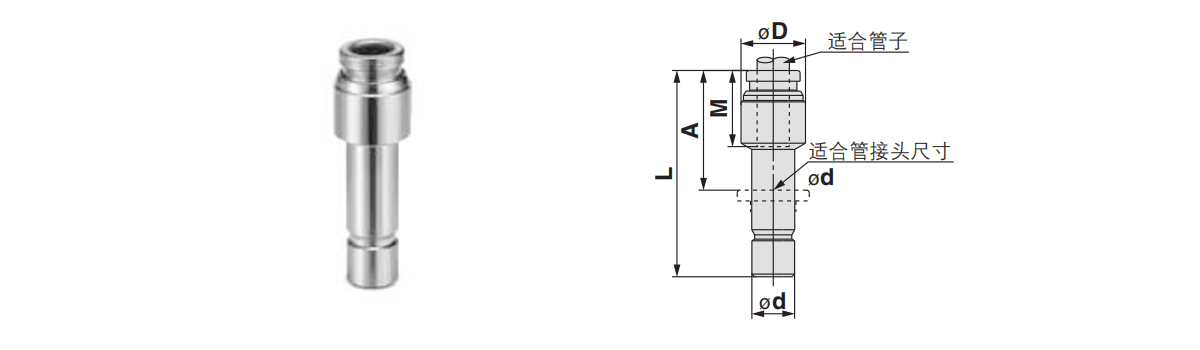

    Reducing tee: KQB2T

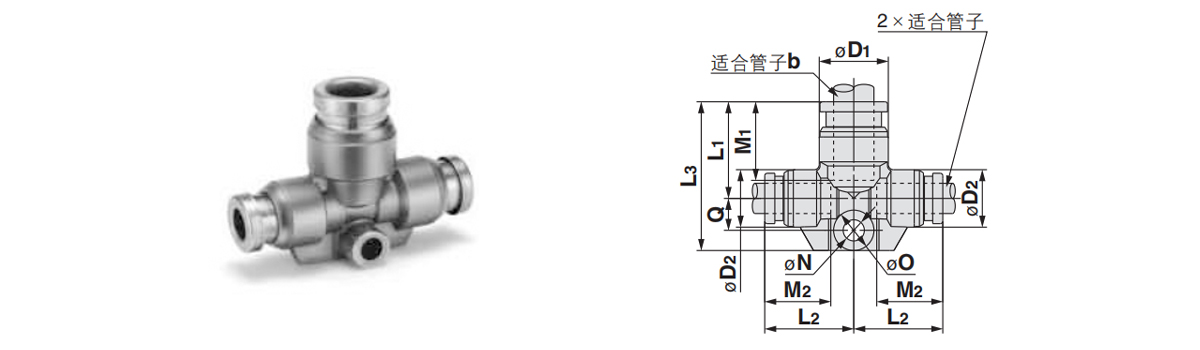

    Suitable for pipe outer diameter mm Model Note 1)
    ØD1    		 Note 1)
    ØD2    		 L1 L L3 Q M1 M2 ØN ØO Note 2)
    Effective cross-sectional area mm²    		 Quality g
    a b
    Ø3.2 Ø4 KQB2T23-04 9.1  8.3  142  14.1  21.1  4.1  12.6  12  3.2  5.6  3.8  8.5
    Ø4 Ø6 KQB2T04-06 11.4  9.1  15.6  15.7  22.8  4.4  13.6  126  3.2  5.6  7.1  11
    Ø6 Ø8 KQB2T06-08 13.7  11.4  19.1  17.7  29.5  6.4  16.1  13.6  4.2  8  16.4  20
    Ø8 Ø10 KQB2T08-10 18.B 13.7  21  21.2  32.1  7.1  17  18.1  4.2  8  38  29.8
    Ø10 Ø12 KQB2T10-12 18.7  16.6  23.6  23.1  35.7  8.1  18.6  17  4.2  8  56  41.3
    Ø12 Ø16 KQB2T12-16 24.6  18.7  26.8  26.7  39.9  9.1  20.8  18.6  4.2  8  108.5  58
    Note 1) ØD1, ØD2  means maximum diameter.
    Note 2) Indicates values when using FEP pipes.

    Plug: KQB2R
    Suitable for pipe outer diameter mm Suitable pipe joint size od Model ØD Note 1) L A M Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Ø3.2 Ø4 KQB2R23-04 9  32.9  20.3  12  3.4   4.9
    Ø4 Ø6 KQB2R04-06 9  34.4  20.8  12.6  5.6   7
    Ø6 Ø8 KQB2R06-08 12  38.4  22.3  13.6  13.1  12.7
    Ø8 Ø10 KQB2R08-10 14  41.9  24.9  16.1  26.1  19.2
    Ø10 Ø12 KQB2R10-12 17  44.8  26.2  17  41.5  27.8
    Ø12 Ø18 KQB2R12-16 19  42.9  22.1  18.6  58.3  37.2
    Note 1) ØD means maximum diameter.
    Note 2) Indicates values when using FEP tubes.

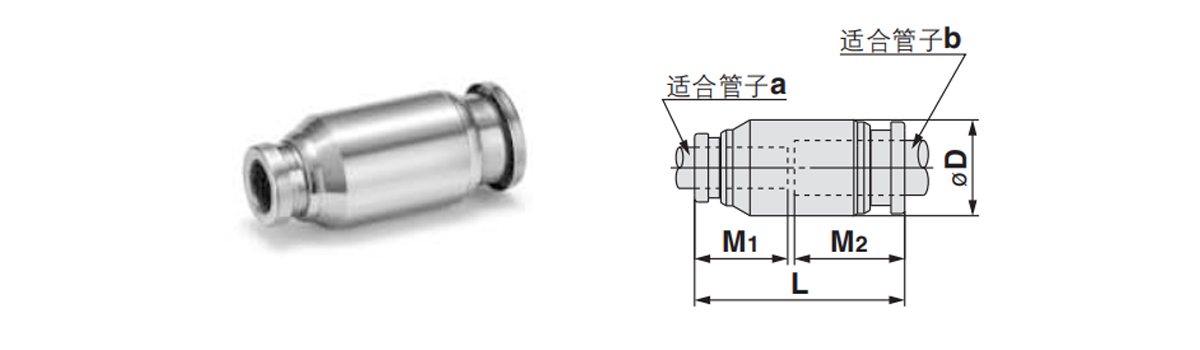

    Reducing straight pipe: KQB2H
    Suitable for pipe outer diameter mm Model ØD Note 1) L M1 M2 Note 2)
    Effective cross-sectional area mm²    		 Quality g
    a b
    Ø3.2 Ø4 KQB2H23-D4 9  25.6  12  12.6  3.4  6.8
    Ø4 Ø6 KQB2H04-06 12  27.2  12.6  13.6  5.6  12.1
    Ø6 Ø8 KQB2H06-08 14  30.7  13.6  16.1  13.1  17.1
    Ø8 Ø10 KQB2H08-10 17  34.1  16.1  17  26.1  27.2
    Ø10 Ø12 KQB2H10-12 19  38.6  17  18.6  41.5  34.8
    Ø12 Ø16 KQB2H12-16 24.6  40.4  18.6  20.8  58.3  57.3
    Note 1) ØD means maximum diameter.
    Note 2) Indicates values when using FEP tubes.

    Reducing Y-shaped pipe fitting: KQB2U
    Suitable for pipe outer diameter mm Model Note 1)
    ØD    		 L1 L2 P W M1 M2 ØN Ø0 Note 2)
    Effective cross-sectional area mm²    		 Quality g
    a b
    Ø3.2 Ø4 KQB2U23-04 9.1  27  10.8  8.1  16.4  12  12.6  3.2  5.6  3.2  8.5
    Ø4 Ø6 KQB2U04-06 11.4  29.3  11.2  9.1  18.2  12.8  13.6  3.2  5.6  4.2  11.9
    Ø6 Ø8 KQB2U06-08 13.7  33.7  12.2  11.5  22.9  13.6  18.1  4.2  8  13.4  19.3
    Ø8 Ø10 KQB2U08-10 16.6  38.3  13.8  14.6  28.3  16.1  17  4.2  8  25.6  32
    Ø10 Ø12 KQB2U10-12 18.7  43  14  17.6  34.2  17  18.6  4.2  8  40  47.6
    Ø12 Ø16 KQB2U12-16 24.8  47.4  15.6  19.8  38.5  18.6  20.8  4.2  8  57.4  87.8
    Note 1) ØD means maximum diameter.
    Note 2) Indicates values when using FEP pipes.

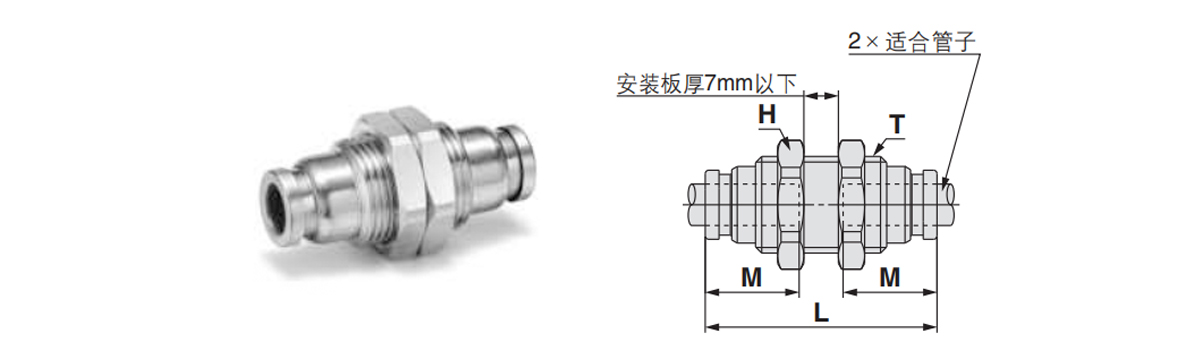

    Panel-mounted internal thread straight pipe connector: KQB2E
    Suitable for pipe outer diameter mm Connecting thread
    Pe    		 Model T
    (M)    		 Hexagon opposite sides L1 L2 Mounting hole  M Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Hi H2
    Ø3.2 1/4 KQB2E23-02 M10×1 17  12  31  14.8  11  12  3.4  27.5
    Ø4 1/8 KQB2E04-01 M10×1 14  12  25.8  9.7  11  12.6  5.6  16.9
    1/4 KQB2E04-02 17  30.9  14.8  27.1
    Ø6 1/B KQB2E06-01 M14×1 17  17  24.2  6.1  15  13.6  13.1  25
    1/4 KQB2E06-02 31.6  13.5  33.2
    3/B KQB2E06-03 19  33  14.9  34.8
    Ø8 1/B KQB2E08-01 M15×1 17  19  26.3  6.9  16  16.1  26.1  28.7
    1/4 KQB2E08-02 32.4  13  34.2
    3/B KQB2E08-03 19  34  14.6  35.9
    Ø10 1/4 KQB2E10-02 M18×1 19  21  31.6  11.6  19  17    41.5  44
    3/8 KQB2E10-03 33.6  13.6  40.2
    Ø12 3/B KQB2E12-03 M20×1 21  24  34  12.8  21  18.6  58.3  52
    1/2 KQB2E12-04 24  39.6  18.4  62.5
    Ø16 3/B KQB2E18-03 M27×1 29  30  35.3  11.2  28  20.8    96  111
    1/2 KQB2E16-04 40.6  16.5  113  118.2
    Note: Values indicate those for FEP tubing.
     Ø16 indicates values for nylon tubing only.

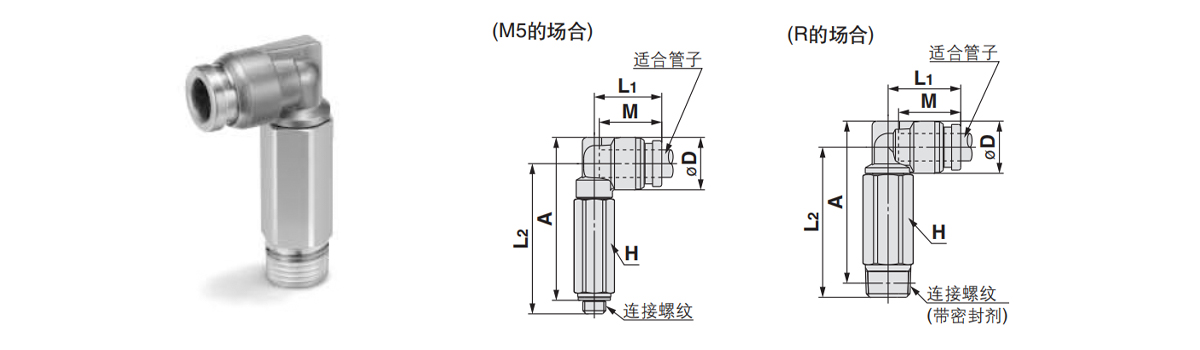

    Long elbow: KQB2W
    Suitable for pipe outer diameter mm Connection thread
    R,M    		 Model H
    Hexagonal opposite sides    		 ØD Note 1) L1 L A※  M Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Ø3.2 M5×0.B KCB2W23-M5 8  8.3  13.1  31.2  32.4  12  2.8  13.5
    1/B KCB2W23-01S 10  13.6  31.3  32.3  15.3
    1/4 KQB2W23-02S 14  35.1  34.5  34.7
    Ø4 M5×0.B KCB2W04-M5 8  9.1  13.7  31.6  33.2  12.6  3  14.1
    1/B KQB2W04-01S 10  14.4  31.7  33.1  4  16.2
    1/4 KQB2W04-028 14  35.5  35.3  35.6
    Ø6 M5×0.B KQB2WO8-N5 8  11.4  14.7  32.7  35.4  13.6  3  16
    1/B KQB2W06-01S 10  15.9  32.8  10.9  17.8
    1/4 KOB2W06-028 14  36.6  37.6  37.2
    3/B KQB2W08-03S 17  38  38.6  60.3
    Ø8 1/8 KQB2W08-01S 12  13.7  18.6  37  40.7  16.1  20.5  28.8
    1/4 KOB2W08-028 14  19.1  40.2  42.3  39.2
    3/B KQB2W08-03S 17  41.6  43.3  63.7
    Ø10 1/4 KCB2W10-02S 14  16.6  21  46.6  50.2  17  33.5  42.1
    3/B KOB2W10-03S 17  45.9  49.1  64.5
    1/2 KQB2W10-04S 22  50.1  52  123
    Ø12 1/4 KQB2W12-02S 14  18.7  22.8  47.7  52.3  18.6  47.7  46
    3/B KQB2W12-03S 17  23.8  49  53.2  58.2
    1/2 KQB2W12-04S 22  53.2  56.1  118
    Ø16 3/8 KQB2W16-03S 19  24.6  28.3  57.6  64.1  20.8  71  89.6
    1/2 KGB2W16-04S 22  27.3  61.4  66.6  100  116
    ※Reference dimensions after screwing in the F thread.
    Note 1) ØD means maximum diameter.
    Note 2) Indicates values when using FEP tubes.
       Ø18 indicates values when using nylon tubes only.

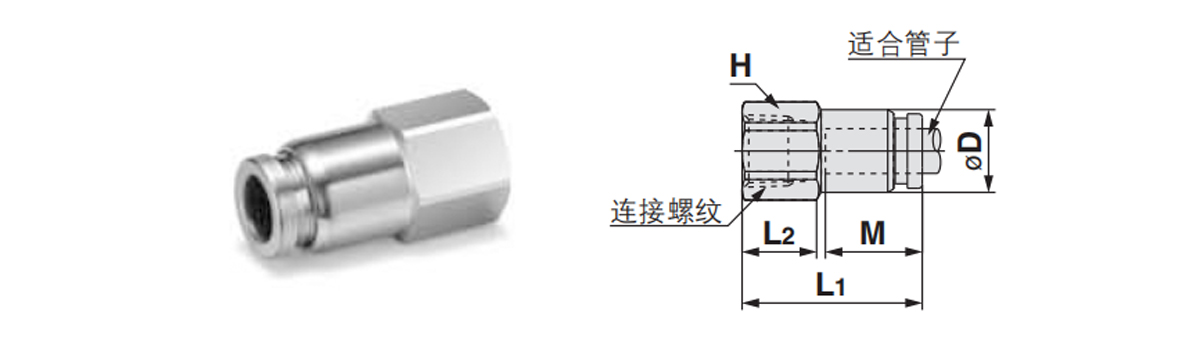

    Internal thread straight through: KQB2F
    Suitable for pipe outer diameter mm Connection thread
    Rc    		 Model H
    （Hexagonal opposite sides)    		 ØD Note 1) L1 L2 M Note 2)
    Effective cross-sectional area mm²    		 Quality g
    Ø3.2 1/8 KQB2F23-01 12    8  23.3  9.8  12  3.4  9.3
    Ø4 1/8 KQB2F04-01 12    8.7  23.7  9.8  12.6  5.6  9.7
    1/4 KQB2F04-02 17  28.7  13.2  22.7
    Ø6 1/8 KQB2F06-01 12  11.1  24.2  10  13.6  13.1  11.1
    1/4 KQB2F06-02 17  28.2  13.4  24.3
    3/8 KQB2F06-03 19  30.6  14.2  25.8
    Ø8 1/8 KQB2F08-01 14  13.4  26.3  9.6  16.1  26.1  17.1
    1/4 KQB2F08-02 17  31.3  13.7  26.8
    38  KQB2F08-03 19  32.7  14.4  28.4
    Ø10 1/4 KQB2F10-02 17  16.4  31.6  13.9  17  41.5  30.3
    3/8 KQB2F10-03 19  33  14.7  32
    Ø12 1/4 KQB2F12-02 19  18.5  32.6  13.3  18.6  58.3  39.4
    38  KQB2F12-03 34  14.7  33.9
    12  KQB2F12-04 24  38.3  18.4  52.9
    Ø16 3/8 KOB2F16-03 24  24.6  35.3  13.5  20.8  81  82.8
    1/2 KQB2F16-04 40.6  18.8  113  59.9
      Note 1) ØD means maximum diameter.
      Note 2) Indicates values when using FEP tubing.
          Ø16 indicates values when using nylon tubing only.

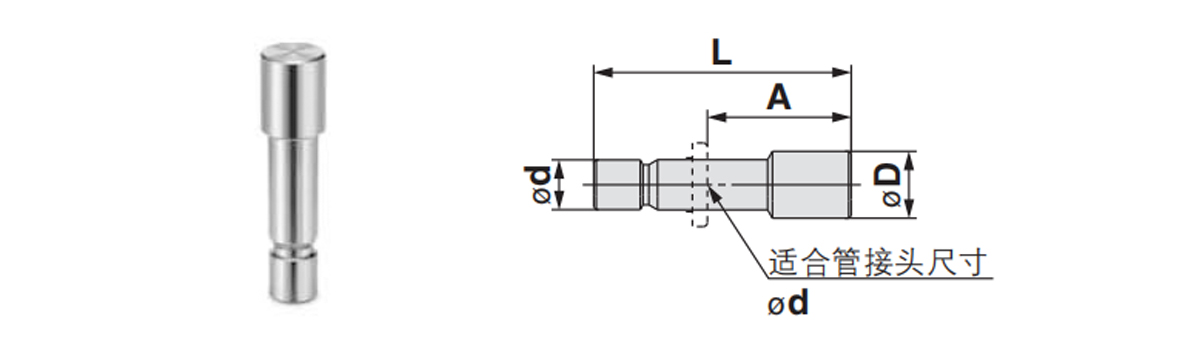

    Plug: KQG2P
    Suitable pipe joint size od Model ØD L A Quality g
    Ø3.2 KQB2P-23 5  28.9  18.9  2.8
    Ø4 KQB2P-04 6  29.6  17  4.3
    Ø6 KQB2P-0B 8  30.8  172  9
    Ø8 KQB2P-08 10  33.7  17.6  16.3
    Ø10 KQB2P-10 12  34.6  17.6  25.4
    Ø12 KQB2P-12 14  36.5  17.9  37.8
    Ø16 KQB2P-16 18  38.8  17.8  89.2
