CA2 Series Standard Cylinders

Home / Products / Air Cylinder / Standard Cylinder / CA2 Series Standard Cylinders

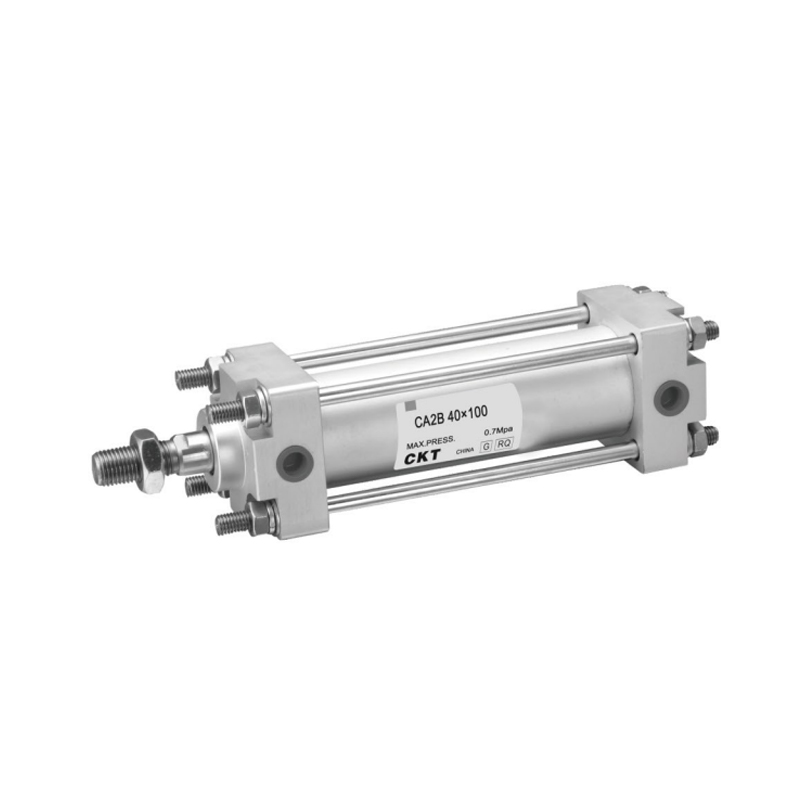

CA2 Series Standard Cylinders
  • CA2 Series Standard Cylinders
Standard Cylinder

CA2 Series Standard Cylinders

1. The mass is 5~15% lighter than the CA1 series;
2. The buffering capacity is improved, and the piston rod will not extend rapidly;
3. The buffer valve is easier to adjust, and the buffer valve does not expose the cylinder head surface;
4. The kinetic energy that can be absorbed can be increased by up to 30% compared with the CA1 series, and the life of the buffer seal can be extended by about 5 times;
5. The downward bending amount of the piston rod is about 5~10% less than that of the CA1 series;
6. The installation dimensions are the same as the CA1 series;
7. In addition to Rc, the pipe thread also has NPT thread and G thread.

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：SE Series Standard Cylinder (No Tie Rod Type)

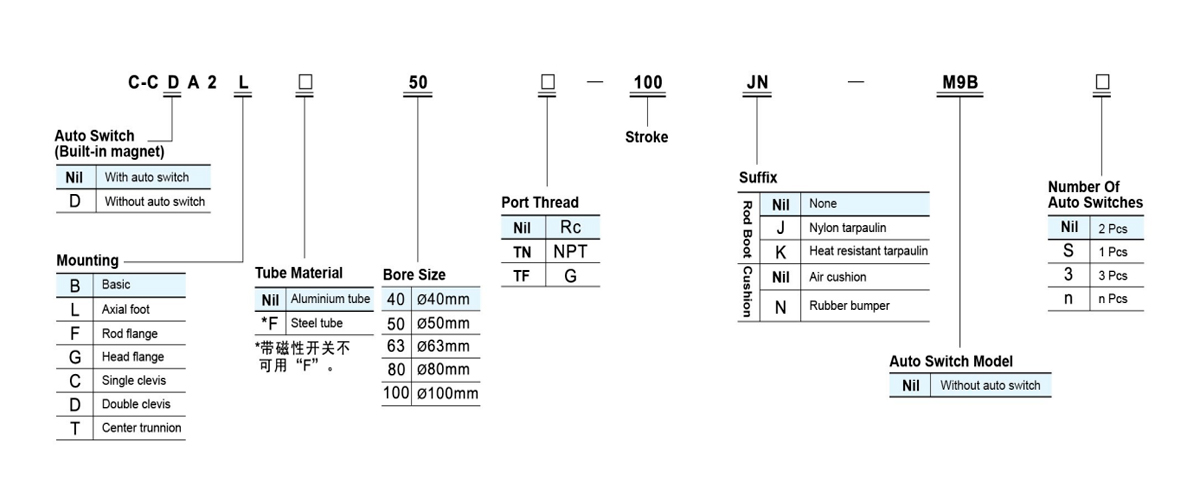

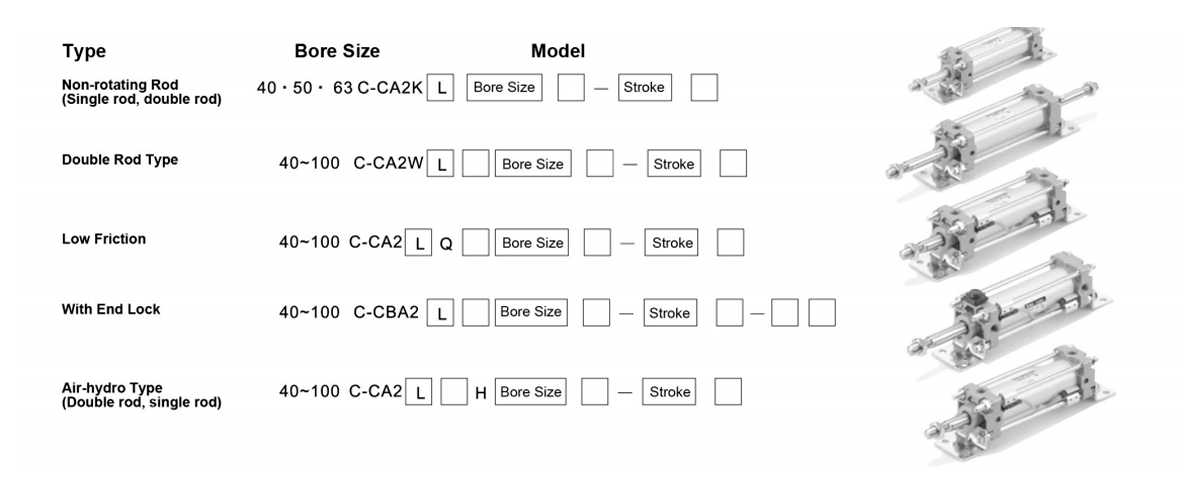

  • Bore Size(mm) 40 50 63 80 100
    Operating Pressure Range 0.05~1.0MPa
    Ambient And Fluid Temperature Without auto switch:-10℃~+70℃,With auto switch:-10℃~+60℃
    Operating Piston Speed 50~500mm/s
    Cushion Air cushion
    Stroke Length Tolerance(mm) ~250:1°,251~1000:14,1001~1500:1-8
    Lubrication Not required
    Port Size(Rc) 45661 45724 45659

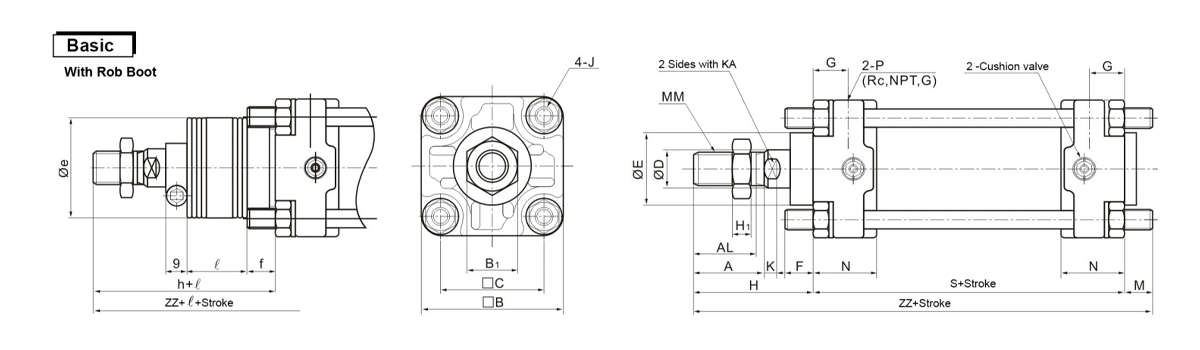

  • Bore
    Size
    (mm)    		 Stroke Range(mm) A AL □B B1 □C D E F G H₁ J K KA M MM N P S Without Rod Boot With Rod Boot
    Without
    Rod  Boot    		 With Rod Boot H ZZ e f h ZZ
    40 ~500 20~500 30 27 60 22 44 16 32 10 15 8 M8×1.25 6 14 11 M14×1.5 27 45661 84 51 146 43 11.2 59 1/4 Stroke 154
    50 ~600 20~600 35 32 70 27 52 20 40 10 17 11 M8×1.25 7 18 11 M18×1.5 30 45724 90 58 159 52 11.2 66 1/4 Stroke 167
    63 ~600 20~600 35 32 85 27 64 20 40 10 17 11 M10×1.5 7 18 14 M18×1.5 31 45724 98 58 170 52 11.2 66 1/4 Stroke 178
    80 ~750 20~750 40 37 102 32 78 25 52 14 21 13 M12×1.75 10 22 17 M22×1.5 37 45659 116 71 204 65 12.5 80 1/4 Stroke 213
    100 ~750 20~750 40 37 116 41 92 30 52 14 21 16 M12×1.75 10 26 17 M26×1.5 40 45659 126 72 215 65 14 81 1/4 Stroke 224

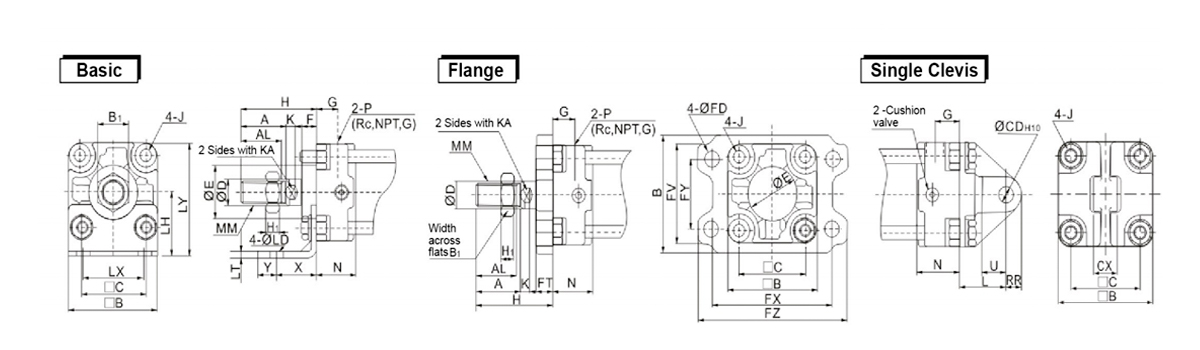

    Bore
    Size
    (mm)    		 Foot Foot Single Clevis
    Components No LH LX LY X Y LT LD Components No FT FD B FV FX FY FZ Components No CD U L RR CX
    40 CA2-L04 40 42 70 27 13 3.2 9 CA2-F04 12 9 71 60 80 42 100 CA2-C04 10 +0.058 16 30 10 15 -0.1
    0 -0.3
    50 CA2-L05 45 50 80 27 13 3.2 9 CA2-F05 12 9 81 70 90 50 110 CA2-C05 12 +0.058 19 35 12 15 -0.1
    0 -0.3
    63 CA2-L06 50 59 93 34 16 3.2 11.5 CA2-F06 15 11.5 101 86 105 59 130 CA2-C06 16 +0.058 23 40 16 25 -0.1
    0 -0.3
    80 CA2-L08 65 76 116 44 16 4.5 13.5 CA2-F08 18 13.5 119 102 130 76 160 CA2-C08 20 +0.058 28 48 20 31.5 -0.1
    0 -0.3
    100 CA2-L10 75 92 133 43 17 6 13.5 CA2-F10 18 13.5 133 116 150 92 180 CA2-C10 25 +0.058 36 58 25 35.5 -0.1
    0 -0.3

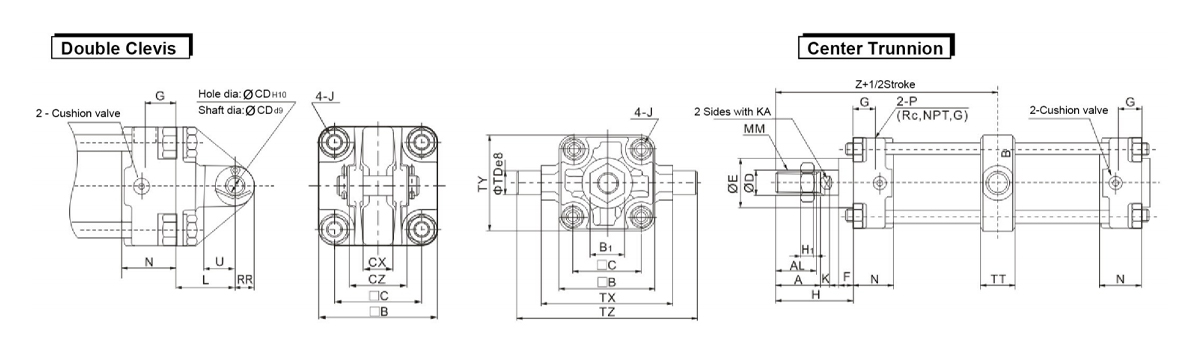

      Bore
      Size
       (mm)    		 Double Clevis  Center Trunnion
    Components No CD U L RR CX CZ TY TD TX TZ TT
    40 CA2-D04 10 +0.058 16 30 10 15 +0.1 29.5 62 15 -0.032 85 117 22 CA2-S04
    0 +0.3 -0.059
    50 CA2-D05 12 +0.07 19 35 12 18 +0.1 38 74 15 -0.032 95 127 22 CA2-S05
    0 +0.3 -0.059
    63 CA2-D06 16 +0.07 23 40 16 25 +0.1 49 90 28 -0.032 110 148 28 CA2-S06
    0 +0.3 -0.059
    80 CA2-D08 20 +0.084 28 48 20 31 +0.1 61 110 25 -0.04 140 192 34 CA2-S08
    0 +0.3 -0.073
    100 CA2-D10 25 +0.084 36 58 25 35 +0.1 64 130 25 -0.04 162 214 40 CA2-S10
    0 +0.3 -0.073

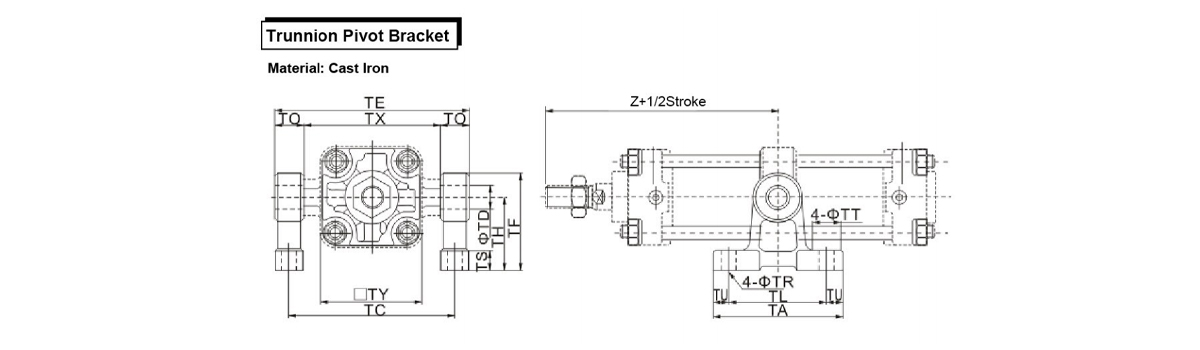

    Model Bore
    Size
    (mm)    		 TA TL TU TC TX TE TO TR TT TS TH TF TY Z TD-H10
    (Hole)
    C-CA2-S04- 40 80 60 10 102 85 119 17 9 17 12 45 60 62 93 15 -0.070
    0
    50 80 60 10 112 95 129 17 9 17 12 45 60 74 103 15 -0.070
    0
    C-CA2-S06 63 100 70 15 130 110 150 20 11 22 14 55 73 90 107 28 -0.070
    0
    C-CA2-S10- 80 120 90 15 166 140 192 26 13.5 24 17 75 100 110 129 25 -0.084
    0
    100 120 90 15 188 162 214 26 13.5 24 17 75 100 130 135 25 -0.084
    0

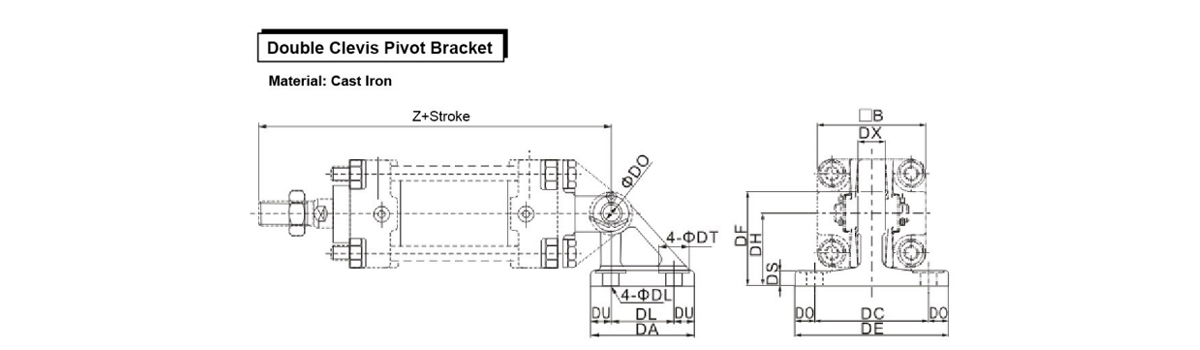

    Model Bore
    Size
    (mm)    		 DA DL DU DC DX DE DO DR DT DS DH DF B Z TD-H10
    (Hole)
    C-CA2-B04 40 57 35 11 65 15 85 10 9 17 8 40 52 60 165 10 +0.058
    0
    C-CA2-B05 50 57 35 11 65 18 85 10 9 17 8 40 52 70 183 12 +0.070
    0
    C-CA2-B06 63 67 40 13.5 80 25 105 12.5 11 22 10 50 66 85 196 16 +0.070
    0
    C-CA2-B08 80 93 60 16.5 100 31.5 130 15 13.5 24 12 65 90 102 235 20 +0.084
    0
    C-CA2-B10 100 93 60 16.5 100 35.5 130 15 13.5 24 12 65 90 116 256 25 +0.084
    0

    Rotating Angle
    Bore Size(mm) A° B° A°+B°+90°
    40
    100    		 12° 60° 162°

    Material:Cast    Iron

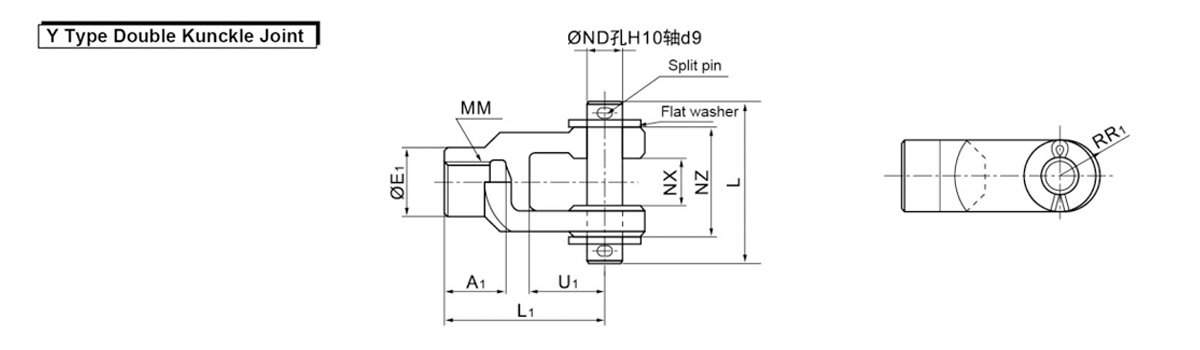

    Model Applicable Bore Size
    (mm)    		 A1 E1 L1 MM RR1 U1 ND NX NZ L Split Pin Size Flat Washer Size
    Y-04D 40 22 24 55 M14×1.5 13 25 12 16 +0.3 38 55.5 Ø3×180ℓ Polished round 12
    +0.1
    Y-05D 50 ·63 27 28 60 M18×1.5 15 27 12 16 +0.3 38 55.5 Ø3×180ℓ Polished round 12
    +0.1
    Y-08D 80 37 36 71 M22×1.5 19 28 18 28 +0.3 55 76.5 Ø4×250ℓ Polished round 18
    +0.1
    Y-10D 100 37 40 83 M26×1.5 21 38 20 30 +0.3 61 83 Ø4×300ℓ Polished round 20
    +0.1
    *Elbow joint with pin, split pin, and flat washer.

    Material:Carbon   Steel

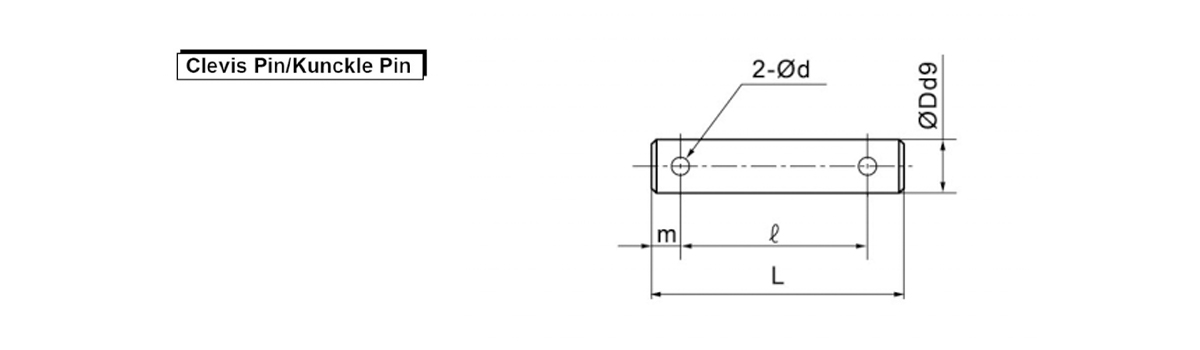

    Model Applicable Bore Size(mm) Dd9 L ℓ m d
    Drill
    Through    		 Included Split Pin Included Flat Washer
    Clevis Kunckle
    CDP-2A 40 - 10 -0.040 46 38 4 3 Ø3×180ℓ Polished round 10
    -0.076 46
    CDP-3A 50 40 ·50 ·63 12 -0.050 55.5 47.5 4 3 03×180ℓ Polished round 12
    -0.093
    CDP-4A 63 - 16 -0.050 71 61 5 4 Ø4×250ℓ Polished round 16
    -0.093
    CDP-5A - 80 18 -0.050 76.5 66.5 5 4 Ø4×250ℓ Polished round 18
    -0.093
    CDP-6A 80 100 20 -0.065 83 73 5 4 Ø4×300ℓ Polished round 20
    -0.117
    CDP-7A 100 - 25 -0.065 88 78 5 4 Ø4×360ℓ Polished round 24
    -0.117

    Material:Free Cutting Sulfur Steel

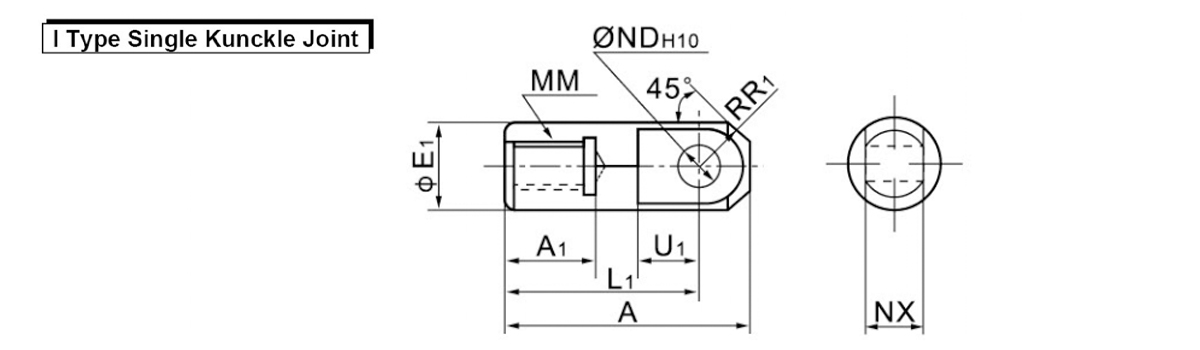

    Model Applicable
    Bore Size    		 A A₁ E1 L1 MM R₁ U1 NDH10 NX
    I-04A 40 69 22 24 55 M14×1.5 15.5 20 120°.070 +0.070 0.672257 -0.1
    0 -0.3
    I-05A 50 ·63 74 27 28 60 M18×1.5 15.5 20 128°-070 +0.070 0.666701 -0.1
    0 -0.3
    I-08A 80 91 37 36 71 M22×1.5 22.5 26 180.07 +0.070 280:3 -0.1
    0 -0.3
    I-10A 100 105 37 40 83 M26×1.5 24.5 28 2080.084 +0.084 30°:3 -0.1
    0 -0.3

    Material:Rolled Steel
    Model Applicable
    Bore Size    		 d H B C D
    NT-04 40 M14×1.5 8 22 25.4 21
    NT-05 50 ·63 M18×1.5 11 27 31.2 26
    NT-08 80 M22×1.5 13 32 37 31
    NT-10 100 M26×1.5 16 41 47.3 39
