SE Series Standard Cylinder (No Tie Rod Type)
  • SE Series Standard Cylinder (No Tie Rod Type)
Standard Cylinder

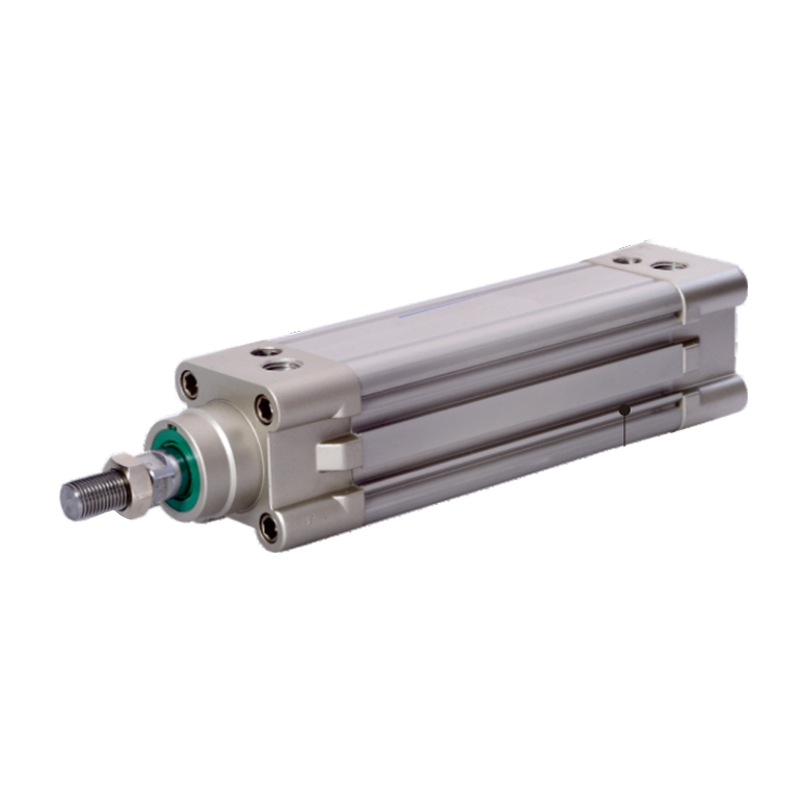

SE Series Standard Cylinder (No Tie Rod Type)

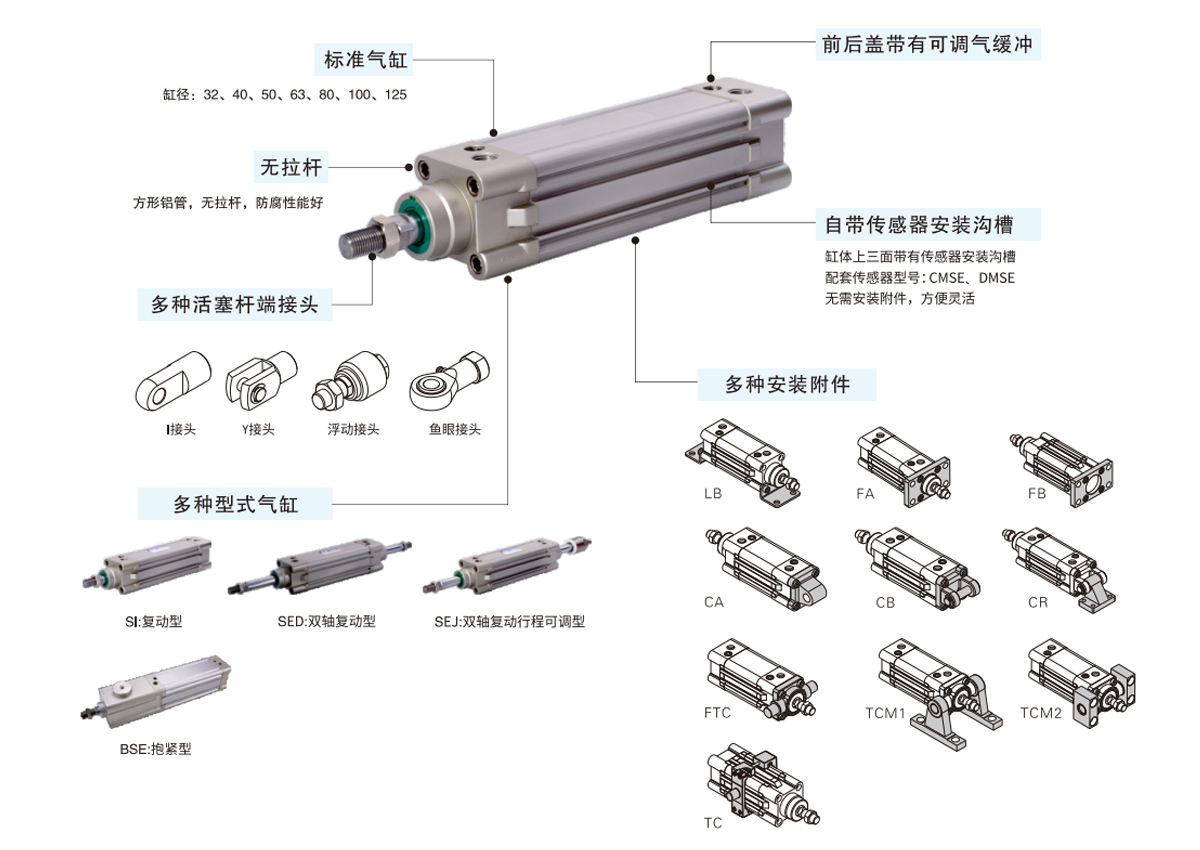

1. The piston seal adopts a special-shaped two-way sealing structure with compact size and oil storage function;
2. Square aluminum tube, no tie rod, good anti-corrosion performance;
3. The cylinder buffer adjustment is stable;
4. Cylinders and cylinder installation accessories of various specifications are available for customers to choose.

E-mail: manager@cktworld.com
Download
PREV：CA2 Series Standard Cylinders
NEXT：SI Series Standard Cylinder (No Tie Rod Type)
  • Inner diameter (mm)     32  40  50  63  80  100  125
    Operating mode    Reciprocating type
    Working medium Air (filtered through a 40μm filter)

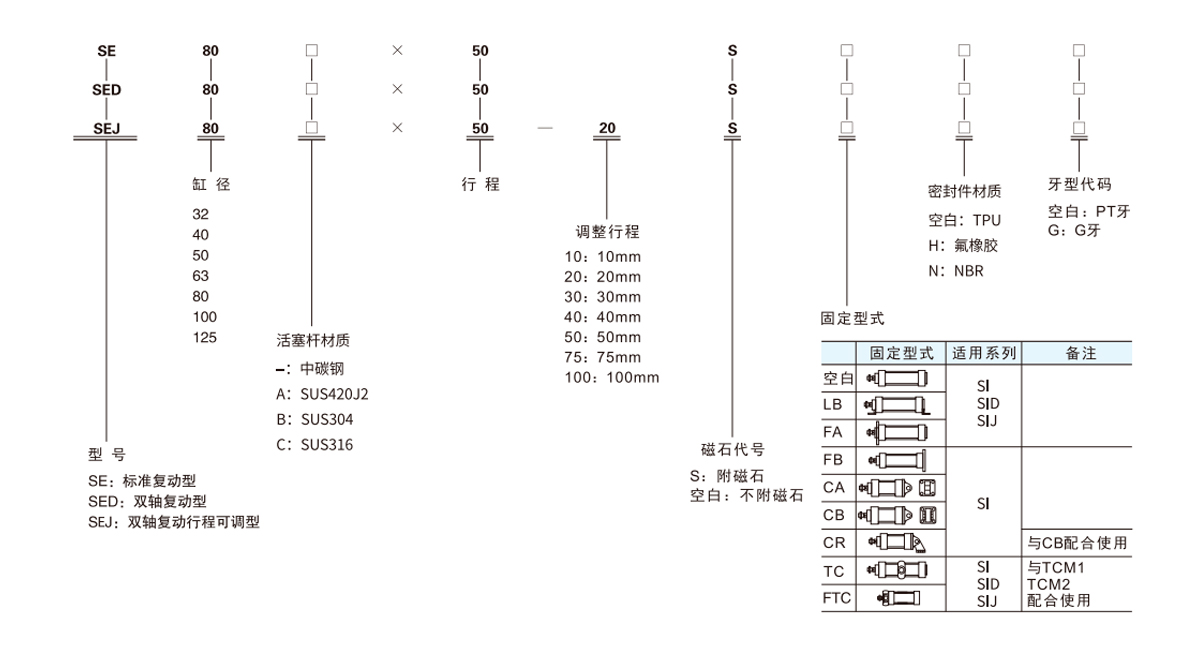

    Fixed type SE Series Basic type FA FB CA CB CR LB TC TCM1 TCM2 FTC
    SE D, SE J series Basic type FA LB TC TCM1 TCM2 FTC
    Operating pressure range 0.15~1.0MPa(22~145psi)(1.5~10.0bar)
    Guaranteed pressure resistance 1.5MPa(215psi)(15bar)
    Working temperature °C -20~70
    Operating speed range mm/s 30~800 30~500
    Travel tolerance range 0~250+60251~1000+151001~1500+20
    Buffer type Adjustable buffer
    Buffer stroke mm 27  30  36  40
    *Takeover diameter PT1/8 PT1/4 PT3/8 PT1/2
    *NPT and G thread types are available for the connection.

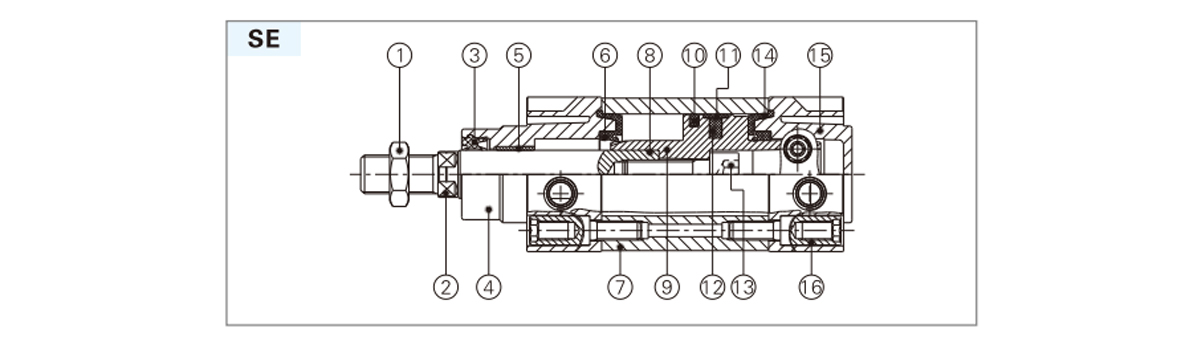

  • Name Material Name Material
    1  Nut Carbon steel/stainless steel 9  Piston Aluminium alloy
    2  Piston rod S45C hard chrome-plated grinding rod 10  Piston O-ring TPU
    Stainless steel Wear-resistant material
    3  Front cover O-ring TPU 11  Wear ring Plastic (φ100 or less)
    4  Front cover Aluminium alloy 12  Magnet Rubber (other)
    5  Bushing Wear-resistant material 13  Hexagon socket bolt Carbon steel
    6  Buffer O-ring TPU 14  Buffer seal pad TPU
    7  Cylinder body Aluminium alloy 15  Back cover Aluminium alloy
    8  Piston rod O-ring NBR 16  Support nut Carbon steel/stainless steel

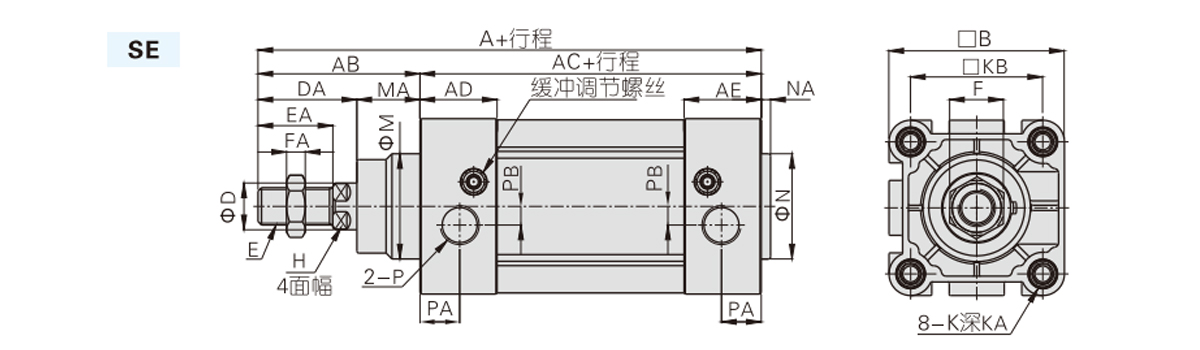

    Cylinder diameter/symbol A AB AC AD AE B D DA   E EA F FA M MA H K KA KB N NA P PA PB
    32  142  48  94  27.5  27.5  46.5  12  29  M10×1.25 22  17  6  30  19  10  M6 16  32.5  30  3  PT1/8 13.5  6
    40  159  54  105  32  32  54  16  33  M¹2×1.25 24  17  7  35  21  13  M6 17  38  35  3.5  PT1/4 17.5  6
    50  175  69  106  31  31  64  20  42  M16×1.5 32  23  8  40  27  17  M8 17  46.5  40  3.5  PT1/4 14  8
    63  190  69  121  33  33  75  20  42  M16×1.5 32  23  8  45  27  17  M8 17  56.5  45  4  PT3/8 17  8
    80  214  86  128  33  33  93  25  53  M20×1.5 40  26  10  45  33  22  M10 19  72  45  4  PT3/8 16.5  8
    100  229  91  138  37  37  110  25  55  M20×1.5 40  26  10  55  36  22  M10 19  89  55  4  PT1/2 19.5  10
    125  279  119  160  46  46  134  32  74  M27×2.0 54  41  13.5  60  45  27  M12 22  110  60  4  PT1/2 23  11
    Note: The dimensions of the magnetic type and non-magnetic type are the same.

    Cylinder diameter/symbol A AB AC DA DB E FA
    规格代号 SED SEJ
    32  190  188  48  94  29  27  M10X1.25 6
    40  213  208  54  105  33  28  M12X1.25 7
    50  244  231  69  106  42  29  M16X1.5 8
    63  259  246  69  121  42  29  M16X1.5 8
    80  300  282.5  86  128  53  35.5  M20X1.5 10
    100  320  300.5  91  138  55  35.5  M20X1.5 10
    125  398  366.5  119  160  74  42.5  M27X2.0 13.5
    Note: The dimensions of magnetic and non-magnetic types are the same. Dimensions not specified are the same as SI standard types.
