SC Series (Tie Rod Type) Standard Cylinder

Home / Products / Air Cylinder / Standard Cylinder / SC Series (Tie Rod Type) Standard Cylinder

SC Series (Tie Rod Type) Standard Cylinder SC Series (Tie Rod Type) Standard Cylinder
  • SC Series (Tie Rod Type) Standard Cylinder
  • SC Series (Tie Rod Type) Standard Cylinder
Standard Cylinder

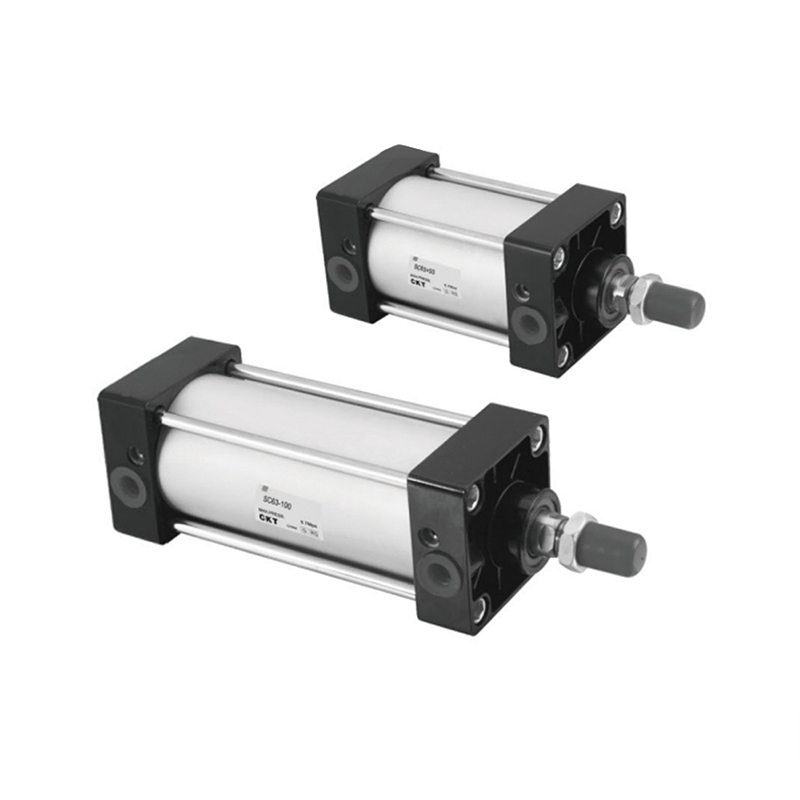

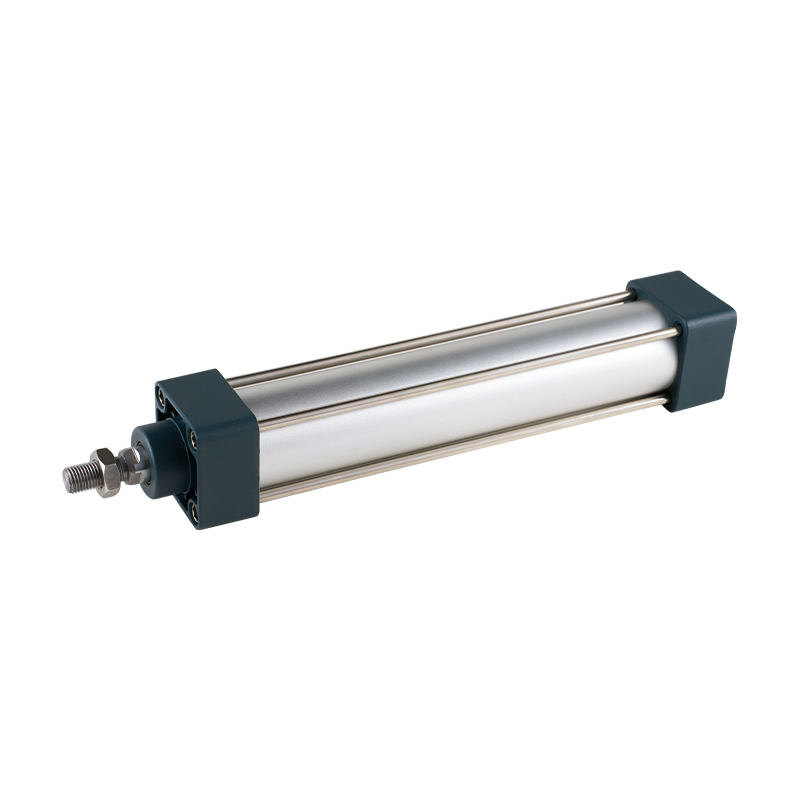

SC Series (Tie Rod Type) Standard Cylinder

1. The piston seal adopts a special-shaped bidirectional sealing structure with compact size and oil storage function;
2. It is a tie rod cylinder, and the front and rear covers are connected to the aluminum tube cylinder body with pillars, which has good reliability;
3. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same cylinder diameter is smaller;
4. The cylinder buffer adjustment is stable;
5. Cylinders and cylinder installation accessories of various specifications are available for customers to choose;
6. Select high temperature resistant sealing materials to ensure the normal operation of the cylinder under 150℃ conditions.

E-mail: manager@cktworld.com
Download
PREV：MBB Series Standard Cylinder
NEXT：No next article
  • Bore Size (mm) 32 40 50 63 80 100
    Action Double acting
    Fluid Air(to be filtered by 40μm filter element)

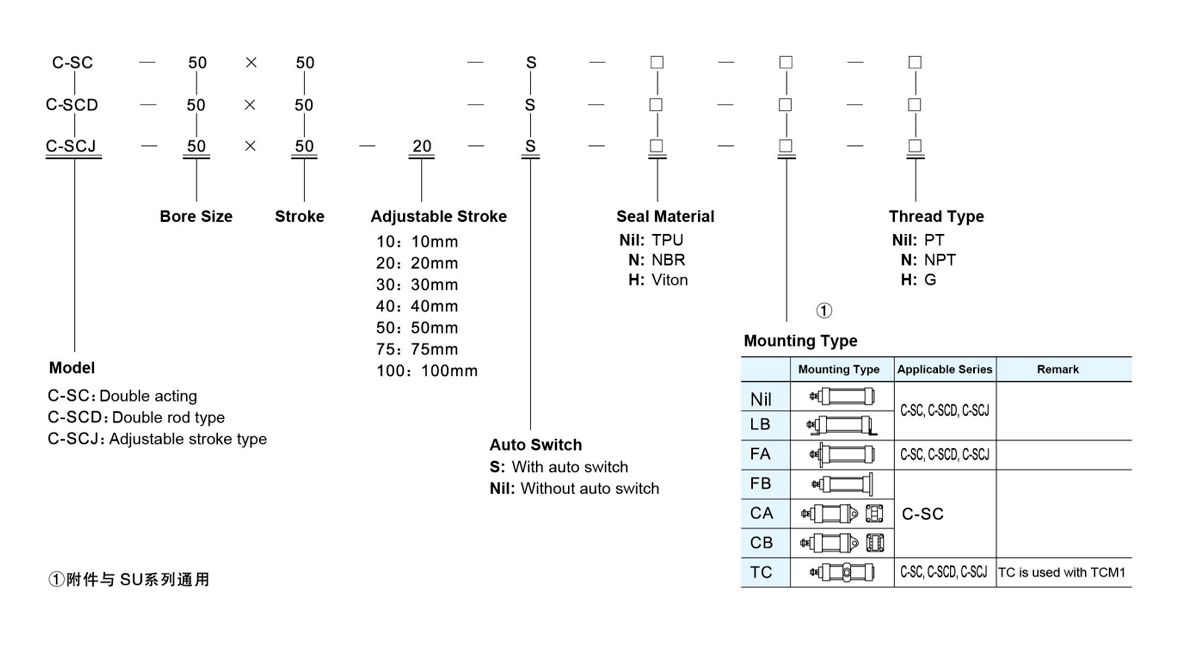

    Mounting
    Type    		 C-SC series Bacis FA FB CA CB LB TC TCM1
    C-SCD,C-SCJ series Bacis FA LB TC TCM1
    Operating Preessure Range 0.1~1.0MPa(14~145Psi)
    Proof Pressure 1.5MPa(215Psi)
    Operating Temperature(℃) -20~80
    Operating Speed Range (mm/s) 30~800
    Stroke Length Tolerance 0~250+1 251~1000+1.4 1001~1500+1.8
    Cushion Adjustable cushhion
    Cushion Stroke(mm) 21 28 29
    *Port Size PT1/8 PT1/4 PT3/8 PT1/2
    *NPT and G thread types are available for the connection.

  • Bore Sizel
    Symbol    		 A B C D E F G H I J K L M N O P Q R S T V W
    32 140 47 93 28 32 15 27.5 22 17 6 M10×1.25 M6×1 9.5 13.7 G1/8” 3.5 7.5 7 45 33 12 10
    40 142 49 93 32 34 15 27.5 24 17 7 M12×1.25 M6×1 9.5 13.5 G1/4” 6 8.2 9 50 37 16 14
    50 150 57 93 38 42 15 27.5 32 23 8 M16×1.5 M6×1 9.5 13.5 G1/4” 8.5 8.2 9 62 47 20 17
    63 153 57 96 38 42 15 27.5 32 23 8 M16×1.5 M8×1.25 9.5 13.5 G3/8” 7 8.2 8.5 75 56 20 17
    80 182 75 108 47 54 21 33 40 26 10 M20×1.5 M10×1.5 11.5 16.5 G3/8” 10 9.5 14 94 70 25 22
    100 189 75 114 47 54 21 33 40 26 10 M20×1.5 M10×1.5 11.5 16.5 G1/2” 11 9.5 14 112 84 25 22
    125 246 101 145 57 69 32 40 54 39 11 M27×2 M12×1.75 15 20 G1/2” - - - 140 110 32 29
    160 315 135 180 65 80 36 50 60 52 14 M36×2 M16×2 15 25 G3/4” - - - 180 140 40 36
    200 334 149 185 80 80 48 50 60 52 14 M36×2 M16×2 30 25 G3/4” - - - 220 175 50 46
    250 384 189 195 90 119 70 50 84 65 21 M42×2 M20×2.5 30 25 G3/4” - - - 280 220 50 46
    320 440 206 234 110 126 80 55 96 75 24 M48×2 M24×3 40 27.5 G1” - - - 350 280 70 65
    400 440 190 250 128 110 80 60 70 85 28 M56×4 M30×3.5 40 30 G1” - - - 430 350 80 76

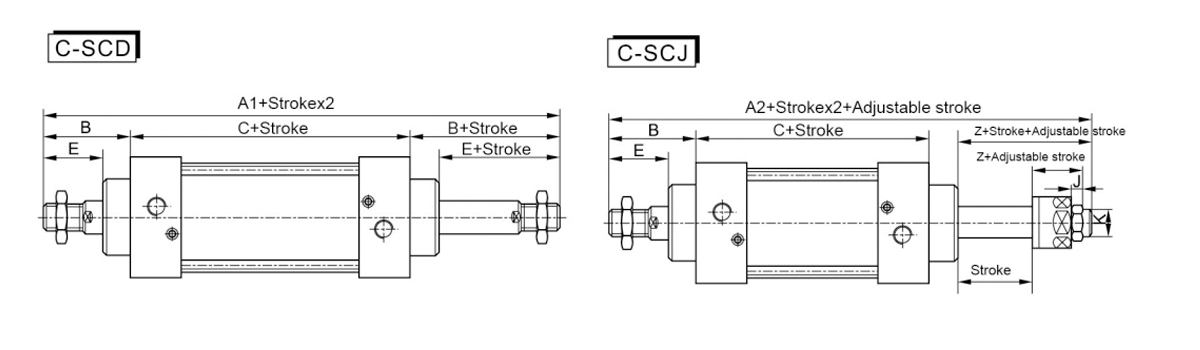

    Bore Size/Symbol A1 A2 B C E Z J K
    32 187 182 47 93 32 27 6 M10×1.25
    40 191 185 49 93 34 28 7 M12×1.25
    50 207 194 57 93 42 29 8 M16×1.5
    63 210 197 57 96 42 29 8 M16×1.5
    80 257 238.5 75 107 54 35.5 10 M20×1.5
    100 263 244.5 75 113 54 35.5 10 M20×1.5
    Remark:
    1.The dimensions of magnet type cylinder are the same as non-magnet type cylinder
    2.The same size as C-SC standard type for the Model not show the size
