MBB Series Standard Cylinder

Home / Products / Air Cylinder / Standard Cylinder / MBB Series Standard Cylinder

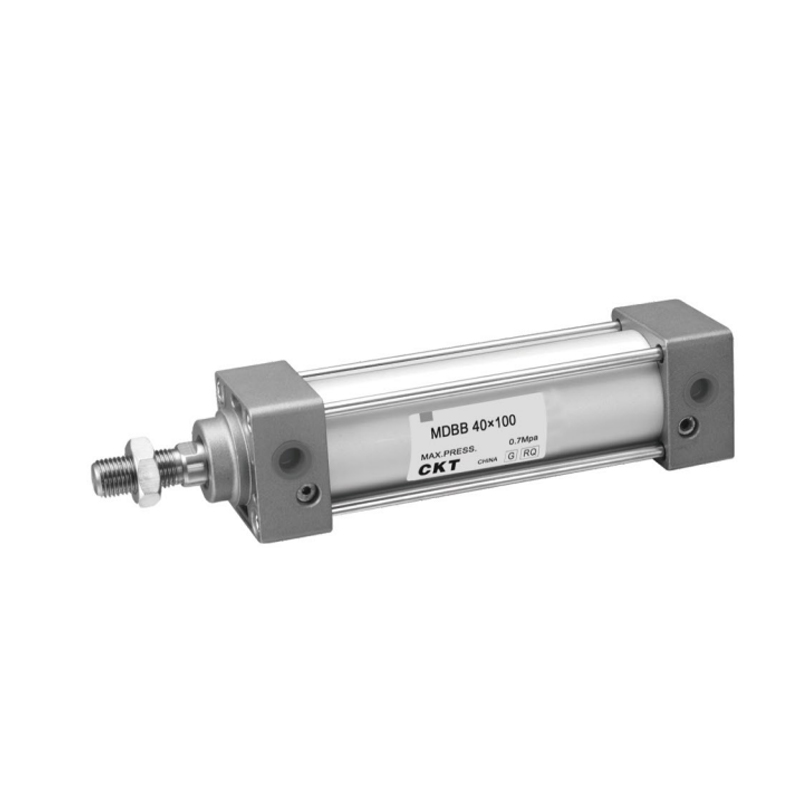

MBB Series Standard Cylinder
  • MBB Series Standard Cylinder
Standard Cylinder

MBB Series Standard Cylinder

1. The piston seal adopts a special-shaped bidirectional sealing structure with compact size and oil storage function;
2. It is a tie rod cylinder, and the front and rear covers are connected to the aluminum tube cylinder body with pillars, which has good reliability;
3. Compared with ISO15552 standard cylinders, the length of MBB series cylinders with the same cylinder diameter is smaller;
4. The cylinder buffer adjustment is stable;
5. Cylinders and cylinder installation accessories of various specifications are available for customers to choose;
6. The selection of high temperature resistant sealing materials can ensure the normal operation of the cylinder under 150℃ conditions.

E-mail: manager@cktworld.com
Download
PREV：SU Series Standard Cylinder (No Tie Rod Type)
NEXT：SC Series (Tie Rod Type) Standard Cylinder

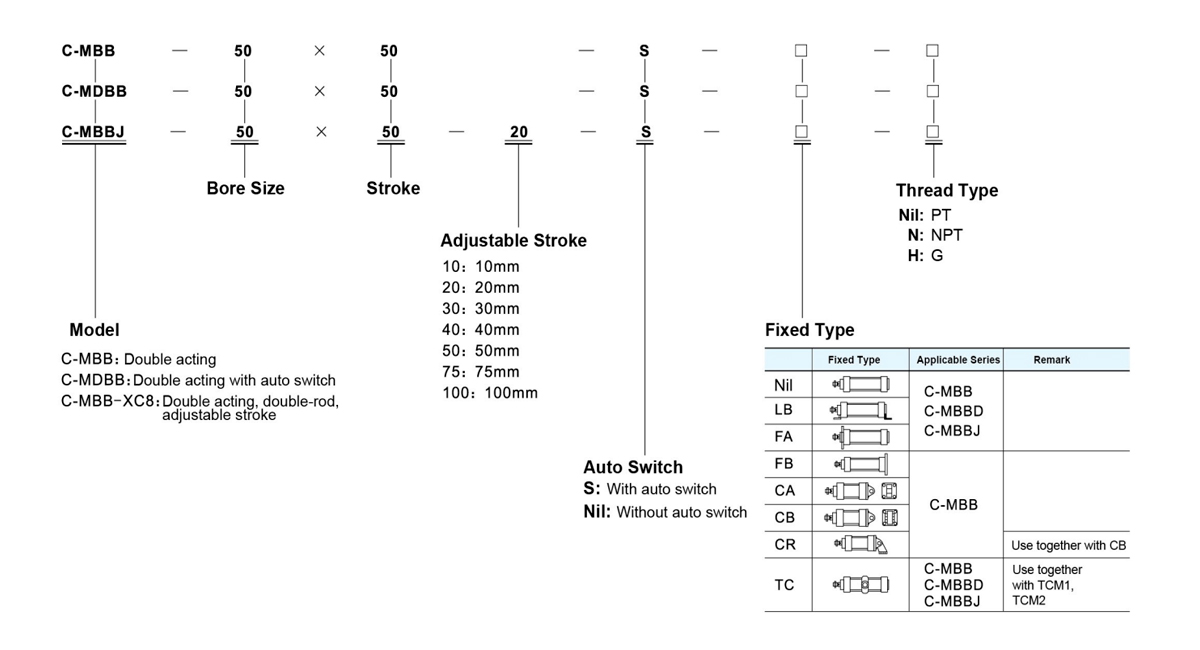

  • Bore Size (mm) 32 40 50 63 80 100 125
    Action Double acting
    Fluid Air(to be filtered by 40μm filter element)
    Fixed
    Type    		 C-MBB series Basic type FA FB CA CB CR LB TC TCM1 TCM2
    C-MBBD,C-MBBJ series Basic type FA LB TC TCM1 TCM2
    Operating Preessure Range 0.1~1.0MPa(14~145psi)
    Proof Pressure 1.5MPa(215psi)
    Operating Temperature(℃) -20~80℃
    Operating Speed Range (mm/s) 30~800 30~500
    Stroke Length Tolerance 0~250+1.0 251~1000+1.4 1001~1500+1.8
    Cushion Adjustable cushhion
    Cushion Stroke (mm) 24 32 37.5 40
    *Port Size PT1/8 PT1/4 PT3/8 PT1/2
    *NPT and G thread types are available for the connection.

  • Symbol/

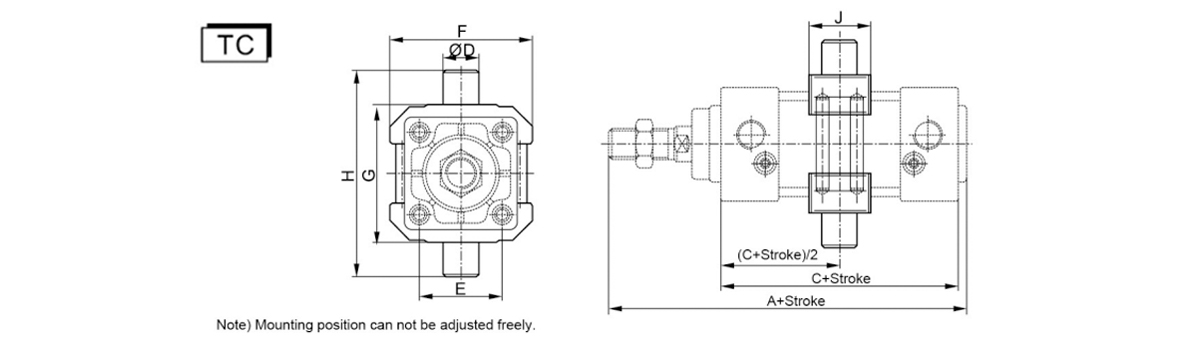

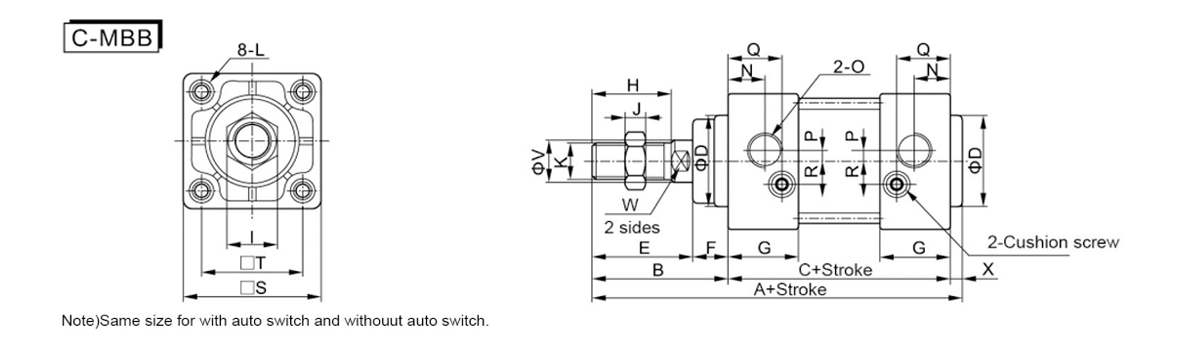

    Bore Size    		 A B C D E F G H 1 J K L N O P Q R S T V W X
    32 135 47 84 30 34 13 27 22 17 6 M10×1.25 M6 13 PT1/8 4 20.5 6.5 46 32.5 12 10 4
    40 139 51 84 35 38 13 27 30 19 8 M14×1.5 M6 14 PT1/4 4 20.5 9 52 38 16 14 4
    50 156 58 94 40 44 14 31.5 35 27 11 M18×1.5 M8 15.5 PT1/4 5 23 10.5 65 46.5 20 18 4
    63 156 58 94 45 44 14 30.5 35 27 11 M18×1.5 M8 16.5 PT3/8 9 23 12 75 56.5 20 18 4
    80 190 72 114 45 52 20 38 40 32 13 M22×1.5 M10 19 PT3/8 11.5 26.5 14 95 72 25 22 4
    100 190 72 114 55 52 20 38 40 36 13 M26×1.5 M10 19 PT1/2 17 28.5 15 114 89 30 26 4
    125 223 97 120 60 70 27 38 54 41 13.5 M27×2 M12 19 PT1/2 17 29 15 137 110 32 27 60

    Symbol /
    Bore Size    		 A1 A2 B C E J J1 Z K K1
    32 178 171 47 84 34 6 6 27 M10×1.25 M10×1.25
    40 186 176 51 84 38 8 7 28 M14×1.5 M12×1.25
    50 210 195 58 94 44 11 8 29 M18×1.5 M16×1.5
    63 210 195 58 94 44 11 8 29 M18×1.5 M16×1.5
    80 258 241.5 72 114 52 13 10 35.5 M22×1.5 M20×1.5
    100 258 248.5 72 114 52 13 13.5 42.5 M26×1.5 M27×2
    125 314 286.5 97 120 70 13.5 13.5 42.5 M27×2 M27×2
    Note)1.Same size for with auto switch and withouut auto switch.
             2.The Model not show is the same size as C-MBB basic type

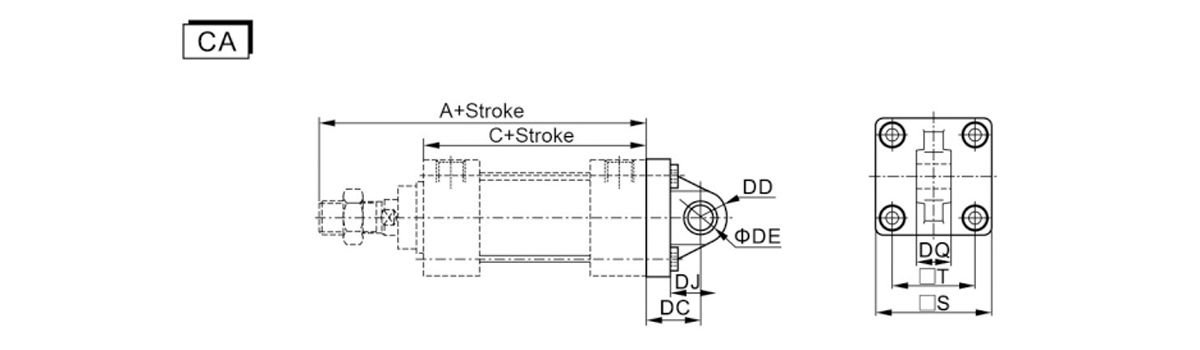

    Symbol/
    Bore Size    		 32 40 50 63 80 100 125
    A 131 135 152 152 186 186 217
    C 84 84 94 94 114 114 120
    S 46 52 65 75 95 114 136
    T 32.5 38 46.5 56.5 72 89 110
    DC 23 23 30 30 42 42 50
    DD 10.5 11 15 15 23 23 28
    DE 10 10 14 14 22 22 25
    DJ 13 13 17 17 27 27 28
    DQ 13.8 13.8 19.8 19.8 29.8 29.8 31.8

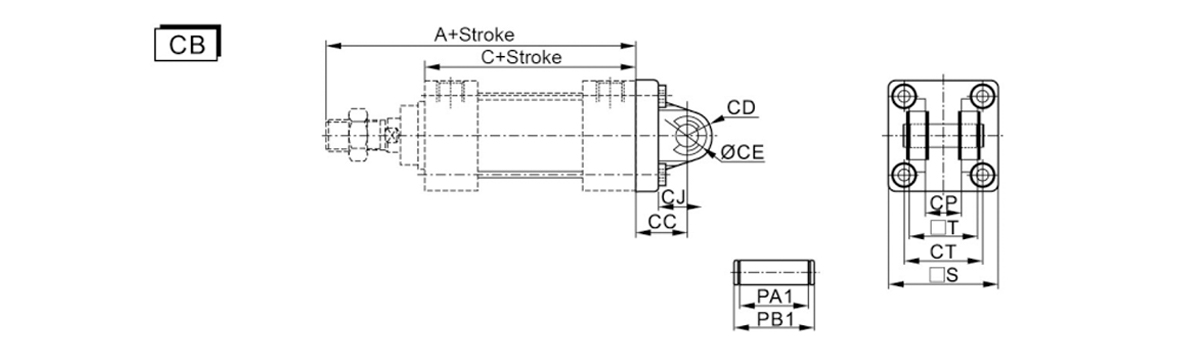

    Symbol /
    Bore Size    		 32 40 50 63 80 100 125
    A 131 135 152 152 186 186 217
    C 84 84 94 94 114 114 120
    CC 23 23 30 30 42 42 50
    CD 10.5 11 15 15 23 23 28
    CE 10 10 14 14 22 22 25
    CJ 14 14 18 18 27 27 32
    CP 14.2 14.2 20.2 20.2 30.2 30.2 32.2
    CT 32.5 38 46.5 56.5 72 89 110
    PA1 28.8 28.8 40.8 40.8 60.8 60.8 64.8
    PB1 34.6 34.6 47 47 69.2 69.2 73.2
    S 46 52 65 75 95 114 136
    T 28 28 40 40 60 60 64

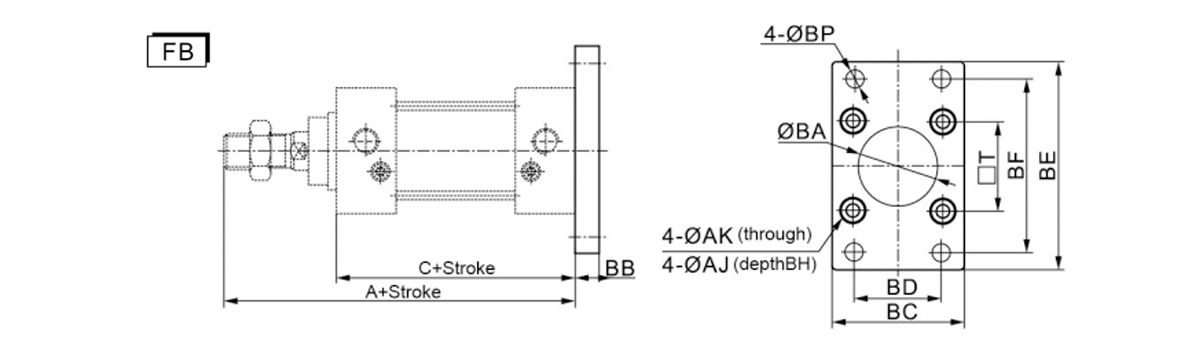

    Symbol /
    Bore Size    		 32 40 50 63 80 100 125
    A 135 139 156 156 190 190 223
    C 84 84 94 94 114 114 120
    D 12 16 16 20 20 25 25
    E 32.5 38 46.5 56.5 72 89 110
    F 52 65 75 90 112 135 170
    G 50 63 75 90 110 132 160
    H 74 95 107 130 150 182 210
    J 22 28 28 30 32 38 40

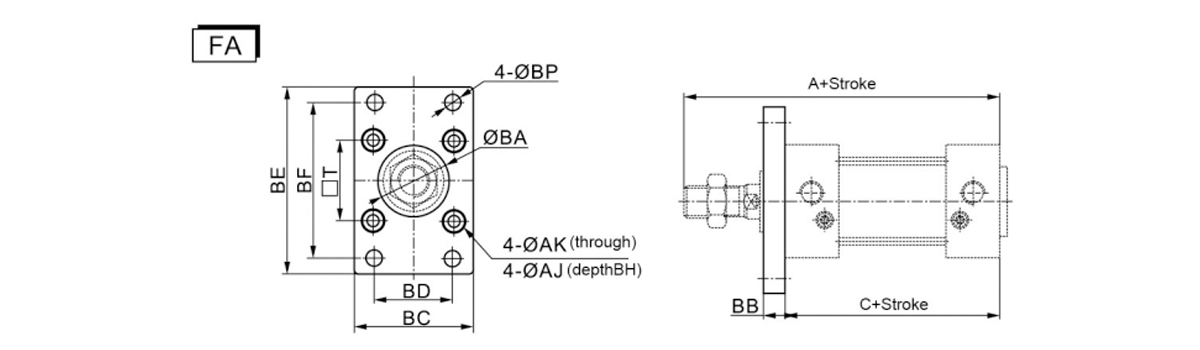

    Symbol/
    Bore Size    		 32 40 50 63 80 100 125
    A 131 135 152 152 186 186 217
    C 84 84 94 94 114 114 120
    AJ 11 11 14 14 17 17 19
    AK 6.5 6.5 9 9 11 11 13
    BA 30.5 35.5 40.5 45.5 45.5 55.5 60.5
    BB 10 10 12 12 16 16 20
    BC 47 53 65 75 95 115 138
    BD 32 36 45 50 63 75 102
    BE 80 90 108 118 150 176 216
    BF 64 72 90 100 126 150 180
    BH 6.5 6.5 8.5 8.5 10.5 10.5 12.5
    BP 7 9 9 9 12.5 14.5 14
    T 32.5 38 46.5 56.5 72 89 110

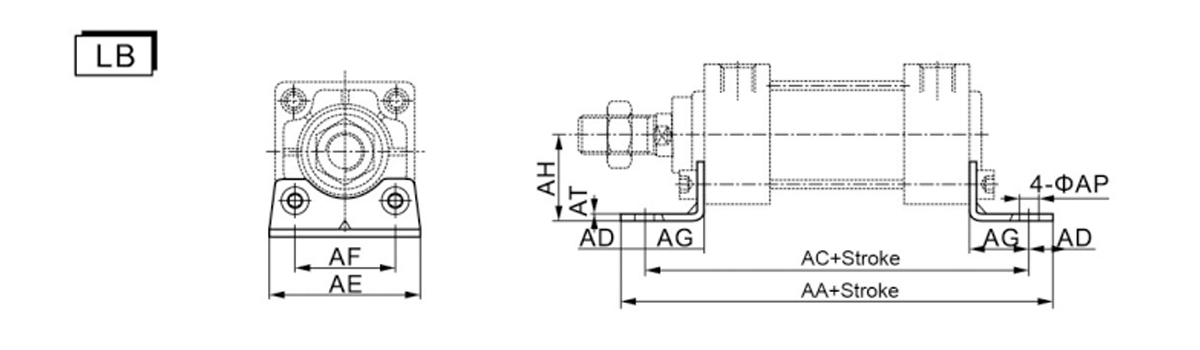

    Symbol/
    Bore Size    		 32 40 50 63 80 100 125
    AA 146 154 170 176 202 210 250
    AC 128 132 148 148 174 178 210
    AD 9 11 11 14 14 16 20
    AE 50 55 70 80 100 120 136
    AF 32 38 46 56 72 89 90
    AG 22 24 27 27 30 32 45
    AH 30 33 40 45 55 65 81
    AP 7 9 9 12 12 14 14
    AT 3 3 3 4 5 5 8

    Symbol /
    Bore Size    		 32 40 50 63 80 100 125
    A 131 135 152 152 186 186 217
    AA 44 44 60 60 86 86 110
    B 62 62 81 81 111 111 136
    C 84 84 94 94 114 114 120
    CC 22 22 30 30 45 45 60
    CD 65 65 84.5 84.5 120 120 143
    CJ 23 23 31.5 31.5 47 47 53
    D 42 42 53 53 73 73 90
    E 6.6 6.6 9 9 11 11 13.5
    F 12 12 15 15 18 18 20
    H 7 7 8 8 10 10 14
    I 13.8 13.8 19.8 19.8 29.8 29.8 31.8
    J 10 10 14 14 22 22 25
    K 33 33 45 45 65 65 75
    L 32 32 43 43 64 64 78
    N 25 25 40 40 30 30 30
    O 45 45 60 60 55 55 50
    N+O+90° 160 160 190 190 175 175 170

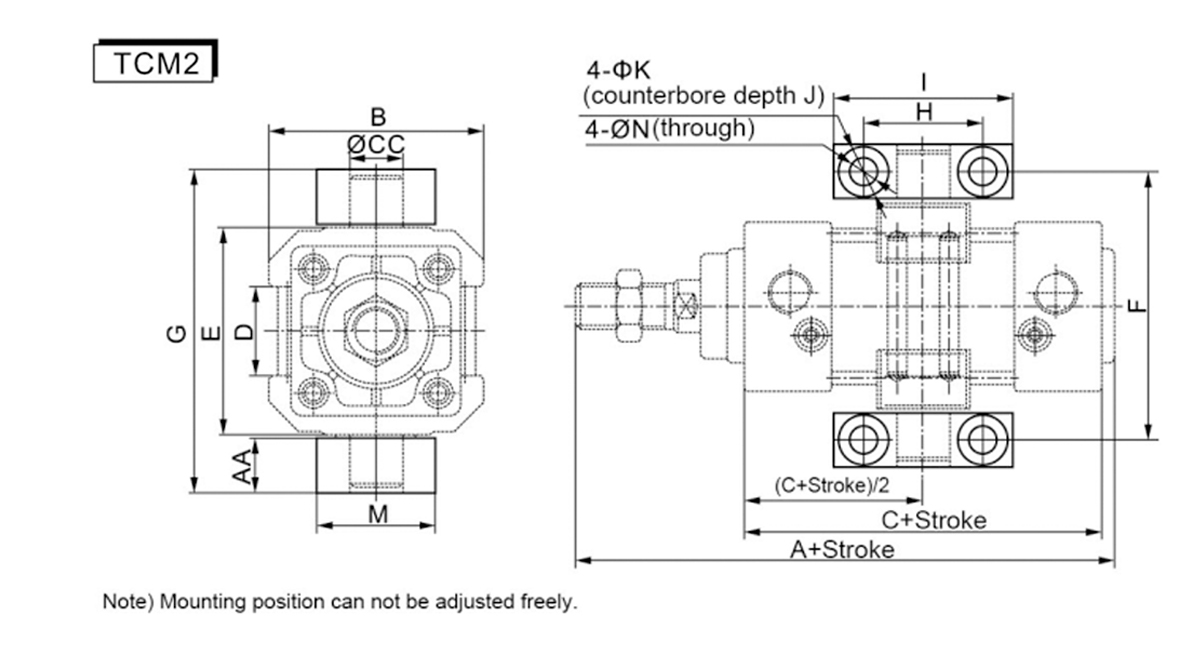

    Symbol/
    Bore Size    		 32 40 50 63 80 100 125
    A 135 139 156 156 190 190 223
    AA 22 28 28 30 32 38 40
    B 66 86.5 91.5 115 126 157.5 175
    C 84 84 94 94 114 114 120
    CC 40 54 54 70 70 90 90
    D 11 11 11 11 11 19 19
    E 9 12 12 12 12 18 18
    F 60 75 75 85 85 115 115
    G 80 100 100 110 110 155 155
    H 52 65 75 90 112 135 170
    I 12 16 16 20 20 25 25
    J 20 27 31 42 54 68 80
    K 50 63 75 90 110 132 160
    L 62 79 91 110 130 157 185
    M 77 98 110 133 153 185 213
    N 12 16 16 20 20 25 25

    Symbol/
    Bore Size    		 32 40 50 63 80 100 125
    A 135 139 156 156 190 190 223
    AA 14 17 17 20.5 20.5 24.5 24.5
    B 52 65 75 90 112 135 170
    C 84 84 94 94 114 114 120
    CC 12 16 16 20 20 25 25
    D 20 27 31 42 54 68 80
    E 50 63 75 90 110 132 160
    F 66 82 94 113.5 133.5 159.5 187.5
    G 80 99 111 134 154 184 212
    H 32 36 36 42 42 50 50
    I 46 55 55 65 65 75 75
    J 6.8 9 9 11 11 14 14
    K 11 15 15 18 18 20 20
    M 30 36 36 40 40 50 50
    N 7 9 9 11 11 14 14
