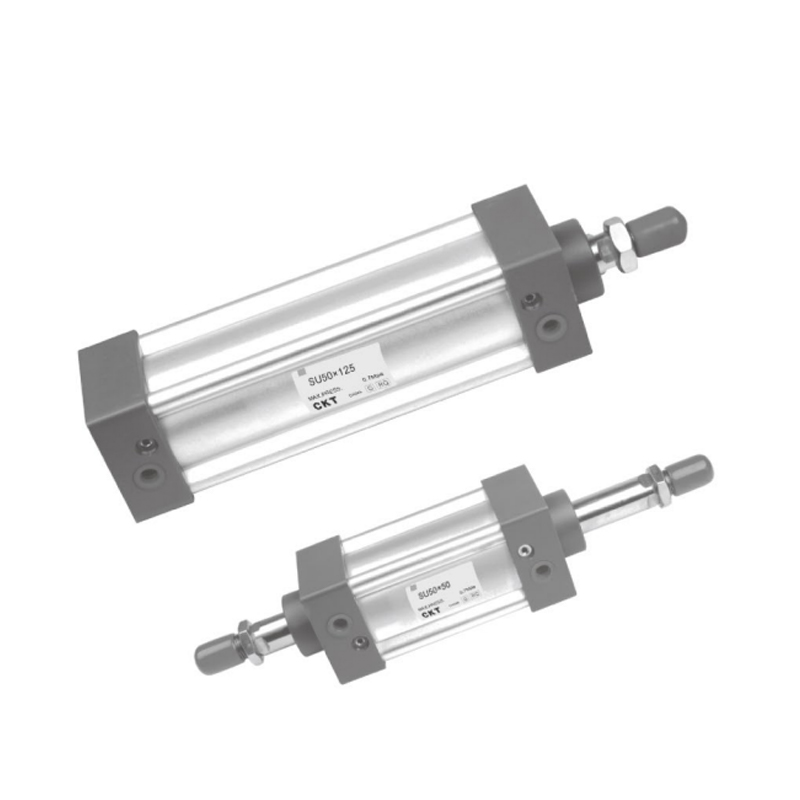

SU Series Standard Cylinder (No Tie Rod Type)

Home / Products / Air Cylinder / Standard Cylinder / SU Series Standard Cylinder (No Tie Rod Type)

SU Series Standard Cylinder (No Tie Rod Type)
  • SU Series Standard Cylinder (No Tie Rod Type)
Standard Cylinder

SU Series Standard Cylinder (No Tie Rod Type)

1. The piston seal adopts a special-shaped bidirectional sealing structure with compact size and oil storage function;
2. The aluminum tube is a M-shaped tube without a tie rod and has good anti-corrosion performance;
3. Compared with ISO15552 standard cylinders, the length of SU series cylinders with the same cylinder diameter is smaller;
4. The cylinder buffer adjustment is stable;
5. The cylinder installation accessories are shared with SC series cylinders;
6. The selection of high-temperature resistant sealing materials can ensure the normal operation of the cylinder under 150°C conditions.

E-mail: manager@cktworld.com
Download
PREV：SI Series Standard Cylinder (No Tie Rod Type)
NEXT：MBB Series Standard Cylinder
  • Bore Size (mm) 32 40 50 63 80 100
    Action Double acting
    Fluid Air (to be filtered by 40μm filter element)
    Mounting
    Type    		 C-SU series Bacis FA FB CA CB LB TC TCM1
    C-SUD,C-SUJ series Bacis FA LB TC TCM1
    Operating Preessure Range 0.1~1.0MPa(14~145Psi)
    Proof Pressure 1.5MPa(215Psi)
    Operating Temperature(℃) -20~80
    Operating Speed Range (mm/s) 30~800
    Stroke Length Tolerance 0~250+1.0 251~1000+1.4 1001~1500+1.8
    Cushion Adjustable cushhion
    Cushion Stroke 21 28 29
    *Port Size PT1/8 PT1/4 PT3/8 PT1/2
    *NPT and G thread types are available for the connection.

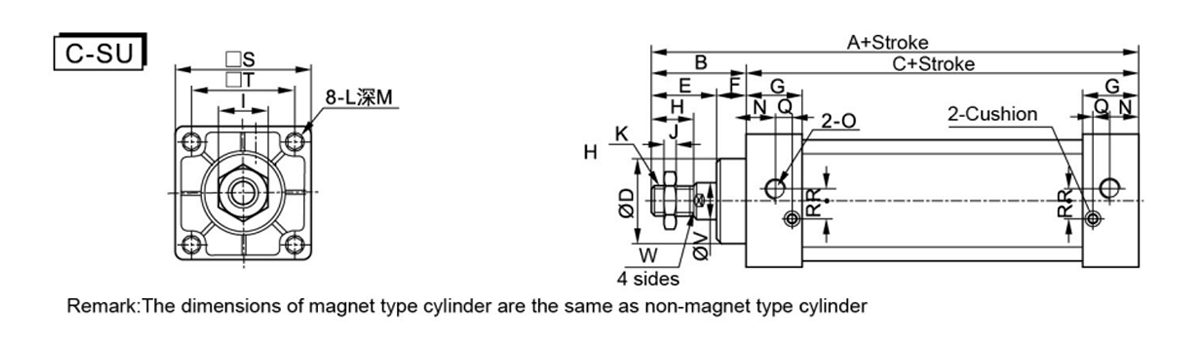

  • Bore Size/Symbol A B C D E F G H I J K L M N 0 P Q R S T V W
    32 140 47 93 28 32 15 27.5 22 17 6 M10×1.25 M6×1 9.5 14 PT1/8 5.5 6 6.5 45 33 12 10
    40 142 49 93 32 34 15 27.5 24 17 7 M12×1.25 M6×1 9.5 15 PT1/4 6 5 8.5 50 37 16 14
    50 150 57 93 38 42 15 27.5 32 23 8 M16×1.5 M6×1 9.5 17 PT1/4 8.5 2.5 10 62 47 20 17
    63 153 57 96 38 42 15 27.5 32 23 8 M16×1.5 M8×1.25 9.5 15 PT3/8 9.5 4 8.5 75 56 20 17
    80 182 75 107 47 54 21 33 40 26 10 M20×1.5 M10×1.5 11.5 19.5 PT3/8 10 4.5 14 94 70 25 22
    100 188 75 113 47 54 21 33 40 26 10 M20×1.5 M10×1.5 11.5 16.5 PT1/2 11 6.5 14 112 84 25 22

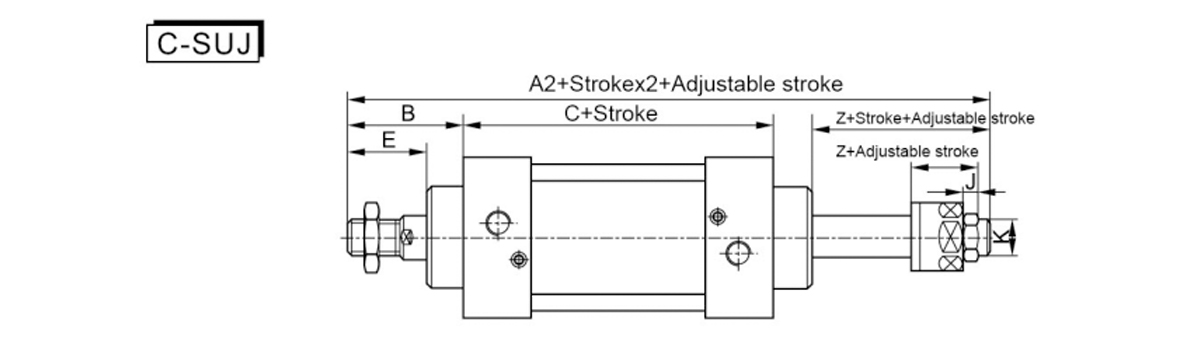

    Bore Size/Symbol A1 A2 B C E Z J K
    32 187 182 47 93 32 27 6 M10×1.25
    40 191 185 49 93 34 28 7 M12×1.25
    50 207 194 57 93 42 29 8 M16×1.5
    63 210 197 57 96 42 29 8 M16×1.5
    80 257 238.5 75 107 54 35.5 10 M20×1.5
    100 263 244.5 75 113 54 35.5 10 M20×1.5
    Remark:1.The dimensions of magnet type cylinder are the same as non-magnet type cylinder;2.The same size as C-SU standard type for the Model not showthe size.

    Bore Size/Symbol A C HA HB HE HF HP HQ HR HT HJ
    32 140 93 80 60 72 62 9 12 74 11 40
    40 142 93 103 80 109 86 11 23 113 12 50
    50 150 93 103 80 122 99 11 23 126 12 50
    63 153 96 103 80 134 111 11 23 138 12 50
    80 182 107 110 85 160 137 13 23 164 12 70
    100 188 113 110 85 178 155 13 23 182 12 70

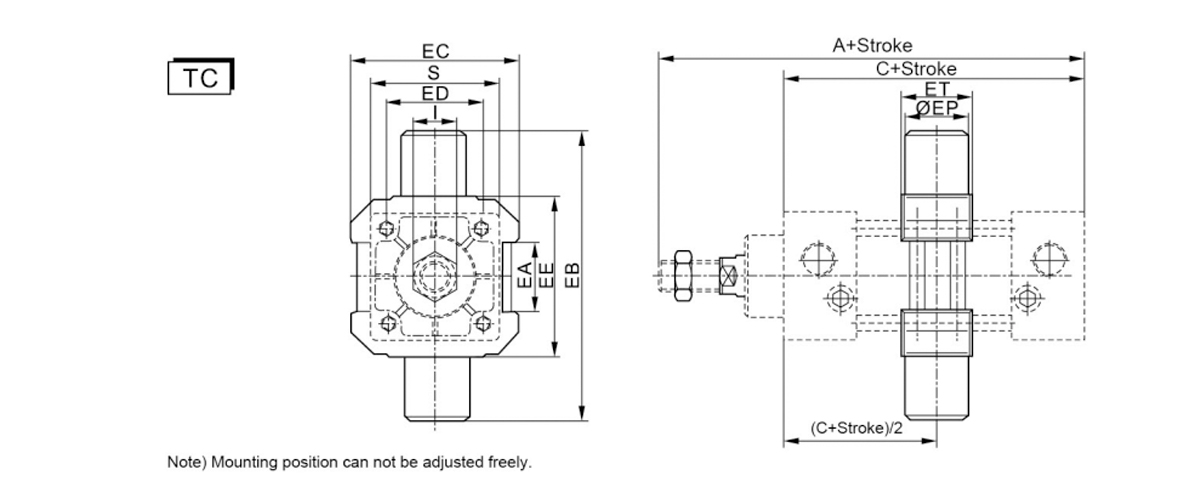

    Bore Size/Symbol A C EA EB EC ED EE EP ET I S
    32 140 93 20 74 52 33 50 12 22 17 45
    40 142 93 27 113 65 37 63 25 28 17 50
    50 150 93 31 126 75 47 76 25 28 23 62
    63 153 96 42 138 90 56 88 25 30 23 75
    80 182 107 54 164 112 70 114 25 32 26 94
    100 188 113 68 182 135 84 132 25 38 26 112
    The installation dimensions of other attachments are exactly the same as those of the C-SC series cylinders.
