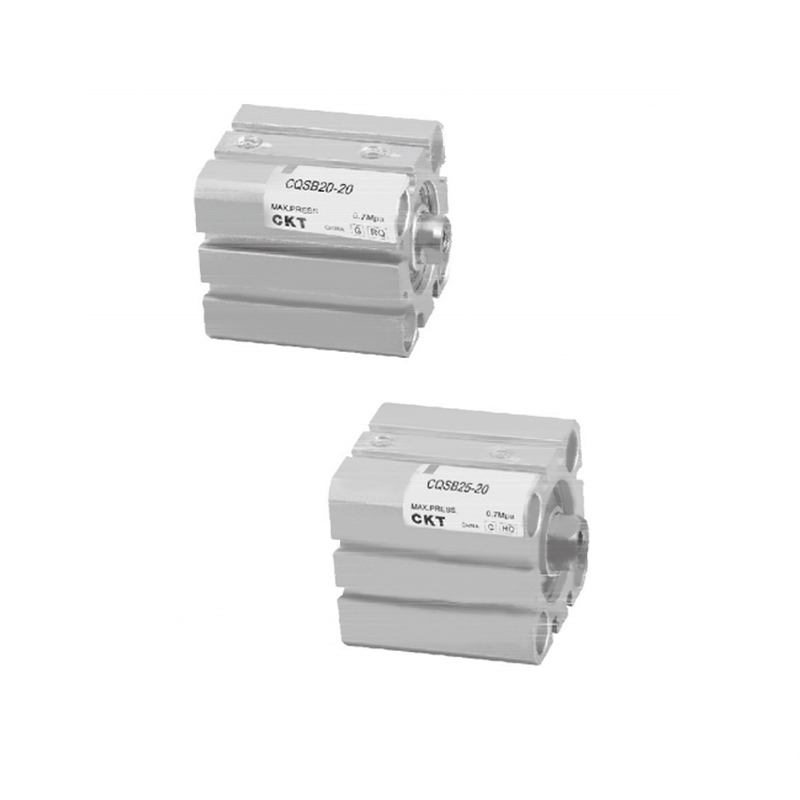

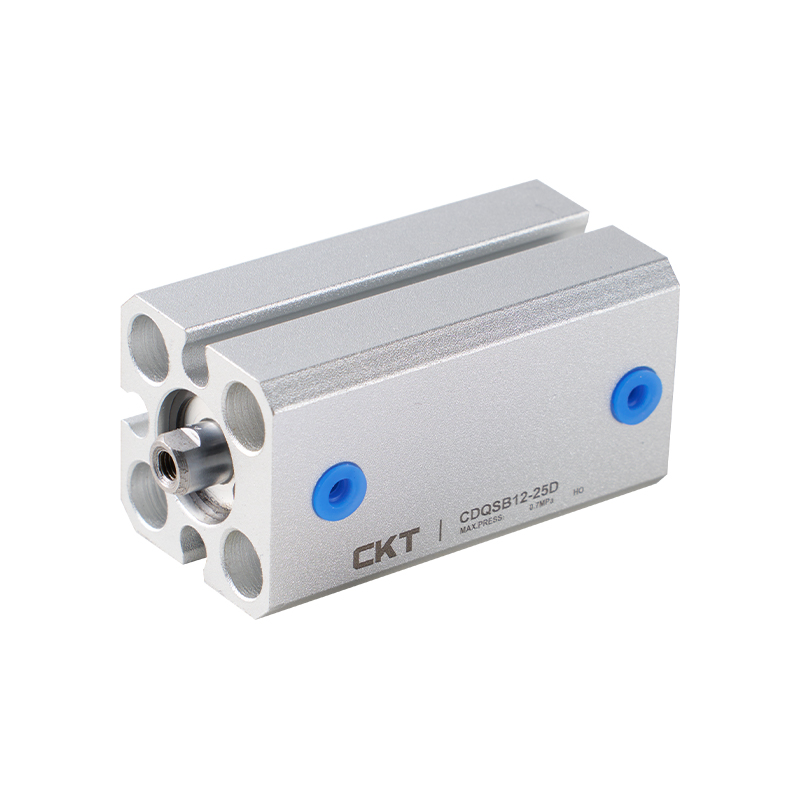

CQS Series New Thin Cylinder

As an efficient pneumatic actuator in the field of modern industrial automation, the CQS Series New Thin Cylinder has achieved the coordinated optimization of space occupation and functional configuration through structural innovation, providing a more flexible drive solution for compact equipment layout.

1. Multi-directional installation compatibility design
The cylinder body integrates a multi-dimensional magnetic switch installation interface. Among them, the small cylinder diameter specification provides a three-way installation reference surface, and the medium and large cylinder diameter specifications are extended to a four-sided installation mode including the port reference surface, which significantly improves the layout freedom and adaptability of the sensing element.

2. Space utilization optimization architecture
Adopting a positive compression compact configuration, the key motion components are topologically optimized. Under the premise of maintaining standard output performance, the axial and radial space occupation is simultaneously reduced, effectively releasing the internal space resources of the equipment.

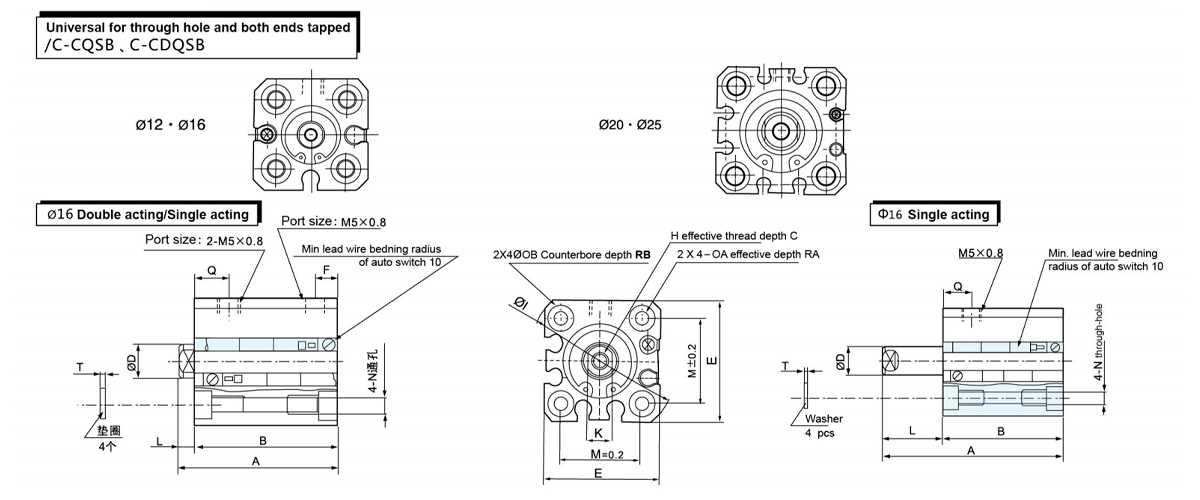

3. Composite installation structure
The base integrates through-hole penetration and threaded embedded dual installation carriers. Through modular interface design, it is compatible with the connection requirements of mainstream mechanisms, reduces the complexity of system integration, and supports rapid deployment in multiple scenarios.
