CQM Series Thin Cylinder (Guide Rod Type)

Home / Products / Air Cylinder / Thin Cylinder / CQM Series Thin Cylinder (Guide Rod Type)

CQM Series Thin Cylinder (Guide Rod Type) CQM Series Thin Cylinder (Guide Rod Type) CQM Series Thin Cylinder (Guide Rod Type)
  • CQM Series Thin Cylinder (Guide Rod Type)
  • CQM Series Thin Cylinder (Guide Rod Type)
  • CQM Series Thin Cylinder (Guide Rod Type)
Thin Cylinder

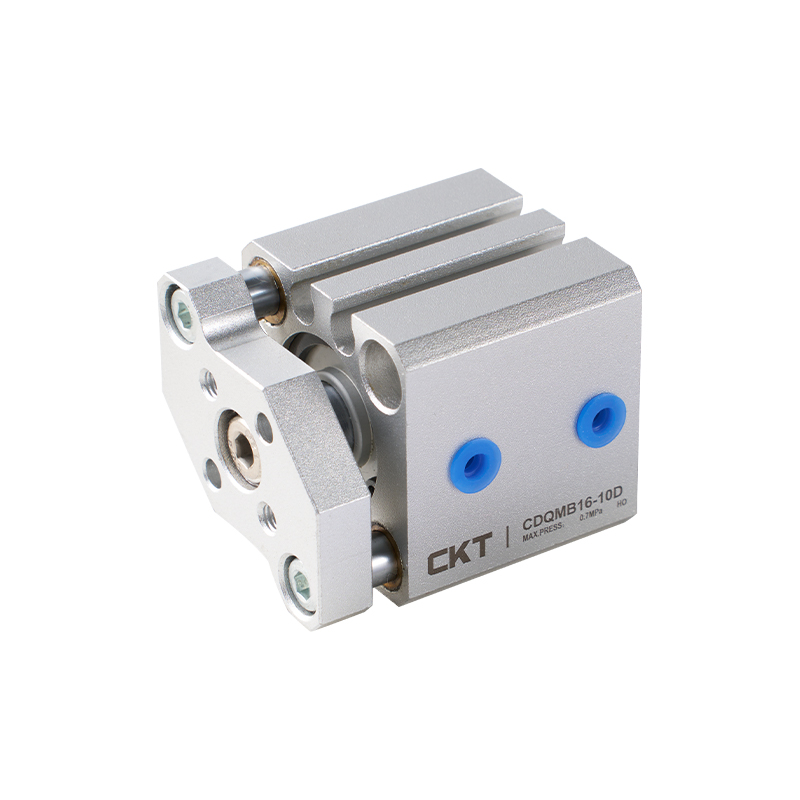

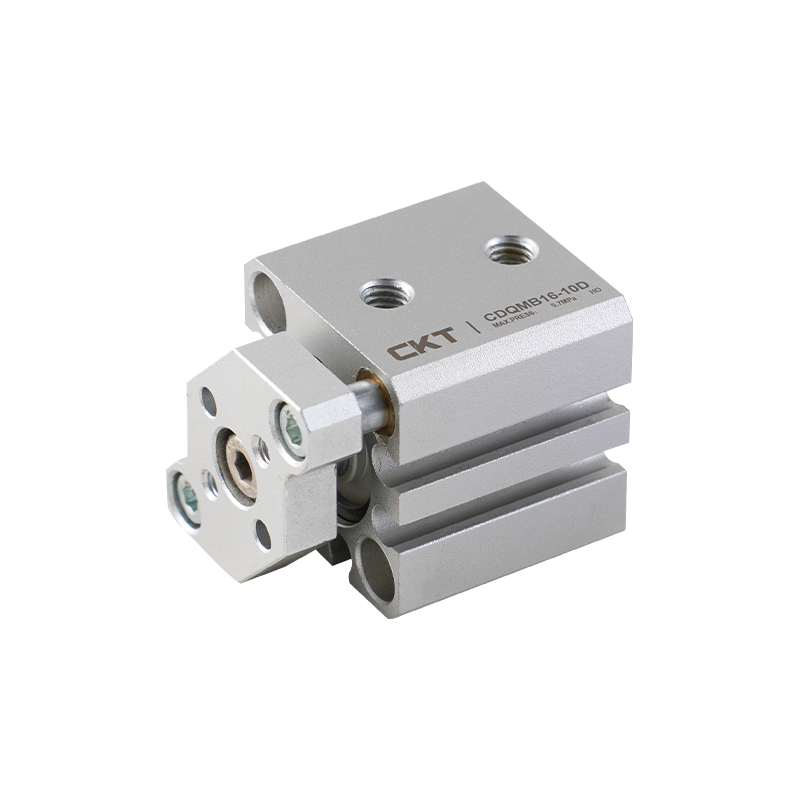

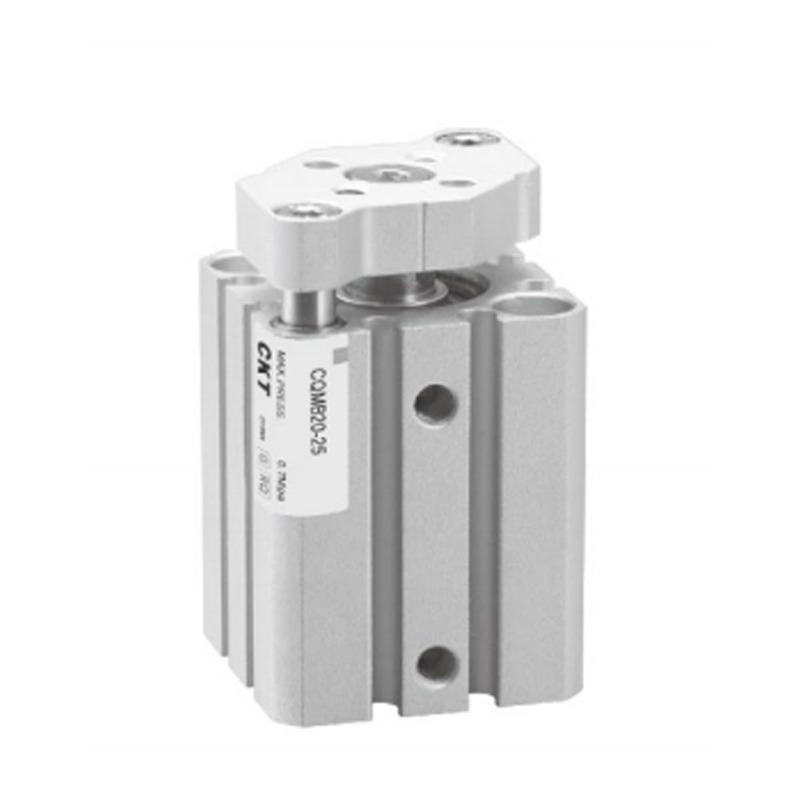

CQM Series Thin Cylinder (Guide Rod Type)

CQM Series Thin Cylinder (Guide Rod Type) is designed for high-rigidity guide and compact space conditions. It integrates load support and anti-torsion functions through a dual guide rod structure to meet the needs of precision positioning.

1. Standardized and reinforced structure
Following JIS standard specifications, it adopts a dual guide rod integrated design to ensure structural rigidity and operational stability.

2. Space adaptability
The compact body significantly reduces the installation space requirements and is suitable for space-constrained automation scenarios.

3. Composite anti-eccentric load capability
The dual guide rod system simultaneously suppresses rotational offset, provides excellent anti-bending and anti-torsion performance, and adapts to asymmetric load conditions.

4. High load compatibility
The guide rod mechanism can carry large motion loads and lateral forces, reducing the stress effect of cantilever conditions on the cylinder body.

5. Precision guide control
The end non-rotation accuracy is ≤±0.2°, ensuring high-precision linear motion trajectory.

6. Installation compatibility
The main body installation dimensions are interoperable with the standard thin cylinder series of the same specifications, supporting rapid replacement or upgrade of equipment.

E-mail: manager@cktworld.com
Download
PREV：CQS Series New Thin Cylinder
NEXT：CQ2 Series Thin Cylinder (Large Bore Size)

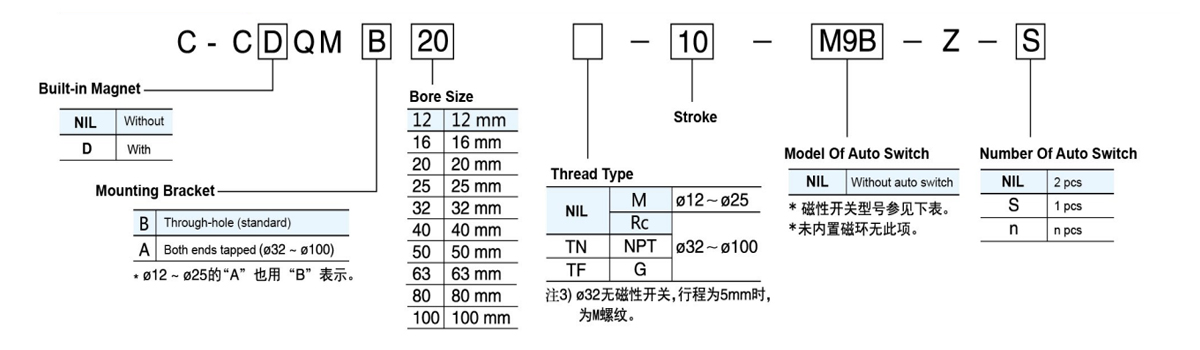

  • Action Single Rod,Double Acting
    Max.Operating Pressure 1.0   MPa
    Min.Operating
    Pressure    		 Ø12,Ø16 0.12   MPa
    Ø20~0100 0.1   MPa
    Ambinet &Fluid Temperature Without auto switch:-10~+70℃,With auto switch:-10~+60℃(No freezing)
    Cushion Both sides bumper
    Stroke Length Tolerance +10mm
    Piston Speed Ø12~Ø40 50~500     mm/s
    Ø50~Ø100 50~300     mm/s

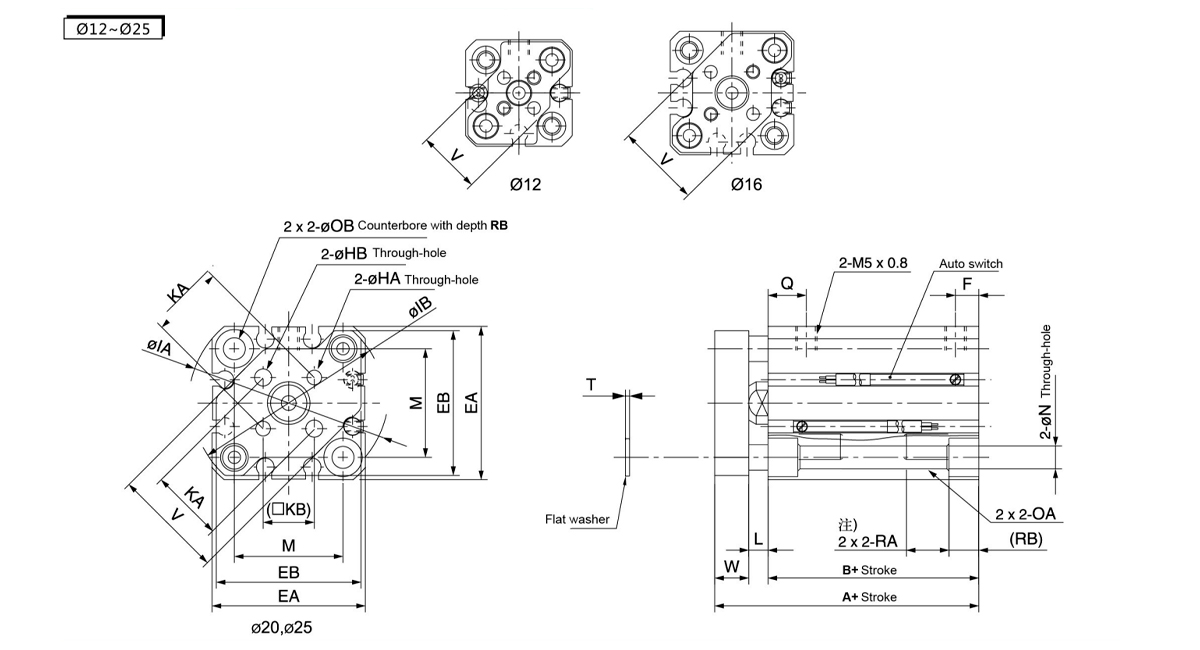

  • Bore
    Size
    (mm)    		 Stroke
    Range
    (mm)    		 Without Auto Switch With Auto Switch EA EB F HA OA HB IA IB KA KB L M N OB Q RA RB T V W
    A B  A B
    12  5~30 26.5  17  31.5  22  25  24  5  M3×0.5 M4×0.7 3  32  31.5  10  7.1  3.5  15.5  3.5  6.5  7.5  7  4  0.5  14.9  6
    16  5~30 26.5  17  31.5  22  29  28  5  M3×0.5 M4×0.7 3  38  37  14  9.9  3.5  20  3.5  6.5  7.5  7  4  0.5  20  6
    20  5~50 32  19.5  42  29.5  36  34  5.5  M4×0.7 M6×1.0 4  47  45.5  17  12  4.5  25.5  5.4  9  9  10  7  1  26  8
    25  5~50 35.5  22.5  45.5  32.5  40  38  5.5  M5×0.8 M6×1.0 5  52  50.5  22  15.6  5  28  5.4  9  11  10  7  1  30  8

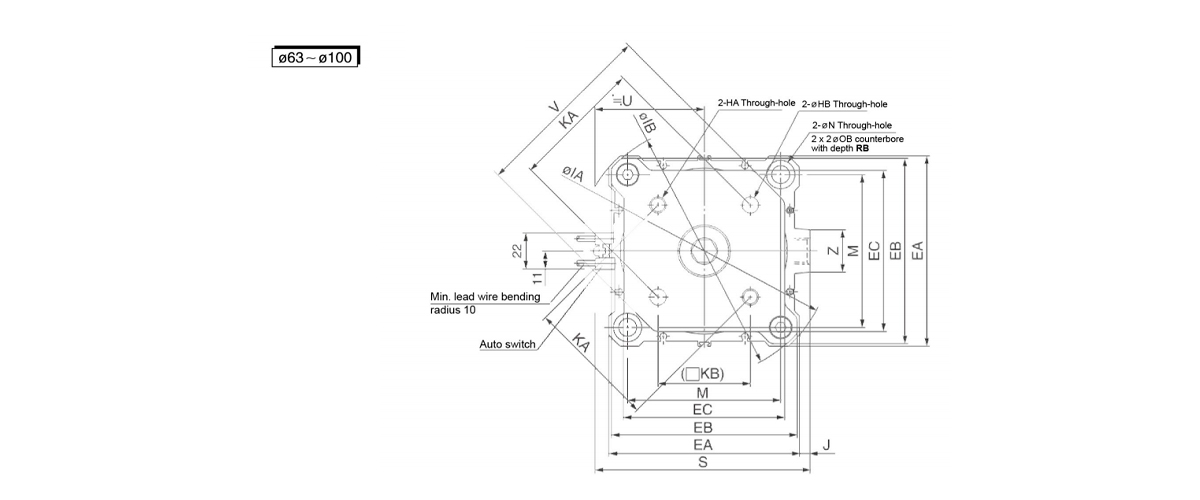

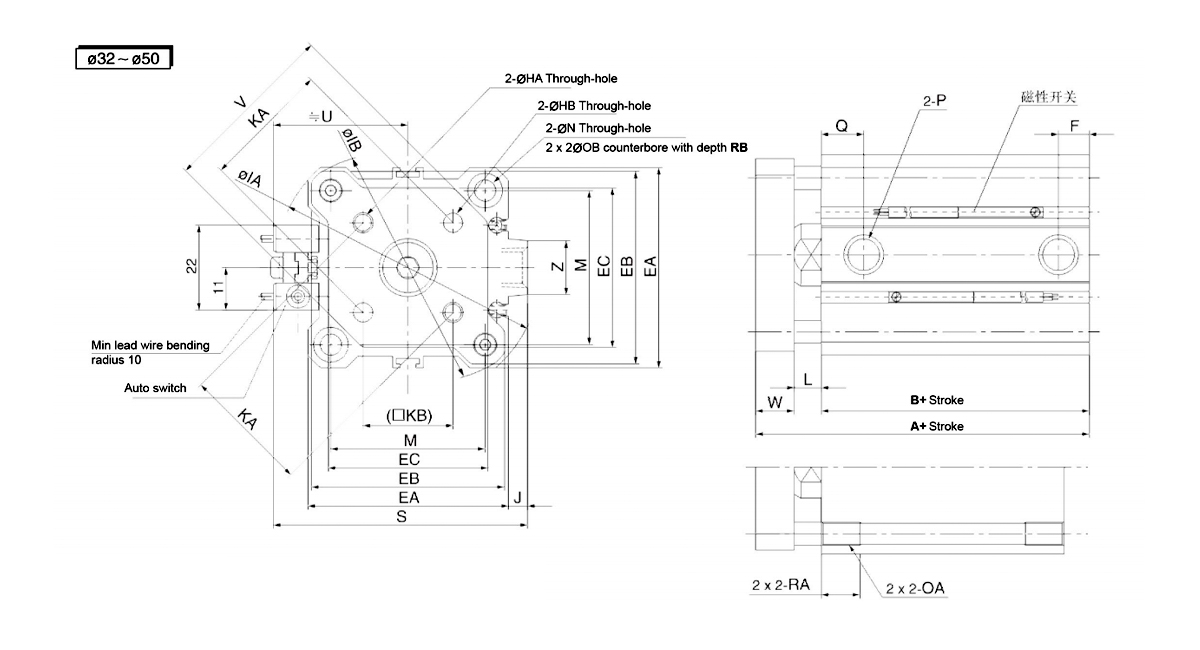

    Both  Ends  Tapped  (C-CQMA)
    Bore Size
    (mm)    		 HA OA HB IA IB J KA KB L M N OB RA RB S U V W Z
    32  M5×0.8 M6×1.0 5  60  58.5  4.5  28  19.8  7  34  5.5  9  10  7  58.5  31.5  38  10  14
    40  M5×0.8 M6×1.0 5  69  67.5  5  33  23.3  7  40  5.5  9  10  7  66  35  46  10  14
    50  M6×1.0 M8×1.25 6  86  84.5  7  42  29.7  8  50  6.6  11  14  8  80  41  58  12  19
    63  M6×1.0 M10×1.5 6+02 103  100  7  50+02 35.4  8  60  9  14  18  10.5  93  47.5  69  12  19
    80  M8×1.25 M12×1.75 8 +02 132  129  6  65+02 46  10  77  11  17.5  22  13.5  112.5  57.5  89  14  26
    100  M10×1.5 M12×1.75 10+0.2 156  153  6.5  80+02 56.6  10  94  11  17.5  22  13.5  132.5  67.5  113  16  26


    Bore Size
    (mm)
    Stroke Range
    (mm)    		   Without Auto Switch With Auto Switch EA EB EC
    A B F Q  P A B F Q P
    - TN TF - TN TF
    32  5  40  23  5.5  11.5  M5×0.8 - - 50  33  7.5  10.5  Rc1/8 NPT1/8 G1/8 45  43  34.4
    10~50 7.5  10.5  Rc1/8 NPT1/8 G1/8
    75 ·100 50  33
    40  5~50 46.5  29.5  8  11  Rc1/8 NPT1/8 G1/8 56.5  39.5  8  11  Rc1/8 NPT1/8 G1/8 52  50  41.4
    75 ·100 56.5  39.5
    50  10~50 50.5  30.5  10.5  10.5  Rc1/4 NPT1/4 G1/4 60.5  40.5  10.5  10.5  Rc1/4 NPT1/4 G1/4 64  62  53.4
    75 ·100 60.5  40.5
    63  10~50 56  36  10.5  15  Rc1/4 NPT1/4 G1/4 66  46  10.5  15  Rc1/4 NPT1/4 G1/4 77  74  59.6
    75 ·100 66  46
    80  10~50 67.5  43.5  12.5  16  Rc3/8 NPT3/8 G3/8 77.5  53.5  12.5  16  Rc3/8 NPT3/8 G3/8 98  95  79.5
    75 ·100 77.5  53.5
    100  10~50 79  53  13  23  Rc3/8 NPT3/8 G3/8 89  63  13  23  Rc3/8 NPT3/8 G3/8 117  114  99
    75 ·100 89  63
