CQ2 Series Thin Cylinder (Large Bore Size)

Home / Products / Air Cylinder / Thin Cylinder / CQ2 Series Thin Cylinder (Large Bore Size)

CQ2 Series Thin Cylinder (Large Bore Size)
  • CQ2 Series Thin Cylinder (Large Bore Size)
Thin Cylinder

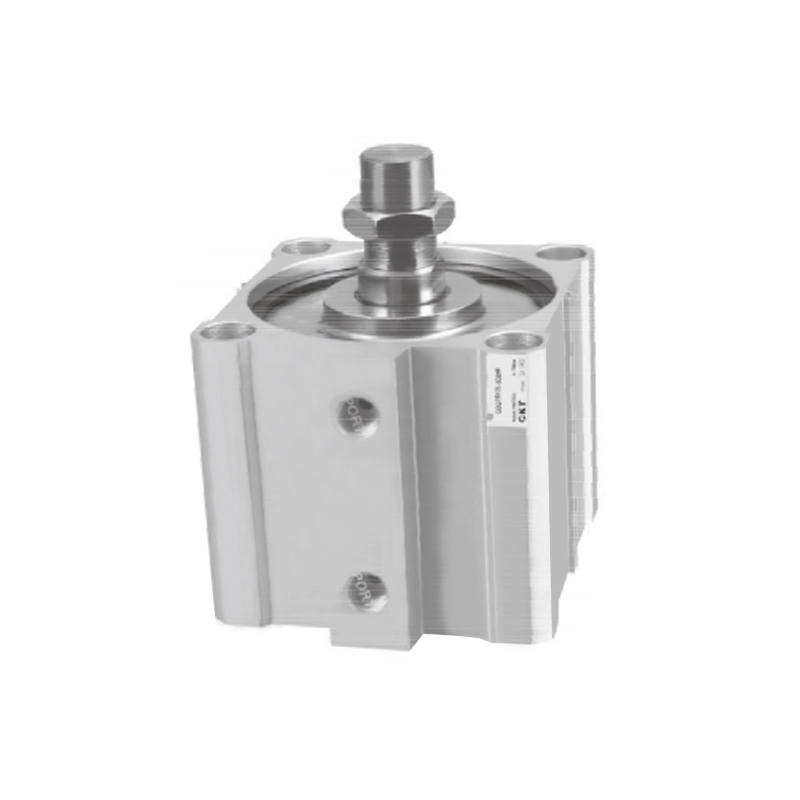

CQ2 Series Thin Cylinder (Large Bore Size)

CQ2 Series Thin Cylinder (Large Bore Size) is known for its large bore size and is a typical solution for drive components in space-sensitive situations in the field of industrial automation. Its core design concept is to minimize the axial installation size while ensuring the necessary output force, providing greater flexibility for equipment layout.

• Standard compliance: Its design and manufacturing comply with the requirements of the prevailing industrial basic specifications.

• Structural connection: The cylinder body and the end cover adopt a unique annular locking method to form a stable and reliable connection with extremely small axial dimensions.

• Inner wall characteristics: The inner wall of the cylinder barrel is treated with a special surface strengthening process, which gives it excellent wear resistance and ensures long-term durability.

• Space advantage: The significantly optimized axial length is its outstanding feature, which can effectively reduce the demand for equipment installation space.

• Sensing integration: The outer periphery of the cylinder barrel is designed with a standardized groove structure to facilitate the rapid installation and positioning of the stroke position detection sensor.

E-mail: manager@cktworld.com
Download
PREV：CQM Series Thin Cylinder (Guide Rod Type)
NEXT：CQ2 Series Thin Cylinder (Long Stroke)

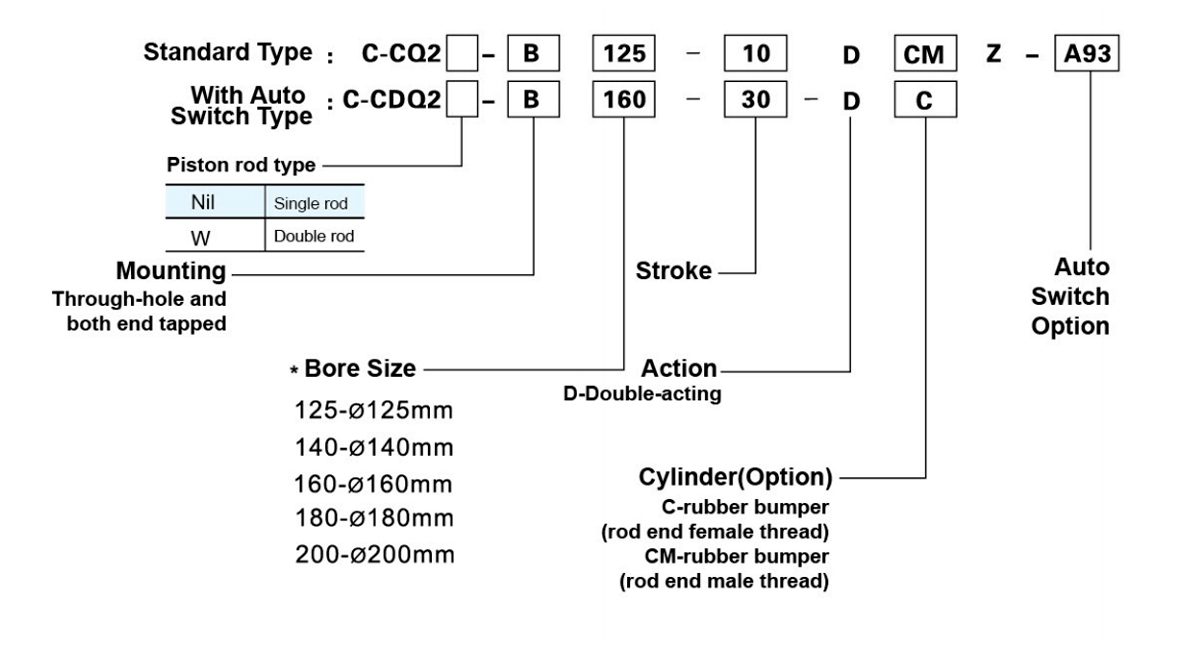

  • Bore Size(mm) 125    140    160    180    200
    Fluid Air
    Action Double-acting
    Proof Pressure 1.5MPa(15.3kgf/cm²)
    Max.Operating Pressure 1.0MPa(10.2kgf/cm²)
    Min.Operating Pressure 0.05MPa(0.51kgf/cm²)
    Ambient &Fluid Temperature -10~+60℃
    Rod End Thread Female thread(Standard),Male thread(Option)
    Cushion Standard rubber bumper
    Piston Speef 50-500mm/s 20-400mm/s
    Stroke Length Tolerance +1.40
    *Lubrication Not required
    Mounting Through-hoe and both end tapped
    Tube Diameter Rc(PT)3/8 Rc(PT)1/2
    *Please use ISOVG32 if you want to use lubrication.

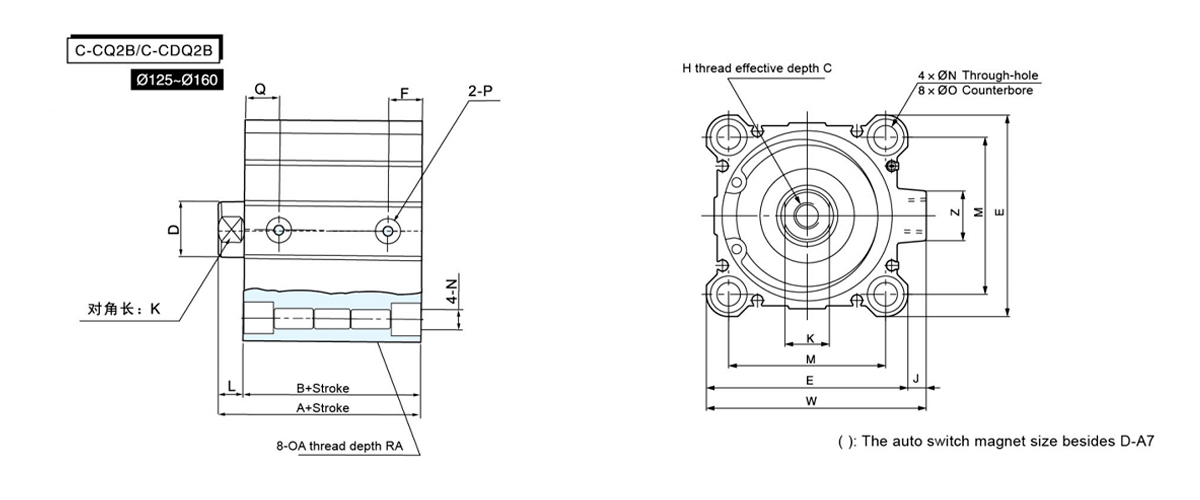

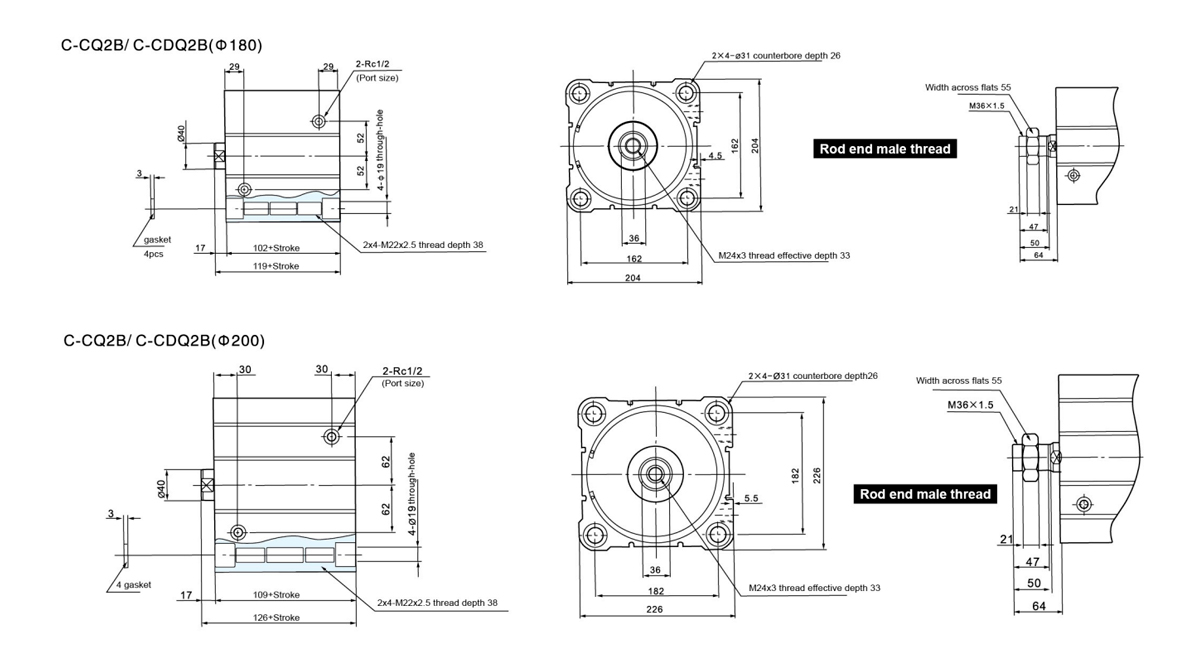

  • Bore
    Size    		 Standard Stroke(mm) A B C D E F H I J K L M N OA OB   P Q RA RB Z
    125  10,20,30,40,50,75,100,125,150,175,200,250,300 99  83  30  036  142  24.5  M22×2.5 190  11  32  16  114  12.5  M14×2 21.2  Rc3/8 24.5  25  18.4  32
    140  99  83  30  036  158  24.5  M22×2.5 210  10  32  16  128  12.5  M14×2 21.2  Rc3/8 24.5  25  18.4  32
    160  108  91  33  040  178  27.5  M24×3 238  10  36  17  144  14.5  M16×2 24.2  Rc3/8 27.5  28  21.2  32

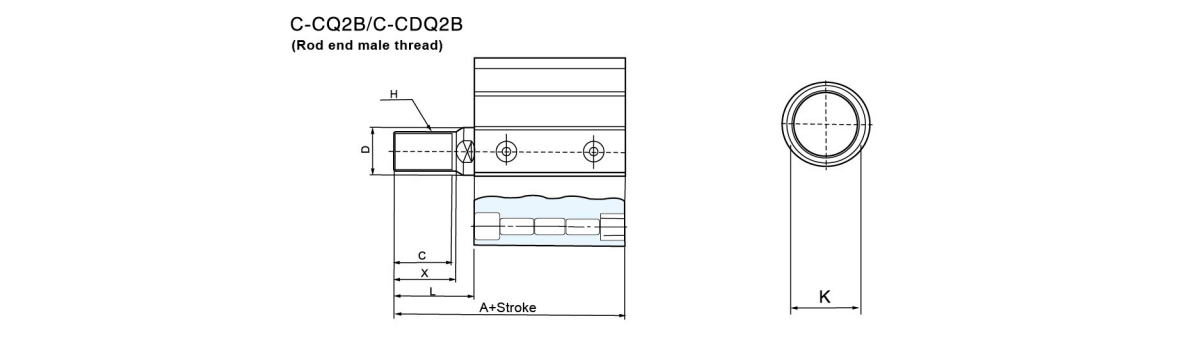

    Bore Size
    (mm)    		 A C D H K L X
    125  141  42    Ø36 M30×1.5 32  58  45
    140  141  42  Ø36 M30×1.5 32  58  45
    160  155  47    Ø40 M36×1.5 36  64  50

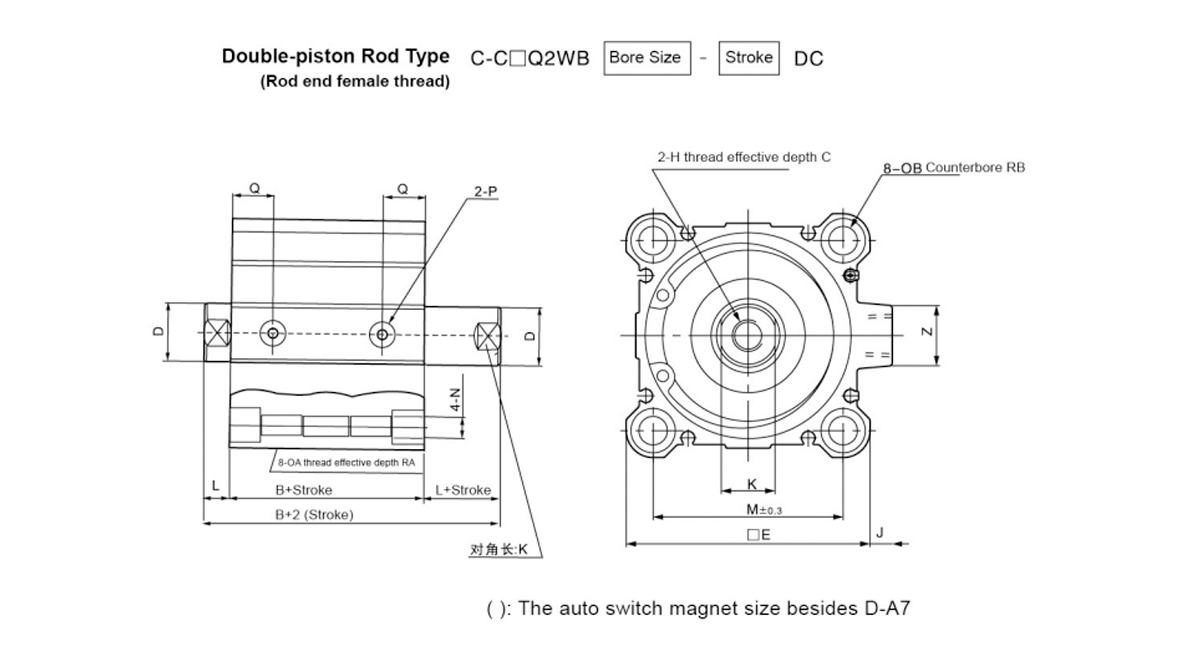

    Bore Size Standard Stroke A B C D E H I J K L M N OA OB P Q RA RB Z
    125 10,20,30,40,50,75,100,125,150,175,200,250,300 115 83 30(22.5) Ø36 142 M22×2.5 190 11 32 16 114 12.5 M14×2 21.2 45724 24.5 25 18.4 32
    140 115 83 30(22.5) Ø36 158 M22×2.5 210 10 32 16 128 12.5 M14×2 21.2 45724 24.5 25 18.4 32
    160 125 91 33(26.5) Ø40 178 M24×3 238 10 36 17 144 14.5 M16×2 24.2 45724 27.5 28 21.2 32

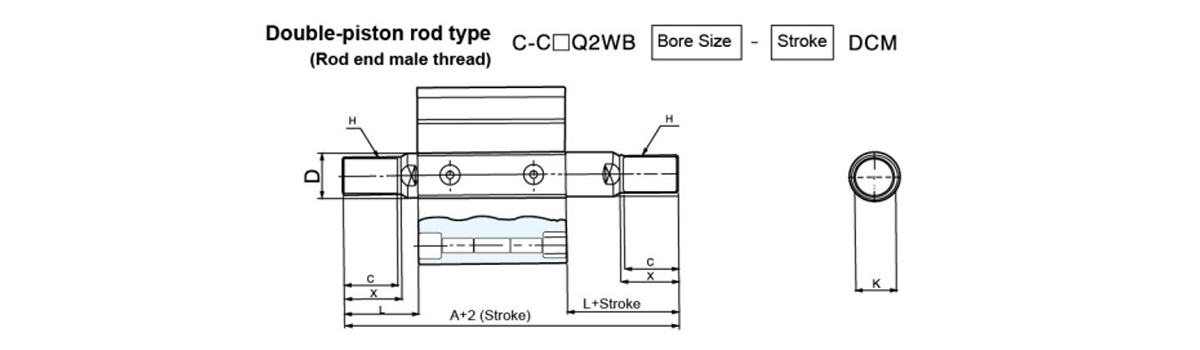

    Bore Size A C   D H K L X
    125  199  42  Ø36 M30×1.5 32  58  45
    140  199  42  Ø36 M30×1.5 32  58  45
    160  219  47  Ø40 M36×1.5 36  64  50
